Makita GA7082
Makita GA7082: exploded parts diagram, 1 sheet, 47 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita GA7082: 47 positions on 1 sheet

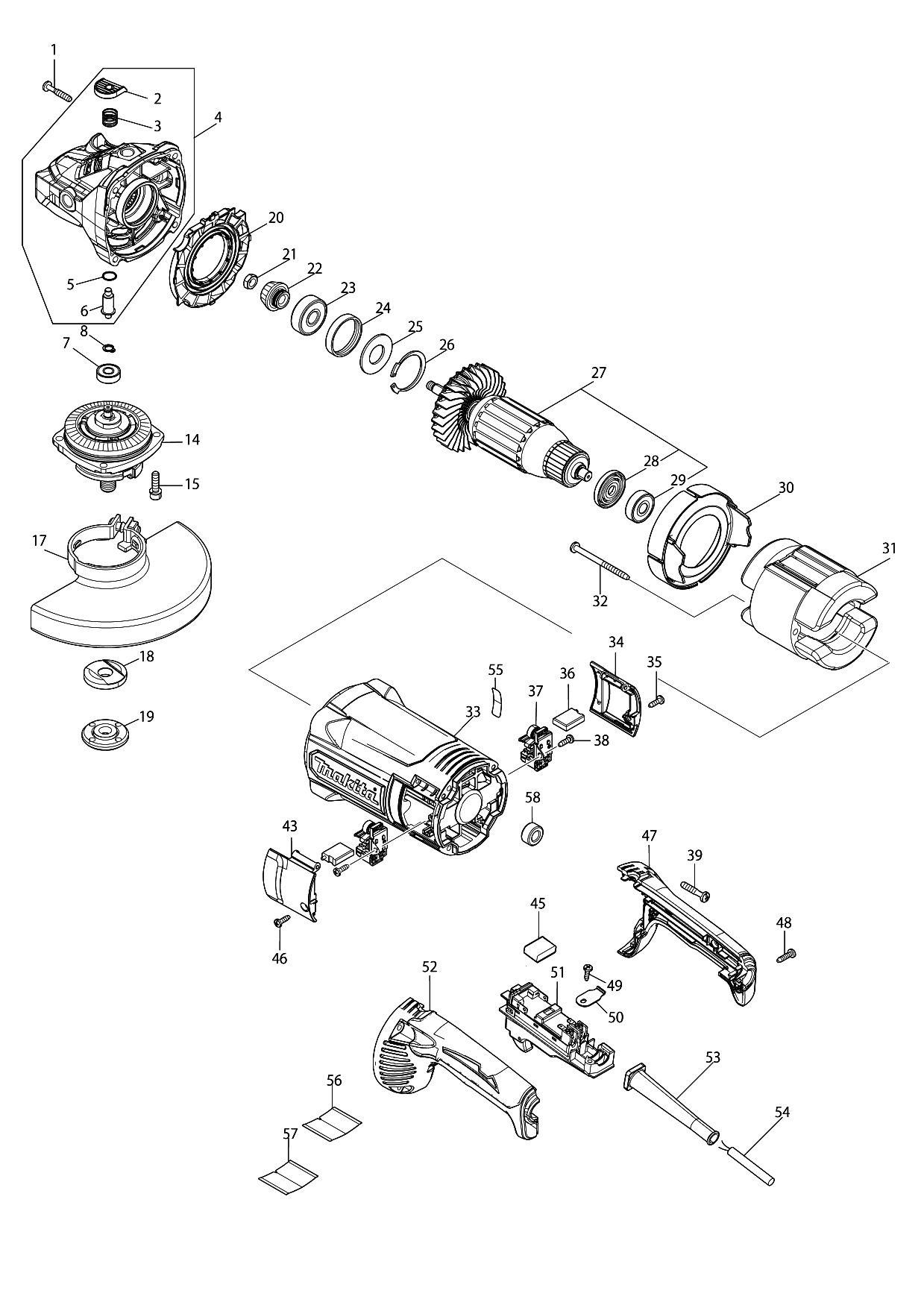

Sheet 1: Makita GA7082 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 251489-7 | Makita 251489-7 TAPPING SCREW 5X30 GA9060 |
| 2 | 413H41-9 | |
| 3 | 233292-8 | Makita 233292-8 COMPRESSION SPRING 12, 9069 |
| 5 | 213062-1 | Makita 213062-1 O-RING 9, GA9020 |
| 6 | 256491-5 | Makita 256491-5 SHOULDER PIN 5, GA9020 |
| 7 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 8 | 961004-6 | Makita 961004-6 RETAINING RING S-8 |
| 14 | 122C65-1 | |
| 15 | 265541-5 | Makita 265541-5 HEX.SOCKET HEAD BOLT M5X22, GA9020 |
| 17 | 122889-7 | |
| 18 | 224490-5 | Makita 224490-5 INNER FLANGE 14-45 |
| 19 | 224485-8 | Makita 224485-8 LOCK NUT 14-45 |
| 20 | 456238-9 | Makita 456238-9 DIFFUSER |
| 21 | 252194-9 | Makita 252194-9 HEX NUT M8, GA9020 |
| 22 | 227954-8 | |
| 23 | 211132-0 | Makita 211132-0 BALL BEARING 6301DDW, 9069 |
| 24 | 262085-6 | Makita 262085-6 RUBBER RING 38, GA9020 |
| 25 | 267299-2 | Makita 267299-2 FLAT WASHER 20, GA9020 |
| 26 | 962211-4 | Makita 962211-4 RETAINING RING R-42, GA9020 |
| 27 | 511A29-2 | |
| 28 | 681630-2 | Makita 681630-2 INSULATION WASHER, GA9020 |
| 29 | 211087-9 | Makita 211087-9 Ball Bearing 6200DDW JR3000V GA9020 BO4510 30 x 10 x 9 mm |
| 30 | 456239-7 | Makita 456239-7 BAFFLE PLATE |
| 31 | 627086-5 | |
| 32 | 266038-7 | Makita 266038-7 TAPPING SCREW?FLANGE?PT?5 X70 |
| 33 | 413599-0 | |
| 34 | 456246-0 | Makita 456246-0 BRUSH HOLDER COVER R, TEC B7463 |
| 35 | 266385-6 | Makita 266385-6 TAPPING SCREW M4*14, GA9020 |
| 36 | 191T31-1 | |
| 37 | 643715-2 | Makita 643715-2 BRUSH HOLDER |
| 38 | 266385-6 | Makita 266385-6 TAPPING SCREW M4*14, GA9020 |
| 39 | 251489-7 | Makita 251489-7 TAPPING SCREW 5X30 GA9060 |
| 43 | 456245-2 | Makita 456245-2 BRUSH HOLDER COVER L, TEC B7463 |
| 45 | 645088-9 | Makita 645088-9 Noise Suppressor for 9069 9067 9066 9015B |
| 46 | 266385-6 | Makita 266385-6 TAPPING SCREW M4*14, GA9020 |
| 47 | 183C63-0 | |
| 48 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 49 | 266385-6 | Makita 266385-6 TAPPING SCREW M4*14, GA9020 |
| 50 | 687169-3 | Makita 687169-3 CORD CLAMP, 9558PB |
| 51 | 632F75-3 | |
| 52 | 183C63-0 | |
| 53 | 682573-1 | Makita 682573-1 Cord Guard 10 for JR3050T |
| 54 | 695107-1 | Makita 695107-1 Power Supply Cord 1.5-2-2.5 for 9047S |
| 55 | 811S61-7 | |
| 56 | 811S57-8 | |
| 57 | 8038D3-7 | |
| 58 | 688131-1 | Makita 688131-1 Line Filter for HR2432 |
