Makita GA7050
Makita GA7050: exploded parts diagram, 1 sheet, 48 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita GA7050: 48 positions on 1 sheet

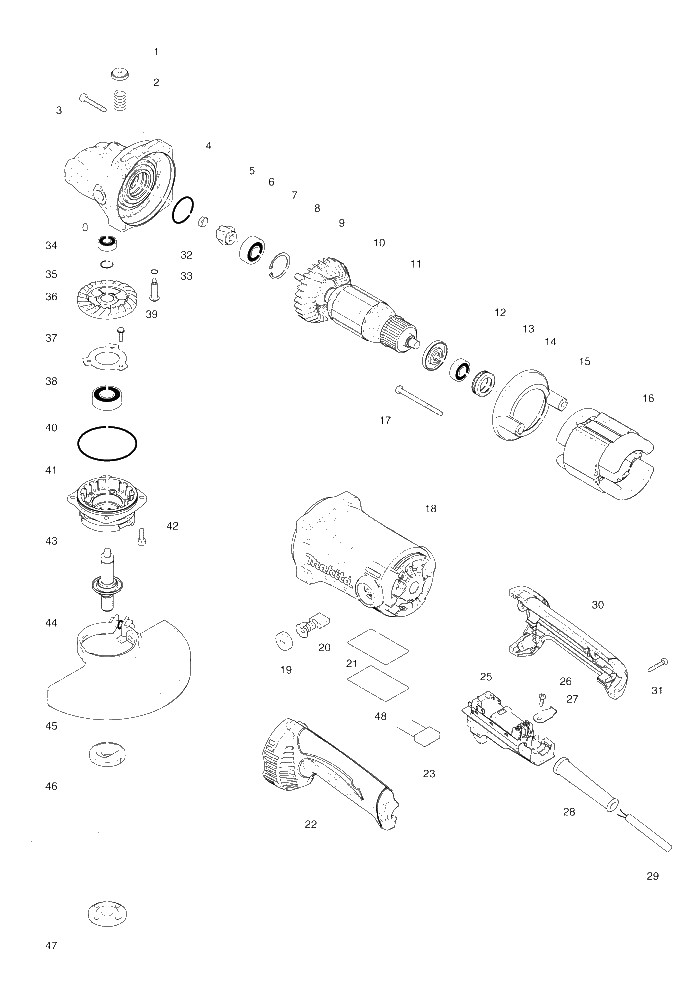

Sheet 1: Makita GA7050 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 451485-7 | Makita 451485-7 PIN CAP, GA9050 |
| 2 | 233292-8 | Makita 233292-8 COMPRESSION SPRING 12, 9069 |
| 3 | 266012-5 | Makita 266012-5 TAPPING SCREW 5X35, 9067 |
| 4 | 140223-9 | Makita 140223-9 GEAR HOUSING COMPLETE, GA9050 |
| 5 | 213487-9 | Makita 213487-9 O-RING 31, GA9050 |
| 6 | 264010-3 | Makita 264010-3 HEX NUT M7, GA5010 |
| 7 | 227564-1 | |
| 8 | 211137-0 | Makita 211137-0 BEARING 6201LLU, HR4002 |
| 9 | 257965-9 | Makita 257965-9 RETAINING RING R-32, GA7050 |
| 11 | 518747-7 | Makita 518747-7 ARMATURE ASSY 240V, GA9050RF01 |
| 12 | 681657-2 | Makita 681657-2 INSULATION WASHER, 9069 |
| 13 | 210059-1 | Makita 210059-1 Ball Bearing for 6000DDW 9069 |
| 14 | 421490-8 | Makita 421490-8 LABYRINTHIAN RUBBER RING, 9069 |
| 15 | 451480-7 | Makita 451480-7 BAFFLE PLATE, GA9050 |
| 16 | 527700-2 | Makita 527700-2 Field Assy 240V for GA7050 |
| 17 | 266389-8 | Makita 266389-8 TAPPING SCREW 5*70, UC3020A |
| 18 | 140222-1 | Makita 140222-1 MOTOR HOUSING COMPLETE, GA9050 |
| 19 | 643700-5 | Makita 643700-5 BRUSH HOLDER CAP *, 2414NB |
| 20 | 191957-7 | Makita 191957-7 Carbon Brushes CB-204 for 9049 9069 GA7040 GA7050 GA9010 |
| 21 | 867553-0 | |
| 22 | 188848-1 | |
| 23 | 645088-9 | Makita 645088-9 Noise Suppressor for 9069 9067 9066 9015B |
| 25 | 650102-8 | Makita 650102-8 Switch for 9069 GA7020 |
| 26 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 27 | 687169-3 | Makita 687169-3 CORD CLAMP, 9558PB |
| 28 | 682574-9 | Makita 682574-9 CORD GUARD, MT240 |
| 29 | 665865-3 | Makita 665865-3 POWER S.CORD CEE(H07RN-F), JR3060T |
| 30 | 188848-1 | |
| 31 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 32 | 213026-5 | Makita 213026-5 O RING 7, SA7000C |
| 33 | 256516-5 | Makita 256516-5 SHOULDER PIN 11, GA9050 |
| 34 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 35 | 211032-4 | Makita 211032-4 BALL BEARING 608ZZ, 5704R |
| 36 | 233925-5 | Makita 233925-5 RING SPRING 13, MT602 |
| 37 | 227562-5 | |
| 38 | 285851-4 | Makita 285851-4 BEARING RETAINER, GA9050 |
| 39 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 40 | 211228-7 | Makita 211228-7 BALL BEARING 6202DDW, GA9010 |
| 41 | 213720-9 | Makita 213720-9 O RING 67, GA9050 |
| 42 | 922221-3 | Makita 922221-3 HEX. BOLT, GA9010 |
| 43 | 318523-7 | Makita 318523-7 BEARING BOX, GA9050 |
| 44 | 140224-7 | Makita 140224-7 SPINDLE COMPLETE A, GA9050 |
| 45 | 122889-7 | |
| 46 | 224415-9 | Makita 224415-9 Inner Flange M14 |
| 47 | 224543-0 | Makita 224543-0 LOCK NUT M14 ANGLE GRINGERS 180-230MM |
| 48 | 805W68-7 | |
| 55 | ||
| 10 | 240120-0 | Makita 240120-0 FAN 80, GA9050 |
