Makita GA7040S
Makita GA7040S: exploded parts diagram, 1 sheet, 58 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita GA7040S: 58 positions on 1 sheet

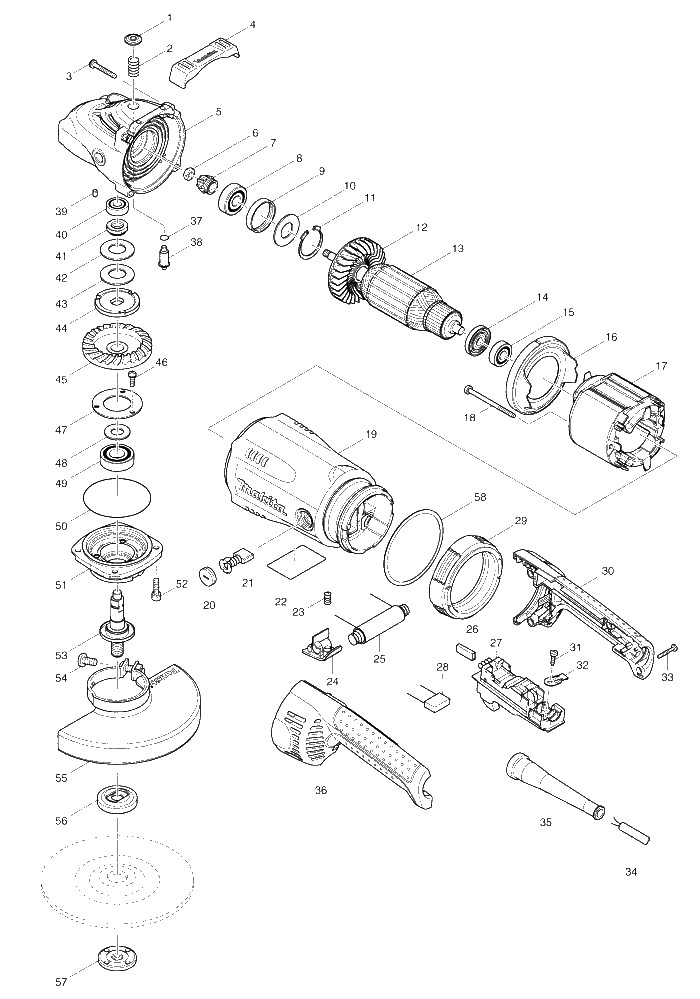

Sheet 1: Makita GA7040S parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 419133-4 | Makita 419133-4 Pin Cap for GA9020 |
| 2 | 233292-8 | Makita 233292-8 COMPRESSION SPRING 12, 9069 |
| 3 | 266012-5 | Makita 266012-5 TAPPING SCREW 5X35, 9067 |
| 4 | 419144-9 | Makita 419144-9 Bumper for GA7020, GA7020S, GA7040S GA9020 |
| 5 | 154685-5 | Makita 154685-5 GEAR HOUSING COMPLETE, GA7020 |
| 6 | 252194-9 | Makita 252194-9 HEX NUT M8, GA9020 |
| 7 | 227488-1 | Makita 227488-1 SPIRAL BEVEL GEAR 16, GA9020 |
| 8 | 211132-0 | Makita 211132-0 BALL BEARING 6301DDW, 9069 |
| 9 | 262085-6 | Makita 262085-6 RUBBER RING 38, GA9020 |
| 10 | 267299-2 | Makita 267299-2 FLAT WASHER 20, GA9020 |
| 11 | 962211-4 | Makita 962211-4 RETAINING RING R-42, GA9020 |
| 13 | 517833-1 | Makita 517833-1 ARMATURE ASS'Y GA9040SF |
| 14 | 681630-2 | Makita 681630-2 INSULATION WASHER, GA9020 |
| 15 | 211087-9 | Makita 211087-9 Ball Bearing 6200DDW JR3000V GA9020 BO4510 30 x 10 x 9 mm |
| 16 | 419135-0 | Makita 419135-0 BAFFLE PLATE, GA9020 |
| 17 | 526198-0 | Makita 526198-0 FIELD ASSY GA9040SF |
| 18 | 266059-9 | Makita 266059-9 SELF-TAP FLANGE SCREW PT M5X75 |
| 19 | 154786-9 | Makita 154786-9 MOTOR HOUSING COMPL GA9040SF |
| 20 | 643700-5 | Makita 643700-5 BRUSH HOLDER CAP *, 2414NB |
| 21 | 191957-7 | Makita 191957-7 Carbon Brushes CB-204 for 9049 9069 GA7040 GA7050 GA9010 |
| 22 | 862127-2 | |
| 23 | 233375-4 | Makita 233375-4 COMPRESSION SPRING 7, MT580 |
| 24 | 419260-7 | Makita 419260-7 LOCK BUTTON, GA9030 |
| 25 | 646788-4 | Makita 646788-4 Wirewound Resistor for 9069S GA9040 GA7020SF |
| 26 | 686036-9 | Makita 686036-9 RECEPTACLE SLEEVE, GA7020S |
| 27 | 651178-8 | Makita 651178-8 Switch for GA9020S GA9030S GA9040S GA7020S GA7030S |
| 28 | 645088-9 | Makita 645088-9 Noise Suppressor for 9069 9067 9066 9015B |
| 29 | 421936-4 | Makita 421936-4 VIBRATION PROOF RUBBER, GA9030 |
| 30 | 188123-5 | Makita 188123-5 HANDLE SET GA9040SF |
| 31 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 32 | 687169-3 | Makita 687169-3 CORD CLAMP, 9558PB |
| 33 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 34 | 695123-3 | Makita 695123-3 POWER SUPPLY CORD, HM1202C |
| 35 | 682560-0 | Makita 682560-0 CORD GUARD, GA9020 |
| 36 | 188123-5 | Makita 188123-5 HANDLE SET GA9040SF |
| 37 | 213062-1 | Makita 213062-1 O-RING 9, GA9020 |
| 38 | 256491-5 | Makita 256491-5 SHOULDER PIN 5, GA9020 |
| 39 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 40 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 41 | 252429-8 | Makita 252429-8 CIRCULAR NUT M15-23, GA9030 |
| 42 | 232163-6 | Makita 232163-6 BELLEVILLE SPRING 20, 9049 |
| 43 | 232163-6 | Makita 232163-6 BELLEVILLE SPRING 20, 9049 |
| 44 | 267798-4 | Makita 267798-4 LOCK WASHER, GA9040 |
| 45 | 227493-8 | Makita 227493-8 SPIRAL BEVEL GEAR 53D, GA9030 |
| 46 | 265120-9 | Makita 265120-9 PAN HEAD SCREW M5*16, MT580 |
| 47 | 285724-1 | Makita 285724-1 BEARING RETAINER 50, GA9020 |
| 48 | 267167-9 | Makita 267167-9 FLAT WASHER 5, 9049 |
| 49 | 211278-2 | Makita 211278-2 BALL BEARING 6203DDW, 9069 |
| 50 | 213760-7 | Makita 213760-7 O-RING 78, M5900B |
| 51 | 317988-0 | Makita 317988-0 BEARING BOX, GA9020 |
| 52 | 265541-5 | Makita 265541-5 HEX.SOCKET HEAD BOLT M5X22, GA9020 |
| 53 | 154777-0 | Makita 154777-0 SPINDLE COMPLETE, GA9030 |
| 54 | 265158-4 | Makita 265158-4 PAN HEAD SCREW M8X25, 9067 |
| 55 | 154674-0 | Makita 154674-0 WHEEL COVER FOR GA7010CF |
| 56 | 224415-9 | Makita 224415-9 Inner Flange M14 |
| 57 | 224543-0 | Makita 224543-0 LOCK NUT M14 ANGLE GRINGERS 180-230MM |
| 58 | 261131-2 | Makita 261131-2 NYLON WASHER 89 GA7030SF |
| 12 | 240081-4 | Makita 240081-4 FAN 80, GA7020 |
