Makita GA5000: exploded parts diagram, 1 sheet, 48 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita GA5000: 48 positions on 1 sheet

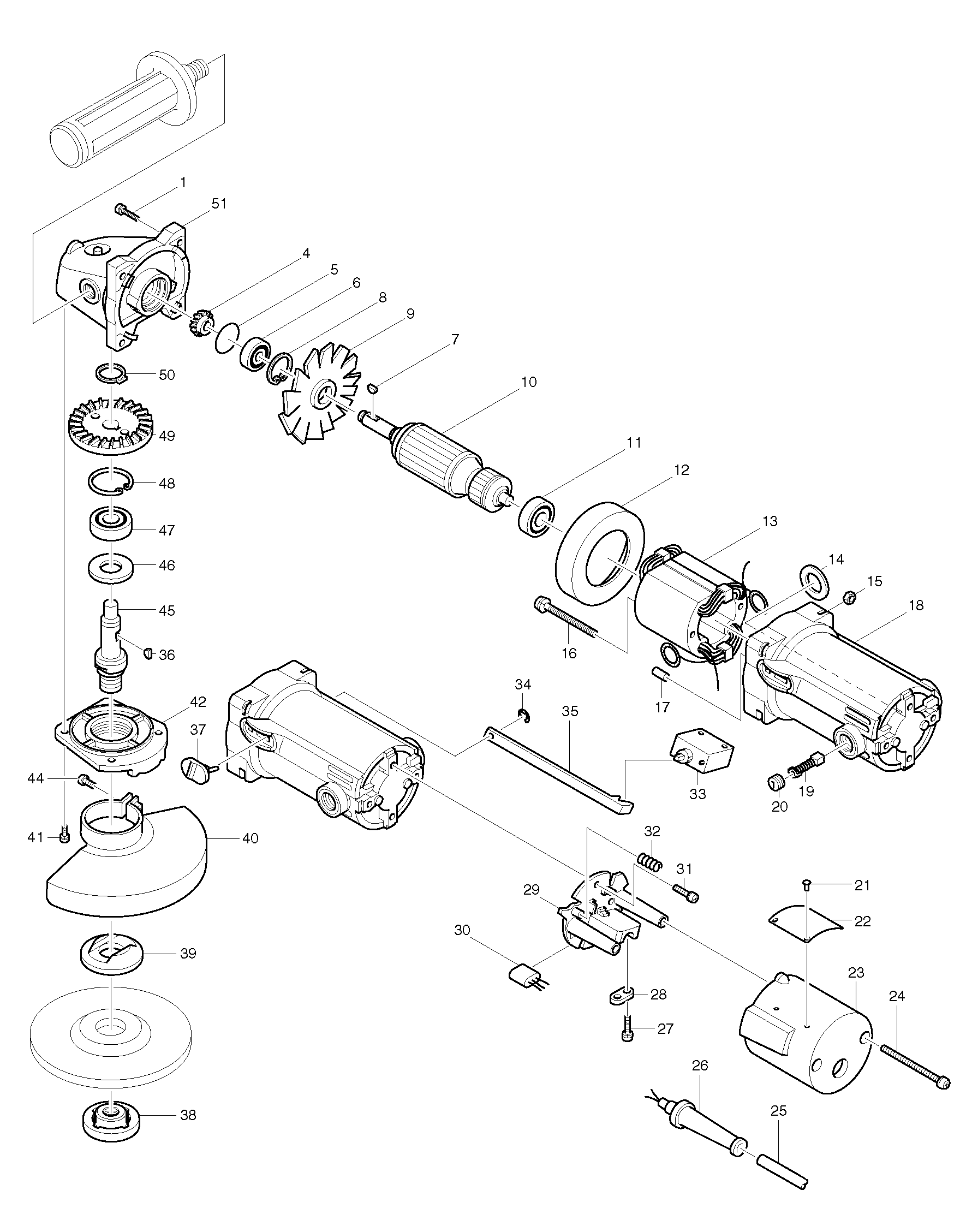

Sheet 1: Makita GA5000 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 911146-6 | Makita 911146-6 PAN HEAD SCREW M4X25 |
| 4 | 221354-4 | Makita 221354-4 SPIRAL BEVEL GEAR 13 |
| 5 | 213407-3 | Makita 213407-3 O RING 26, HR2475 |
| 6 | 211063-3 | Makita 211063-3 BALL BEARING 6000LB |
| 7 | 254002-0 | Makita 254002-0 WOOD RUFF KEY 3, 4100NH |
| 8 | 962105-3 | Makita 962105-3 RETAINING RING R-32, GA4030 |
| 9 | 241517-6 | Makita 241517-6 FAN 70 FOR GA5000 |
| 10 | 515153-7 | |
| 11 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 12 | 410021-8 | Makita 410021-8 BAFFLE PLATE |
| 13 | 528129-5 | Makita 528129-5 FIELD ASS'Y 220V |
| 14 | 681001-3 | |
| 15 | 931102-0 | Makita 931102-0 HEX NUT, 5900B |
| 16 | 911200-6 | Makita 911200-6 PAN HEAD SCREW M4X70 |
| 17 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 18 | 156901-1 | Makita 156901-1 MOTOR HOUSING |
| 19 | 181030-1 | Makita 181030-1 Carbon Brushes CB-100 for 6906 9005B 9901 PC1100 |
| 20 | 643600-9 | Makita 643600-9 Holder Cup for DA6300 |
| 21 | 953106-2 | Makita 953106-2 RIVET 0-5 |
| 22 | 854598-7 | Makita 854598-7 NAME PLATE GA5000 |
| 23 | 411938-8 | Makita 411938-8 REAR COVER |
| 24 | 911293-3 | Makita 911293-3 PAN HEAD SCREW M5X70 |
| 25 | 682502-4 | Makita 682502-4 Cord Guard 8-85 for 4100NH |
| 26 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 27 | 911123-8 | Makita 911123-8 PAN HEAD SCREW M4*14, N5900B |
| 28 | 687031-2 | Makita 687031-2 STRAIN RELIEF |
| 29 | 411939-6 | Makita 411939-6 SWITCH HOLDER |
| 30 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 31 | 911123-8 | Makita 911123-8 PAN HEAD SCREW M4*14, N5900B |
| 32 | 231223-1 | Makita 231223-1 Compression Spring 6 |
| 33 | 651476-0 | |
| 34 | 257903-1 | Makita 257903-1 STOP RING E-2.3 |
| 35 | 410272-3 | Makita 410272-3 SWITCH ROD |
| 36 | 254002-0 | Makita 254002-0 WOOD RUFF KEY 3, 4100NH |
| 37 | 411741-7 | Makita 411741-7 SWITCH LEVER |
| 38 | 224543-0 | Makita 224543-0 LOCK NUT M14 ANGLE GRINGERS 180-230MM |
| 39 | 224298-7 | |
| 40 | 134440-1 | |
| 41 | 911126-2 | Makita 911126-2 PAN HEAD SCREW M4X16, 5900B |
| 42 | 315397-7 | |
| 44 | 251259-4 | Makita 251259-4 + PAN HEAD SCREW M5X16 |
| 45 | 321341-4 | Makita 321341-4 SPINDLE |
| 46 | 253055-6 | |
| 47 | 211108-7 | |
| 48 | 962151-6 | Makita 962151-6 RETAINING RING R-32, 9523NB |
| 49 | 221355-2 | |
| 50 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 51 | 156902-9 |
