Makita GA4530
Makita GA4530: exploded parts diagram, 1 sheet, 54 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita GA4530: 54 positions on 1 sheet

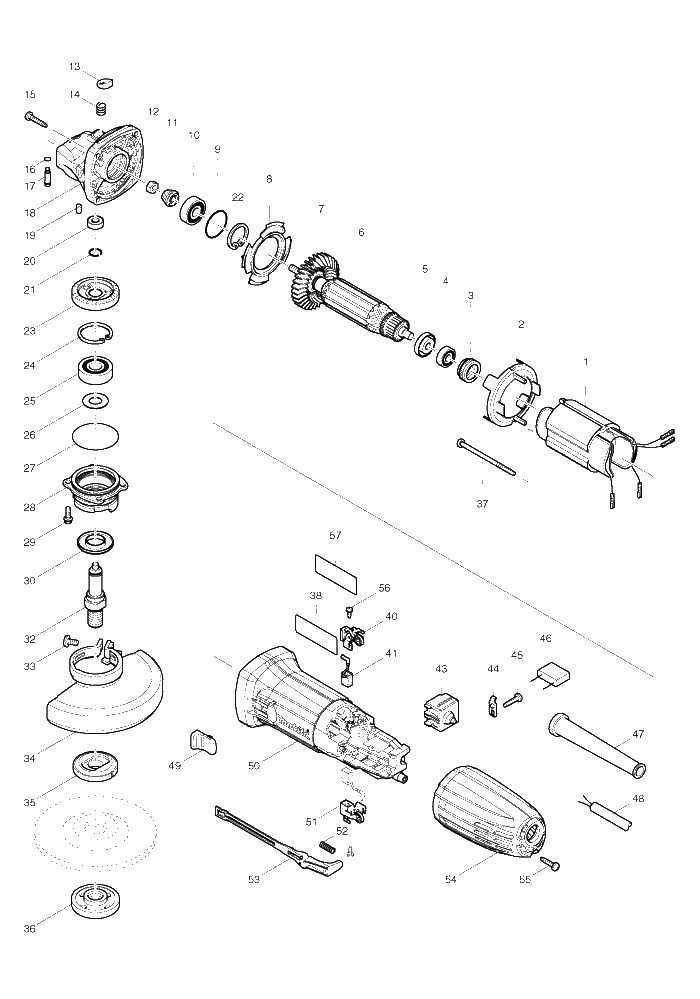

Sheet 1: Makita GA4530 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 635113-4 | Makita 635113-4 FIELD |
| 2 | 450796-7 | Makita 450796-7 BAFFLE PLATE, GA4030 |
| 3 | 421868-5 | Makita 421868-5 RUBBER RING 19 WITH LABYRINTH, 9556NB |
| 4 | 210034-7 | Makita 210034-7 Ball Bearing for 607LLB BO4556 |
| 5 | 681636-0 | Makita 681636-0 INSULATION WASHER, MT190 |
| 6 | 517649-4 | Makita 517649-4 Armature Rotor GA4030 GA5030 PJ7000 240V |
| 8 | 413126-3 | Makita 413126-3 GUIDE PLATE, GA4030 |
| 9 | 213445-5 | Makita 213445-5 O RING 26, MT952 |
| 10 | 211092-6 | Makita 211092-6 Ball Bearing for 629DDW UB1101 |
| 11 | 227545-5 | Makita 227545-5 SPIRAL BEVEL GEAR 10, GA4030 |
| 12 | 252186-8 | Makita 252186-8 HEX NUT M6, 9557NB |
| 13 | 417771-6 | Makita 417771-6 Pin Cap for GA5030 9555NB 9558NB BPJ140 |
| 14 | 234057-1 | Makita 234057-1 COMPRESSION SPRING 8, GA5030 |
| 15 | 266324-6 | Makita 266324-6 TAPPING SCREW PT 4X22, MT951 |
| 16 | 213032-0 | Makita 213032-0 O Ring 4 for AN611 |
| 17 | 256510-7 | Makita 256510-7 Shoulder Pin 4 for GA4030 |
| 18 | 318335-8 | Makita 318335-8 Gear Housing GA5030 GA4030 GA4034 GA4534 GA5034 |
| 19 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 20 | 210033-9 | Makita 210033-9 Ball Bearing 696ZZ, 9535NB |
| 21 | 233950-6 | Makita 233950-6 RING SPRING, GA5010 |
| 22 | 962105-3 | Makita 962105-3 RETAINING RING R-32, GA4030 |
| 23 | 227546-3 | Makita 227546-3 Spiral Bevel Gear 37 GA4030 |
| 24 | 962151-6 | Makita 962151-6 RETAINING RING R-32, 9523NB |
| 25 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 26 | 267113-2 | Makita 267113-2 FLAT WASHER 12, 5007FA |
| 27 | 213561-3 | Makita 213561-3 O RING 42, GA4030 |
| 28 | 318336-6 | Makita 318336-6 Bearing Box for GA4530 GA4534 GA5030 GA5034 |
| 29 | 265099-4 | Makita 265099-4 PAN HEAD SCREW M4X14, MT951 |
| 30 | 345464-4 | Makita 345464-4 LABYRINTH RING, 9536NB |
| 32 | 324954-0 | Makita 324954-0 SPINDLE, GA4030 |
| 33 | 265180-1 | Makita 265180-1 PAN HEAD SCREW M5X16, MGA451 |
| 34 | 123098-1 | Makita 123098-1 Wheel Cover 115AK Assembly for BGA450 |
| 35 | 224415-9 | Makita 224415-9 Inner Flange M14 |
| 36 | 224554-5 | Makita 224554-5 Outer Blade Locking Flange M14 for 9069 9554 9015 |
| 37 | 266325-4 | Makita 266325-4 TAPPING SCREW PT 4X70, MT951 |
| 38 | 866050-3 | |
| 40 | 643839-4 | Makita 643839-4 Brush Holder for GA4031 |
| 41 | 194722-3 | Pair New Genuine Carbon Brush Brushes Makita CB-459 194722-3 (=CB-458 195025-8) |
| 43 | 650560-8 | OLDN Makita 650560-8 SWITCH, 9533NB |
| 44 | 687681-3 | Makita 687681-3 CORD CLAMP, GA4030 |
| 45 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 46 | 638739-1 | Makita 638739-1 CAPACITOR UNIT |
| 47 | 682559-5 | Makita 682559-5 CORD GUARD 8-110, 6826 |
| 48 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 49 | 419566-3 | Makita 419566-3 Angle Grinder Switch Knob for 9557NB GA5030 |
| 50 | 451128-1 | Makita 451128-1 Motor Housing for GA5030 |
| 51 | 643839-4 | Makita 643839-4 Brush Holder for GA4031 |
| 52 | 233121-5 | Makita 233121-5 COMPRESSION SPRING 4, 9553NB |
| 53 | 450797-5 | Makita 450797-5 Switch Lever for GA5030 JS1602 |
| 54 | 450794-1 | Makita 450794-1 REAR COVER, GA4030 |
| 55 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 56 | 266492-5 | Makita 266492-5 TAPPING SCREW M3X8 |
| 57 | 806E99-1 | |
| 7 | 240139-9 | Makita 240139-9 FAN56 |
