Makita G5500R: exploded parts diagram, 10 sheets, 278 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita G5500R: 278 positions on 10 sheets

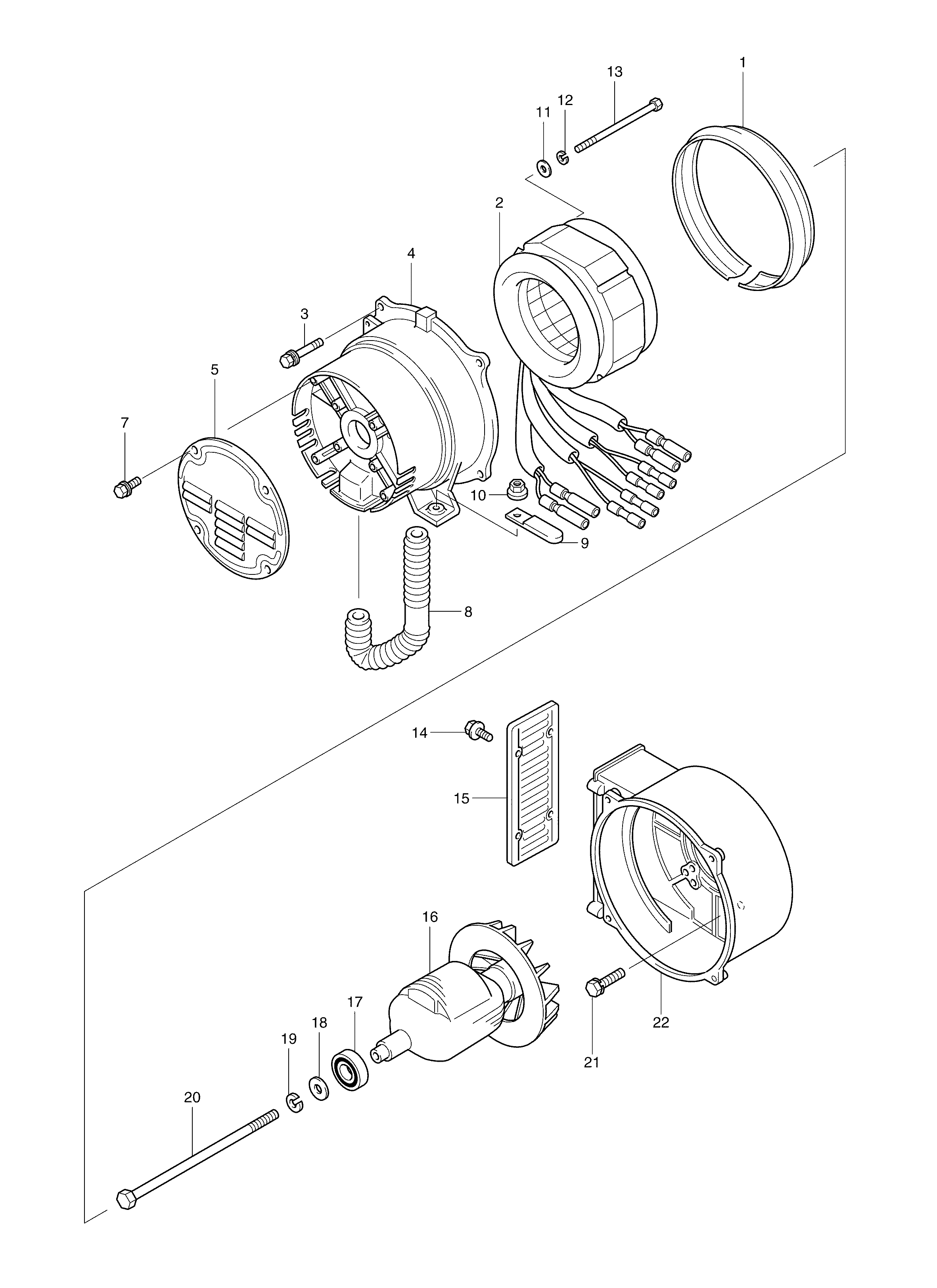

Sheet 1: Makita G5500R parts diagram

Makita G5500R parts diagram, sheet 1
No.Part numberPart name
13855438103
23905166508
30011406250Makita 0011406250 BOLT & WASHER ASS Y
43905400101
53905500103
70110060010Makita 0110060010 FLANGE BOLT
83855751008
90566000170Makita 0566000170 CLAMP
100023808000Makita 0023808000 FLANGE NUT
110031006000Makita 0031006000 WASHER
120032006000Makita 0032006000 SPRING WASHER
133865998208
140152050010Makita 0152050010 TAPPING SCREW
153885510103
163905053508
173545820408
183905998608
190032010000Makita 0032010000 SPRING WASHER
203675800808
210011308200Makita 0011308200 BOLT & WASHER ASS Y
223905410113

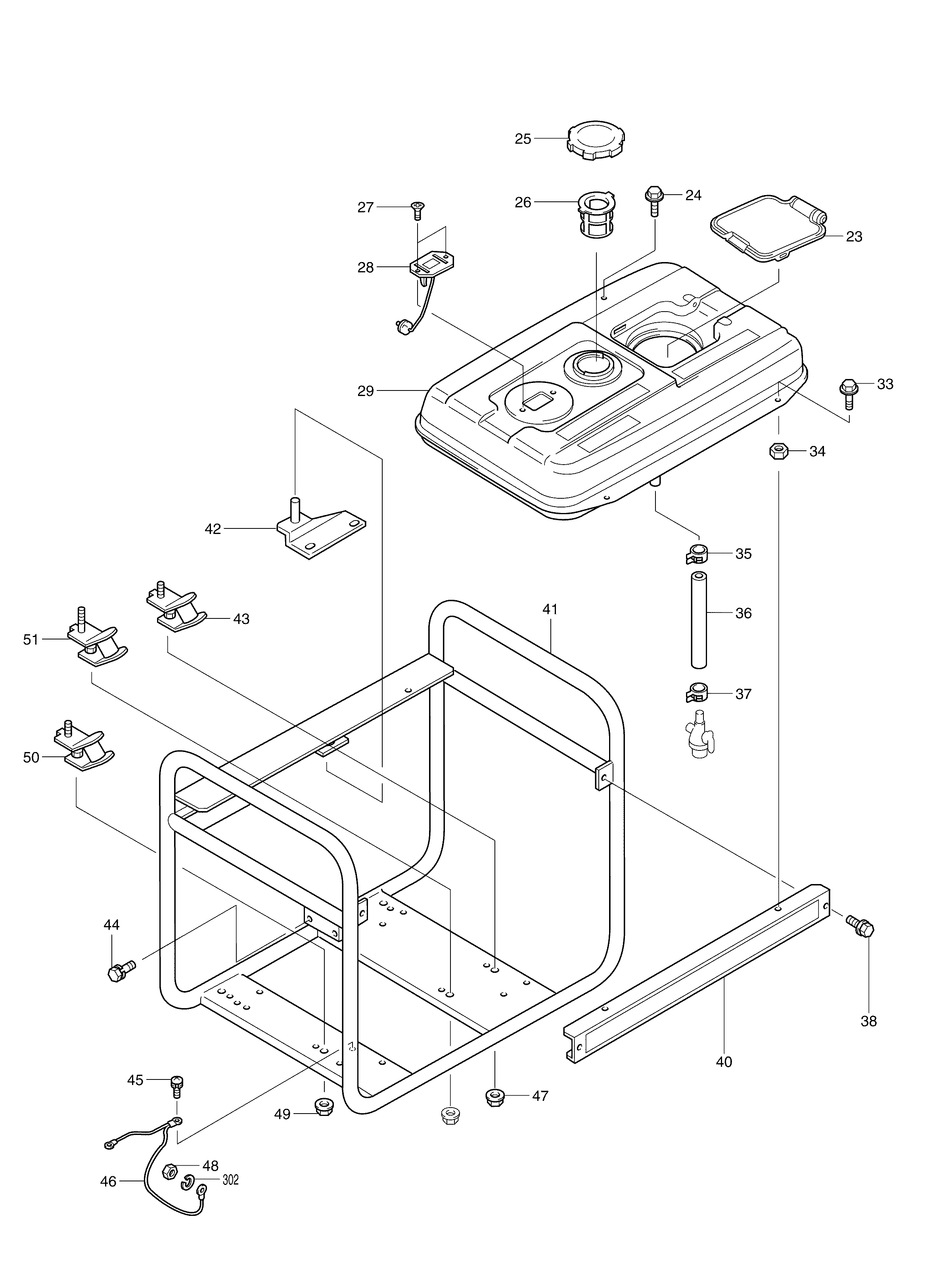

Sheet 2: Makita G5500R parts diagram

Makita G5500R parts diagram, sheet 2
No.Part numberPart name
232276610103
240110060220Makita 0110060220 FLANGE BOLT
250430430015Makita 0430430015 FUEL TANK CAP COMPLETE
260641360010Makita 0641360010 Fuel Filter
270145050040Makita 0145050040 SCREW
280648000300Makita 0648000300 FUEL GAUGE COMPLETE
292246085201Makita 2246085201 FUEL TANK COMPLETE
330110060220Makita 0110060220 FLANGE BOLT
343913900013Makita 3913900013 RUBBER (TANK)GE2800IS
350561170010Makita 0561170010 HOSE CLAMP 17
360851110000Makita 0851110000 RUBBER PIPE 11.5X17.5X230
370561170010Makita 0561170010 HOSE CLAMP 17
380110060080Makita 0110060080 FLANGE BOLT
403905862208
413905609708
423905441208
433773700011
440011406160Makita 0011406160 BOLT & WASHER ASS Y
453763910001
463905441508
470023808000Makita 0023808000 FLANGE NUT
480021904000Makita 0021904000 NUT
490023808000Makita 0023808000 FLANGE NUT
503773700111
513773700111
302

Sheet 3: Makita G5500R parts diagram

Makita G5500R parts diagram, sheet 3
No.Part numberPart name
533894755208
543895999008
553904002408
563534580408
580642000240Makita 0642000240 BANJO BOLT
590642000250Makita 0642000250 FIBER PACKING
600521070042Makita 0521070042 BANJO
610642000250Makita 0642000250 FIBER PACKING
620642000330Makita 0642000330 O-RING
630533090020Makita 0533090020 JOINT NUT
640561110020Makita 0561110020 HOSE CLAMP
650851060000Makita 0851060000 RUBBER PIPE 6X12X160
660561110020Makita 0561110020 HOSE CLAMP
670642002311Makita 0642002311 FUEL STRAINER ASS Y
680642000220
690642000230
700642001910Makita 0642001910 CUP
713904755308
720043504100Makita 0043504100 SCREW & WASHER ASS Y
733804753108
743895998908
753864565208
763804753108
773904755308
780043504100Makita 0043504100 SCREW & WASHER ASS Y
793804753108
800021703000Makita 0021703000 NUT
823804753108
833534572008
843564990708
860021703000Makita 0021703000 NUT
873555750908
883914790001
913534990408
923205985508Makita 3205985508 FUSE HOLDER
930080210300Makita 0080210300 FUSE (10A)
943634570108
953634570008
973794994308
993534990308
1003320005008Makita 3320005008 SPRING WASHER
1013534990208
1023320005008Makita 3320005008 SPRING WASHER
1033534990108
1040043603120Makita 0043603120 SCREW & WASHER ASS Y
1053884574608
1063904112908
1070043603120Makita 0043603120 SCREW & WASHER ASS Y
1083884574608

Sheet 4: Makita G5500R parts diagram

Makita G5500R parts diagram, sheet 4
No.Part numberPart name
1090650140270Makita 0650140270 SPARK PLUG (NGK BPR4HS)
1100023810000Makita 0023810000 FLANGE NUT
1112241340103Makita 2241340103 CYLINDER HEAD
1122241510103Makita 2241510103 GASKET
1132241420203Makita 2241420203 VALVE GUIDE
1140105100280Makita 0105100280 STUD
1150105100270Makita 0105100270 STUD
1162247550103Makita 2247550103 GROMMET
1170440350090Makita 0440350090 OIL SEAL (TB 35X48X8MM)
1180600350010Makita 0600350010 BALL BEARING 6207C3
1190105080290Makita 0105080290 MUFFLER STUD
1202243510103Makita 2243510103 GASKET
1210180080010Makita 0180080010 FLANGE NUT
1220022806000Makita 0022806000 NUT
1230032006000Makita 0032006000 SPRING WASHER
1240031006000Makita 0031006000 WASHER
1252083600303Makita 2083600303 GASKET 2, INSULATOR
1262243290103Makita 2243290103 INSULATOR
1272243520203Makita 2243520203 GASKET,INSULATOR
1280105060200Makita 0105060200 STUD
1292241540103Makita 2241540103 GASKET
1302241440101Makita 2241440101 BREATHER PLATE COMPLETE
1312241530103Makita 2241530103 GASKET
1322241430111Makita 2241430111 TAPPET COVER COMPLETE
1330851120000Makita 0851120000 RUBBER PIPE(12.5X16X100MM)
1340110060030Makita 0110060030 FLANGE BOLT
1350105080031Makita 0105080031 STUD
1360401140030Makita 0401140030 PLUG
1370211140020Makita 0211140020 GASKET
1382241020101Makita 2241020101 CRANKCASE COMPLETE
1402241520103Makita 2241520103 GASKET,MAIN BEARINGCOVER
1412246360103Makita 2246360103 OIL GAUGE
1420213200050Makita 0213200050 GASKETGE4300IS
1430440350090Makita 0440350090 OIL SEAL (TB 35X48X8MM)
1440600350010Makita 0600350010 BALL BEARING 6207C3
1450052608180Makita 0052608180 DOWEL PIN
1462241100401Makita 2241100401 MAIN BEARING COVER COMPLETE
1470011408350
1480037006000Makita 0037006000 ALUMINIUM GASKET
1490016506120Makita 0016506120 BOLT
1800043504080Makita 0043504080 SCREW & WASHER ASS Y
1812244210113Makita 2244210113 GOVERNOR YOKE
1822244220103Makita 2244220103 GOVERNOR SHAFT
1830016506550Makita 0016506550 BOLT
1842204800113Makita 2204800113 CONTROL SPRING
1850217080010Makita 0217080010 FRICRION WASHER
1862244330701Makita 2244330701 SPEED CONTROL COMPLETE
1870200080010Makita 0200080010 WASHER
1882074350511Makita 2074350511 STOP PLATE
1890031108000Makita 0031108000 WASHER
1900170080020Makita 0170080020 NUT
1912144280101
1922244270111Makita 2244270111 GOVERNOR ROD
1932244230611Makita 2244230611 GOVERNOR LEVER COMPLETE
1940186060020Makita 0186060020 NUT
1952244250603
1960011406250Makita 0011406250 BOLT & WASHER ASS Y
2802247630203Makita 2247630203 OIL GUIDE PLATE
2810011308160Makita 0011308160 BOLT & WASHER ASS Y

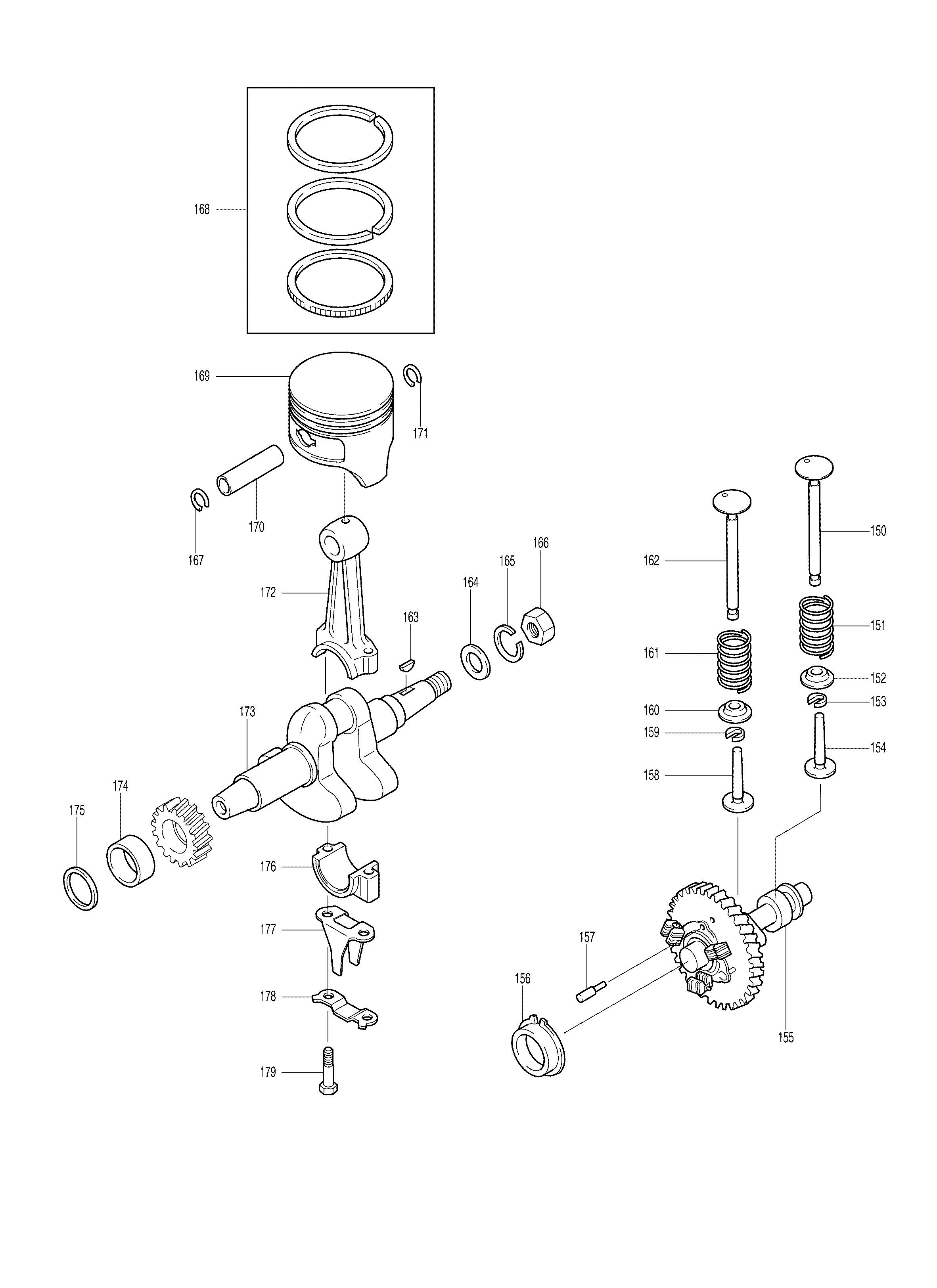

Sheet 5: Makita G5500R parts diagram

Makita G5500R parts diagram, sheet 5
No.Part numberPart name
1502243350103Makita 2243350103 EXHAUST VALVE
1512083360113Makita 2083360113 VALVE SPRING
1522083370103Makita 2083370103 SPRING RETAINER
1532173380103Makita 2173380103 RETAINER LOCK
1542243330103Makita 2243330103 TAPPET
1552243190101Makita 2243190101 CAMSHAFT,COMPL.
1562244190103Makita 2244190103 GOVERNOR SLEEVE
1570309400081Makita 0309400081 LOCK PIN
1582243330103Makita 2243330103 TAPPET
1592173380103Makita 2173380103 RETAINER LOCK
1602083370103Makita 2083370103 SPRING RETAINER
1612083360113Makita 2083360113 VALVE SPRING
1622243340103Makita 2243340103 INTAKE VALVE
1630053204401Makita 0053204401 WOODRUFF KEY
1640031018000Makita 0031018000 WASHER
1650032018000Makita 0032018000 SPRING WASHER
1660021818000Makita 0021818000 NUT
1670565220011Makita 0565220011 CLIP
1682242350117Makita 2242350117 PISTON RING SET
1692242340123Makita 2242340123 PISTON
1702242330103Makita 2242330103 PISTON PIN
1710565220011Makita 0565220011 CLIP
1722242250110Makita 2242250110 CONNECTING ROD ASS Y
1732242070211
1742242510313Makita 2242510313 SPACER
1750230350010Makita 0230350010 SPACER(T=1.05)
1762242250110Makita 2242250110 CONNECTING ROD ASS Y
1772242310203Makita 2242310203 OIL SCRAPER
1782242320113Makita 2242320113 LOCK WASHER
1792172300113Makita 2172300113 CONNECTING ROD BOLT

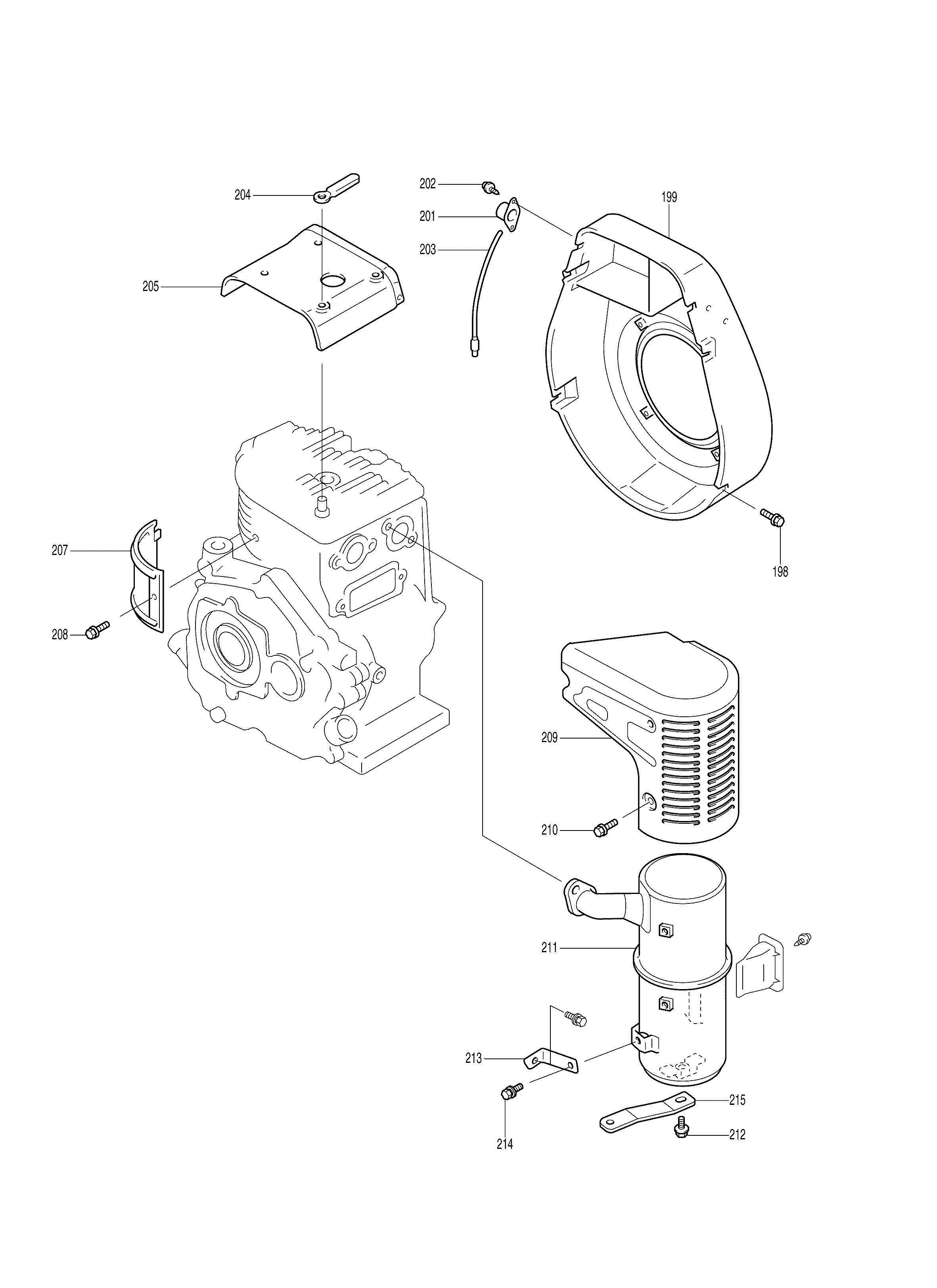

Sheet 6: Makita G5500R parts diagram

Makita G5500R parts diagram, sheet 6
No.Part numberPart name
1980110060010Makita 0110060010 FLANGE BOLT
1992245153301
2010662000011Makita 0662000011 PYSÄYTYS NUPPI
2020150040010Makita 0150040010 TAPPING SCREW
2032147320101Makita 2147320101 WIRE 1 COMPLETE
2040566000220Makita 0566000220 CLAMP
2052245262601Makita 2245262601 HEAD COVER COMPLETE
2072245270103Makita 2245270103 CYLINDER BAFFLE
2080110060010Makita 0110060010 FLANGE BOLT
2092243422101Makita 2243422101 MUFFLER COVER COMPLETE
2100110060010Makita 0110060010 FLANGE BOLT
2112243012601Makita 2243012601 MUFFLER COMPLETE
2120011108160Makita 0011108160 BOLT AND WASHER ASSY
2132243502111Makita 2243502111 MUFFLER BRACKET
2140011108160Makita 0011108160 BOLT AND WASHER ASSY
2152243503001Makita 2243503001 MUFFLER SUPPORT

Sheet 7: Makita G5500R parts diagram

Makita G5500R parts diagram, sheet 7
No.Part numberPart name
2172246257108Makita 2246257108 CHOKE SHAFT ASS Y
2181306225008Makita 1306225008 SCREW ASS Y
2192246252508Makita 2246252508 CHOKE VALVE
2212246257208Makita 2246257208 SHAFT ASS Y,THROTTLE
2222246253508Makita 2246253508 THROTTLE VALVE( 135)
2231306225008Makita 1306225008 SCREW ASS Y
2242246242008Makita 2246242008 PILOT JET( 57.5)
2252066244608Makita 2066244608 SPRING
2262136243508Makita 2136243508 PILOT SCREW
2272066244608Makita 2066244608 SPRING
2282246245208Makita 2246245208 SCREW
2292246230608
2302396255008Makita 2396255008 CLIP
2311096240408Makita 1096240408 MAIN JET( 112.5)
2322246255508Makita 2246255508 MAIN NOZZLE
2332066254008Makita 2066254008 PACKING
2342146251508Makita 2146251508 FLOAT PIN
2352246250708Makita 2246250708 FLOAT ASS Y
2362246255208Makita 2246255208 FLOAT CHAMBER BODY
2372076234508Makita 2076234508 WASHER
2382246254308Makita 2246254308 BOLT
2392073260618Makita 2073260618 CLEANER ELEMENT SET
2400241020010Makita 0241020010 GROMMET
2412073272108Makita 2073272108 PACKING
2420011006160Makita 0011006160 BOLT & WASHER ASS Y
2432243280210Makita 2243280210 AIR CLEANER ASS Y
303
304

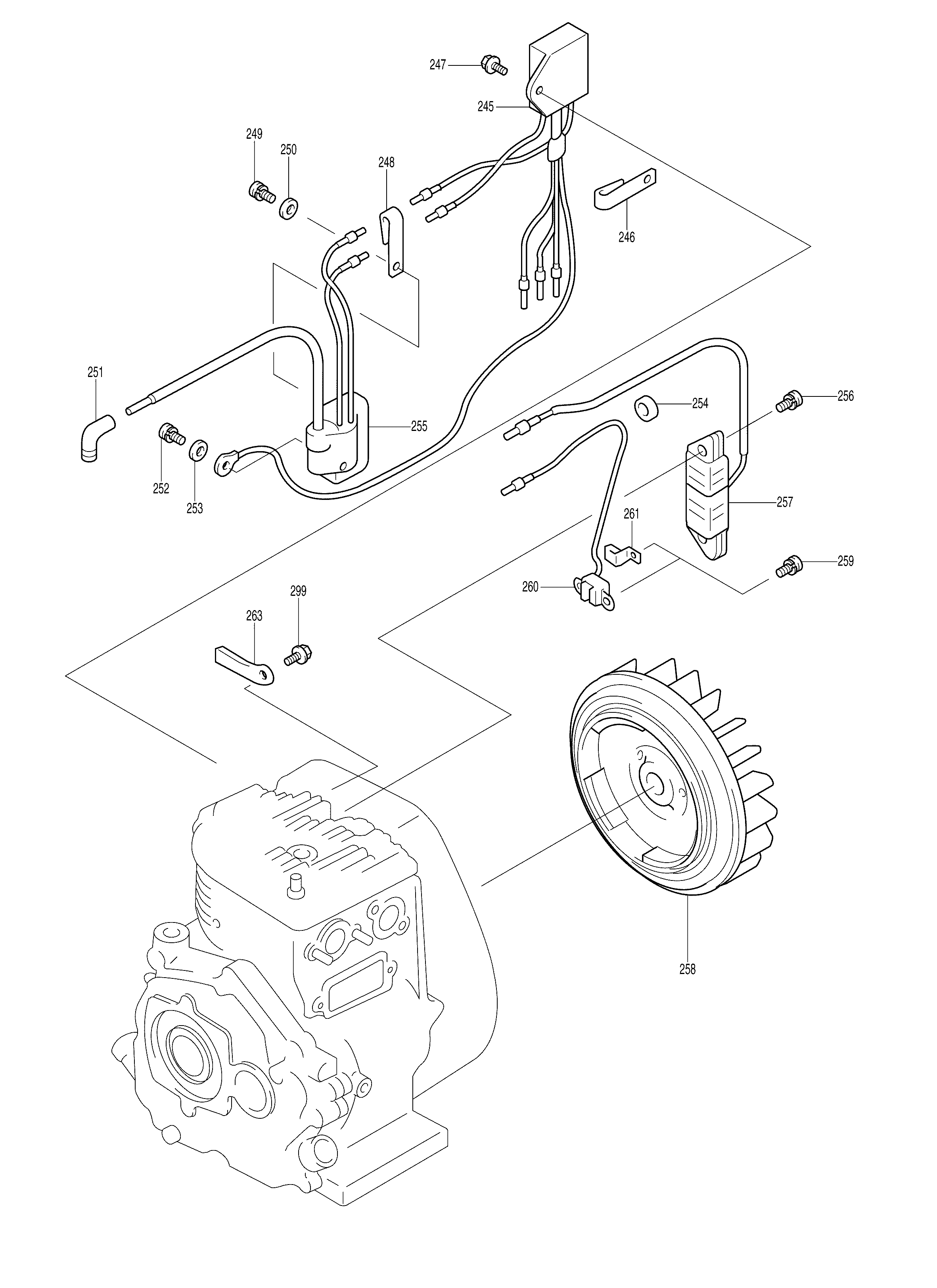

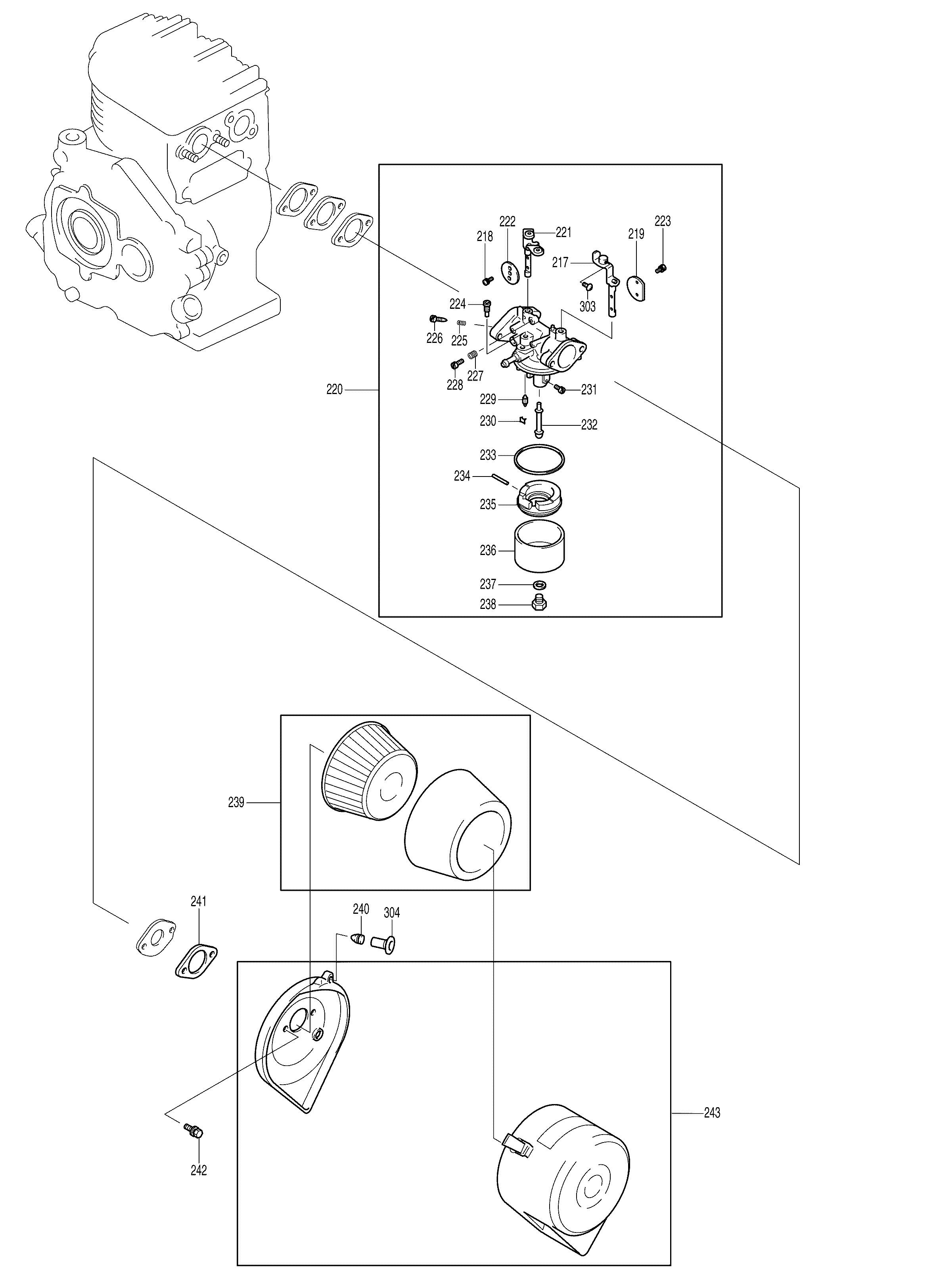

Sheet 8: Makita G5500R parts diagram

Makita G5500R parts diagram, sheet 8
No.Part numberPart name
2452247225001Makita 2247225001 KTR UNIT
2460566000250Makita 0566000250 CLAMP
2470110060050Makita 0110060050 FLANGE BOLT
2480566000250Makita 0566000250 CLAMP
2490043506200Makita 0043506200 SCREW & WASHER ASS Y
2500031006000Makita 0031006000 WASHER
2510655000110Makita 0655000110 SPARK PLUG CAP
2520043506200Makita 0043506200 SCREW & WASHER ASS Y
2530031006000Makita 0031006000 WASHER
2540241090050Makita 0241090050 GROMMET
2552247220511Makita 2247220511 IGNITION COIL UNIT COMPLETE
2560043506250Makita 0043506250 SCREW AND WASHER ASS Y
2572247013508Makita 2247013508 EXCITER COIL
2582247010610
2590043504120Makita 0043504120 SCREW AND WASHER ASS Y
2602247015008Makita 2247015008 PULSER COIL
2612057820101Makita 2057820101 CLAMP,COMPL.
2632247700201Makita 2247700201 WIRE CLAMP COMPLETE
2990110060010Makita 0110060010 FLANGE BOLT

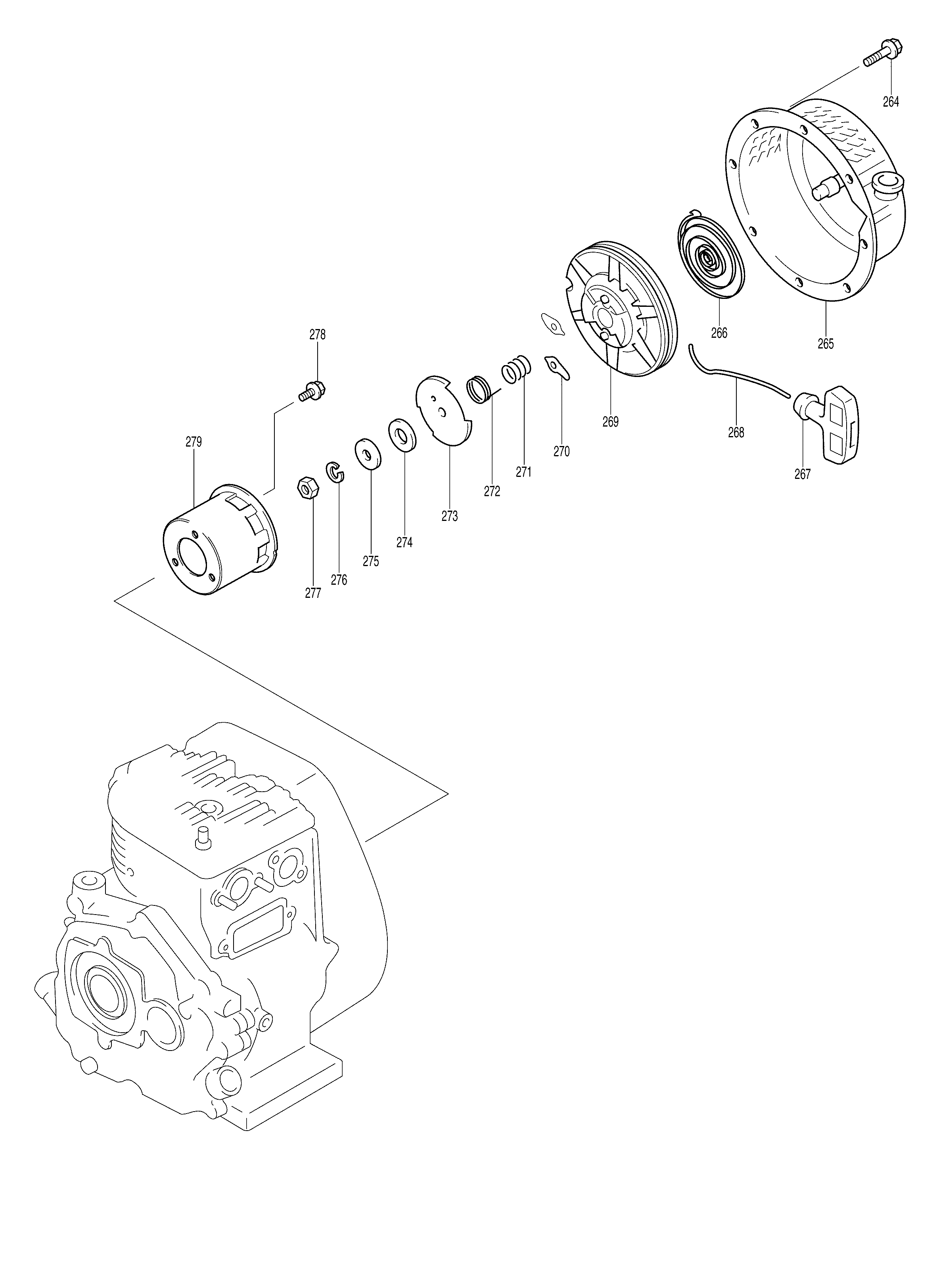

Sheet 9: Makita G5500R parts diagram

Makita G5500R parts diagram, sheet 9
No.Part numberPart name
1170440350090Makita 0440350090 OIL SEAL (TB 35X48X8MM)
2640110060010Makita 0110060010 FLANGE BOLT
2652245010200Makita 2245010200 RECOIL STARTER ASS Y
2662245011508
2672065010108Makita 2065010108 HANDLE
2682075011008Makita 2075011008 STARTER ROPE
2692245012008Makita 2245012008 REEL
2702245012508Makita 2245012508 RATCHET
2712095013008Makita 2095013008 FRICTION SPRING
2722245013508Makita 2245013508 RETURN SPRING
2732095014008Makita 2095014008 FRICTION PLATE
2742245015508Makita 2245015508 THRUST WASHER B
2752095015008Makita 2095015008 THRUST WASHER
2761295015508Makita 1295015508 SPRING WASHER
2771495015208Makita 1495015208 NUT
2780016508120Makita 0016508120 BOLT
2792245014508Makita 2245014508 STARTING PULLEY

Sheet 10: Makita G5500R parts diagram

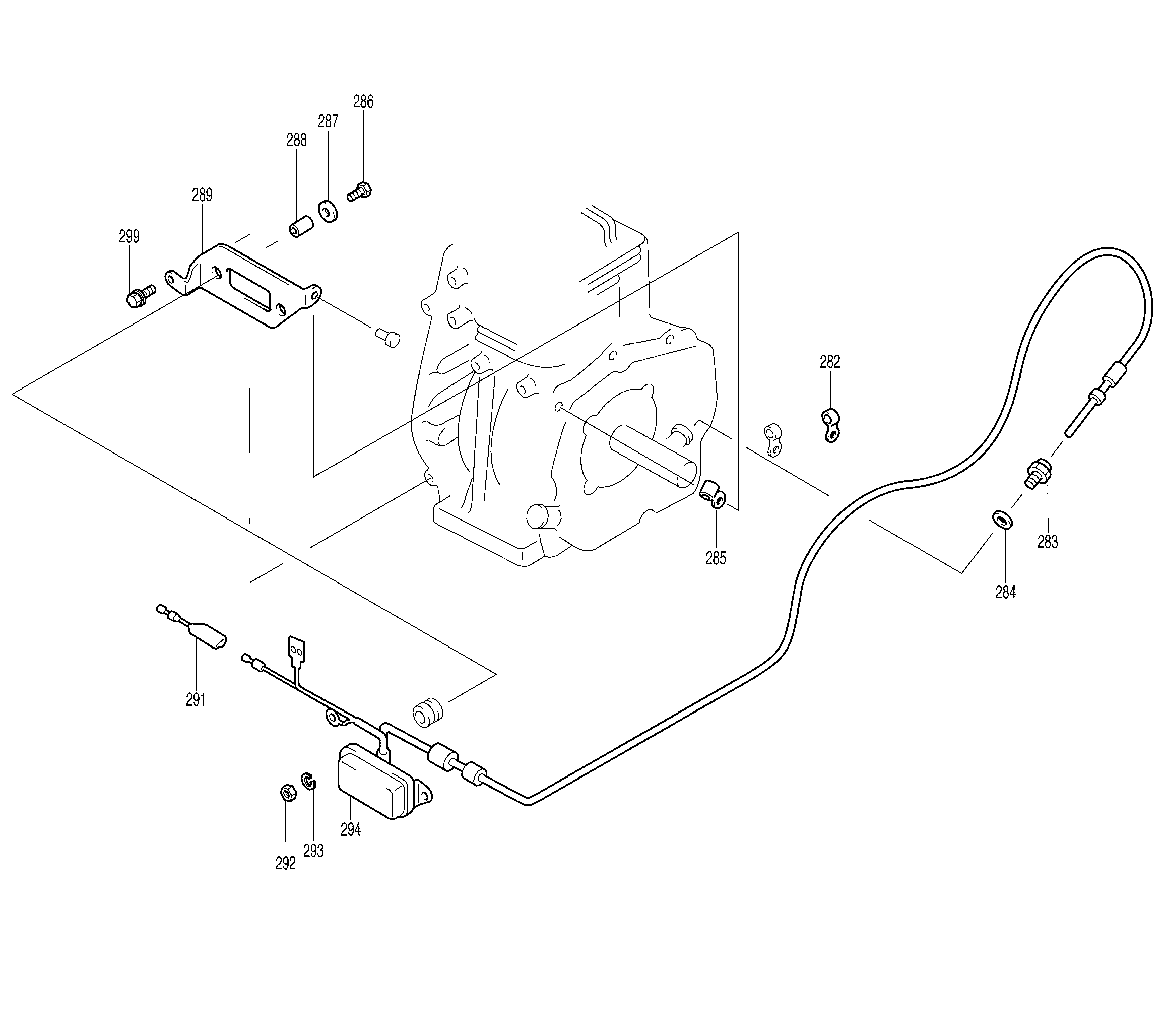

Makita G5500R parts diagram, sheet 10
No.Part numberPart name
2820566000170Makita 0566000170 CLAMP
2832247606403Makita 2247606403 JOINT
2840213200010Makita 0213200010 GASKET
2850566000170Makita 0566000170 CLAMP
2860016506300Makita 0016506300 BOLT
2870200080050Makita 0200080050 WASHER
2880230060180Makita 0230060180 SPACER
2892247710401Makita 2247710401 OIL SENSOR BRACKET
2912247311301Makita 2247311301 WIRE 13 COMPLETE
2920021706000Makita 0021706000 NUT M6
2930032006000Makita 0032006000 SPRING WASHER
2942247620411Makita 2247620411 OIL LEVEL SENSOR COMPLETE
2990110060010Makita 0110060010 FLANGE BOLT
Selected parts0
