Makita FS6300
Makita FS6300: exploded parts diagram, 1 sheet, 48 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita FS6300: 48 positions on 1 sheet

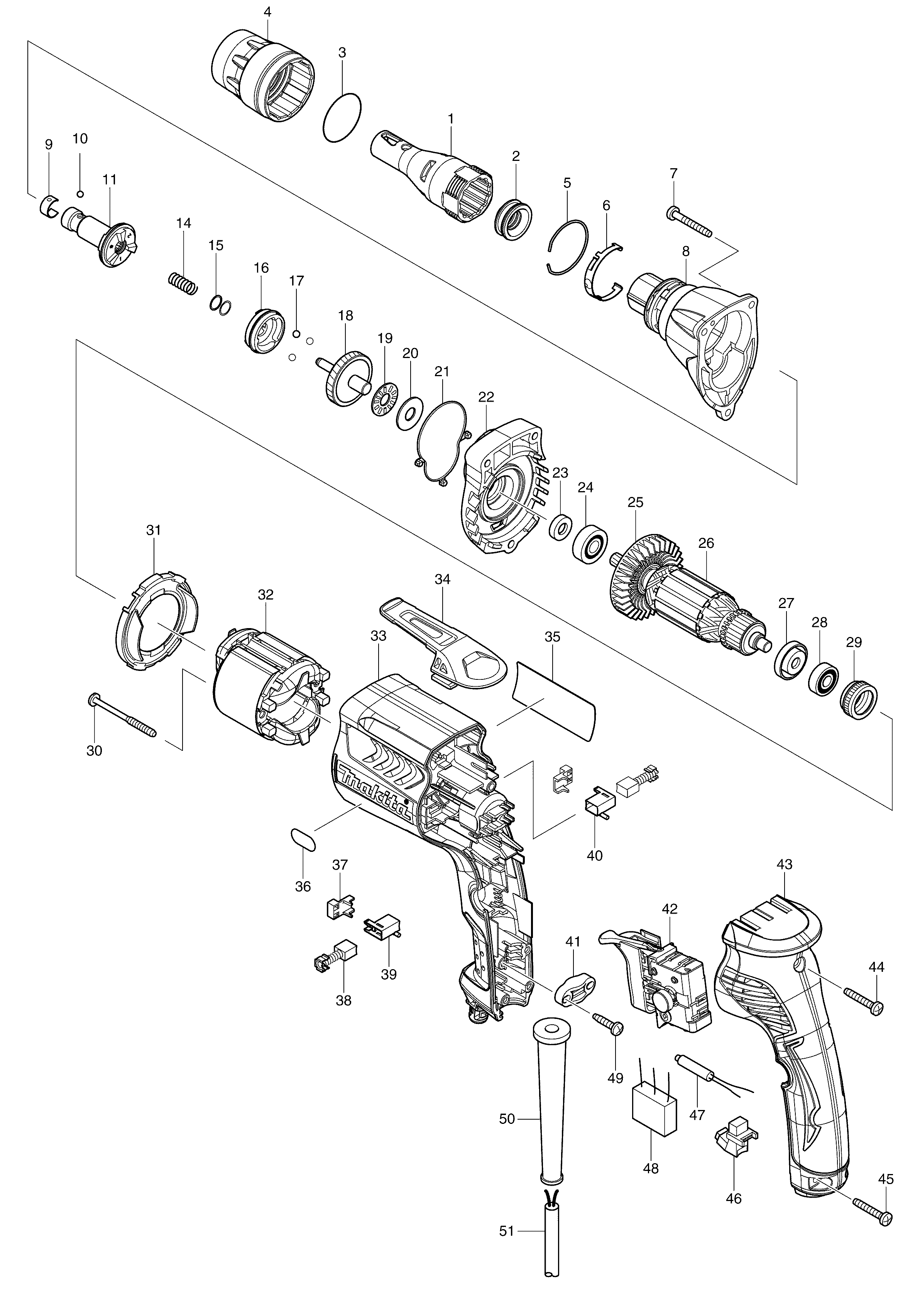

Sheet 1: Makita FS6300 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 158875-2 | Makita 158875-2 Locator S Complete, FS4300 |
| 2 | 424163-2 | Makita 424163-2 DUST SEAL SLEEVE, FS4300 |
| 3 | 424235-3 | Makita 424235-3 SEAL RING 30, FS6300 |
| 4 | 450881-6 | Makita 450881-6 LOCK RING, FS4300 |
| 5 | 233974-2 | Makita 233974-2 RING SPING 33, FS4300 |
| 6 | 232245-4 | Makita 232245-4 LEAF SPRING, FS440D |
| 7 | 266361-0 | Makita 266361-0 TAPPING SCREW 4*30, 9526B |
| 8 | 158881-7 | Makita 158881-7 GEAR HOUSING HSA COMPLETE, FS6300 |
| 9 | 232050-9 | Makita 232050-9 LEAF SPRING, 6827 |
| 10 | 216001-0 | Makita 216001-0 Steel Ball 3.5 for TD140D |
| 11 | 158886-7 | Makita 158886-7 SPINDLE 125S COMPLETE FS4300, FS4300 |
| 14 | 234121-8 | Makita 234121-8 COMPRESSION SPRING 8, FS4300 |
| 15 | 267202-3 | Makita 267202-3 FLAT WASHER 8, 6827 |
| 16 | 223170-0 | Makita 223170-0 CLUTCH CAM 125S, FS4300 |
| 17 | 216008-6 | Makita 216008-6 Steel Ball 4.0 for 6827, 6908D, BTW200 |
| 18 | 158885-9 | Makita 158885-9 GEAR 38S COMPLETE, FS6300 |
| 19 | 216415-3 | Makita 216415-3 THRUST NEEDLE GAGE 821, 6826 |
| 20 | 216212-7 | Makita 216212-7 WASHER 821, 6826 |
| 21 | 424162-4 | Makita 424162-4 SEAL RING, FS4300 |
| 22 | 158874-4 | Makita 158874-4 GEAR HOUSING COVER COMPLETE, FS4300 |
| 23 | 451100-3 | Makita 451100-3 RING 8, FS4300 |
| 24 | 210007-0 | Makita 210007-0 BALL BEARING 608VV, 6827 |
| 26 | 515754-1 | Makita 515754-1 Armature Ass'y 240V for FS6300 |
| 27 | 681636-0 | Makita 681636-0 INSULATION WASHER, MT190 |
| 28 | 210062-2 | Makita 210062-2 BALL BEARING 607ZZ, MT952 |
| 29 | 421868-5 | Makita 421868-5 RUBBER RING 19 WITH LABYRINTH, 9556NB |
| 30 | 266467-4 | Makita 266467-4 TAPPING SCREW 4*50, FS4200 |
| 31 | 450880-8 | Makita 450880-8 BAFFLE PLATE, FS4300 |
| 32 | 633693-4 | Makita 633693-4 FIELD 220-240V 170T, FS6300 |
| 33 | 450878-5 | Makita 450878-5 MOTOR HOUSING L, FS4300 |
| 34 | 162272-6 | Makita 162272-6 HOOK, FS4300 |
| 35 | 866558-7 | Makita 866558-7 FS6300 NAME PLATEFS6300 |
| 36 | 808576-9 | |
| 37 | 689111-0 | Makita 689111-0 SPACER, HR2020 |
| 38 | 191962-4 | Old code CB-419 = CB-407 |
| 39 | 643948-9 | Makita 643948-9 BRUSH HOLDER, 6824 |
| 40 | 643951-0 | Makita 643951-0 BRUSH HOLDER, 6824 |
| 41 | 687124-5 | Makita 687124-5 CORD CLAMP, MT951 |
| 42 | 650614-1 | Makita 650614-1 Switch HS2300 FS2500 FS2700 FS4300 FS6300 |
| 43 | 158878-6 | Makita 158878-6 HANDLE COVER L COMPLETE FS6300, FS6300 |
| 44 | 266374-1 | Makita 266374-1 TAPPING SCREW 4*25, GA9020 |
| 45 | 266374-1 | Makita 266374-1 TAPPING SCREW 4*25, GA9020 |
| 46 | 631939-2 | Makita 631939-2 LED CIRCUIT, FS6300 |
| 47 | 646122-8 | Makita 646122-8 CHOKE COIL, FS4000 |
| 48 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 49 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 50 | 682559-5 | Makita 682559-5 CORD GUARD 8-110, 6826 |
| 51 | 695034-2 | Makita 695034-2 POWER SUPPLY CORD 1.0-2-4 |
