Bosch Fontus cordless pressure cleaner: exploded parts diagram, 2 sheets, 34 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch Fontus: 34 positions on 2 sheets

Bosch Fontus parts list (2 sheets)

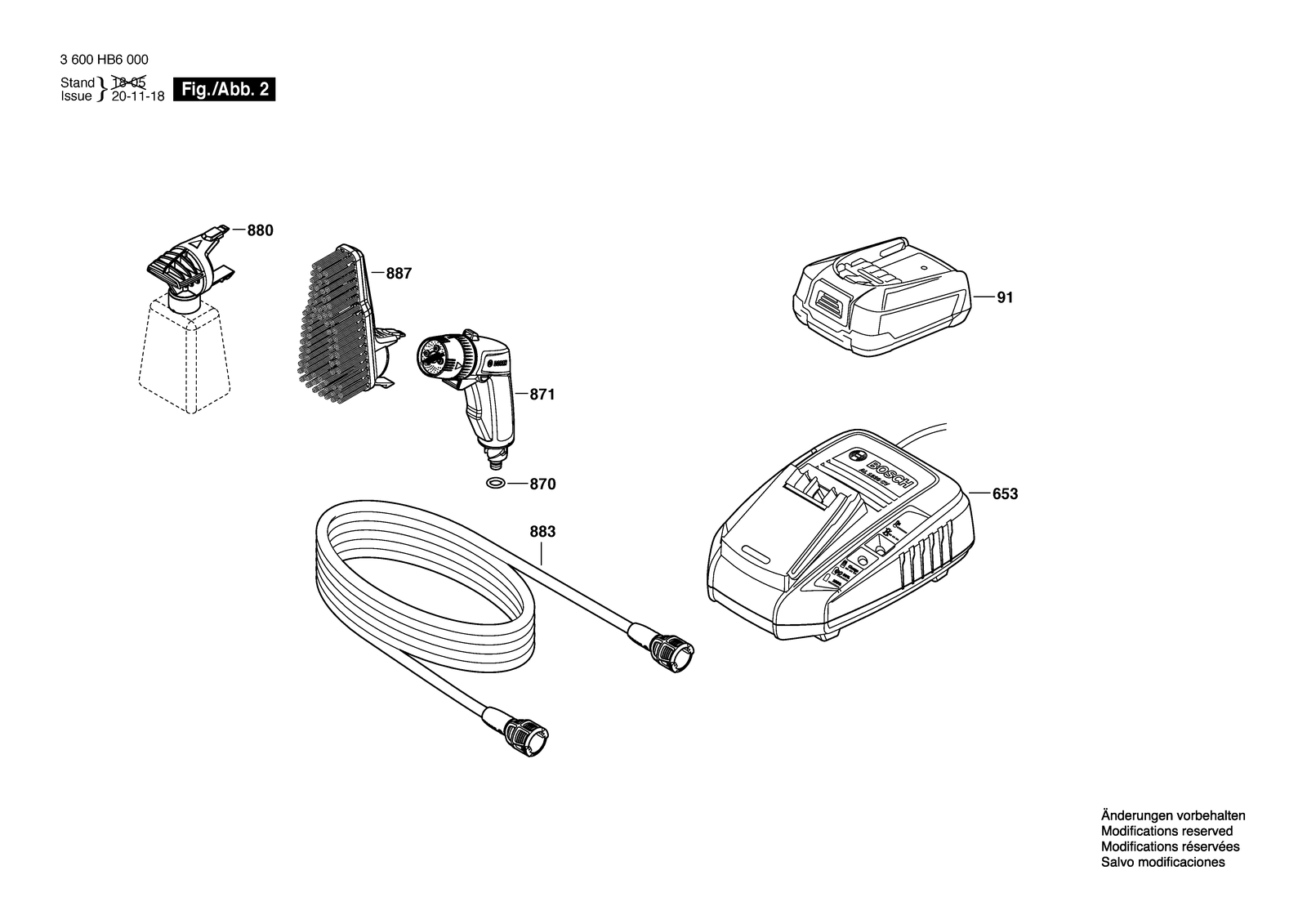

Bosch Fontus parts diagram, sheet 1Bosch Fontus parts diagram, sheet 2
No.Part numberPart name
6532607225967Charger Gb AL 1830 CV 230/14,4-18V 1H
6532607225975Fast Charger J AL 1830 CV 100/14,4-18V 1H
6532607226517Charger EU AL 18V-20 230V 2A
808F016F05313Nameplate
808F016F05346Nameplate
809F016F05312Warning Label
810F016F04810Torx SH cap screw
811F016F05288Front cover
812F016F05305Front cover
813F016F05299Side Panel
814F016F05300Side Panel
820F016F05307Housing part
821F016F05293Battery Cover
825F016F05294Wheel Set
827F016F05295Axle
833F016F05306Auxiliary Handle
834F016F05290Handle
835F016F05291Catch Slide
837F016F05292Seal Strip
842F016F05303Tank
849F016F05304Pressure Hose
853F016F05296Pump
858F016F05298Motor Plate
859F016F05297Male Hose Coupling
869F016F05289Electronic Assembly
870F016F05311O-Ring
871F016F05310Trigger
880F016F05638Nozzle
881F016F05301Sealing cap
882F016F05302Water filter
883F016F05308High-Pressure Hose
887F016F05309Cleaning Brush
911607A350RUBattery Pack PBA 18V 2,5AH W-b 45WH
912607337201Battery Pack PBA 2,5AH W-b J
