Bosch FNS138-23

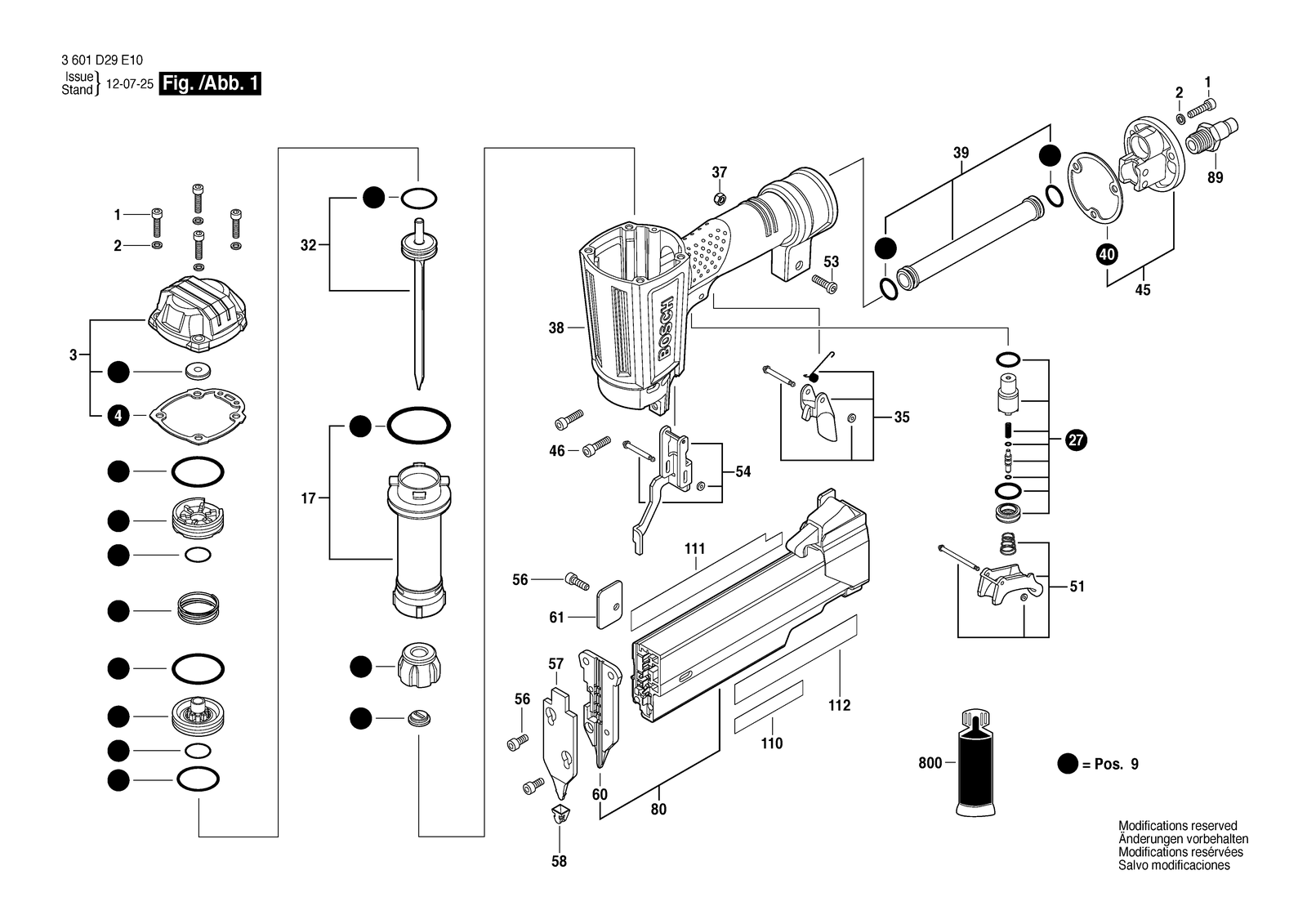

Bosch FNS138-23 pneumatic nailgun: exploded parts diagram, 1 sheet, 29 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch FNS138-23: 29 positions on 1 sheet
Bosch FNS138-23 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610006580 | Screw |
| 110 | 2610022000 | Nameplate |
| 111 | 2610022001 | Warning Label |
| 112 | 2610022002 | Warning Label |
| 17 | 2610021985 | Cylinder |
| 2 | 2610006581 | Washer |
| 27 | 2610021986 | Trigger |
| 3 | 2610021984 | Peaked Cap |
| 32 | 2610021987 | Piston |
| 35 | 2610021996 | Service Kit |
| 37 | 2610006594 | Nut |
| 38 | 2610021998 | Housing Assembly |
| 39 | 2610021988 | Pipe |
| 4 | 2610024780 | Mat seal |
| 40 | 2610024781 | Mat seal |
| 45 | 2610021989 | End cap |
| 46 | 2610006597 | Bolt |
| 51 | 2610021997 | Service Kit |
| 53 | 2610021990 | Screw |
| 54 | 2610024880 | Slider |
| 56 | 2610021991 | Screw |
| 57 | 2610021992 | Guide Cover |
| 58 | 2610021993 | Pad |
| 60 | 2610025366 | Guide |
| 61 | 2610021994 | Safety Cover |
| 80 | 2610021999 | Holding cartridge |
| 800 | 2610005257 | Grease |
| 89 | 2610024896 | Hose Fitting |
| 9 | 2610021995 | Service Kit |
