Bosch FNA 250-15

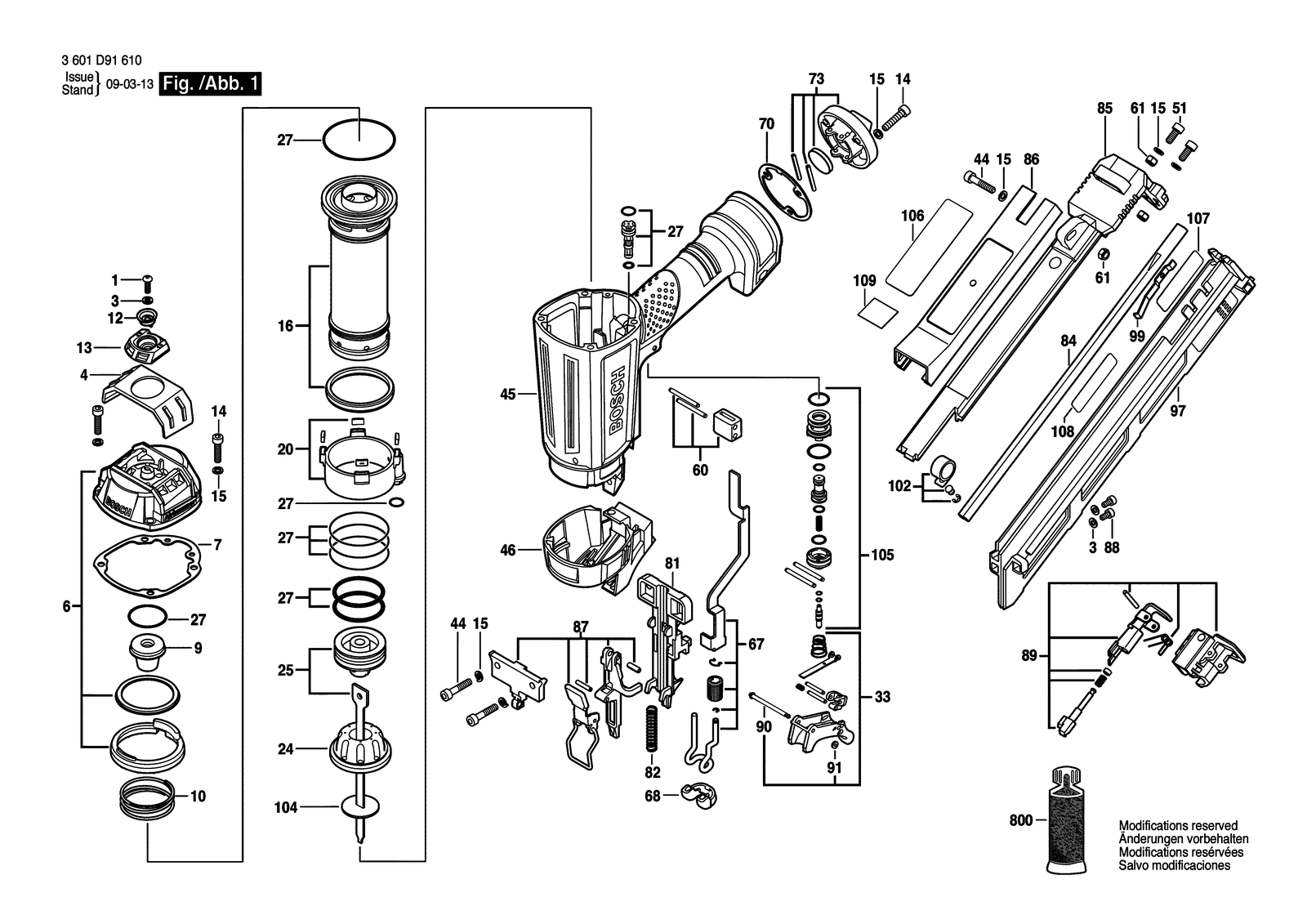

Bosch FNA 250-15 pneumatic nailgun: exploded parts diagram, 1 sheet, 47 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch FNA 250-15: 47 positions on 1 sheet
Bosch FNA 250-15 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610005299 | Screw |
| 10 | 2610005308 | Coil Spring |
| 102 | 2610005341 | Coil Spring |
| 104 | 2610005342 | Lead-Seal Plate |
| 105 | 2610005343 | Compression Spring |
| 106 | 2610005344 | Nameplate |
| 107 | 2610005345 | Warning Label |
| 108 | 2610005346 | Warning Label |
| 109 | 2610005264 | Shuttle Valve |
| 12 | 2610005309 | Spacer Bushing |
| 13 | 2610005310 | Cover |
| 14 | 2610005311 | Screw |
| 15 | 2610005312 | Washer |
| 16 | 2610005313 | Piston Cylinder |
| 20 | 2610005314 | Cylinder Support |
| 24 | 2610005315 | Shock Absorber |
| 25 | 2610005316 | Piston |
| 27 | 2610005317 | O-Ring |
| 3 | 2610005300 | Washer |
| 33 | 2610005318 | Triggering Rod |
| 4 | 2610005301 | Cover Plate |
| 44 | 2610005319 | Screw |
| 45 | 2610005320 | Housing |
| 46 | 2610005321 | Cover |
| 51 | 2610005322 | Screw |
| 6 | 2610005303 | Cylinder Cover |
| 60 | 2610005323 | Guide Block |
| 61 | 2610005245 | Lock Nut |
| 67 | 2610005324 | Safety Lever |
| 68 | 2610005325 | Protective Guard |
| 7 | 2610005305 | Mat seal |
| 70 | 2610005326 | Mat seal |
| 73 | 2610005327 | End cap |
| 800 | 2610005257 | Grease |
| 81 | 2610005328 | Nose |
| 82 | 2610005330 | Coil Spring |
| 84 | 2610005331 | Wearing Strip |
| 85 | 2610005332 | Nail cartridge |
| 86 | 2610005333 | Nail cartridge |
| 87 | 2610005334 | Nose |
| 88 | 2610005335 | Screw |
| 89 | 2610005336 | Feeder Block |
| 9 | 2610005307 | Shock Absorber |
| 90 | 2610005337 | Pin |
| 91 | 2610005338 | O-Ring |
| 97 | 2610005339 | Nail cartridge |
| 99 | 2610005340 | Coil Spring |
