Bosch FBZ 40-30

Bosch FBZ 40-30 cutting drill center: exploded parts diagram, 2 sheets, 59 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch FBZ 40-30: 59 positions on 2 sheets

Bosch FBZ 40-30 parts list (2 sheets)

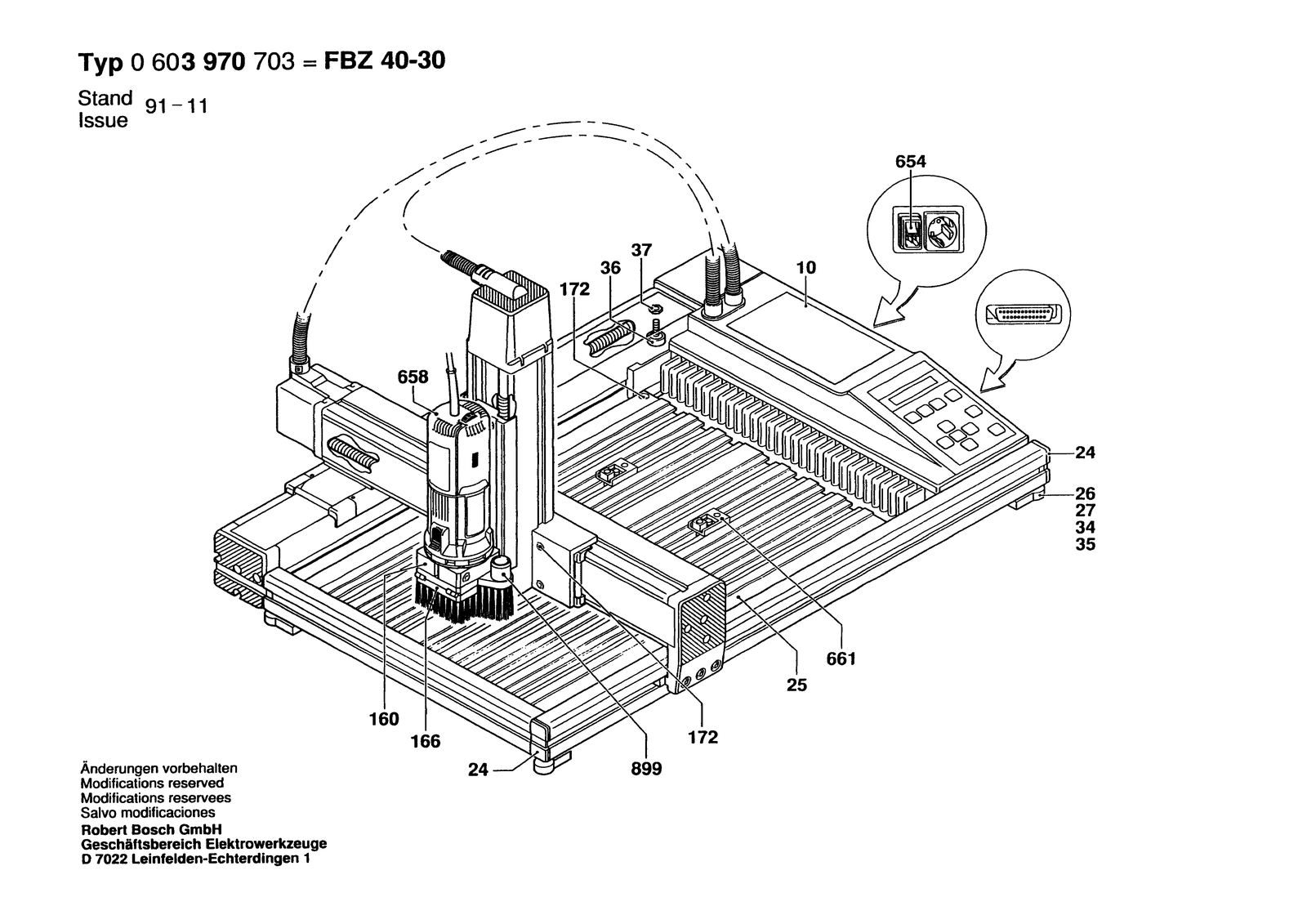

Bosch FBZ 40-30 parts diagram, sheet 1Bosch FBZ 40-30 parts diagram, sheet 2
No.Part numberPart name
103601106015Manufacturer's nameplate
1603609201275Drive-Machine Holder
1663609201311Dust Extraction
1722910141152Hex Socket Head Cap Screw DIN 912-M5X10-8.8
243602380003Outer Rim
253601072008Base Plate
261609201862Rubber Buffer
271609201848Pickup Clip
3022604220491Field 220-230V
3032604010769Armature 220-230V
3041607200086On-Off Switch
3062600703012Grommet Ø6,5-Ø6,9X95 MM
3071601302017Fastening Clamp
3122607329124Suppression Filter
3132600905018Groove ball bearing 7X22X7
3162601323022Brush Holder
3182603410001Socket head cap screw M3X6,5-4.8
3192910611018Tapping Screw DIN 7981-ST3,9X13-C-H
3252603490017Torx Oval-Head Screw 3X10
3262604652009Spiral Spring
3272600150033Shim
3282600101027Shim washer 0,3 MM
3282600101666Shim 0,3 MM
3282600101667Shim washer 0,5 MM
3291610712034Shrinkable Tube
3311600508011Housing Cover Blue
3331602026057Switch Handle Black
3341602319002Adjusting Slide
3352601328045Cover Disc
3372604448016Connecting Cable White L=52MM
3382604448149Cable
3392604465096Suppression Filter
342912411419Tapping Screw DIN 7982-ST3,9X16-F-Z
3401604611026Compression Spring
3412607230013Speed governor 230V
3422605806375Spindle Housing Blue
3433603342009Round Nut
3452600300073Seal Bushing
3462916660013Retaining clip DIN 472-32X1,2 MM
3472916650006Retaining clip DIN 471-15X1-FST
3482600500033Cupped Washer
3492600108033Felt Washer
352916011010Plain Washer DIN 125-A4,3-ST
3502912401020Tapping Screw DIN 7981-3,9X19-C-Z-ST
3512600905017Groove ball bearing 15X32X9
3521600102626Shim Thick 0,1 MM
363609201222Rubber Buffer
372915051106Hex Nut DIN 439-AM6-04
3991601110265Reference Plate
6543609201384Elec. Cable W/Connection 10A/2,5M
6582607220491Un. Flange-Mtd. Motor Blue 230V
6593603101004Straight Pin Ø 4X100 MM
6602607950511Single-Head Eng. Wrench SW17
6613607031324Grip-Spring Tensioning E 6 Piece
7442608570129Collet Ø 6 MM
8012605108908Motor Housing Blue
8051607000386Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F
8102604320910Carbon-Brush Set
888160111A3H3Nameplate
