Bosch Extension DWAS 68

Bosch Extension DWAS 68 intermediate housing: exploded parts diagram, 1 sheet, 14 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch Extension DWAS 68: 14 positions on 1 sheet

Bosch Extension DWAS 68 parts list (1 sheet)

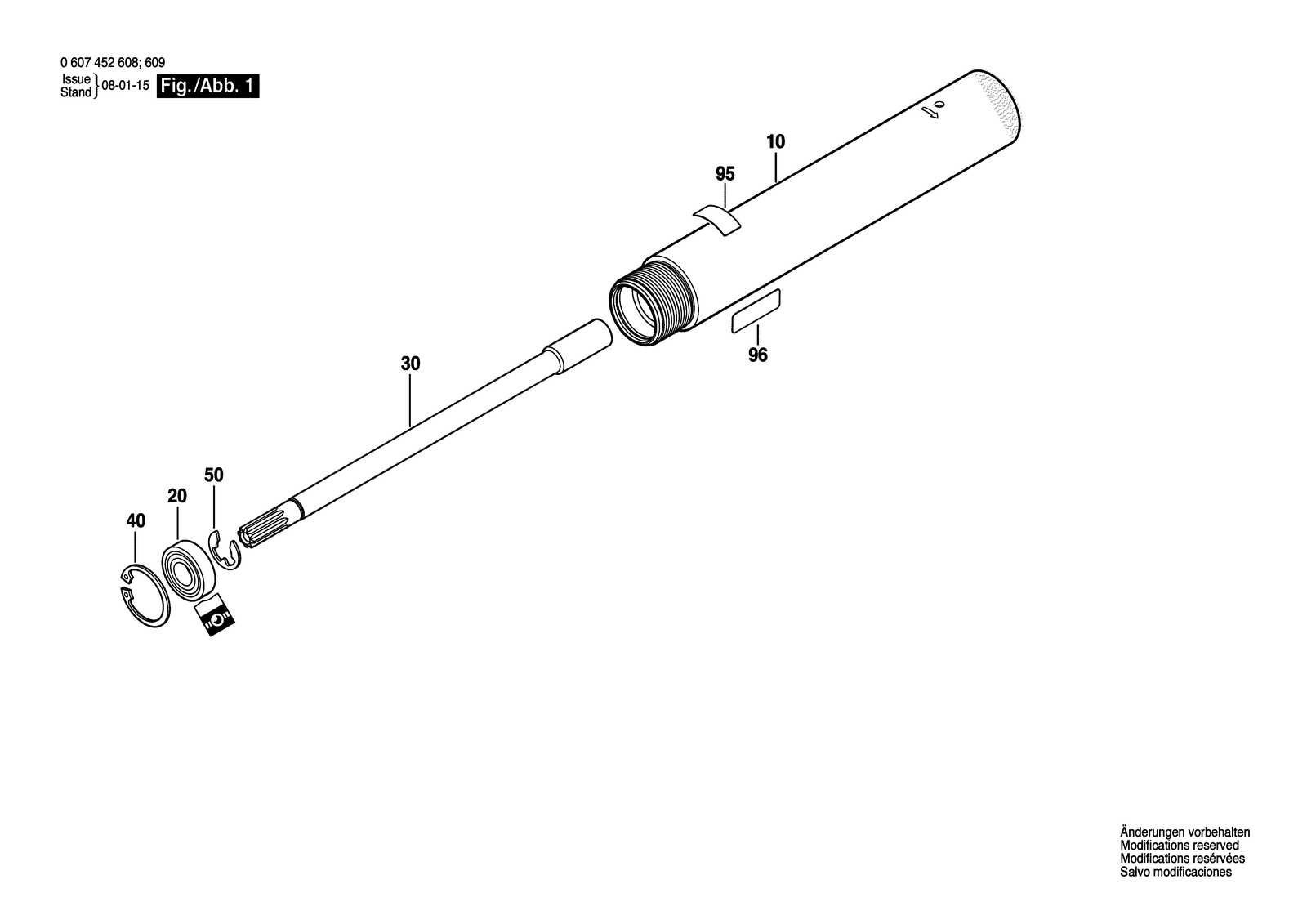

Bosch Extension DWAS 68 parts diagram, sheet 1
No.Part numberPart name
103609202A20Housing
103609202A20Housing
203600905023Groove ball bearing
203600905023Groove ball bearing
303609202A22Output Shaft
303609202A21Output Shaft
403600118006Spring retaining ring
403600118006Spring retaining ring
502916080012Locking washer DIN 6799-9-FST
502916080012Locking washer DIN 6799-9-FST
95160111A3HFNameplate
95160111A3HFNameplate
963601110331Manufacturer's nameplate
963601110331Manufacturer's nameplate
