Bosch EXACT ION 8-1100

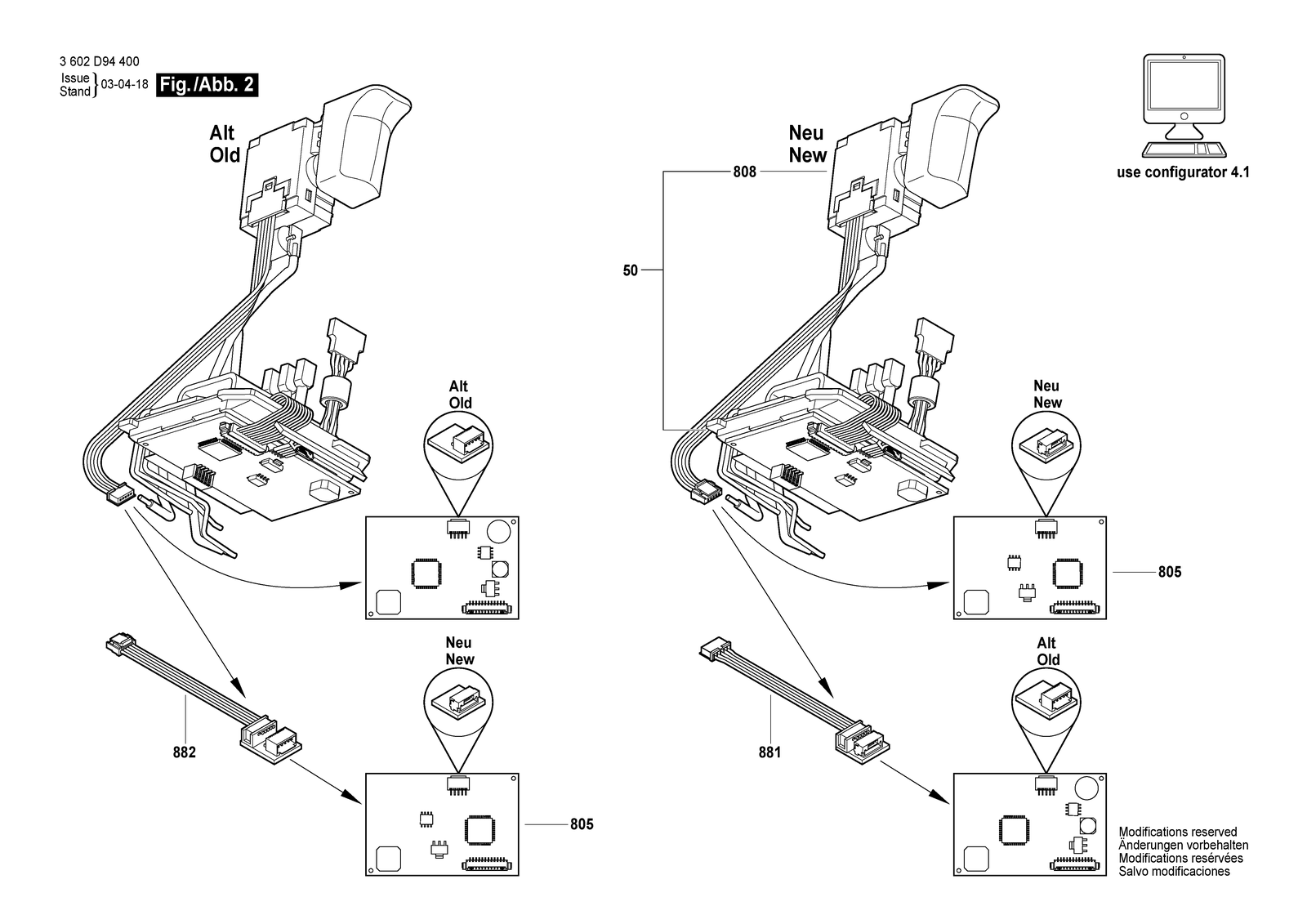

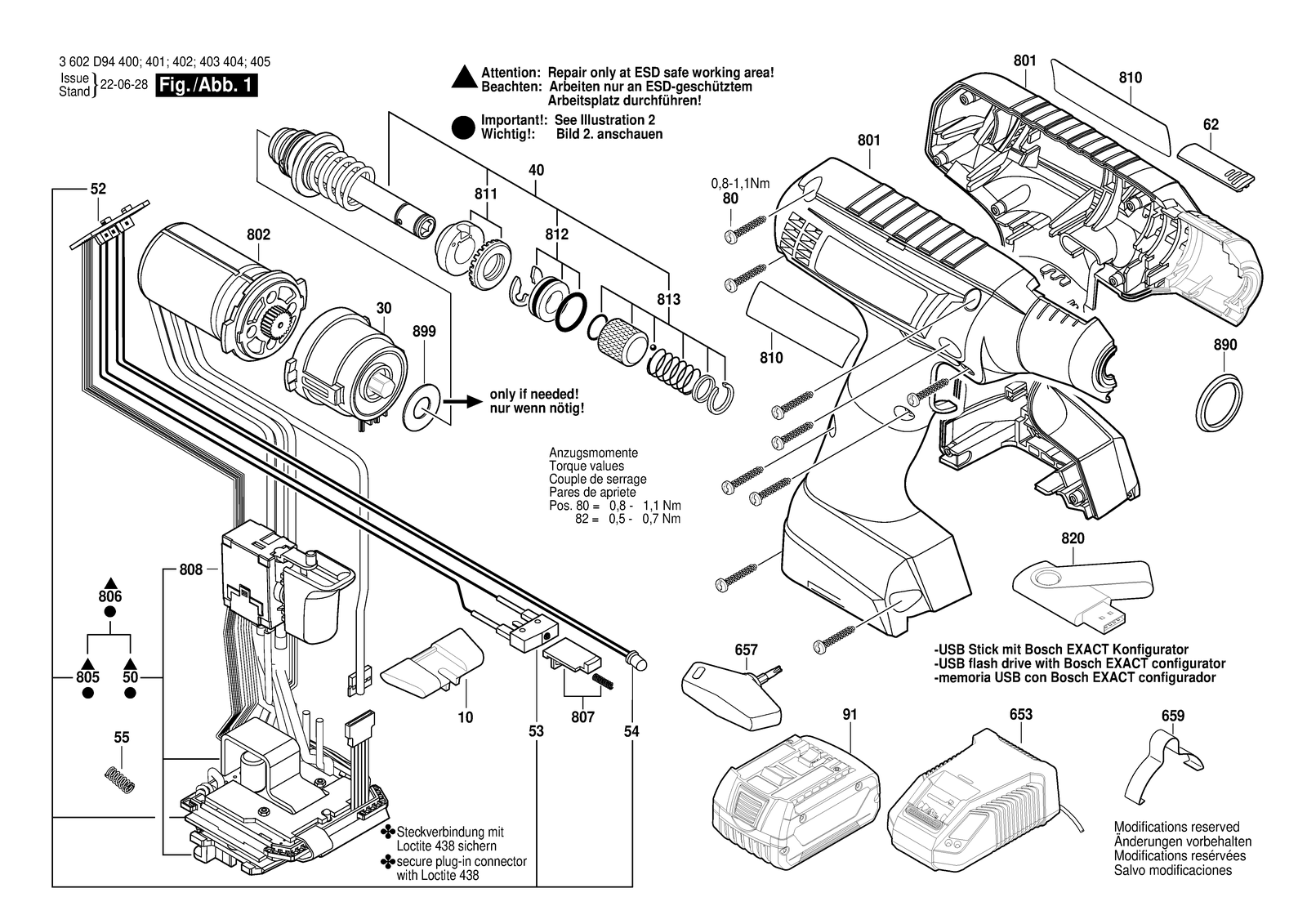

Bosch EXACT ION 8-1100 pn-accu-screwdriver: exploded parts diagram, 2 sheets, 273 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch EXACT ION 8-1100: 273 positions on 2 sheets
Bosch EXACT ION 8-1100 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 3601099004 | Switch Slide |
| 10 | 3601099004 | Switch Slide |
| 10 | 3601099004 | Switch Slide |
| 10 | 3601099004 | Switch Slide |
| 10 | 3601099004 | Switch Slide |
| 10 | 3601099004 | Switch Slide |
| 10 | 3601099004 | Switch Slide |
| 30 | 3607030488 | Planetary Gear Train |
| 30 | 3607030471 | Planetary Gear Train |
| 30 | 3607030472 | Planetary Gear Train |
| 30 | 3607030469 | Planetary Gear Train |
| 30 | 3607030492 | Planetary Gear Train |
| 30 | 3607030490 | Planetary Gear Train |
| 30 | 3607030469 | Planetary Gear Train |
| 30 | 3607030471 | Planetary Gear Train |
| 30 | 3607030472 | Planetary Gear Train |
| 30 | 3607030488 | Planetary Gear Train |
| 30 | 3607030490 | Planetary Gear Train |
| 30 | 3607030492 | Planetary Gear Train |
| 40 | 3607031546 | Assembly kit |
| 40 | 3607031534 | Assembly kit |
| 40 | 3607031534 | Assembly kit |
| 40 | 3607031535 | Assembly kit |
| 40 | 3607031535 | Assembly kit |
| 40 | 3607031535 | Assembly kit |
| 40 | 3607031534 | Assembly kit |
| 40 | 3607031535 | Assembly kit |
| 40 | 3607031546 | Assembly kit |
| 50 | 16072335JF | Electronic Module |
| 50 | 16072335JF | Electronic Module |
| 50 | 16072335JF | Electronic Module |
| 50 | 16072335JF | Electronic Module |
| 50 | 16072335JF | Electronic Module |
| 50 | 16072335JF | Electronic Module |
| 50 | 16072335JF | Electronic Module |
| 52 | 1607233516 | Indicator Plate |
| 52 | 1607233516 | Indicator Plate |
| 52 | 1607233516 | Indicator Plate |
| 52 | 1607233516 | Indicator Plate |
| 52 | 1607233516 | Indicator Plate |
| 52 | 1607233516 | Indicator Plate |
| 52 | 1607233516 | Indicator Plate |
| 53 | 1607502627 | Microswitch |
| 53 | 1607502627 | Microswitch |
| 53 | 1607502627 | Microswitch |
| 53 | 1607502627 | Microswitch |
| 53 | 1607502627 | Microswitch |
| 53 | 1607502627 | Microswitch |
| 53 | 1607502627 | Microswitch |
| 54 | 1607502832 | Light-Emitting-Diode |
| 54 | 1607502832 | Light-Emitting-Diode |
| 54 | 1607502832 | Light-Emitting-Diode |
| 54 | 1607502832 | Light-Emitting-Diode |
| 54 | 1607502832 | Light-Emitting-Diode |
| 54 | 1607502832 | Light-Emitting-Diode |
| 54 | 1607502832 | Light-Emitting-Diode |
| 55 | 1609280477 | Compression Spring |
| 55 | 1609280477 | Compression Spring |
| 55 | 1609280477 | Compression Spring |
| 55 | 1609280477 | Compression Spring |
| 55 | 1609280477 | Compression Spring |
| 55 | 1609280477 | Compression Spring |
| 55 | 1609280477 | Compression Spring |
| 62 | 3601923030 | Pusher |
| 62 | 3601923030 | Pusher |
| 62 | 3601923030 | Pusher |
| 62 | 3601923030 | Pusher |
| 62 | 3601923030 | Pusher |
| 62 | 3601923030 | Pusher |
| 62 | 3601923030 | Pusher |
| 653 | 2607225321 | Charger EU 230/14,4-18V, 30 40 S |
| 653 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 653 | 2607225321 | Charger EU 230/14,4-18V, 30 40 S |
| 653 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 653 | 2607225321 | Charger EU 230/14,4-18V, 30 40 S |
| 653 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 653 | 2607225321 | Charger EU 230/14,4-18V, 30 40 S |
| 653 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 653 | 2607225321 | Charger EU 230/14,4-18V, 30 40 S |
| 653 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 653 | 2607225321 | Charger EU 230/14,4-18V, 30 40 S |
| 653 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 653 | 2607226287 | Charger US GAL 18V-20 120V / 2A |
| 657 | 3607950027 | Screwdriver |
| 657 | 3607950027 | Screwdriver |
| 657 | 3607950027 | Screwdriver |
| 657 | 3607950027 | Screwdriver |
| 657 | 3607950027 | Screwdriver |
| 657 | 3607950027 | Screwdriver |
| 657 | 3607950027 | Screwdriver |
| 659 | 3601923024 | Suspension Loop |
| 659 | 3601923024 | Suspension Loop |
| 659 | 3601923024 | Suspension Loop |
| 659 | 3601923024 | Suspension Loop |
| 659 | 3601923024 | Suspension Loop |
| 659 | 3601923024 | Suspension Loop |
| 659 | 3601923024 | Suspension Loop |
| 80 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 80 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 80 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 80 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 80 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 80 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 80 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 801 | 3607031774 | Housing Assembly |
| 801 | 3607031774 | Housing Assembly |
| 801 | 3607031774 | Housing Assembly |
| 801 | 3607031774 | Housing Assembly |
| 801 | 3607031774 | Housing Assembly |
| 801 | 3607031774 | Housing Assembly |
| 801 | 3607031774 | Housing Assembly |
| 802 | 3607031862 | Motor assembly |
| 802 | 3607031786 | Motor assembly |
| 802 | 3607031775 | Motor assembly |
| 802 | 3607031790 | Motor assembly |
| 802 | 3607031794 | Motor assembly |
| 802 | 3607031794 | Motor assembly |
| 802 | 3607031775 | Motor assembly |
| 802 | 3607031786 | Motor assembly |
| 802 | 3607031790 | Motor assembly |
| 802 | 3607031794 | Motor assembly |
| 802 | 3607031862 | Motor assembly |
| 805 | 3607031886 | Electronics Module |
| 805 | 3607031888 | Electronics Module |
| 805 | 3607031890 | Electronics Module |
| 805 | 3607031892 | Electronics Module |
| 805 | 3607031894 | Electronics Module |
| 805 | 3607031896 | Electronics Module |
| 805 | 3607031886 | Electronics Module |
| 805 | 3607031888 | Electronics Module |
| 805 | 3607031890 | Electronics Module |
| 805 | 3607031892 | Electronics Module |
| 805 | 3607031894 | Electronics Module |
| 805 | 3607031896 | Electronics Module |
| 806 | 3607031887 | Drive electronics |
| 806 | 3607031889 | Drive electronics |
| 806 | 3607031891 | Drive electronics |
| 806 | 3607031893 | Drive electronics |
| 806 | 3607031895 | Drive electronics |
| 806 | 3607031897 | Drive electronics |
| 806 | 3607031887 | Drive electronics |
| 806 | 3607031889 | Drive electronics |
| 806 | 3607031891 | Drive electronics |
| 806 | 3607031893 | Drive electronics |
| 806 | 3607031895 | Drive electronics |
| 806 | 3607031897 | Drive electronics |
| 807 | 3607031762 | Switching Element |
| 807 | 3607031762 | Switching Element |
| 807 | 3607031762 | Switching Element |
| 807 | 3607031762 | Switching Element |
| 807 | 3607031762 | Switching Element |
| 807 | 3607031762 | Switching Element |
| 807 | 3607031762 | Switching Element |
| 808 | 3607031884 | Switch |
| 808 | 3607031884 | Switch |
| 808 | 3607031884 | Switch |
| 808 | 3607031884 | Switch |
| 808 | 3607031884 | Switch |
| 808 | 3607031884 | Switch |
| 808 | 3607031884 | Switch |
| 810 | 16070312C5 | Set Of Plates |
| 810 | 16070312C6 | Set Of Plates |
| 810 | 16070312C3 | Set Of Plates |
| 810 | 16070312C7 | Set Of Plates |
| 810 | 16070312C4 | Set Of Plates |
| 810 | 16070312C8 | Set Of Plates |
| 810 | 3607031836 | Set Of Plates |
| 810 | 3607031837 | Set Of Plates |
| 810 | 3607031838 | Set Of Plates |
| 810 | 3607031839 | Set Of Plates |
| 810 | 3607031840 | Set Of Plates |
| 810 | 3607031841 | Set Of Plates |
| 811 | 1600A007U6 | Setting Ring |
| 811 | 1600A007U6 | Setting Ring |
| 811 | 1600A007U6 | Setting Ring |
| 811 | 1600A007U6 | Setting Ring |
| 811 | 1600A007U6 | Setting Ring |
| 811 | 1600A007U6 | Setting Ring |
| 811 | 1600A007U6 | Setting Ring |
| 812 | 1600A007U7 | Plain bearing |
| 812 | 1600A007U7 | Plain bearing |
| 812 | 1600A007U7 | Plain bearing |
| 812 | 1600A007U7 | Plain bearing |
| 812 | 1600A007U7 | Plain bearing |
| 812 | 1600A007U7 | Plain bearing |
| 812 | 1600A007U7 | Plain bearing |
| 813 | 1600A007U5 | Quick-Change Collet Chuck |
| 813 | 1600A007U5 | Quick-Change Collet Chuck |
| 813 | 1600A007U5 | Quick-Change Collet Chuck |
| 813 | 1600A007U5 | Quick-Change Collet Chuck |
| 813 | 1600A007U5 | Quick-Change Collet Chuck |
| 813 | 1600A007U5 | Quick-Change Collet Chuck |
| 813 | 1600A007U5 | Quick-Change Collet Chuck |
| 820 | 3607031931 | Usb stick |
| 820 | 3607031931 | Usb stick |
| 820 | 3607031931 | Usb stick |
| 820 | 3607031931 | Usb stick |
| 820 | 3607031931 | Usb stick |
| 820 | 3607031931 | Usb stick |
| 820 | 3607031931 | Usb stick |
| 881 | 1607000CM1 | Adapter Line |
| 881 | 1607000CM1 | Adapter Line |
| 881 | 1607000CM1 | Adapter Line |
| 881 | 1607000CM1 | Adapter Line |
| 881 | 1607000CM1 | Adapter Line |
| 881 | 1607000CM1 | Adapter Line |
| 881 | 1607000CM1 | Adapter Line |
| 882 | 1607000CM0 | Adapter Line |
| 882 | 1607000CM0 | Adapter Line |
| 882 | 1607000CM0 | Adapter Line |
| 882 | 1607000CM0 | Adapter Line |
| 882 | 1607000CM0 | Adapter Line |
| 882 | 1607000CM0 | Adapter Line |
| 882 | 1607000CM0 | Adapter Line |
| 890 | 3600106010 | Parts Set 5 Pce., Black |
| 890 | 3600106011 | Parts Set 5 Pce., Red |
| 890 | 3600106012 | Parts Set 5 Pce,. Light Blue |
| 890 | 3600106013 | Parts Set 5 Pce,. Light Green |
| 890 | 3600106014 | Parts Set 5 Pce., Orange |
| 890 | 3600106015 | Parts Set 5 Piece |
| 890 | 3600106010 | Parts Set 5 Pce., Black |
| 890 | 3600106011 | Parts Set 5 Pce., Red |
| 890 | 3600106012 | Parts Set 5 Pce,. Light Blue |
| 890 | 3600106013 | Parts Set 5 Pce,. Light Green |
| 890 | 3600106014 | Parts Set 5 Pce., Orange |
| 890 | 3600106015 | Parts Set 5 Piece |
| 890 | 3600106010 | Parts Set 5 Pce., Black |
| 890 | 3600106011 | Parts Set 5 Pce., Red |
| 890 | 3600106012 | Parts Set 5 Pce,. Light Blue |
| 890 | 3600106013 | Parts Set 5 Pce,. Light Green |
| 890 | 3600106014 | Parts Set 5 Pce., Orange |
| 890 | 3600106015 | Parts Set 5 Piece |
| 890 | 3600106010 | Parts Set 5 Pce., Black |
| 890 | 3600106011 | Parts Set 5 Pce., Red |
| 890 | 3600106012 | Parts Set 5 Pce,. Light Blue |
| 890 | 3600106013 | Parts Set 5 Pce,. Light Green |
| 890 | 3600106014 | Parts Set 5 Pce., Orange |
| 890 | 3600106015 | Parts Set 5 Piece |
| 890 | 3600106010 | Parts Set 5 Pce., Black |
| 890 | 3600106011 | Parts Set 5 Pce., Red |
| 890 | 3600106012 | Parts Set 5 Pce,. Light Blue |
| 890 | 3600106013 | Parts Set 5 Pce,. Light Green |
| 890 | 3600106014 | Parts Set 5 Pce., Orange |
| 890 | 3600106015 | Parts Set 5 Piece |
| 890 | 3600106010 | Parts Set 5 Pce., Black |
| 890 | 3600106011 | Parts Set 5 Pce., Red |
| 890 | 3600106012 | Parts Set 5 Pce,. Light Blue |
| 890 | 3600106013 | Parts Set 5 Pce,. Light Green |
| 890 | 3600106014 | Parts Set 5 Pce., Orange |
| 890 | 3600106015 | Parts Set 5 Piece |
| 890 | 3600106010 | Parts Set 5 Pce., Black |
| 890 | 3600106011 | Parts Set 5 Pce., Red |
| 890 | 3600106012 | Parts Set 5 Pce,. Light Blue |
| 890 | 3600106013 | Parts Set 5 Pce,. Light Green |
| 890 | 3600106014 | Parts Set 5 Pce., Orange |
| 890 | 3600106015 | Parts Set 5 Piece |
| 899 | 1610101621 | Shim Thick 0,1 MM |
| 899 | 1610101621 | Shim Thick 0,1 MM |
| 899 | 1610101621 | Shim Thick 0,1 MM |
| 899 | 1610101621 | Shim Thick 0,1 MM |
| 899 | 1610101621 | Shim Thick 0,1 MM |
| 899 | 1610101621 | Shim Thick 0,1 MM |
| 899 | 1610101621 | Shim Thick 0,1 MM |
| 91 | 1607A350M0 | Battery Pack GBA 18V 4.0AH |
| 91 | 1607A350MA | Battery Pack GBA 18V 2.0AH |
| 91 | 1607A350M0 | Battery Pack GBA 18V 4.0AH |
| 91 | 1607A350MA | Battery Pack GBA 18V 2.0AH |
| 91 | 1607A350M0 | Battery Pack GBA 18V 4.0AH |
| 91 | 1607A350MA | Battery Pack GBA 18V 2.0AH |
| 91 | 1607A350M0 | Battery Pack GBA 18V 4.0AH |
| 91 | 1607A350MA | Battery Pack GBA 18V 2.0AH |
| 91 | 1607A350BM | Battery Pack BAT612 18V 2.0AH LI Scm |
| 91 | 2607336819 | Battery Pack Usa BAT620 18V 4,0AH |
Selected parts0
