Bosch EXACT 9

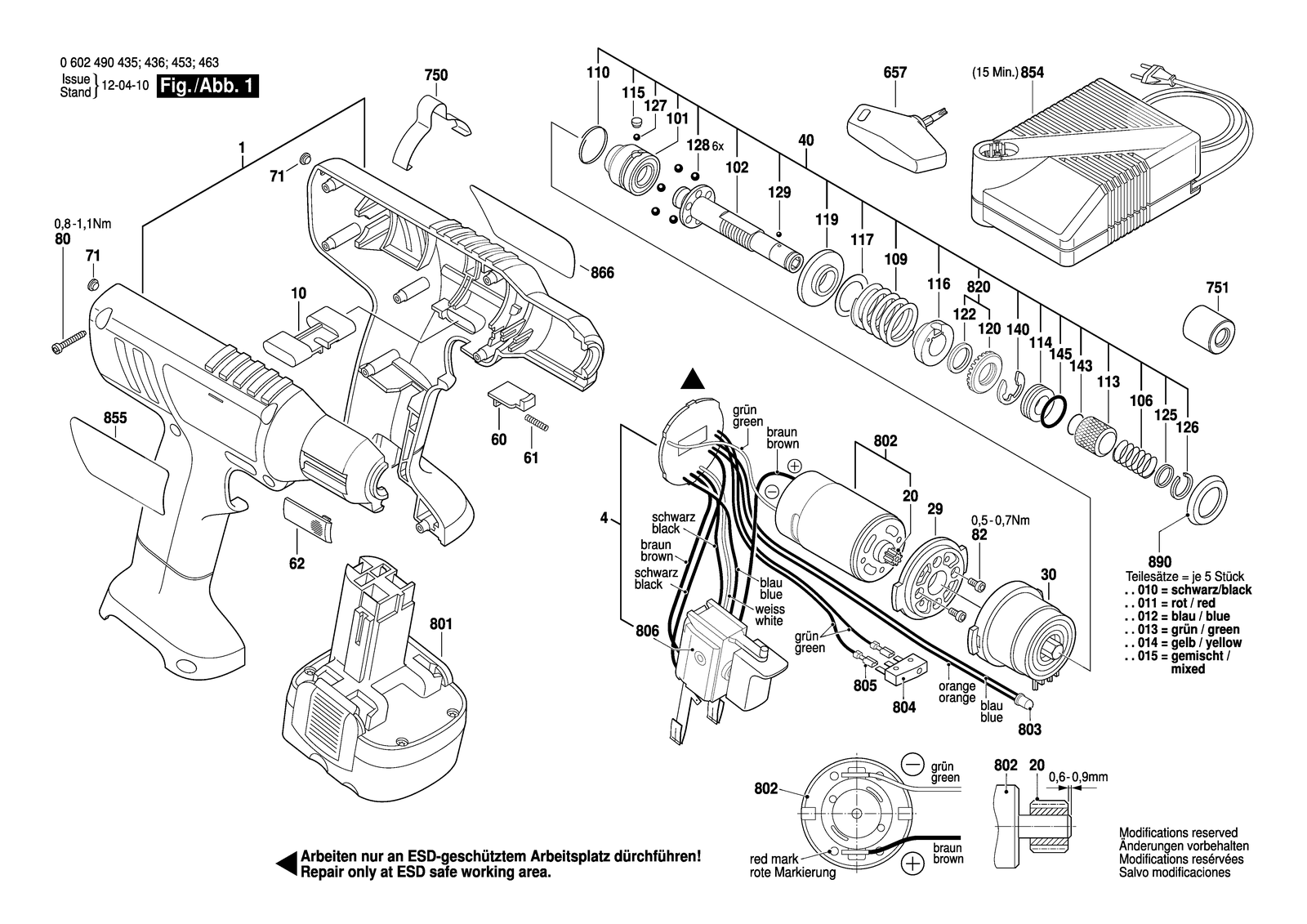

Bosch EXACT 9 cordless screw driver: exploded parts diagram, 1 sheet, 118 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch EXACT 9: 118 positions on 1 sheet
Bosch EXACT 9 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605105015 | Housing Section |
| 1 | 3605105015 | Housing Section |
| 10 | 3601099003 | Switch Slide |
| 10 | 3601099003 | Switch Slide |
| 101 | 3606445043 | Clutch Element |
| 101 | 3606445043 | Clutch Element |
| 102 | 3603124023 | Output Shaft |
| 102 | 3603124023 | Output Shaft |
| 106 | 3604610011 | Compression Spring |
| 106 | 3604610011 | Compression Spring |
| 109 | 3604619020 | Compression Spring Blue |
| 109 | 3604619020 | Compression Spring Blue |
| 110 | 3600224053 | Retaining ring |
| 110 | 3600224053 | Retaining ring |
| 113 | 3600499025 | Clamp Bushing |
| 113 | 3600499025 | Clamp Bushing |
| 114 | 3600921001 | Plain bearing |
| 114 | 3600921001 | Plain bearing |
| 115 | 3601023011 | Sealing plate |
| 115 | 3601023011 | Sealing plate |
| 116 | 3600134014 | Setting Ring |
| 116 | 3600134014 | Setting Ring |
| 117 | 1600101023 | Plain Washer Thick 0,5 MM |
| 117 | 1600101023 | Plain Washer Thick 0,5 MM |
| 119 | 3600190036 | Support Disc |
| 119 | 3600190036 | Support Disc |
| 120 | 3603344046 | Catch Disk |
| 120 | 3603344046 | Catch Disk |
| 122 | 3600101052 | Shim washer |
| 122 | 3600101052 | Shim washer |
| 125 | 3600202022 | Thrust Ring |
| 125 | 3600202022 | Thrust Ring |
| 126 | 3600224006 | Retaining ring |
| 126 | 3600224006 | Retaining ring |
| 127 | 1903230006 | Ball DIN 5401-3,5 Mm-Iii-St |
| 127 | 1903230006 | Ball DIN 5401-3,5 Mm-Iii-St |
| 128 | 1903230008 | Ball 4,5 MM III DIN 5401-ST |
| 128 | 1903230008 | Ball 4,5 MM III DIN 5401-ST |
| 129 | 1903230003 | Ball DIN 5401-2,5MM-III-ST |
| 129 | 1903230003 | Ball DIN 5401-2,5MM-III-ST |
| 140 | 2916080012 | Locking washer DIN 6799-9-FST |
| 140 | 2916080012 | Locking washer DIN 6799-9-FST |
| 143 | 3600210038 | O-Ring 9,0X1,2 MM |
| 143 | 3600210038 | O-Ring 9,0X1,2 MM |
| 145 | 3600210116 | O-Ring |
| 145 | 3600210116 | O-Ring |
| 20 | 3606328018 | Pinion |
| 20 | 3606328018 | Pinion |
| 29 | 2605719011 | Intermediate Flange |
| 29 | 2605719011 | Intermediate Flange |
| 30 | 3607030490 | Planetary Gear Train |
| 30 | 3607030490 | Planetary Gear Train |
| 4 | 3607200106 | Electronic Assembly |
| 4 | 3607200106 | Electronic Assembly |
| 40 | 3607031535 | Assembly kit |
| 40 | 3607031535 | Assembly kit |
| 60 | 3601923022 | Switching Element |
| 60 | 3601923022 | Switching Element |
| 61 | 3604611022 | Compression Spring |
| 61 | 3604611022 | Compression Spring |
| 62 | 3601923029 | Pusher |
| 62 | 3601923029 | Pusher |
| 657 | 3607950027 | Screwdriver |
| 657 | 3607950027 | Screwdriver |
| 71 | 3604460132 | Light Conductor |
| 71 | 3604460132 | Light Conductor |
| 750 | 3601923024 | Suspension Loop |
| 750 | 3601923024 | Suspension Loop |
| 751 | 3605500210 | Protective Cap 5 Piece |
| 751 | 3605500210 | Protective Cap 5 Piece |
| 80 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 80 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 801 | 2607335681 | Battery Pack 9,6V,2,6AH,NIMH |
| 801 | 2607335681 | Battery Pack 9,6V,2,6AH,NIMH |
| 802 | 3607031551 | DC motor 9,6V |
| 802 | 3607031551 | DC motor 9,6V |
| 803 | 3609202764 | Light-Emitting-Diode |
| 803 | 3609202764 | Light-Emitting-Diode |
| 804 | 3609202762 | Microswitch |
| 804 | 3609202762 | Microswitch |
| 805 | 3609202766 | Plug Set |
| 805 | 3609202766 | Plug Set |
| 806 | 3607200083 | Switch |
| 806 | 3607200083 | Switch |
| 82 | 2603414048 | Torx SH cap screw M3X5-8.8-Z |
| 82 | 2603414048 | Torx SH cap screw M3X5-8.8-Z |
| 820 | 3603344047 | Catch Disk |
| 820 | 3603344047 | Catch Disk |
| 854 | 2607224435 | Fast Charger J 100/7,2-24V, 1H |
| 854 | 2607225027 | Fast Charger EU 230/7,2-24V, 30 Min. |
| 854 | 2607225029 | Fast Charger GB 230/7,2-24V, 30 Min. |
| 854 | 2607225031 | Fast Charger AUS 240/7,2-24V, 30 Min. |
| 854 | 2607225033 | Fast Charger USA 120/7,2-24V, 30 Min. |
| 854 | 2607225035 | Fast Charger SAM 115/7,2-24V, 15 Min. |
| 854 | 2607225039 | Fast Charger ROK 220/7,2-24V, 30 Min. |
| 854 | 2607224435 | Fast Charger J 100/7,2-24V, 1H |
| 854 | 2607225027 | Fast Charger EU 230/7,2-24V, 30 Min. |
| 854 | 2607225029 | Fast Charger GB 230/7,2-24V, 30 Min. |
| 854 | 2607225031 | Fast Charger AUS 240/7,2-24V, 30 Min. |
| 854 | 2607225033 | Fast Charger USA 120/7,2-24V, 30 Min. |
| 854 | 2607225035 | Fast Charger SAM 115/7,2-24V, 15 Min. |
| 854 | 2607225039 | Fast Charger ROK 220/7,2-24V, 30 Min. |
| 855 | 160703129Y | Nameplate |
| 855 | 3601119261 | Manufacturer's nameplate |
| 866 | 3601119212 | Manufacturer's nameplate |
| 866 | 3601119231 | Reference Plate |
| 890 | 3600106010 | Parts Set 5 Pce., Black |
| 890 | 3600106011 | Parts Set 5 Pce., Red |
| 890 | 3600106012 | Parts Set 5 Pce,. Light Blue |
| 890 | 3600106013 | Parts Set 5 Pce,. Light Green |
| 890 | 3600106014 | Parts Set 5 Pce., Orange |
| 890 | 3600106015 | Parts Set 5 Piece |
| 890 | 3600106010 | Parts Set 5 Pce., Black |
| 890 | 3600106011 | Parts Set 5 Pce., Red |
| 890 | 3600106012 | Parts Set 5 Pce,. Light Blue |
| 890 | 3600106013 | Parts Set 5 Pce,. Light Green |
| 890 | 3600106014 | Parts Set 5 Pce., Orange |
| 890 | 3600106015 | Parts Set 5 Piece |
