Bosch EXACT 12V-2-670 pn-accu-screwdriver: exploded parts diagram, 1 sheet, 29 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch EXACT 12V-2-670: 29 positions on 1 sheet

Bosch EXACT 12V-2-670 parts list (1 sheet)

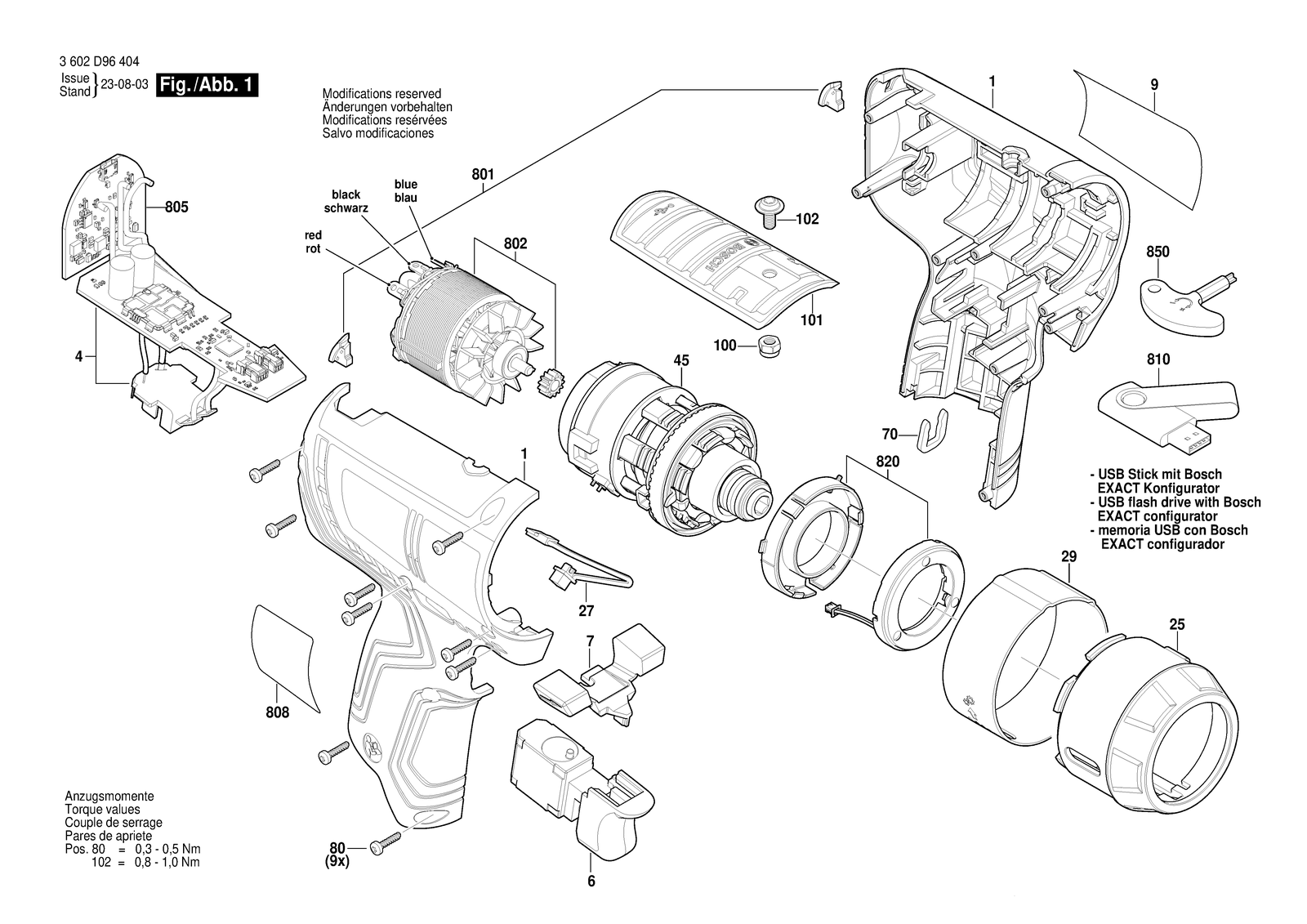

Bosch EXACT 12V-2-670 parts diagram, sheet 1
No.Part numberPart name
13605105053Housing Section
1002609110835Nut
1013605105055Housing Cover
1021600A023EFScrew
253605105056Gear cover
271607503928Photoelec. Light Barrier
293601106062Identification Ring Rot
41607504164Electronic Module
453607030507Planetary Gear Train
453607030508Planetary Gear Train
453607030509Planetary Gear Train
62607202388Switch
73601099006Switch Slide
702609110537Clip
802609110883Screw
8011600A027SPLight Conductor
8023607031924Motor assembly
8053607031932Electronics Module
8053607031933Electronics Module
8053607031934Electronics Module
808160111A9SFNameplate Exact 12V-6-670
808160111A9SGNameplate Exact 12V-3-1100
808160111A9SHNameplate Exact 12V-2-670
8103607031931Usb stick
8203607031929LED lighting
8503607950027Screwdriver
9160111C3JEManufacturer's nameplate Exact 12V-2-670
9160111C3MLManufacturer's nameplate Exact 12V--6-670
9160111C4TPManufacturer's nameplate
