Makita EX2650LH

Makita EX2650LH: exploded parts diagram, 4 sheets, 192 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita EX2650LH: 192 positions on 4 sheets

Sheet 1: Makita EX2650LH parts diagram

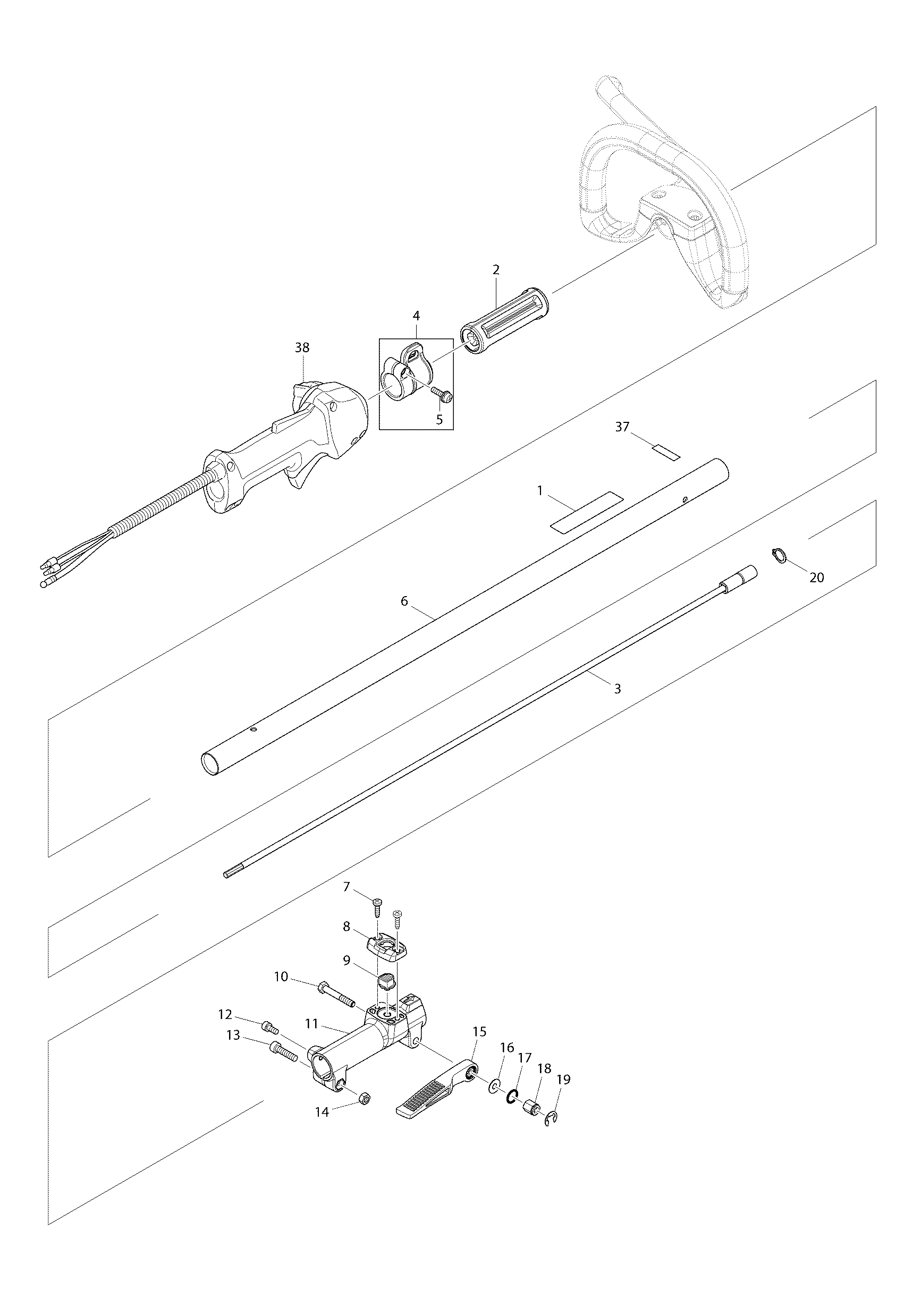

Makita EX2650LH parts diagram, sheet 1
No.Part numberPart name
1893509-7Makita 893509-7 CAUTION LABEL, EX2650L
2451601-1Makita 451601-1 SPACER 24
3141238-9Makita 141238-9 SHAFT B COMPLETE, UX360D
5911233-1Makita 911233-1 PAN HEAD SCREW M5X20, EBH251
6141008-6Makita 141008-6 SHAFT PIPE COMPLETE
7266034-5Makita 266034-5 TAPPING SCREW, CT 4x16MM
8452840-6Makita 452840-6 RELEASE BUTTON CAER EX2650LH
9452839-1Makita 452839-1 RELEASE BUTTON EX2650LH
10265596-0Makita 265596-0 HEX.BOLT M6X40 EX2650L
11318750-6OLDN Genuine Makita 318750-6 JOINT 24 EX2650L
12922211-6Makita 922211-6 HEX SOCKET HEAD BOLT M5*12, MEM427
13922342-1Makita 922342-1 HEX. SOCKET HEAD BOLT M6X
14931302-2Makita 931302-2 HEX NUT M6, 2414NB
15272268-0Makita 272268-0 LEVER EX2650L
16253332-6Makita 253332-6 THIN WASHER, MUH352
17213105-9Makita 213105-9 O RING 11, 6409
18252159-1Makita 252159-1 HEX NUT M6, CS550D
19961014-3Makita 961014-3 STOP RING E-8, SS610D
20961052-5Makita 961052-5 RETAINING RING S-12, 4100NH
37819760-1
38125776-9

Sheet 2: Makita EX2650LH parts diagram

Makita EX2650LH parts diagram, sheet 2
No.Part numberPart name
39266130-9Makita 266130-9 Tapping Screw PT 3X16, 6935FD
40451595-0Makita 451595-0 SWITCH COVER
41451594-2Makita 451594-2 SWITCH LEVER
42232251-9Makita 232251-9 LEAF SPRING, EBH2500
43188832-6Makita 188832-6 LEVER CASE SET
44346248-3Makita 346248-3 PIPE CLAMP 24
45922218-2Makita 922218-2 HEX SOCKET HEAD BOLT M5*14, MEM427
46451593-4Makita 451593-4 LOCK LEVER
47233541-3Makita 233541-3 TORSION SPRING 7, EBH2500
48168571-4
49233540-5Makita 233540-5 TORSION SPRING 11, EBH250U
50451592-6Makita 451592-6 THROTTLE LEVER
51638714-7
52638713-9
53452071-7
54266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
55188832-6Makita 188832-6 LEVER CASE SET

Sheet 3: Makita EX2650LH parts diagram

Makita EX2650LH parts diagram, sheet 3
No.Part numberPart name
32806902-6Makita 806902-6 LABEL ENGINE, EBH250U
33816567-6
34819430-2
36893507-1Makita 893507-1 MODEL NO.LABEL
61265791-2Makita 265791-2 THUMB SCREW M4, EBH260U
62443171-4Makita 443171-4 Air Cleaner Element
63443169-1Makita 443169-1 Air Cleaner Element Replacement Part
64266618-9Makita 266618-9 H.S.BUTTON HEAD BOLT M5X60
66162346-3Makita 162346-3 SEPARATOR PLATE
67213540-1Makita 213540-1 O-RING 15
68424316-3Makita 424316-3 CHECK VALVE
69422099-9Makita 422099-9 PIPE
70325665-0Makita 325665-0 JOINT PIPE
71442153-3
72266787-6
73451825-9Makita 451825-9 CLAMP
74451729-5
75213547-7
76422109-2Makita 422109-2 BREATHER PIPE
77345918-1Makita 345918-1 HOSE CLAMP, MEM427
78318745-9
79922222-1Makita 922222-1 H.S.H.BOLT M5*16, HR3850
80453860-3Makita 453860-3 ROCKER COVER INNER
81162304-9
82424302-4Makita 424302-4 PLUG CAP, EBH260U
83324891-8Makita 324891-8 PLUG CAP SPRING, MEM427
84168534-0Makita 168534-0 Spark Plug NGK CMR4A
85125554-7Makita 125554-7 ROCKER ARM ASSEMBLY, MEM426
86256200-2Makita 256200-2 PIN5, MEM426
87256865-0Makita 256865-0 ROD2.5, MEM426
88325668-4Makita 325668-4 SPRING RETAINER, MEM426
89451735-0
90922228-9Makita 922228-9 HEX SOCKET HEAD BOLT M5*18, MEM427
91450569-8Makita 450569-8 SPACER, MEM426
92961052-5Makita 961052-5 RETAINING RING S-12, 4100NH
93210111-5Makita 210111-5 BALL BEARING 62, MEM427
94962151-6Makita 962151-6 RETAINING RING R-32, 9523NB
95165704-2Makita 165704-2 CLUTCH DRUM, EX2650L
96266457-7Makita 266457-7 SHOULDER HEX. BOLT M6*25, MEM427
97267817-6Makita 267817-6 WASHER 8, MEM427
99168498-8Makita 168498-8 CLUTCH SHOE
100231881-3Makita 231881-3 TENSION SPRING 76D
101267812-6Makita 267812-6 WASHER 6, MEM427
102264039-9
103318569-3Makita 318569-3 FLYWHEEL
104444021-6Makita 444021-6 TUBE
105266602-4Makita 266602-4 HEX. SOCKET HEAD BOLT M4X20
106452049-0Makita 452049-0 SPACER
107168559-4
108268238-5Makita 268238-5 PIN5, MEM426
109125552-1Makita 125552-1 CAM GEAR ASSEMBLY, MEM426
110313169-4Makita 313169-4 CAM LIFTER, MEM426
112268239-3Makita 268239-3 PIN4, MEM426
113162274-2Makita 162274-2 CAM GEAR COVER GASKET, MEM426
114318443-5Makita 318443-5 CAM GEAR COVER, MEM426
115922222-1Makita 922222-1 H.S.H.BOLT M5*16, HR3850
117922222-1Makita 922222-1 H.S.H.BOLT M5*16, HR3850
118424201-0Makita 424201-0 CHECK VALVE, MEM426
119346331-6
120168554-4
121266440-4Makita 266440-4 HEX.SOCKET HEAD BOLT M5*40, MEM427
122168483-1Makita 168483-1 PULLEY
123451731-8
124922218-2Makita 922218-2 HEX SOCKET HEAD BOLT M5*14, MEM427
125638707-4
126638708-2
128922218-2Makita 922218-2 HEX SOCKET HEAD BOLT M5*14, MEM427
129453266-5
130922218-2Makita 922218-2 HEX SOCKET HEAD BOLT M5*14, MEM427
131424082-2Makita 424082-2 BUFFER RUBBER, DBC260U
132922211-6Makita 922211-6 HEX SOCKET HEAD BOLT M5*12, MEM427
133922226-3Makita 922226-3 HEX.SOCKET HEAD BOLT M5X18, LS1016L
134318249-1Makita 318249-1 PIPE HOLDER, DBC260
135318250-6Makita 318250-6 PIPE HOLDER, DBC260U
136424083-0Makita 424083-0 BUFFER RUBBER, DBC260U
137424200-2Makita 424200-2 SPACER, MEM426
138234108-0Makita 234108-0 COMPRESSION SPRING 9, MEM426
140325669-2Makita 325669-2 EXHAUST VALVE, MEM426
143325670-7Makita 325670-7 INTAKE VALVE, MEM426
144257298-2
145257299-0
146257300-1
147318441-9Makita 318441-9 PISTON, MEM426
148254040-2Makita 254040-2 WOODRUFF KEY, EBH340U
149135481-0OTHR Makita 135481-0 CRANK SHAFT ASSEMBLY
150213148-1Makita 213148-1 OIL SEAL 10, MEM426
151267400-9Makita 267400-9 CLIP, MEM426
152213147-3Makita 213147-3 OIL SEAL 12, MEM426
153257781-9Makita 257781-9 PISTON PIN, MEM426
154233976-8Makita 233976-8 CLIP, MEM426
155162345-5Makita 162345-5 OIL CASE GASKET
156346083-9Makita 346083-9 LEAD VALVE, MEM426
157318910-0Makita 318910-0 RETAINER PLATE
158922112-8Makita 922112-8 HEX SOCRET HEAD BOLT M4*10, EBH340U
159318588-9
160922222-1Makita 922222-1 H.S.H.BOLT M5*16, HR3850
161424344-8
162346305-7Makita 346305-7 GASKET
163266611-3Makita 266611-3 HEX BOLT M6X8
164213548-5Makita 213548-5 O-RING 20
165325665-0Makita 325665-0 JOINT PIPE
166282020-8Makita 282020-8 HOSE CLAMP
167325666-8Makita 325666-8 OIL WEIGHT
168424301-6Makita 424301-6 OIL TUBE
169452047-4Makita 452047-4 OIL CAP
170424343-0Makita 424343-0 GASKET
171452048-2
172922218-2Makita 922218-2 HEX SOCKET HEAD BOLT M5*14, MEM427
174451739-2
175168755-4
176282020-8Makita 282020-8 HOSE CLAMP
177163518-3Makita 163518-3 GASOLIN FILTER
178451736-8
179424080-6Makita 424080-6 BUFFER RUBBER, DBC260U
180424081-4Makita 424081-4 BUFFER RUBBER, DBC260U
181451737-6
182922218-2Makita 922218-2 HEX SOCKET HEAD BOLT M5*14, MEM427
184424319-7Makita 424319-7 STARTER KNOB
185424359-5
187266585-8Makita 266585-8 TAPPING SCREW M5X12
188325923-4Makita 325923-4 SWING ARM
189451938-6Makita 451938-6 COLLAR
190451937-8Makita 451937-8 REEL
191232258-5Makita 232258-5 SPIRAL SPRING
192444023-2Makita 444023-2 STARTER ROPE
193451733-4
194922223-9Makita 922223-9 SOCKET HEAD BOLT, MEM427
196816565-0
215810455-9
216800F73-7Makita 800F73-7 INDICATION LABEL
217941152-7Makita 941152-7 FLAT WASHER, EM2650U
224452219-1
230
231452220-6Makita 452220-6 CHOKE LEVER
232266007-8Makita 266007-8 TAPPING SCREW, 16G341A
233352020-3Makita 352020-3 SEPARATOR MESH
234453865-3Makita 453865-3 SEPARATOR CASE
235453862-9Makita 453862-9 OIL CASE PLATE

Sheet 4: Makita EX2650LH parts diagram

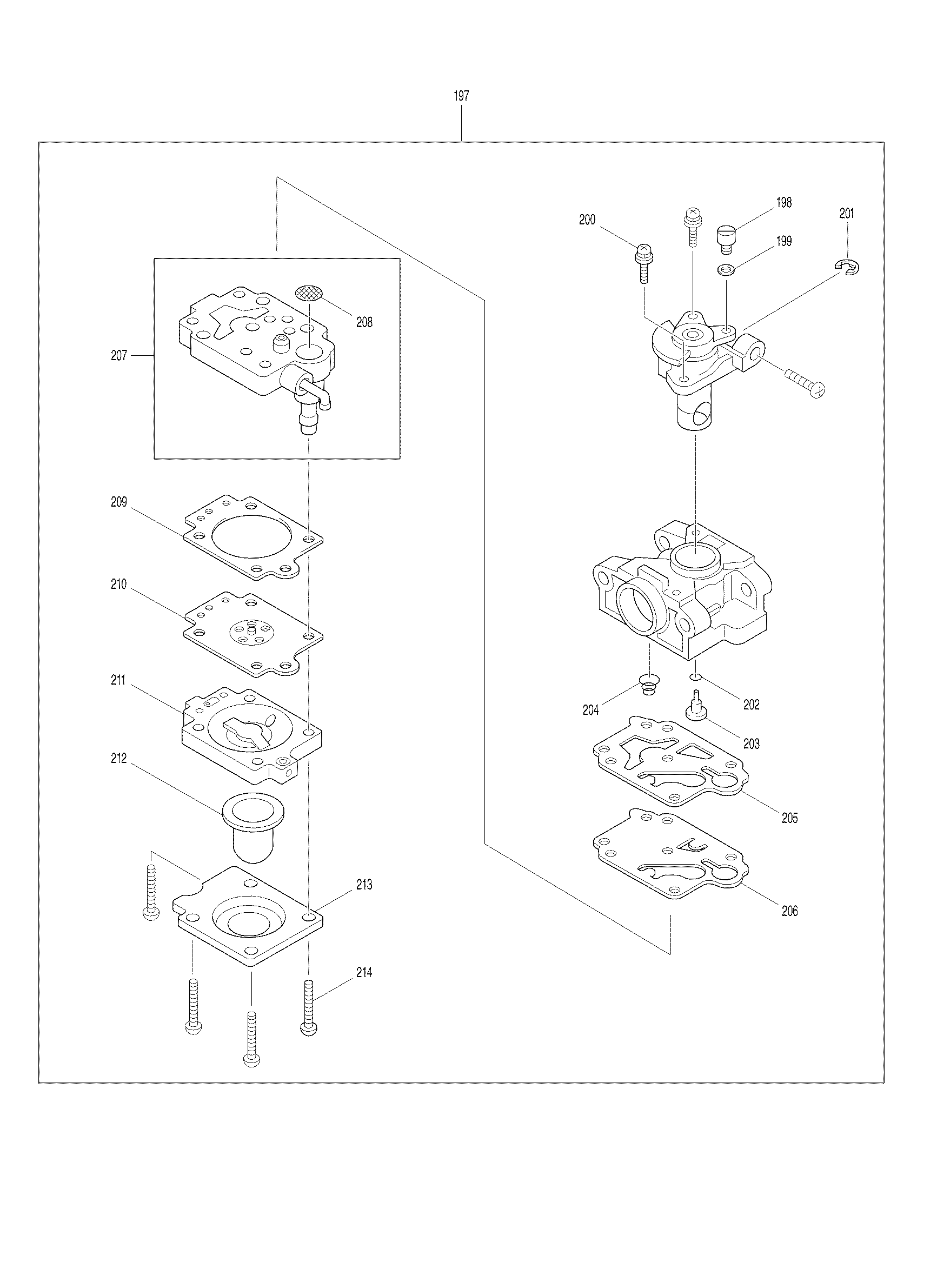

Makita EX2650LH parts diagram, sheet 4
No.Part numberPart name
198325922-6Makita 325922-6 SWIWEL
199413140-9Makita 413140-9 WASHER
200266581-6Makita 266581-6 PAN HEAD SCREW M3X8
201257964-1Makita 257964-1 STOP RING E-3
202213538-8Makita 213538-8 O-RING 2
203325985-2
204234183-6Makita 234183-6 CONICAL COMRESSION SPRING
205442155-9Makita 442155-9 PUMP GASKET
206168575-6Makita 168575-6 PUMP DIAPHRAGM, EBH341U
208352010-6Makita 352010-6 INLET SCREEN
209442154-1Makita 442154-1 METERING DIAPHRAGM GASKET
210168620-7Makita 168620-7 METERING DIAPHRAGM ASSY
211140438-8Makita 140438-8 AIR PURGE BODY
212424314-7Makita 424314-7 PRIMER PUMP
213346270-0Makita 346270-0 PRIMER PUMP COVER
214266582-4Makita 266582-4 TAPPING SCREW 3X24
