Bosch EX 150 AC random orbital sander: exploded parts diagram, 2 sheets, 42 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch EX 150 AC: 42 positions on 2 sheets

Bosch EX 150 AC parts list (2 sheets)

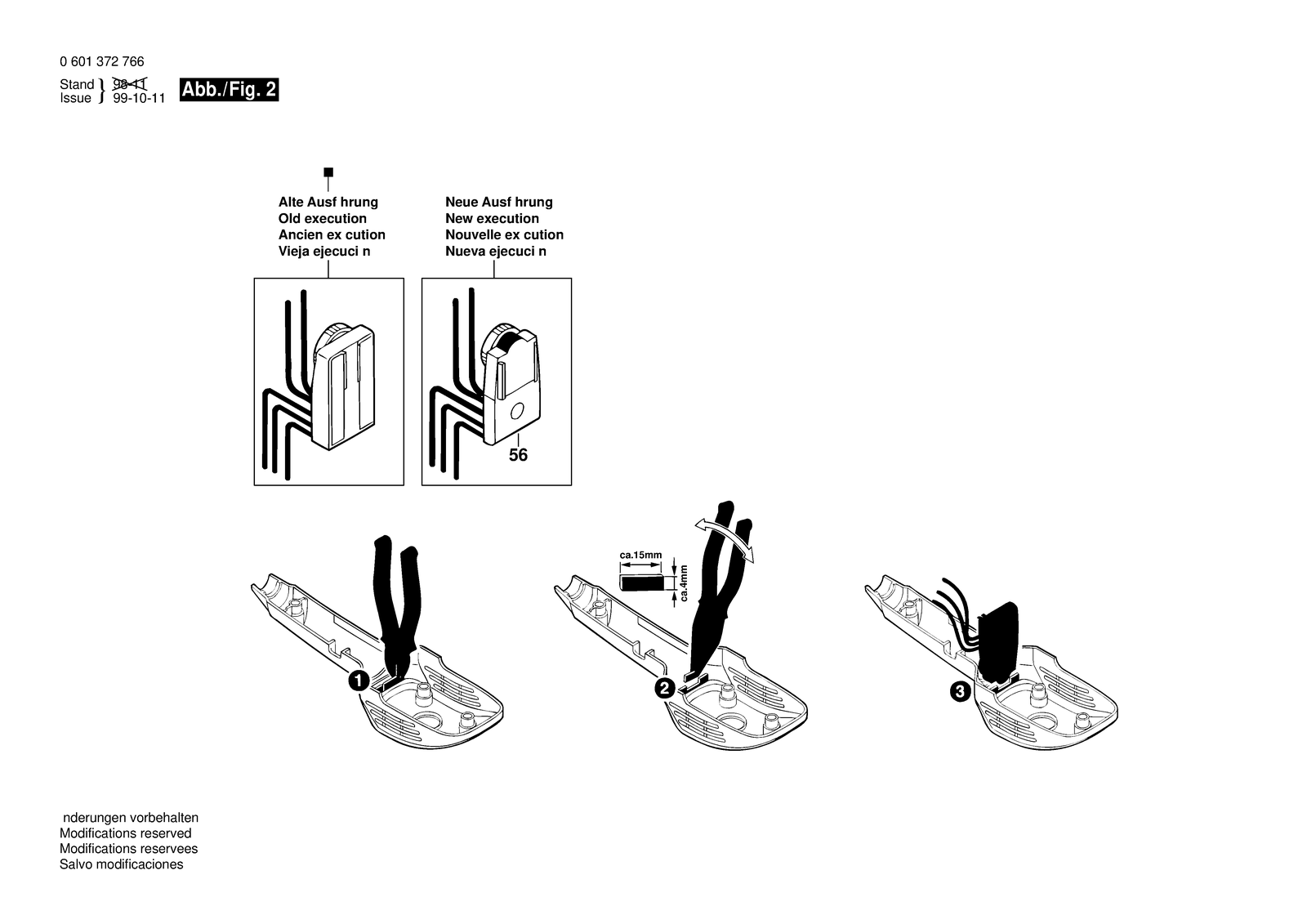

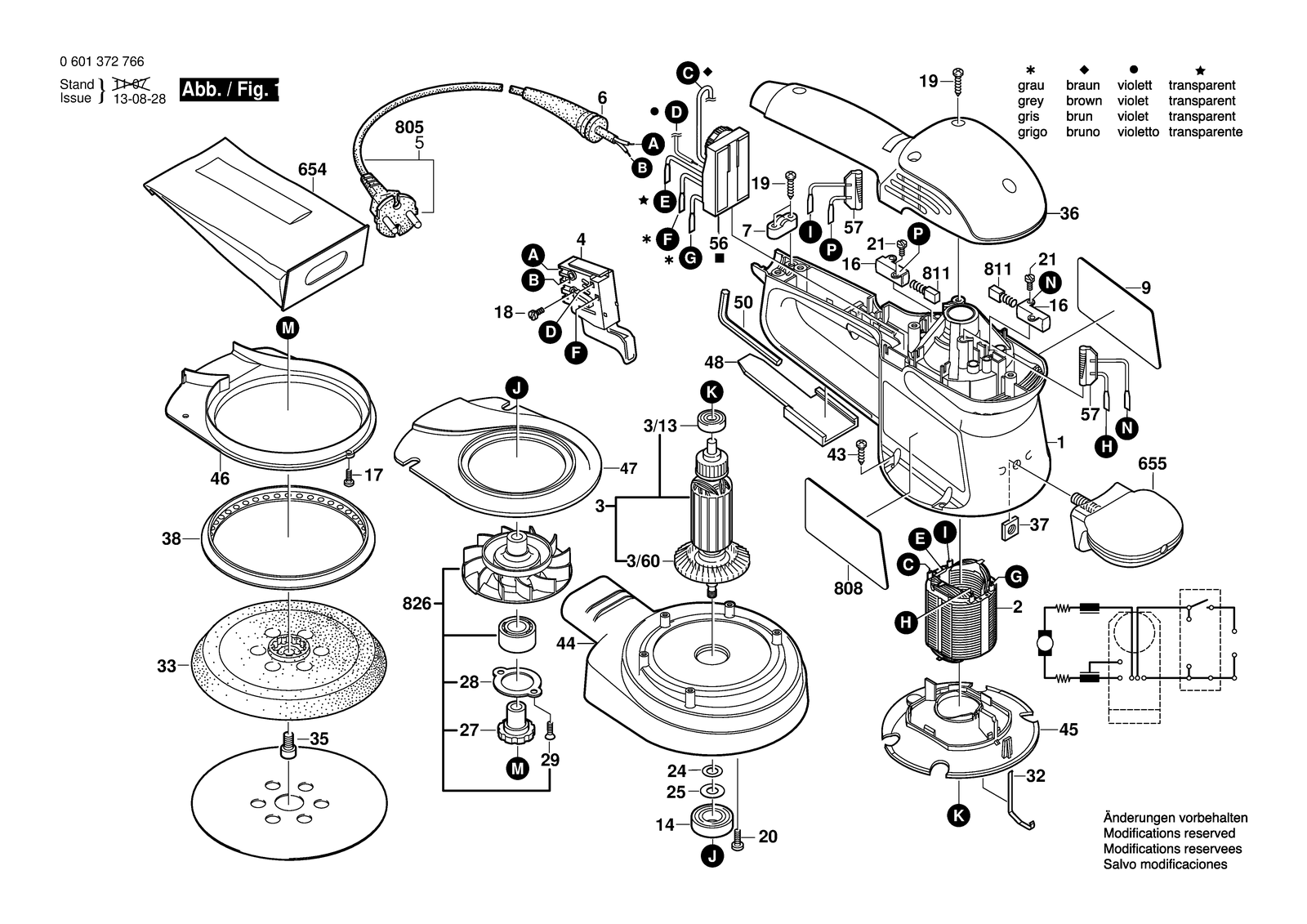

Bosch EX 150 AC parts diagram, sheet 1Bosch EX 150 AC parts diagram, sheet 2
No.Part numberPart name
12605105079Housing Section Orange
142600905034Groove ball bearing
162604337016Brush Holder
172603435089Torx Oval-Head Screw M3X8
182603410001Socket head cap screw M3X6,5-4.8
192603490022Screw 4X16
22604220529Field 230-240V
201600A00RD6Special Screw
212603490017Torx Oval-Head Screw 3X10
242600101047Shim 0,3 MM
252600100041Plain Washer DIN 315-M8-GT-C
272600328026Carrier
282600190060Tab Washer
293603391003Thread-forming tap. Screw M3X8
32604011028Armature 220-240V
3/132600905051Groove ball bearing 7X19X6
3/602606610076Fan
322601329053Contact Strap
332608601106Backing Pad Ø150
351600A015G7Hex Socket Head Cap Screw
362605500183Housing Cover Orange
372915121006Square Nut DIN 562-M6-04
381600A00JE7Friction Ring
42607200260Switch
432603435042Thread-forming tap. Screw
442600282015Suction Hood
452601328047Air-Deflector Ring
462601328048Suction Piece
472601328049Suction Piece
482601035002Pusher
502610364015Hexagon Socket Screw Key 5 MM
562607230119Speed governor 230-240V
572604465090Suppression Filter
62600703017Grommet Ø6,4-Ø7,2X76 MM
6542605411085Dust Bag
6552602026069Auxiliary Handle Black
72601035001Cable Clip
8051607000386Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F
8082601116768Marking Plate
8111607014117Carbon Brush
8262606610903Fan
92601116727Manufacturer's nameplate
