Bosch EX 125-150 LV

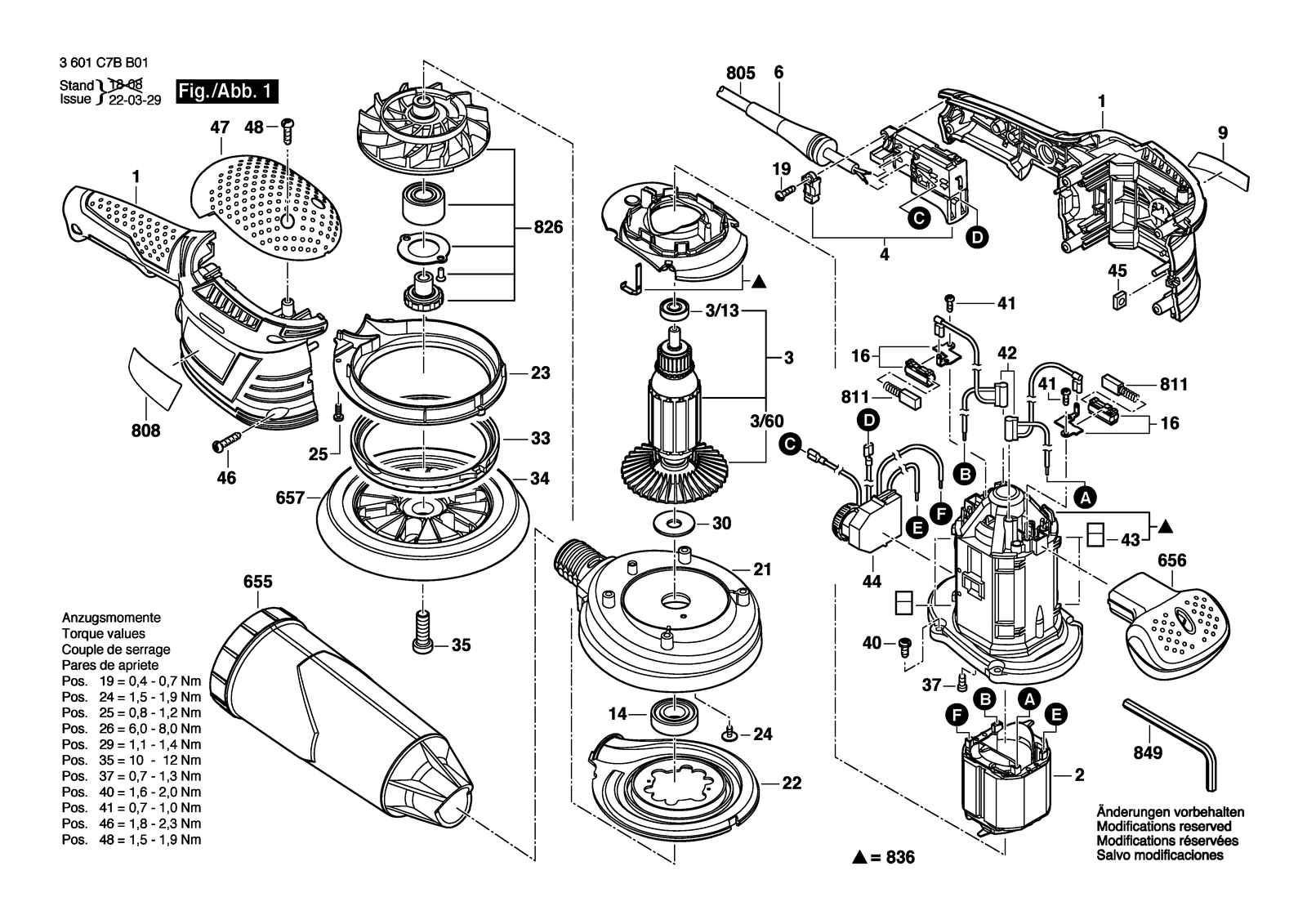

Bosch EX 125-150 LV random orbital sander: exploded parts diagram, 1 sheet, 78 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch EX 125-150 LV: 78 positions on 1 sheet
Bosch EX 125-150 LV parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605105201 | Housing Section Blue |
| 1 | 2605105203 | Housing Section Orange |
| 14 | 2600905034 | Groove ball bearing |
| 14 | 2600905034 | Groove ball bearing |
| 16 | 2604337003 | Brush Holder |
| 16 | 2604337003 | Brush Holder |
| 19 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 19 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 2 | 2604220743 | Field 220-240V |
| 2 | 2604220743 | Field 220-240V |
| 21 | 2600283022 | Suction Hood |
| 21 | 2600283022 | Suction Hood |
| 22 | 2601328091 | Suction Piece |
| 22 | 2601328091 | Suction Piece |
| 23 | 2601328090 | Suction Piece |
| 23 | 2601328090 | Suction Piece |
| 24 | 1600A00RD6 | Special Screw |
| 24 | 1600A00RD6 | Special Screw |
| 25 | 2603435096 | Torx Oval-Head Screw M3X10 |
| 25 | 2603435096 | Torx Oval-Head Screw M3X10 |
| 3 | 2604011434 | Armature 220-240V |
| 3 | 2604011434 | Armature 220-240V |
| 3/13 | 2600905051 | Groove ball bearing 7X19X6 |
| 3/13 | 2600905051 | Groove ball bearing 7X19X6 |
| 3/60 | 2606610076 | Fan |
| 3/60 | 2606610076 | Fan |
| 30 | 2600100041 | Plain Washer DIN 315-M8-GT-C |
| 30 | 2600100041 | Plain Washer DIN 315-M8-GT-C |
| 33 | 2600206028 | Friction Ring |
| 33 | 2600206028 | Friction Ring |
| 34 | 2600015016 | Backing Pad Ø150 |
| 34 | 2600015016 | Backing Pad Ø150 |
| 35 | 1600A015G7 | Hex Socket Head Cap Screw |
| 35 | 1600A015G7 | Hex Socket Head Cap Screw |
| 37 | 2603435086 | Tapping Screw |
| 37 | 2603435086 | Tapping Screw |
| 4 | 2607200696 | Switch |
| 4 | 2607200688 | Switch |
| 40 | 2603435042 | Thread-forming tap. Screw |
| 40 | 2603435042 | Thread-forming tap. Screw |
| 41 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 41 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 42 | 2604465115 | Suppressor Box |
| 42 | 2604465115 | Suppressor Box |
| 43 | 2603203041 | Damping Element |
| 43 | 2603203041 | Damping Element |
| 44 | 160723358K | Speed governor 230V |
| 44 | 160723358J | Speed governor 230V |
| 45 | 2915121006 | Square Nut DIN 562-M6-04 |
| 45 | 2915121006 | Square Nut DIN 562-M6-04 |
| 46 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 46 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 47 | 2605500208 | Housing Cover |
| 47 | 2605500208 | Housing Cover |
| 48 | 2603490022 | Screw 4X16 |
| 48 | 2603490022 | Screw 4X16 |
| 6 | 2600703069 | Grommet Ø6,4-Ø7,2X120 MM |
| 6 | 2600703069 | Grommet Ø6,4-Ø7,2X120 MM |
| 655 | 2605411237 | Dust Chamber |
| 655 | 2605411237 | Dust Chamber |
| 656 | 2602025209 | Auxiliary Handle |
| 656 | 2602025210 | Auxiliary Handle Black |
| 657 | 2600120057 | Backing Pad Ø125 |
| 657 | 2600120057 | Backing Pad Ø125 |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 160111A268 | Nameplate BROS-125/150 Ave |
| 808 | 160111A270 | Nameplate |
| 811 | 1607014117 | Carbon Brush |
| 811 | 1607014117 | Carbon Brush |
| 826 | 2606610903 | Fan |
| 826 | 2606610903 | Fan |
| 836 | 2605105970 | Motor Housing Black |
| 836 | 2605105970 | Motor Housing Black |
| 849 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 849 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 9 | 2601112593 | Manufacturer's nameplate Berner |
| 9 | 2601112594 | Manufacturer's nameplate Bti |
