Bosch EWS 7-125-E angle grinder: exploded parts diagram, 2 sheets, 51 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch EWS 7-125-E: 51 positions on 2 sheets

Bosch EWS 7-125-E parts list (2 sheets)

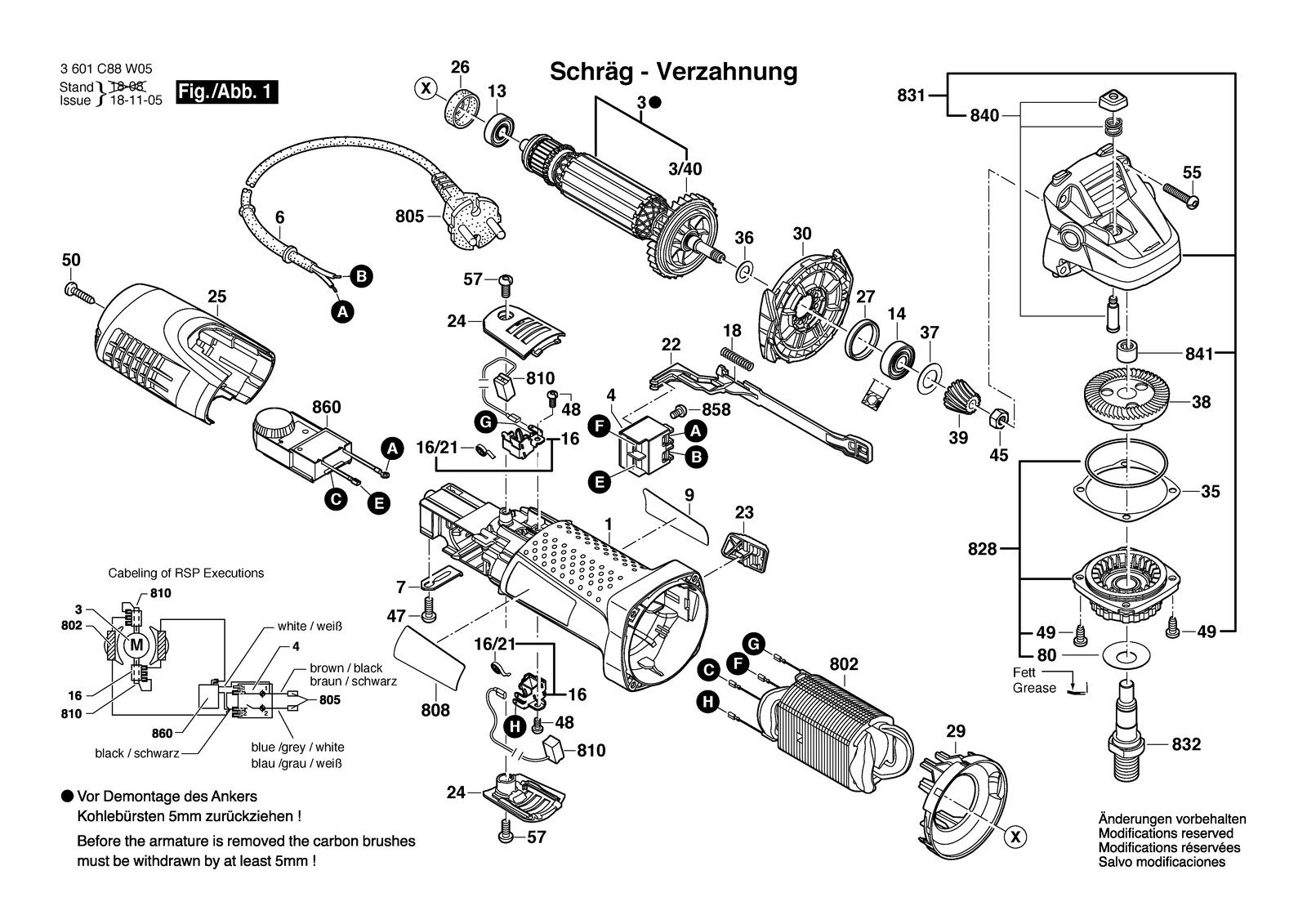

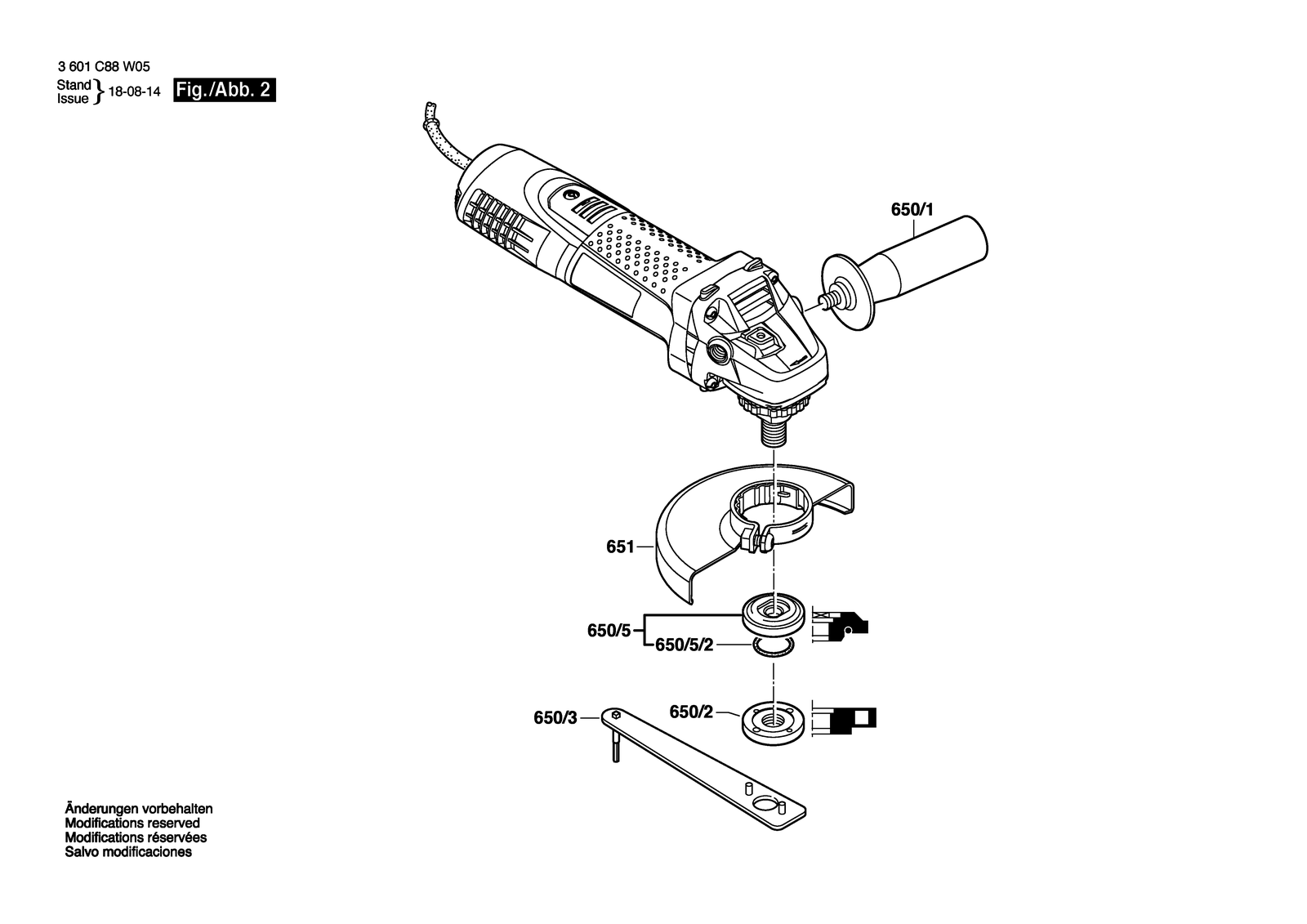

Bosch EWS 7-125-E parts diagram, sheet 1Bosch EWS 7-125-E parts diagram, sheet 2
No.Part numberPart name
11619P12416Motor Housing
131619P00456Ball Bearing 7X19X6 MM
141619P00455Ball Bearing
161619P02845Brush Holder
16/211619P02809Spiral Spring
181604611031Compression Spring
221619P02811Adjusting Slide
231619P12417Switch Button
241619P02828Brush-Cover
251619P15104Housing Cover
261600502023Intermediate Ring
271600206025Rubber Ring
291619P02818Air-Deflector Ring
31604010BK7Armature
3/401619P02801Fan
301619P12418Air Distributor
351619P02821Shim 0,1 MM
351619P02822Shim 0,2 MM
361619P00987Washer
371600100033Cover Disc
381619P02823Crown Gear
391619P02825Bevel Gear
4160720031VSwitch
452915011007Hex Nut DIN 934-M6-8-A
472609110052Special Screw
481619P02849Torx Oval-Head Screw 3X8
491603435068Thread-forming tap. Screw DIN 7500, M4X10, SR10.2
501619P00105Torx Oval-Head Screw 4X20
551619P01066Torx Oval-Head Screw 4X25
571619P02848Torx Oval-Head Screw 4X12
62600703012Grommet Ø6,5-Ø6,9X95 MM
650/1160202509TAuxiliary Handle
650/21603345043Round Nut M14
650/31619P08927Pin-Type Face-Wrench
650/52605703014Clamping Flange Ø22,3XØ42 MM
650/5/21600210055O-Ring 20,35X1,78 MM
6511619P07183Protective Cover Black Ø 125
71601302017Fastening Clamp
801619P09390Cover Disc
8021619P07239Field 220-230V
8051607000386Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F
8081619P15103Nameplate
8101619P02870Carbon-Brush Set
8281619P07452Bearing Flange
8311619P02872Gear Housing
8321619P06419Grinding Spindle M 14, SW 17
8401619P02873Push-Button
8411600200029Plain bearing
8582910641081Oval-Head Screw DIN7985-M3,5X5-4.8-H
8601619P13043Speed governor
91619P12414Manufacturer's nameplate EWS 7-115 Basic
