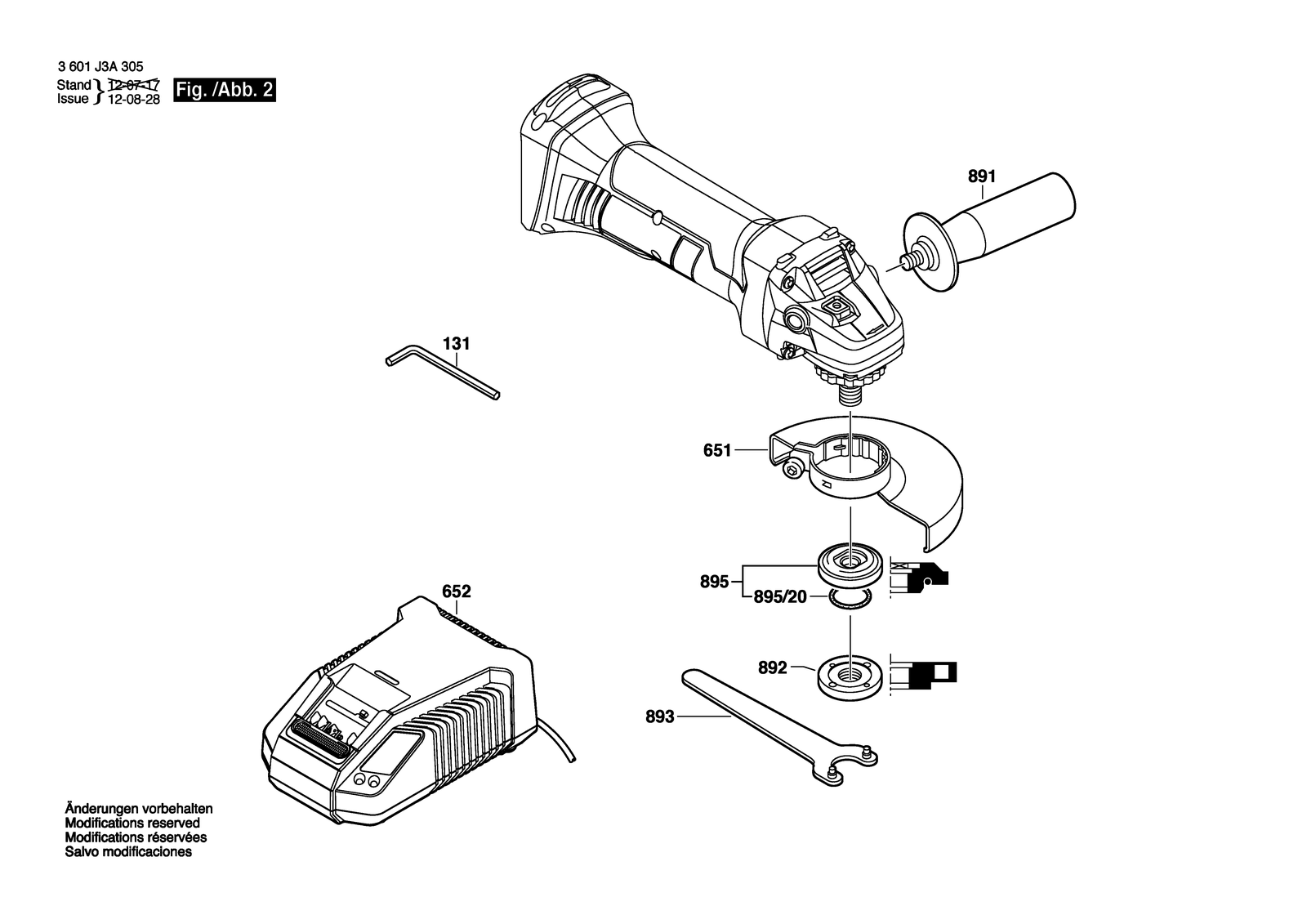

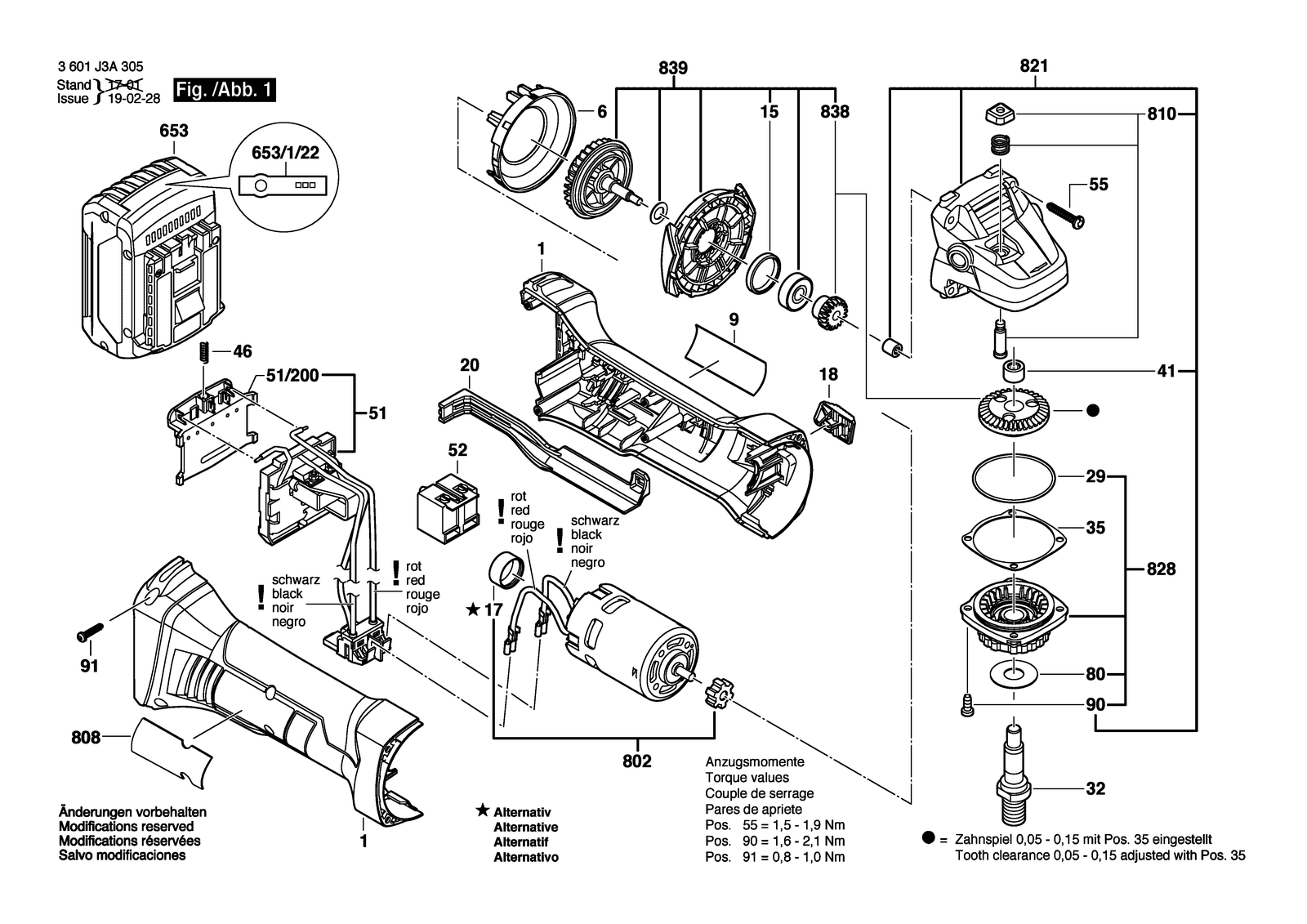

Bosch EWS 18-A cordless angle grinder: exploded parts diagram, 2 sheets, 73 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch EWS 18-A: 73 positions on 2 sheets
Bosch EWS 18-A parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108294 | Housing Section |
| 1 | 1605108294 | Housing Section |
| 131 | 1619P01598 | Hex Screw Driver 4X95 |
| 131 | 1619P01598 | Hex Screw Driver 4X95 |
| 15 | 1600206025 | Rubber Ring |
| 15 | 1600206025 | Rubber Ring |
| 17 | 1600A001PY | Cover |
| 17 | 1600A001PY | Cover |
| 18 | 1602025071 | Switch Button |
| 18 | 1602025071 | Switch Button |
| 20 | 1602319023 | Adjusting Slide |
| 20 | 1602319023 | Adjusting Slide |
| 29 | 1619P02820 | O-Ring 44,0X1,0 MM |
| 29 | 1619P02820 | O-Ring 44,0X1,0 MM |
| 32 | 1607000D6A | Grinding Spindle |
| 32 | 1607000D6A | Grinding Spindle |
| 35 | 1619P02821 | Shim 0,1 MM |
| 35 | 1619P02822 | Shim 0,2 MM |
| 35 | 1619P02821 | Shim 0,1 MM |
| 35 | 1619P02822 | Shim 0,2 MM |
| 41 | 1600200029 | Plain bearing |
| 41 | 1600200029 | Plain bearing |
| 46 | 1609280477 | Compression Spring |
| 46 | 1609280477 | Compression Spring |
| 51 | 1607233340 | Electronics Module |
| 51 | 1607233340 | Electronics Module |
| 51/200 | 1609280478 | Contact retainer |
| 51/200 | 1609280478 | Contact retainer |
| 52 | 2607202071 | On-Off Switch |
| 52 | 2607202071 | On-Off Switch |
| 55 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 55 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 6 | 1600591046 | Air-Deflector Ring |
| 6 | 1600591046 | Air-Deflector Ring |
| 651 | 1619P02839 | Protective Cover Black Ø115 MM |
| 651 | 1619P07183 | Protective Cover Black Ø 125 |
| 652 | 2607225347 | Fast Charger EU 230/10,8-18V, 1H, AL 30-CV-LI |
| 652 | 2607225347 | Fast Charger EU 230/10,8-18V, 1H, AL 30-CV-LI |
| 653 | 2607336975 | Battery Pack 18V, 4,0AH, LI |
| 653 | 2607336975 | Battery Pack 18V, 4,0AH, LI |
| 653/1/22 | 2601115537 | Sticker |
| 80 | 1619P09390 | Cover Disc |
| 80 | 1619P09390 | Cover Disc |
| 802 | 16170006B0 | DC motor 18V |
| 802 | 16170006B0 | DC motor 18V |
| 808 | 1601106066 | Nameplate |
| 808 | 160111A1F2 | Nameplate |
| 810 | 16170006B1 | Push Button |
| 810 | 16170006B1 | Push Button |
| 821 | 1607000V62 | Gear Housing |
| 821 | 1607000V62 | Gear Housing |
| 828 | 16170006B3 | Bearing Flange |
| 828 | 16170006B3 | Bearing Flange |
| 838 | 1600A00M8F | Set Of Gearwheels |
| 838 | 1600A00M8F | Set Of Gearwheels |
| 839 | 1600A00M8R | Set Of Gearwheels |
| 839 | 1600A00M8R | Set Of Gearwheels |
| 891 | 160202509T | Auxiliary Handle |
| 891 | 1619P10681 | Auxiliary Handle |
| 892 | 1603345043 | Round Nut M14 |
| 892 | 1603345043 | Round Nut M14 |
| 893 | 1607950052 | Pin-Type Face-Wrench |
| 893 | 1607950052 | Pin-Type Face-Wrench |
| 895 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 895 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 895/20 | 1600210039 | O-Ring 20,35X1,78 MM |
| 895/20 | 1600210039 | O-Ring 20,35X1,78 MM |
| 9 | 1601118L42 | Manufacturer's nameplate |
| 9 | 1601118L42 | Manufacturer's nameplate |
| 90 | 1603435068 | Thread-forming tap. Screw DIN 7500, M4X10, SR10.2 |
| 90 | 1603435068 | Thread-forming tap. Screw DIN 7500, M4X10, SR10.2 |
| 91 | 1603435071 | Thread-forming tap. Screw |
| 91 | 1603435071 | Thread-forming tap. Screw |
