Bosch EWS 125

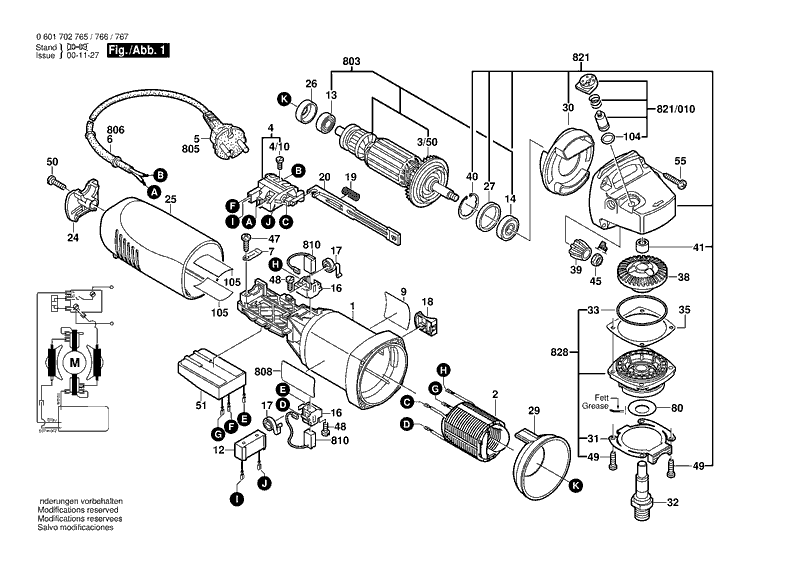

Bosch EWS 125 angle grinder: exploded parts diagram, 2 sheets, 58 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch EWS 125: 58 positions on 2 sheets

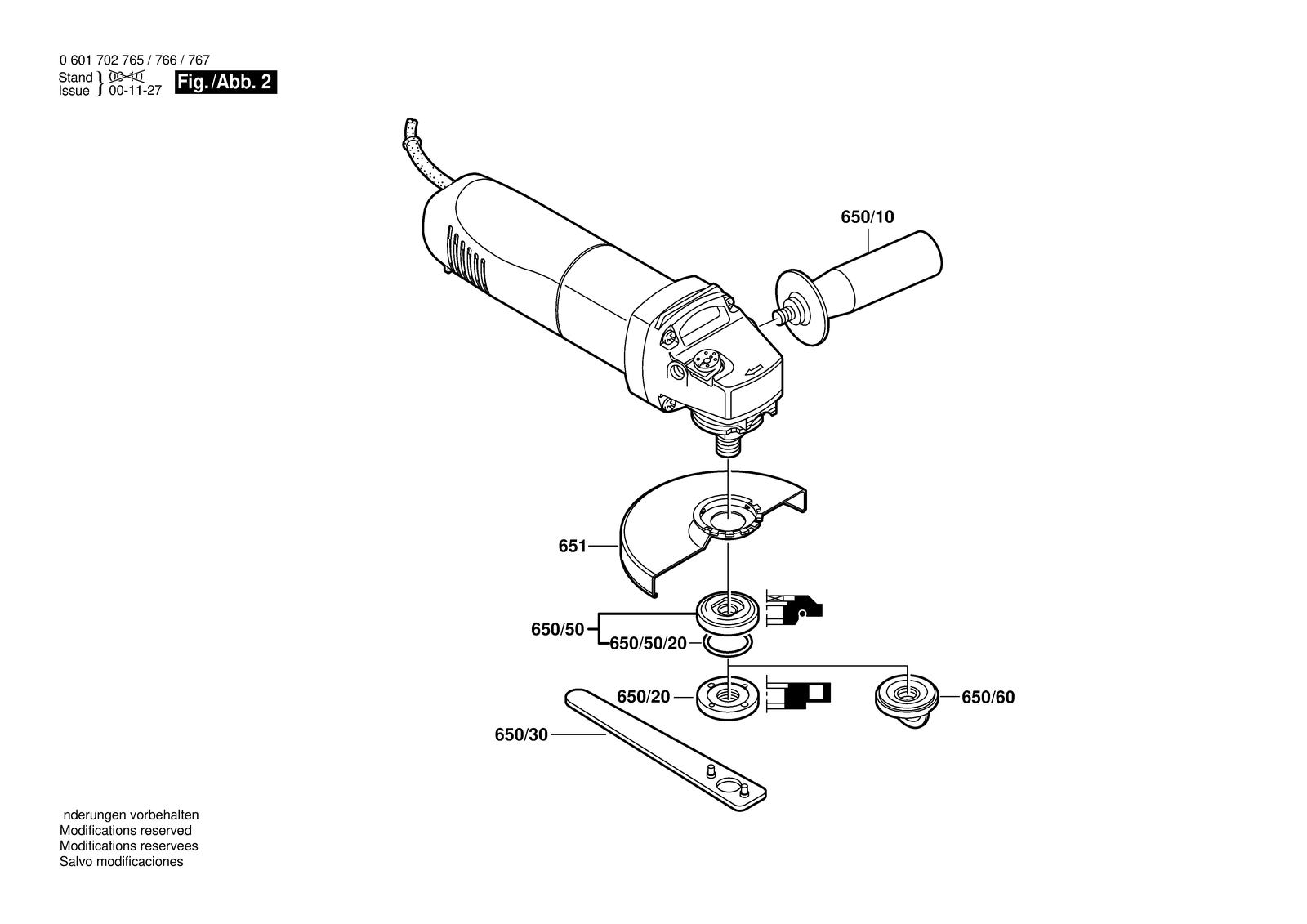

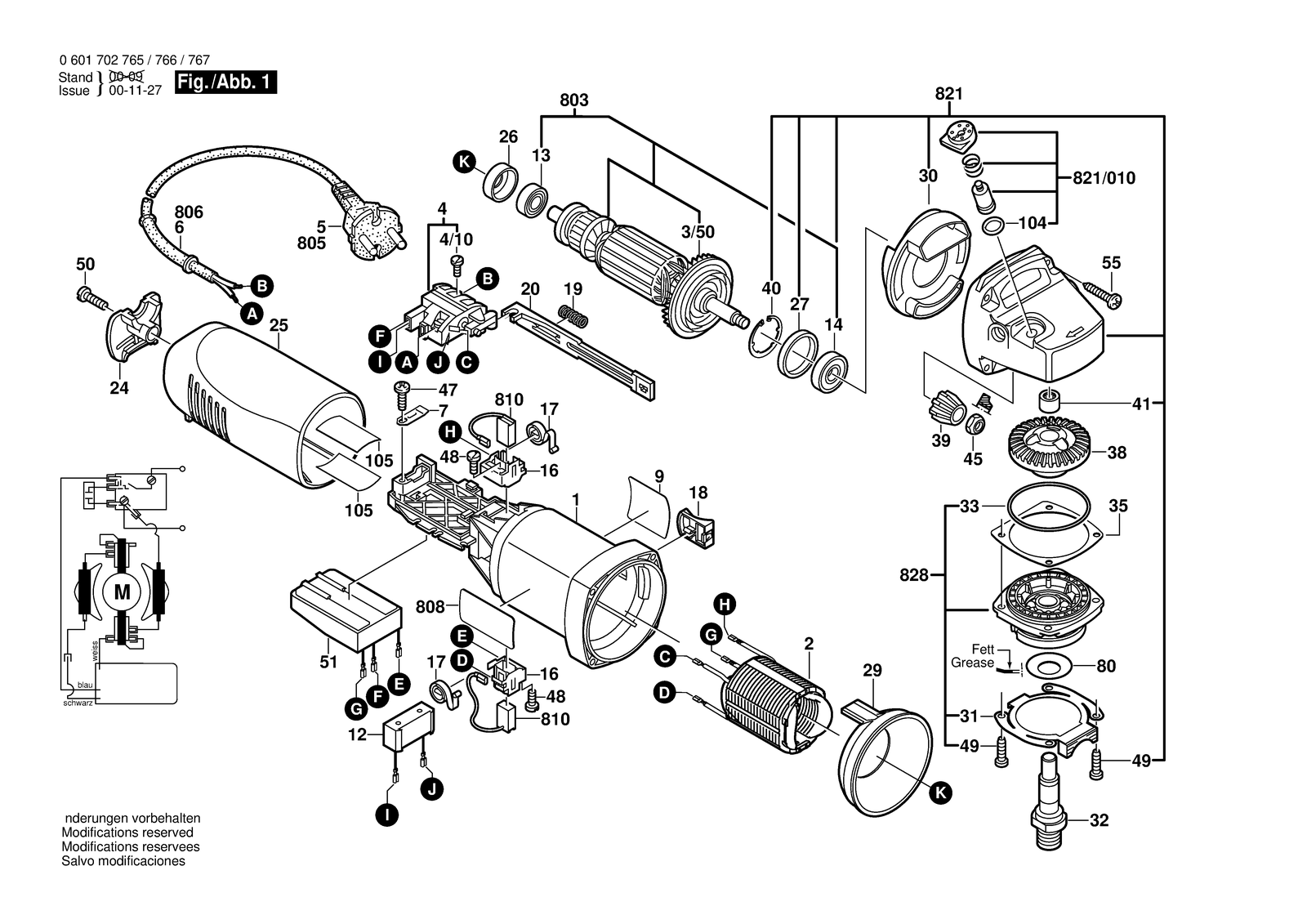

Bosch EWS 125 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108904 | Motor Housing Black |
| 104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 105 | 1601008005 | Insulating Plate |
| 12 | 1607328042 | Suppression Filter |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1600905032 | Groove ball bearing 8X22X7 |
| 16 | 1601323025 | Brush Holder |
| 17 | 1604652013 | Spiral Spring |
| 18 | 1602026089 | Switch Handle |
| 19 | 1604611026 | Compression Spring |
| 2 | 1607000F0P | Field |
| 20 | 1602319010 | Adjusting Slide Black |
| 24 | 1605500030 | Cover Black |
| 25 | 1600508032 | Housing Cover Black |
| 26 | 1600206036 | Rubber Ring |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1600591025 | Air-Deflector Ring |
| 3/50 | 1606610129 | Fan |
| 30 | 1600591014 | Air-Deflector Ring |
| 31 | 1601290007 | Clamping Spring |
| 32 | 1607000D6A | Grinding Spindle |
| 33 | 1600210035 | O-Ring 46,0X1,1 MM |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 35 | 1600136020 | Shim Thick 0,15 MM |
| 38 | 1606333616 | Crown Gear Z=38 |
| 39 | 1606333617 | Bevel Gear Z=11 |
| 4 | 1607200086 | On-Off Switch |
| 4/10 | 2910110048 | Pan head screw DIN 85-AM3X6-CUZN |
| 40 | 1600119011 | Retaining clip |
| 41 | 1600200029 | Plain bearing |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 47 | 2912401018 | Tapping Screw DIN7981-ST3,9X13-C-Z |
| 48 | 2912401005 | Tapping Screw DIN7981-ST2,9X9,5C-Z |
| 49 | 1603435026 | Thread-forming tap. Screw |
| 5 | 1604460401 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 50 | 2912401420 | Tapping Screw DIN7981-ST3,9X19-F-Z |
| 51 | 1607233116 | Speed governor 220-240V |
| 55 | 1603415005 | Oval-Head Screw |
| 650/10 | 160202509T | Auxiliary Handle |
| 650/20 | 1603345043 | Round Nut M14 |
| 650/30 | 1607950052 | Pin-Type Face-Wrench |
| 650/50 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 650/50/20 | 1600210039 | O-Ring 20,35X1,78 MM |
| 650/60 | 1603340041 | Fast Locking Flange |
| 651 | 1605510246 | Protective Cover Black Ø 125 MM |
| 7 | 1601302017 | Fastening Clamp |
| 80 | 1619P09390 | Cover Disc |
| 803 | 1604010640 | Armature With Fan 220-240V |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 806 | 1600703031 | Grommet Ø7,3-Ø8,6X67 MM |
| 808 | 160111A3HC | Nameplate |
| 810 | 1607014176 | Carbon-Brush Set |
| 821 | 1605806505 | Gear Housing |
| 821/010 | 1607000297 | Push-Button Red |
| 828 | 1605805079 | Bearing Flange Black |
| 9 | 1601118E53 | Manufacturer's nameplate |
