Sheet 1: Makita EW1050H parts diagram

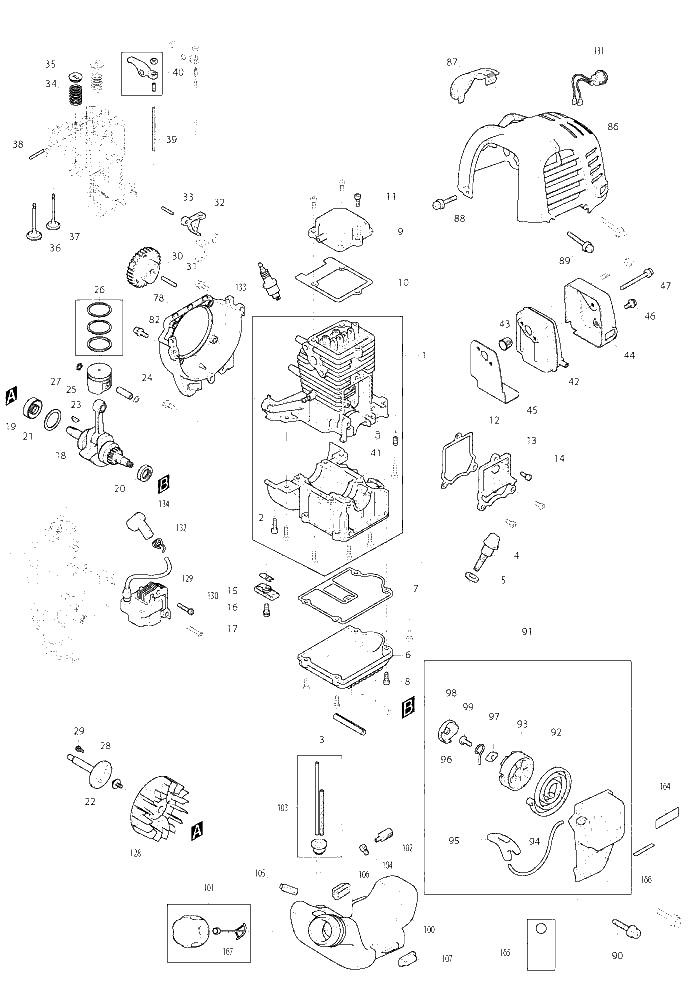

Makita EW1050H parts diagram, sheet 1
No.Part numberPart name
2922217-4Makita 922217-4 H.S.H.BOLT M5X14, MEM427
3424530-1
4450565-6Makita 450565-6 OIL GAUGE
5424100-6Makita 424100-6 GASKET
6318442-7Makita 318442-7 OIL CASE, MEM426
7162276-8Makita 162276-8 CASE GASKET, MEM426
8922217-4Makita 922217-4 H.S.H.BOLT M5X14, MEM427
9140023-7Makita 140023-7 ROCKER COVER COMPLETE, MEM426
10162275-0Makita 162275-0 ROCKER COVER GASKET, MEM426
11922222-1Makita 922222-1 H.S.H.BOLT M5*16, HR3850
12162274-2Makita 162274-2 CAM GEAR COVER GASKET, MEM426
13318443-5Makita 318443-5 CAM GEAR COVER, MEM426
14922217-4Makita 922217-4 H.S.H.BOLT M5X14, MEM427
15346083-9Makita 346083-9 LEAD VALVE, MEM426
16318440-1Makita 318440-1 RETAINER PLATE, MEM426
17922112-8Makita 922112-8 HEX SOCRET HEAD BOLT M4*10, EBH340U
18126299-0
19213147-3Makita 213147-3 OIL SEAL 12, MEM426
20213148-1Makita 213148-1 OIL SEAL 10, MEM426
21267400-9Makita 267400-9 CLIP, MEM426
22265577-4Makita 265577-4 HEX HEAD BOLT M6*16, MEM427
23254040-2Makita 254040-2 WOODRUFF KEY, EBH340U
24257781-9Makita 257781-9 PISTON PIN, MEM426
25318441-9Makita 318441-9 PISTON, MEM426
26196595-0
27233976-8Makita 233976-8 CLIP, MEM426
28326223-5
29911323-0Makita 911323-0 PAN HEAD SCREW M6X16 WR, 5606B
30125552-1Makita 125552-1 CAM GEAR ASSEMBLY, MEM426
31268238-5Makita 268238-5 PIN5, MEM426
32313169-4Makita 313169-4 CAM LIFTER, MEM426
33268239-3Makita 268239-3 PIN4, MEM426
34234108-0Makita 234108-0 COMPRESSION SPRING 9, MEM426
35325668-4Makita 325668-4 SPRING RETAINER, MEM426
36326367-1Makita 326367-1 INTAKE VALVE
37326366-3Makita 326366-3 EXHAUST VALVE
38256200-2Makita 256200-2 PIN5, MEM426
39256865-0Makita 256865-0 ROD2.5, MEM426
40125554-7Makita 125554-7 ROCKER ARM ASSEMBLY, MEM426
41424200-2Makita 424200-2 SPACER, MEM426
42168469-5Makita 168469-5 EXHAUST MUFFLER
43324980-9Makita 324980-9 SPARK ARRESTER
44345915-7Makita 345915-7 MUFFLER COVER, MEM427
45345916-5Makita 345916-5 MUFFLER GASKET, MEM427
46265184-3Makita 265184-3 COUNTERSUNK RAISED HEAD SCREW, MEM427
47266440-4Makita 266440-4 HEX.SOCKET HEAD BOLT M5*40, MEM427
82922223-9Makita 922223-9 SOCKET HEAD BOLT, MEM427
86450564-8
87452144-6Makita 452144-6 PLUG COVER
88911213-7Makita 911213-7 Pan Head Screw M5X12 for RP0900 LS1040 LS1013
89911128-8Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308
90911128-8Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308
92232258-5Makita 232258-5 SPIRAL SPRING
93451937-8Makita 451937-8 REEL
94444019-3Makita 444019-3 STARTER ROPE
95424319-7Makita 424319-7 STARTER KNOB
96325923-4Makita 325923-4 SWING ARM
97451938-6Makita 451938-6 COLLAR
98168483-1Makita 168483-1 PULLEY
99266585-8Makita 266585-8 TAPPING SCREW M5X12
100450566-4Makita 450566-4 FUEL TANK
102163447-0Makita 163447-0 Gasoline Filter
103168472-6Makita 168472-6 TUBE COMPLETE
104345920-4Makita 345920-4 HOSE CLAMP, EBH340U
105424102-2Makita 424102-2 PLATE, MEM427
106424103-0Makita 424103-0 PLATE, MEM427
107424104-8Makita 424104-8 DAMPER, MEM427
128318702-7Makita 318702-7 FLYWHEEL
129168501-5Makita 168501-5 Ignition Coil
131126240-3
132324891-8Makita 324891-8 PLUG CAP SPRING, MEM427
133168401-9Makita 168401-9 Spark Plag BHX2501 CMR6A EM4251
134424105-6Makita 424105-6 PLUS CAP, PB-7600.4
164806902-6Makita 806902-6 LABEL ENGINE, EBH250U
165819430-2
166897794-4
167140436-2Makita 140436-2 STRAP COMPLETE
1135562-0
78141766-4
91195146-6Makita 195146-6 RECOIL STARTER SET
101125472-9Makita 125472-9 CAP FUEL TANK ASSY, EBH340U
130266602-4Makita 266602-4 HEX. SOCKET HEAD BOLT M4X20

Sheet 2: Makita EW1050H parts diagram

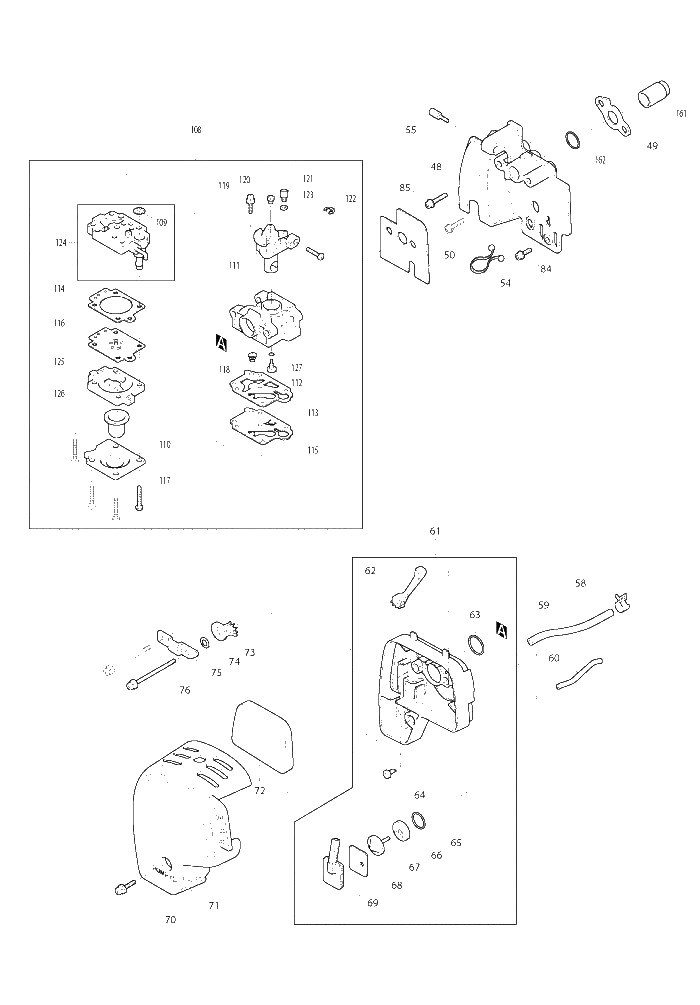

Makita EW1050H parts diagram, sheet 2
No.Part numberPart name
48450559-1Makita 450559-1 INSULATOR, MEM427
49413120-5Makita 413120-5 INSULATOR GASKET, MEM427
50413121-3Makita 413121-3 CARBURETOR GASKET, MEM427
54450562-2Makita 450562-2 CLAMP, MEM427
55325934-9
58345918-1Makita 345918-1 HOSE CLAMP, MEM427
59422041-0Makita 422041-0 BREATHER PIPE, MEM427
60422042-8Makita 422042-8 PIPE, MEM427
62451925-5Makita 451925-5 Choke Lever Em4251
63213540-1Makita 213540-1 O-RING 15
64424316-3Makita 424316-3 CHECK VALVE
65213539-6Makita 213539-6 O-RING 14
66451924-7Makita 451924-7 CHECK VALVE PLATE
67424315-5Makita 424315-5 CHECK VALVE
68168577-2Makita 168577-2 SEPARATOR GASKET
69168576-4Makita 168576-4 SEPARATOR PLATE
70911218-7Makita 911218-7 PAN HEAD SCREW M5X14, EBH252U
71450561-4Makita 450561-4 AIR CLEANER COVER, MEM427
72443141-3Makita 443141-3 Air Cleaner Filter Element
73450560-6Makita 450560-6 CHOKE PLATE, MEM427
74423376-2Makita 423376-2 GASKET, MEM427
75345919-9Makita 345919-9 PLATE, MEM427
76265188-5Makita 265188-5 PAN HEAD SCREW M5*68, MEM427
84922213-2Makita 922213-2 HEX SOCKET HEAD BOLT M5*12, MEM427
85922228-9Makita 922228-9 HEX SOCKET HEAD BOLT M5*18, MEM427
109352010-6Makita 352010-6 INLET SCREEN
110346270-0Makita 346270-0 PRIMER PUMP COVER
111
112
113442155-9Makita 442155-9 PUMP GASKET
114442154-1Makita 442154-1 METERING DIAPHRAGM GASKET
115168575-6Makita 168575-6 PUMP DIAPHRAGM, EBH341U
116168574-8Makita 168574-8 METERING DIAPHARGM, EBH341U
117266582-4Makita 266582-4 TAPPING SCREW 3X24
118234183-6Makita 234183-6 CONICAL COMRESSION SPRING
119WJ00096364Makita WJ00096364 SCREW, DCS230T
120
121325922-6Makita 325922-6 SWIWEL
122257964-1Makita 257964-1 STOP RING E-3
123413140-9Makita 413140-9 WASHER
125140438-8Makita 140438-8 AIR PURGE BODY
126424314-7Makita 424314-7 PRIMER PUMP
127213538-8Makita 213538-8 O-RING 2
61125468-0Makita 125468-0 CLEANER PLATE ASSEMBLY, MEM427
108168781-3
124140437-0Makita 140437-0 PUMP BODY
161324961-3Makita 324961-3 INTAKE PIPE, MEM427
162213078-6Makita 213078-6 O RING 10, MEM427

Sheet 3: Makita EW1050H parts diagram

Makita EW1050H parts diagram, sheet 3
No.Part numberPart name
168ME08121070Makita ME08121070 REFUELING HANDLE GROUP
169ME00204835
170ME01676311Makita ME01676311 RUBBER FEET
171ME08121002
172ME01676313
173ME00200115
174ME01676314
175ME01676315
176ME00200486
177ME08121003
178ME08121004
179ME01676319
180ME01676320Makita ME01676320 O-RING
181ME08121005
182ME08121006Makita ME08121006 HANDLE
183ME00200116Makita ME00200116 HEXAGON BOLT
184ME00200117Makita ME00200117 WAD
185ME01676323Makita ME01676323 HEXAGON NUT
186ME00200091Makita ME00200091 FLAT GASKET
187ME08121007Makita ME08121007 VALVE
188ME08121008Makita ME08121008 TUBE JOINT BOLT
189ME00200011Makita ME00200011 HEXAGON BOLT
190ME01676327Makita ME01676327 TUBE JOINT CORE
191ME08121009Makita ME08121009 LOCKNUT
192ME08121044Makita ME08121044 SEAL RING
193ME01689268Makita ME01689268 STRAINER GROUP
194ME01676330Makita ME01676330 HOOP
195ME01676331Makita ME01676331 WATER BLOCK
196ME01676329Makita ME01676329 O-RING
197ME01676333
198ME01676334
199ME08121010
200ME01676336Makita ME01676336 SUCTION PIPE
201ME08121001
202ME08121012
203ME08121030
204ME08121035
205ME03333192
