Makita EVH2000

Makita EVH2000: exploded parts diagram, 5 sheets, 221 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita EVH2000: 221 positions on 5 sheets

Sheet 1: Makita EVH2000 parts diagram

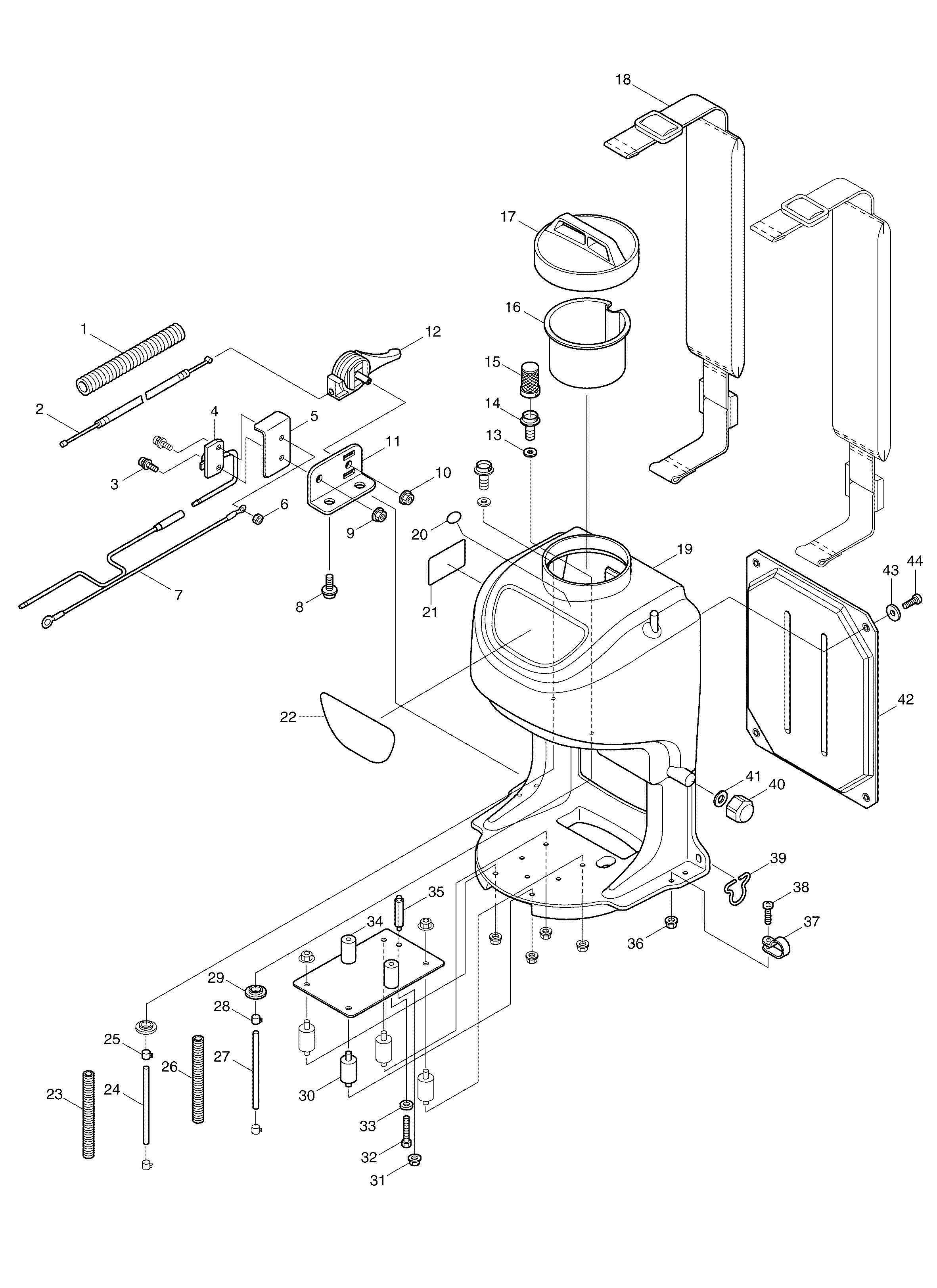

Makita EVH2000 parts diagram, sheet 1
No.Part numberPart name
16908502400Makita 6908502400 TUBE,CABLESP252.4R
20630039751Makita 0630039751 CONTROL CABLESP252.4R
30043604203Makita 0043604203 SCREW ASSEMBLY M4X20SP252.4R
40662009650Makita 0662009650 STOP SWITCHSP252.4R
56906507500Makita 6906507500 PLATE, SWITCHSP252.4R
60170049990Makita 0170049990 NUT M4SP252.4R
76906503600Makita 6906503600 WIRESP252.4R
80140059310Makita 0140059310 SCREW M5X14(W)SP252.4R
90023704000Makita 0023704000 FLANGE NUT M4
100023705000Makita 0023705000 FLANGE NUT M5
116906505500Makita 6906505500 PLATE,CONTROL LEVERSP252.4R
126945002000Makita 6945002000 LEVER COMPLETESP252.4R
130213189970Makita 0213189970 GASKETSP252.4R
146986502100Makita 6986502100 JOINTSP252.4R
156974007000Makita 6974007000 STRAINER SUCTIONSP252.4R
166904503601Makita 6904503601 STRAINER, TANKSP252.4R
176954015000
186909070000Makita 6909070000 BAND COMPLETESP252.4R
196904017000Makita 6904017000 TANK CPSP252.4R
205929505400
216909539700
226909538900
236908502602Makita 6908502602 TUBE,CABLESP252.4R
240851289950Makita 0851289950 TUBESP252.4R
250561149980Makita 0561149980 HOSE CLAMPSP252.4R
266908502501Makita 6908502501 TUBE,CABLESP252.4R
270851389980Makita 0851389980 TUBESP252.4R
280561159960Makita 0561159960 HOSE,CLAMPSP252.4R
296974500600Makita 6974500600 NUT,SUCTIONSP252.4R
306906504300Makita 6906504300 DAMPER(1)CPSP252.4R
310023706000Makita 0023706000 FLANGE NUT M6
320011005400Makita 0011005400 BOLT AY M5X40SP252.4R
330031205000Makita 0031205000 WASHER
346906507301Makita 6906507301 PLATESP252.4R
356901504301Makita 6901504301 BOLTSP252.4R
360023704000Makita 0023704000 FLANGE NUT M4
370561159970Makita 0561159970 HOSE CLAMPSP252.4R
380043604203Makita 0043604203 SCREW ASSEMBLY M4X20SP252.4R
396904507500Makita 6904507500 HOOKSP252.4R
406824505200Makita 6824505200 CAPSP252.4R
416904500300Makita 6904500300 GASKET, BLINDSP252.4R
426904507400Makita 6904507400 CUSHIONSP252.4R
430031205000Makita 0031205000 WASHER
440140059980Makita 0140059980 SCREW M5X10SP252.4R

Sheet 2: Makita EVH2000 parts diagram

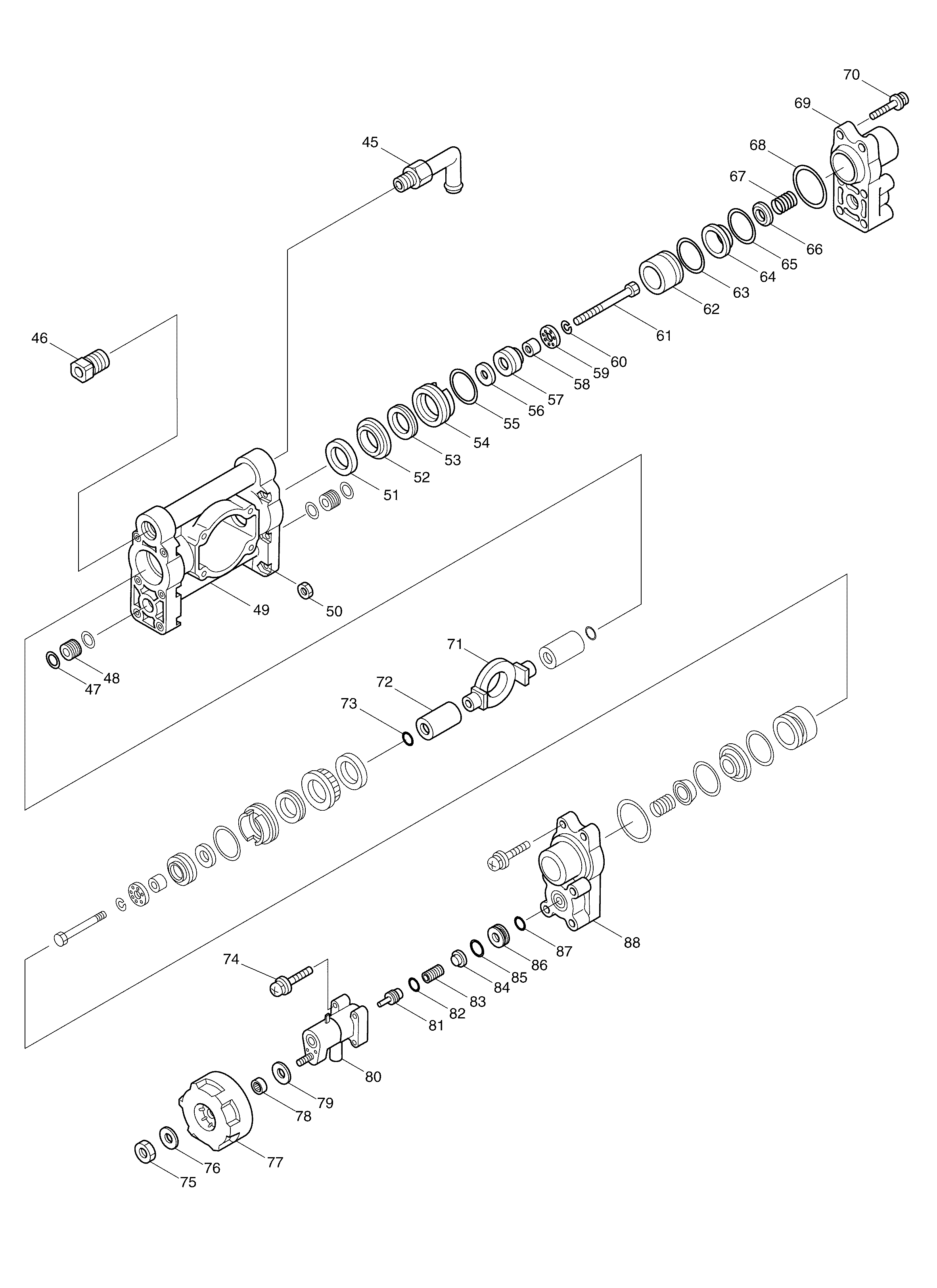

Makita EVH2000 parts diagram, sheet 2
No.Part numberPart name
45MS10266100Makita MS10266100 ELBOWSP252.4R
46MS10846000Makita MS10846000 PLUGSP252.4R
47MS01417500Makita MS01417500 O RINGSP252.4R
48MS10055400Makita MS10055400 PIPESP252.4R
49MS12183200Makita MS12183200 CRANK CASE AYSP252.4R
50MS08123800Makita MS08123800 NUT M5SP252.4R
51MS10268300Makita MS10268300 OIL SEALSP252.4R
52MS10619000Makita MS10619000 COLLERSP252.4R
53MS11225200Makita MS11225200 SEAL PACKINGSP252.4R
54MS10235800Makita MS10235800 SEAL HOLDERSP252.4R
55MS01397700Makita MS01397700 O RINGSP252.4R
56MS04342600Makita MS04342600 SUCTION VALVESP252.4R
57MS10044100Makita MS10044100 PISTON PACKING AYSP252.4R
58MS02335700Makita MS02335700 SUCTION VALVE COLLERSP252.4R
59MS02202300Makita MS02202300 SUCTION VALVE STOPPESP252.4R
60MS01584800Makita MS01584800 SPRING WASHER M5SP252.4R
61MS11835700Makita MS11835700 BOLT M5X45X22SP252.4R
62MS10313000Makita MS10313000 CYLINDER PIPESP252.4R
63MS02317200Makita MS02317200 O RINGSP252.4R
64MS11801800Makita MS11801800 VALVE SEATSP252.4R
65MS10357500Makita MS10357500 O RINGSP252.4R
66MS04372300Makita MS04372300 VALVESP252.4R
67MS04336000Makita MS04336000 COIL SPRINGSP252.4R
68MS01398300Makita MS01398300 O RINGSP252.4R
69MS10312800Makita MS10312800 CYLINDER HEAD ASP252.4R
70MS12195600Makita MS12195600 SCREW AY M5X32(W,SW)SP252.4R
71MS12117900Makita MS12117900 CORN RODSP252.4R
72MS11805500Makita MS11805500 SLEEVESP252.4R
73MS02154900Makita MS02154900 O RINGSP252.4R
74MS81603600Makita MS81603600 SCREW AY M5X60(W,SW)SP252.4R
75MS08103900Makita MS08103900 NUT M8SP252.4R
76MS01406500Makita MS01406500 WASHER M8SP252.4R
77MS10719800Makita MS10719800 CAM HANDLESP252.4R
78MS10327000Makita MS10327000 COLLERSP252.4R
79MS02001200Makita MS02001200 WASHERSP252.4R
80MS10313200Makita MS10313200 SPRING CASESP252.4R
81MS12161800Makita MS12161800 SPRING HOLDERSP252.4R
82MS01168200Makita MS01168200 O RINGSP252.4R
83MS10375900Makita MS10375900 SPRINGSP252.4R
84MS12161900Makita MS12161900 VALVESP252.4R
85MS01134600Makita MS01134600 O RINGSP252.4R
86MS10374600Makita MS10374600 VALVE SEATSP252.4R
87MS01134300Makita MS01134300 O RINGSP252.4R
88MS10263400Makita MS10263400 CYLINDER HEAD BSP252.4R

Sheet 3: Makita EVH2000 parts diagram

Makita EVH2000 parts diagram, sheet 3
No.Part numberPart name
89MS11808500Makita MS11808500 BOLT AY M6X55SP252.4R
90MS11800600Makita MS11800600 BEARING CASESP252.4R
91MS10268000Makita MS10268000 BEARINGSP252.4R
92MS12201300Makita MS12201300 MISSION UNITSP252.4R
930011606160Makita 0011606160 BOLT M6X16SP252.4R

Sheet 4: Makita EVH2000 parts diagram

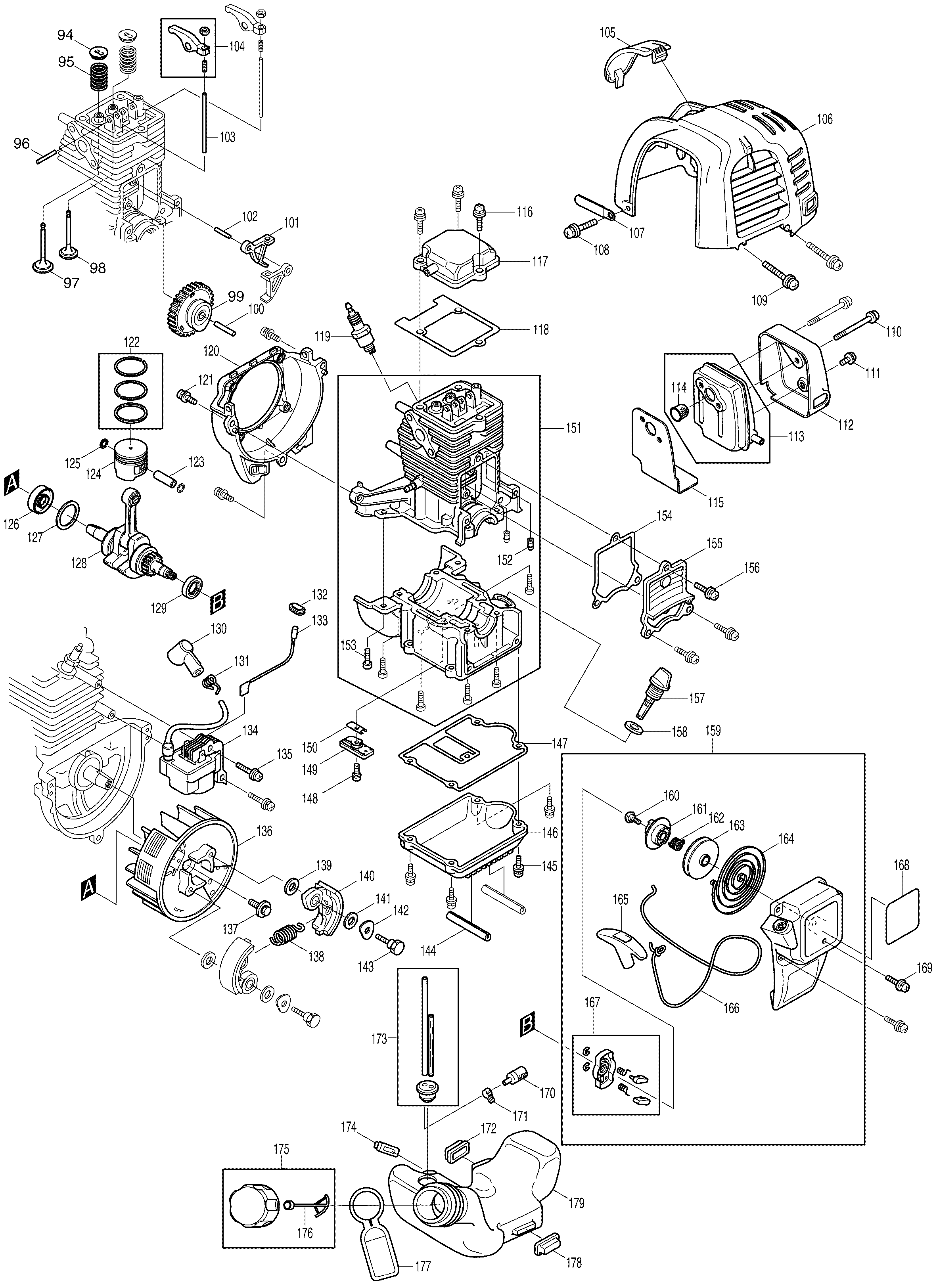

Makita EVH2000 parts diagram, sheet 4
No.Part numberPart name
945923501300Makita 5923501300 SPRING RETAINERBHX2500/PB-250.4
955923501200Makita 5923501200 VALVE SPRINGBHX2500/PB-250.4
965933500100Makita 5933500100 ROCKER SHAFTBHX2500/PB-250.4
975923501500Makita 5923501500 INTAKE VALVEBHX2500/PB-250.4
985923501400Makita 5923501400 EXHAUST VALVEBHX2500/PB-250.4
995933003000Makita 5933003000 CAM GEAR ASS'YBHX2500/PB-250.4
1005923500501Makita 5923500501 CAM GEAR SHAFTBHX2500/PB-250.4
1015923500001Makita 5923500001 CAM LIFTERBHX2500/PB-250.4
1025923500600Makita 5923500600 CAM LIFTER SHAFTBHX2500/PB-250.4
1035923500700Makita 5923500700 PUSH RODBHX2500/PB-250.4
1045933002000Makita 5933002000 ROCKER ARM ASS'YBHX2500/PB-250.4
1055927500000Makita 5927500000 PLUG COVER
1065925500800Makita 5925500800 CYLINDER COVER
1070566059980DISC Genuine Makita 0566059980 CLAMP
1080140059370Makita 0140059370 SCREW ASS'Y M5X12BCX3400
1090140049770Makita 0140049770 SCREW ASSY M4X16(W,SBHX2500/PB-250.4
1100119059520Makita 0119059520 SOCKET HEAD BOLT M5XBHX2500/PB-250.4
1110140059962Makita 0140059962 SCREW M5X6
1125923503400Makita 5923503400 MUFFLER COVER
1145923008011Makita 5923008011 SPARK ARRESTERBHX2500/PB-250.4
1155923501601Makita 5923501601 MUFFLER GASKET
1160043605160Makita 0043605160 SCREW ASS'Y M5X16 (WBHX2500/PB-250.4
1175921004001Makita 5921004001 ROCKER COVER COMPLETBHX2500/PB-250.4
1185921500800Makita 5921500800 ROCKER COVER GASKETBHX2500/PB-250.4
1190650109950Makita 0650109950 SPARK PLUG CMR6ABHX2500/PB-250.4
1205255501100Makita 5255501100 HOUSING,BLOWERSP252.4R
1210140059350Makita 0140059350 SCREW ASSY M5X18(W,SSP252.4R
1225922004000Makita 5922004000 PISTON RING SETBHX2500/PB-250.4
1235232502600Makita 5232502600 PISTON PINBHX2500/PB-250.4
1245922500900Makita 5922500900 PISTONBHX2500/PB-250.4
1250565089970Makita 0565089970 CLIPBHX2500/PB-250.4
1260440129960Makita 0440129960 OIL SEAL (L)BHX2500/PB-250.4
1275421500500Makita 5421500500 CLIPBHX2500/PB-250.4
1285922003000Makita 5922003000 CRANK SHAFT ASS'YBHX2500/PB-250.4
1290440109970Makita 0440109970 OIL SEAL (S)BHX2500/PB-250.4
1305927500100Makita 5927500100 PLUG CAPBHX2500/PB-250.4
1310654009931Makita 0654009931 PLUG CAP SPRINGBHX2500/PB-250.4
1325257500300Makita 5257500300 GROMMET
1335257018001Makita 5257018001 WIRE COMPLETE
1345927012011Makita 5927012011 IGNITION COILEPH1000
1350043704200Makita 0043704200 SCREW ASS'Y M4X20BHX2500/PB-250.4
1365927009010Makita 5927009010 FLYWHEELSP252.4R
1370130069940Makita 0130069940 BOLT ASSEMBLY M6X16BHX2500/PB-250.4
1385258001010Makita 5258001010 CLUTCH SPRING
1396202500600Makita 6202500600 WASHER
1405258002010Makita 5258002010 SHOE,CLUTCHSP252.4R
1410031008000Makita 0031008000 WASHER
1420200089911Makita 0200089911 WASHER M8
1436252500400Makita 6252500400 CLUTCH BOLT
1445926500900Makita 5926500900 GUARD,CASE OILSP252.4R
1450043605180Makita 0043605180 SCREW ASS'YBHX2500/PB-250.4
1465926500000Makita 5926500000 OIL CASEBHX2500/PB-250.4
1475926500100Makita 5926500100 CASE GASKETBHX2500/PB-250.4
1480119049980Makita 0119049980 SOCKET HEAD BOLT M4XBHX2500/PB-250.4
1495921501100Makita 5921501100 RETAINER PLATEBHX2500/PB-250.4
1505921501000Makita 5921501000 LEAD VALVEBHX2500/PB-250.4
1525921501400Makita 5921501400 SPACERBHX2500/PB-250.4
1530119059510Makita 0119059510 SOCKET HEAD BOLT M5XBHX2500/PB-250.4
1545921500700Makita 5921500700 CAMGEAR COVER GASKETBHX2500/PB-250.4
1555921500502Makita 5921500502 CAMGEAR COVERBHX2500/PB-250.4
1560043605140Makita 0043605140 SCREW ASS'Y M5X14BHX2500/PB-250.4
1575926500600Makita 5926500600 OIL GAUGE
1580213169990Makita 0213169990 GASKETBCX3400
1605195002060Makita 5195002060 SET SCREWBHX2500/PB-250.4
1615195019020Makita 5195019020 CAM PLATESP252.4R
1625195019030Makita 5195019030 DAMPER SPRINGSP252.4R
1635255050010Makita 5255050010 REELSP252.4R
1645215002030Makita 5215002030 SPIRAL SPRINGBHX2500/PB-250.4
1655225004020Makita 5225004020 HANDLEBHX2500/PB-250.4
1665925006010Makita 5925006010 STARTER ROPESP252.4R
1675925022000Makita 5925022000 PULLEYSP252.4R
1686909539200
1690140049770Makita 0140049770 SCREW ASSY M4X16(W,SBHX2500/PB-250.4
1705236503900Makita 5236503900 FILTERBHX2500/PB-250.4
1710561059990Makita 0561059990 HOSE CLAMPBHX2500/PB-250.4
1725036500300Makita 5036500300 PLATEBCX3400
1735926003000Makita 5926003000 TUBE
1745036500200Makita 5036500200 PLATEBCX3400
1755926017000Makita 5926017000 FUEL TANK CAP ASSY
1765256067000Makita 5256067000 STRAPEPH1000
1776249501501Makita 6249501501 STRAP
1785196500302Makita 5196500302 DAMPERBCX3400
1795926500400Makita 5926500400 FUEL TANK

Sheet 5: Makita EVH2000 parts diagram

Makita EVH2000 parts diagram, sheet 5
No.Part numberPart name
1805923501801Makita 5923501801 INSULATOR GASKETBHX2500/PB-250.4
1820021705000Makita 0021705000 NUT M5
1830022706000Makita 0022706000 NUT M6
1840022706000Makita 0022706000 NUT M6
1850149060120Makita 0149060120 ADJUSTING SCREWSP252.4R
1865923502000Makita 5923502000 CARBURETOR INSULATOR
1870043605180Makita 0043605180 SCREW ASS'YBHX2500/PB-250.4
1885923504000Makita 5923504000 CARBURETOR GASKETSP252.4R
1895926501300Makita 5926501300 CLAMPEPH1000
1900140059370Makita 0140059370 SCREW ASS'Y M5X12BCX3400
1925316005120Makita 5316005120 RINGBHX2500/PB-250.4
1935236018040Makita 5236018040 SWIVELBHX2500/PB-250.4
1945426005030Makita 5426005030 WASHERBHX2500/PB-250.4
1955206008030Makita 5206008030 PAN HEAD SCREWBHX2500/PB-250.4
1965926002020Makita 5926002020 PUMP SPRINGBHX2500/PB-250.4
1975246001010Makita 5246001010 O RINGBHX2500/PB-250.4
1985196002020Makita 5196002020 JETBHX2500/PB-250.4
1995926002040Makita 5926002040 PUMP GASKETBHX2500/PB-250.4
2005246001040Makita 5246001040 PUMP DIAPHRAGMBHX2500/PB-250.4
2015236046010Makita 5236046010 PUMP COVER SCREWBHX2500/PB-250.4
2025236046050Makita 5236046050 PRIMER PUMP COVERBHX2500/PB-250.4
2035246001150Makita 5246001150 PRIMER PUMPBHX2500/PB-250.4
2045236046140Makita 5236046140 AIR PURGE BODY ASS'YBHX2500/PB-250.4
2055926008010
2065236046040Makita 5236046040 METERING DIAPHRAGM GBHX2500/PB-250.4
2085016004010Makita 5016004010 INLET SCREENBHX2500/PB-250.4
2090561080010Makita 0561080010 HOSE CLAMPBHX2500/PB-250.4
2105921500900Makita 5921500900 BREATHER PIPEBHX2500/PB-250.4
2115923503001Makita 5923503001 PIPE
2135923502200Makita 5923502200 CHOKE LEVERBHX2500/PB-250.4
2140240159990Makita 0240159990 O RING P15BHX2500/PB-250.4
2155923006002Makita 5923006002 AIR CLEANER PLATE COSP252.4R
2165923503200Makita 5923503200 AIR CLEANER ELEMENT
2175923502400Makita 5923502400 CHECK VALVE (1)BHX2500/PB-250.4
2180240139970Makita 0240139970 O RING P14BHX2500/PB-250.4
2195923502500Makita 5923502500 CHECK VALVE PLATEBHX2500/PB-250.4
2205316500701Makita 5316500701 CHECK VALVEBHX2500/PB-250.4
2215923503500Makita 5923503500 GASKET SEPARATORBHX2500/PB-250.4
2225933501600Makita 5933501600 SEPARATOR PLATEBHX2500/PB-250.4
2235923502700Makita 5923502700 AIR CLEANER COVER
2240140059480Makita 0140059480 SCREW ASS'Y M5X14BHX2500/PB-250.4
2255923503100Makita 5923503100 SCREW M5X68 (W,SW SUBHX2500/PB-250.4
2265923502600Makita 5923502600 PLATEBHX2500/PB-250.4
2270213069990Makita 0213069990 GASKETBHX2500/PB-250.4
2285923502301Makita 5923502301 CHOKE PLATEBHX2500/PB-250.4
Selected parts0
