Makita ET40

Makita ET40: exploded parts diagram, 1 sheet, 36 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita ET40: 36 positions on 1 sheet

Sheet 1: Makita ET40 parts diagram

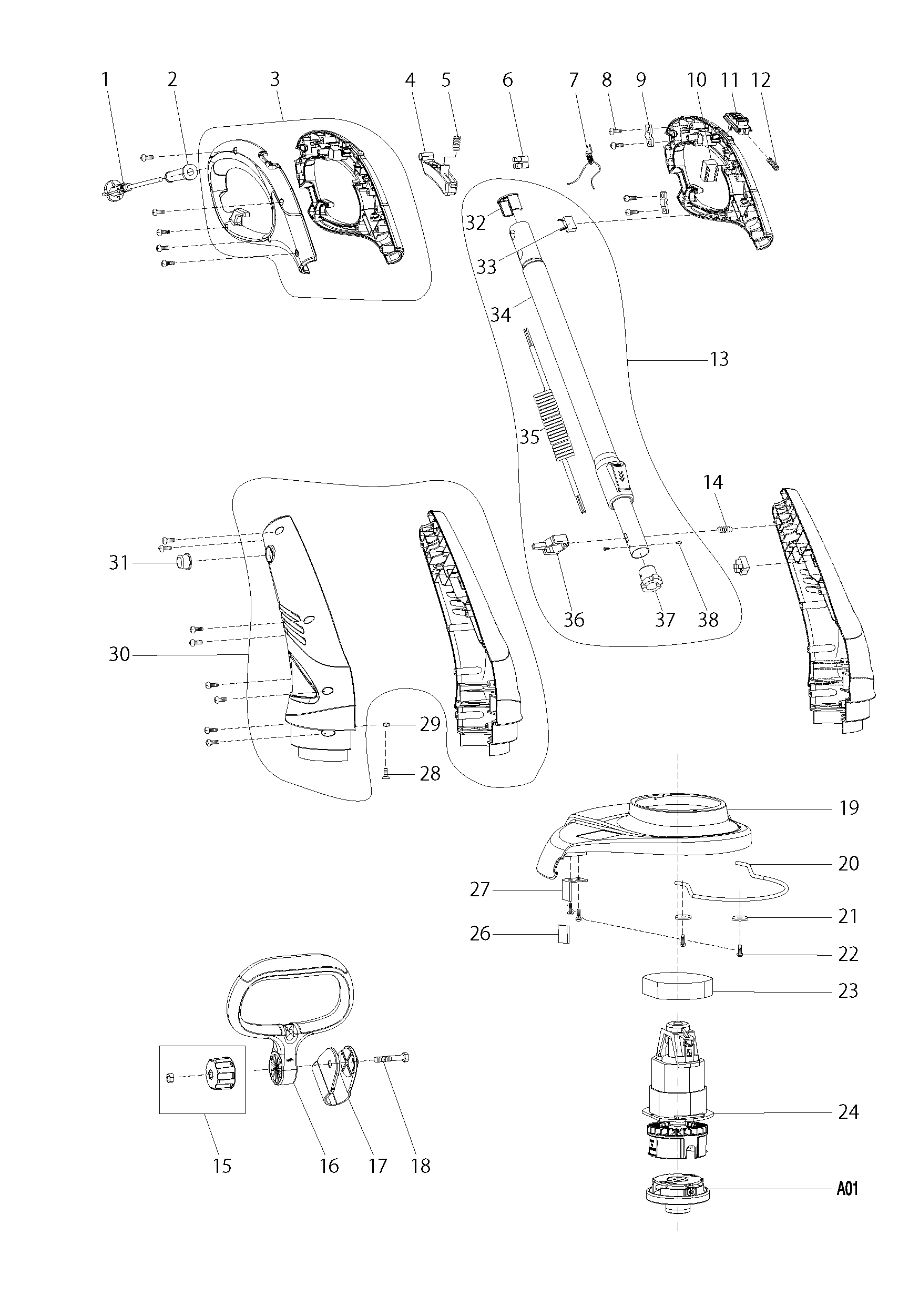

Makita ET40 parts diagram, sheet 1
No.Part numberPart name
1DA00000040Makita DA00000040 POWER SUPPLY CORD, UR3000/ET-40
2DA00000041Makita DA00000041 CORD GUARD, UR3000/ET-40
3DA00000051
4DA00000008Makita DA00000008 SWITCH TRIGGER, UR3000/ET-40
5DA00000009Makita DA00000009 SPRING, UR3000/ET-40
6DA00000010Makita DA00000010 TERMINAL BLOCK, UR3000/ET-40
7DA00000043Makita DA00000043 INTERNAL WIRE, UR3000/ET-40
8DA00000012Makita DA00000012 SCREW ST4X16, UR3000/ET-40
9DA00000013Makita DA00000013 CORD CLAMP, UR3000/ET-40
10DA00000044Makita DA00000044 Switch for UR3000 UR3000/ET-40
11DA00000015Makita DA00000015 LOCK OFF LEVER, UR3000/ET-40
12DA00000016Makita DA00000016 SPRING, UR3000/ET-40
14DA00000018Makita DA00000018 SPRING, UR3000/ET-40
15DA00000019Makita DA00000019 KNOB ASS'Y, UR3000/ET-40
16DA00000045Makita DA00000045 LOOP HANDLE, UR3000/ET-40
17DA00000046Makita DA00000046 LOOP HANDLE BASE, UR3000/ET-40
18DA00000022Makita DA00000022 HEX BOLT M6X45, UR3000/ET-40
19DA00000047Makita DA00000047 SAFETY COVER 300, UR3000/ET-40
20DA00000024Makita DA00000024 GUARD, UR3000/ET-40
21DA00000025Makita DA00000025 WASHER, UR3000/ET-40
22DA00000026Makita DA00000026 SCREW ST4X12, UR3000/ET-40
23DA00000027Makita DA00000027 MOTOR FORM RING, UR3000/ET-40
24DA00000048Makita DA00000048 MOTOR, UR3000/ET-40
26DA00000030Makita DA00000030 BLADE COVER, UR3000/ET-40
27DA00000031Makita DA00000031 BLADE, UR3000/ET-40
28DA00000032Makita DA00000032 SCREW M4X12, UR3000/ET-40
29DA00000033Makita DA00000033 HEX NUT M4, UR3000/ET-40
30DA00000052
31DA00000035Makita DA00000035 LOCK BUTTON, UR3000/ET-40
32DA00000053
33DA00000054
34DA00000055
35DA00000056
36DA00000057
37DA00000058
38DA00000059
