Makita ER2550LH
Makita ER2550LH: exploded parts diagram, 4 sheets, 193 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita ER2550LH: 193 positions on 4 sheets
Sheet 1: Makita ER2550LH parts diagram
| No. | Part number | Part name |
|---|---|---|
| 2 | 922243-3 | Makita 922243-3 HEX. SOCKET HEAD BOLT M5X |
| 3 | 452843-0 | Makita 452843-0 CLAMP COVER B |
| 4 | 346468-9 | Makita 346468-9 PIPE CLAMP 33 |
| 5 | 452841-4 | Makita 452841-4 LOOP HANDLE |
| 6 | 346467-1 | Makita 346467-1 PIPE CLAMP |
| 7 | 450659-7 | Makita 450659-7 SPACER |
| 8 | 141497-5 | Makita 141497-5 BENT PIPE R/P |
| 10 | 266775-3 | Makita 266775-3 HEX BOLT M6X20 |
| 11 | 346469-7 | Makita 346469-7 CLAMP |
| 13 | 267845-1 | Makita 267845-1 BEARING WASHER |
| 14 | 326195-4 | Makita 326195-4 CUTTER SHAFT |
| 15 | 211368-1 | Makita 211368-1 BALL BEARING 608ZZ |
| 16 | 257335-2 | Makita 257335-2 COLLAR |
| 17 | 211367-3 | Makita 211367-3 BALL BEARING 608DDW |
| 18 | 318900-3 | Makita 318900-3 HEAD CASE |
| 19 | 267844-3 | Makita 267844-3 WASHER |
| 20 | 267846-9 | Makita 267846-9 SPRING WASHER M8 |
| 21 | 318901-1 | Makita 318901-1 CUTTER HOLDER |
| 22 | 922207-7 | Makita 922207-7 HEX. SOCKET HEAD BOLT M5X |
| 23 | 922242-5 | Makita 922242-5 HEX. SOCKET HEAD BOLT M5X |
| 25 | 453782-7 | Makita 453782-7 SAFETY COVER |
| 26 | 266776-1 | Makita 266776-1 SCREW M5X14 |
| 27 | 267842-7 | Makita 267842-7 WASHER M5 |
| 28 | 346612-8 | Makita 346612-8 CUTTER |
| 29 | 267843-5 | Makita 267843-5 SPRING WASHER M5 |
| 30 | 264079-7 | Makita 264079-7 NUT M5 |
| 33 | 819760-1 | |
| 38 | 125759-9 | Makita 125759-9 CONTROLLER LEVER ASSEMBLY |

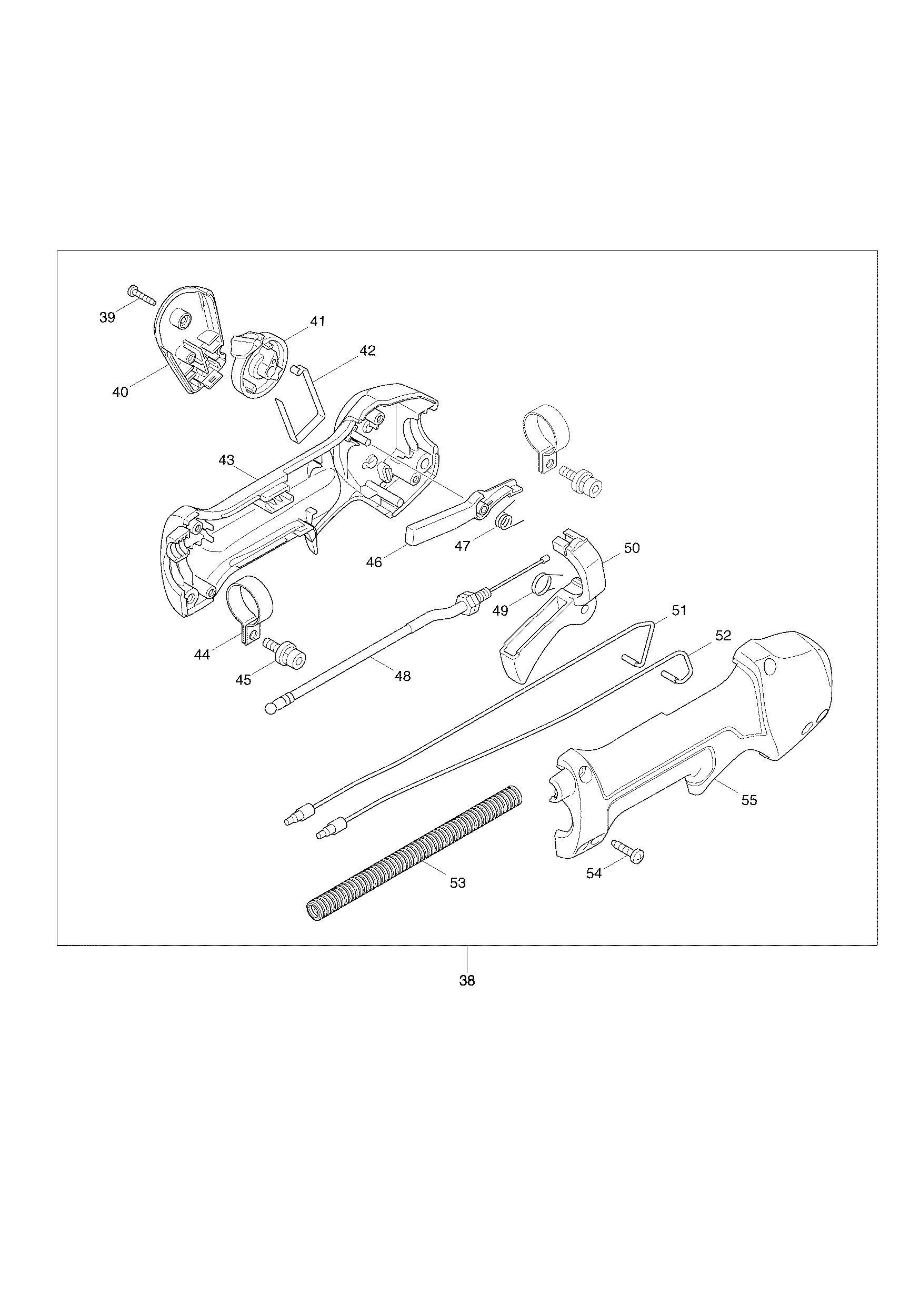

Sheet 2: Makita ER2550LH parts diagram
| No. | Part number | Part name |
|---|---|---|
| 39 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 40 | 451595-0 | Makita 451595-0 SWITCH COVER |
| 41 | 451594-2 | Makita 451594-2 SWITCH LEVER |
| 42 | 232251-9 | Makita 232251-9 LEAF SPRING, EBH2500 |
| 43 | 188832-6 | Makita 188832-6 LEVER CASE SET |
| 44 | 346248-3 | Makita 346248-3 PIPE CLAMP 24 |
| 45 | 922218-2 | Makita 922218-2 HEX SOCKET HEAD BOLT M5*14, MEM427 |
| 46 | 451593-4 | Makita 451593-4 LOCK LEVER |
| 47 | 233541-3 | Makita 233541-3 TORSION SPRING 7, EBH2500 |
| 48 | 168549-7 | Makita 168549-7 CONTROL CABLE |
| 49 | 233540-5 | Makita 233540-5 TORSION SPRING 11, EBH250U |
| 50 | 451592-6 | Makita 451592-6 THROTTLE LEVER |
| 51 | 638676-9 | Makita 638676-9 LEAD UNIT |
| 52 | 638677-7 | Makita 638677-7 LEAD UNIT |
| 53 | 451602-9 | Makita 451602-9 CORRUGATE TUB |
| 54 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 55 | 188832-6 | Makita 188832-6 LEVER CASE SET |

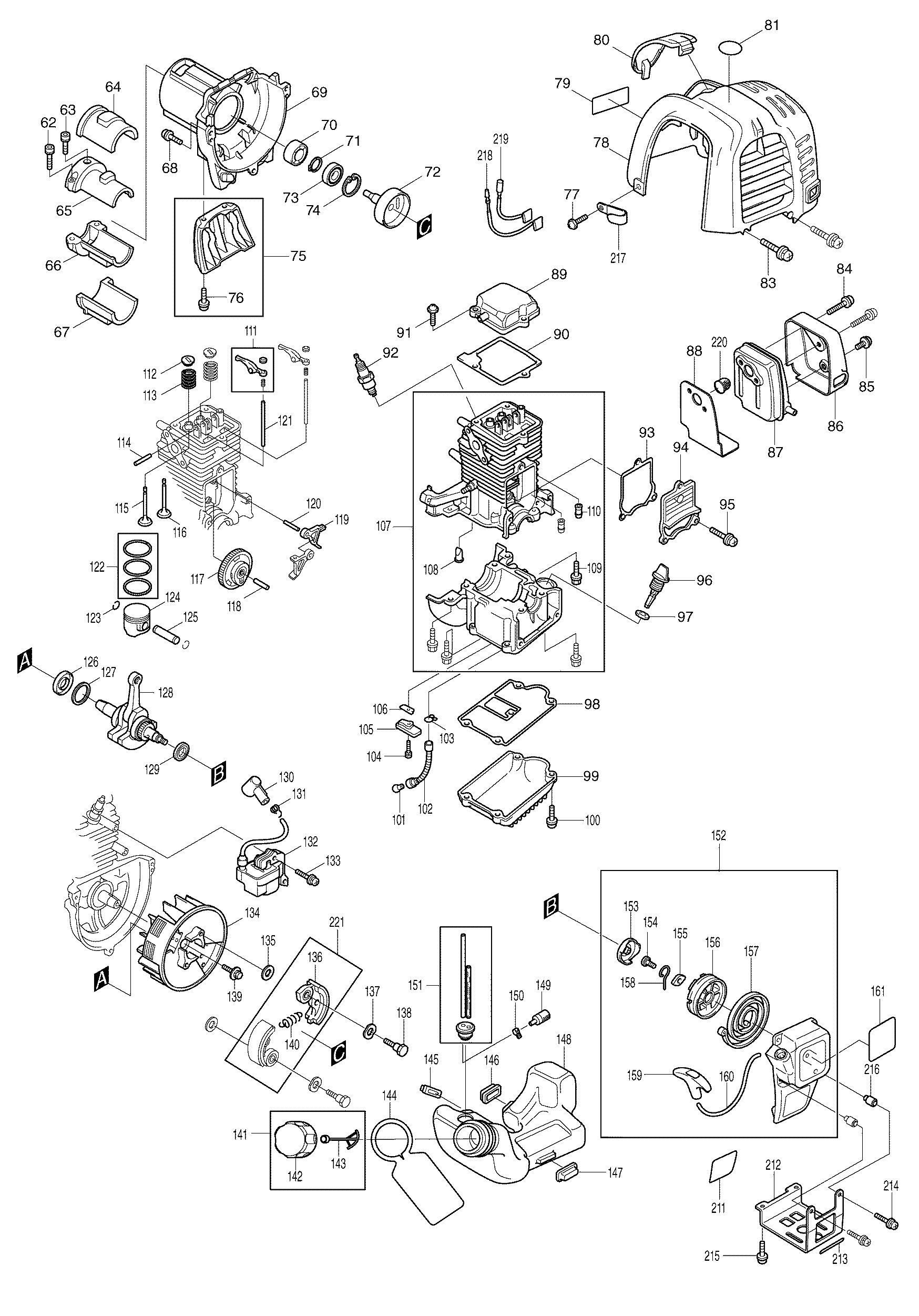

Sheet 3: Makita ER2550LH parts diagram
| No. | Part number | Part name |
|---|---|---|
| 62 | 922226-3 | Makita 922226-3 HEX.SOCKET HEAD BOLT M5X18, LS1016L |
| 63 | 922211-6 | Makita 922211-6 HEX SOCKET HEAD BOLT M5*12, MEM427 |
| 64 | 424191-7 | Makita 424191-7 PIPE DAMPER 1, MEM427 |
| 65 | 318270-0 | Makita 318270-0 PIPE BRACKET 1, MEM427 |
| 66 | 318271-8 | Makita 318271-8 PIPE BRACKET 2, MEM427 |
| 67 | 424107-2 | Makita 424107-2 PIPE DAMPER 2, MEM427 |
| 68 | 922222-1 | Makita 922222-1 H.S.H.BOLT M5*16, HR3850 |
| 69 | 318329-3 | Makita 318329-3 CLUTCH CASE, MEM427 |
| 70 | 450569-8 | Makita 450569-8 SPACER, MEM426 |
| 71 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 72 | 168710-6 | Makita 168710-6 CLUTCH DRUM COMPLETE |
| 73 | 210111-5 | Makita 210111-5 BALL BEARING 62, MEM427 |
| 74 | 962151-6 | Makita 962151-6 RETAINING RING R-32, 9523NB |
| 76 | 911218-7 | Makita 911218-7 PAN HEAD SCREW M5X14, EBH252U |
| 77 | 911213-7 | Makita 911213-7 Pan Head Screw M5X12 for RP0900 LS1040 LS1013 |
| 78 | 450654-7 | Makita 450654-7 CYLINDER COVER, EBH250U |
| 79 | 819312-8 | Makita 819312-8 MAKITA LOGO LABEL, MEM427 |
| 80 | 450568-0 | Makita 450568-0 PLUG COVER, MEM427 |
| 81 | ||
| 83 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 84 | 266440-4 | Makita 266440-4 HEX.SOCKET HEAD BOLT M5*40, MEM427 |
| 85 | 265184-3 | Makita 265184-3 COUNTERSUNK RAISED HEAD SCREW, MEM427 |
| 86 | 345915-7 | Makita 345915-7 MUFFLER COVER, MEM427 |
| 87 | 168469-5 | Makita 168469-5 EXHAUST MUFFLER |
| 88 | 345916-5 | Makita 345916-5 MUFFLER GASKET, MEM427 |
| 89 | 140023-7 | Makita 140023-7 ROCKER COVER COMPLETE, MEM426 |
| 90 | 162275-0 | Makita 162275-0 ROCKER COVER GASKET, MEM426 |
| 91 | 922223-9 | Makita 922223-9 SOCKET HEAD BOLT, MEM427 |
| 92 | 168534-0 | Makita 168534-0 Spark Plug NGK CMR4A |
| 93 | 162274-2 | Makita 162274-2 CAM GEAR COVER GASKET, MEM426 |
| 94 | 318443-5 | Makita 318443-5 CAM GEAR COVER, MEM426 |
| 95 | 922217-4 | Makita 922217-4 H.S.H.BOLT M5X14, MEM427 |
| 96 | 450565-6 | Makita 450565-6 OIL GAUGE |
| 97 | 424100-6 | Makita 424100-6 GASKET |
| 98 | 162276-8 | Makita 162276-8 CASE GASKET, MEM426 |
| 99 | 318442-7 | Makita 318442-7 OIL CASE, MEM426 |
| 100 | 922217-4 | Makita 922217-4 H.S.H.BOLT M5X14, MEM427 |
| 101 | 325666-8 | Makita 325666-8 OIL WEIGHT |
| 102 | 424202-8 | Makita 424202-8 OIL TUBE |
| 103 | 282020-8 | Makita 282020-8 HOSE CLAMP |
| 104 | 922112-8 | Makita 922112-8 HEX SOCRET HEAD BOLT M4*10, EBH340U |
| 105 | 318440-1 | Makita 318440-1 RETAINER PLATE, MEM426 |
| 106 | 346083-9 | Makita 346083-9 LEAD VALVE, MEM426 |
| 108 | 424201-0 | Makita 424201-0 CHECK VALVE, MEM426 |
| 109 | 922217-4 | Makita 922217-4 H.S.H.BOLT M5X14, MEM427 |
| 110 | 424200-2 | Makita 424200-2 SPACER, MEM426 |
| 111 | 125554-7 | Makita 125554-7 ROCKER ARM ASSEMBLY, MEM426 |
| 112 | 325668-4 | Makita 325668-4 SPRING RETAINER, MEM426 |
| 113 | 234108-0 | Makita 234108-0 COMPRESSION SPRING 9, MEM426 |
| 114 | 256200-2 | Makita 256200-2 PIN5, MEM426 |
| 115 | 325670-7 | Makita 325670-7 INTAKE VALVE, MEM426 |
| 116 | 325669-2 | Makita 325669-2 EXHAUST VALVE, MEM426 |
| 117 | 125552-1 | Makita 125552-1 CAM GEAR ASSEMBLY, MEM426 |
| 118 | 268238-5 | Makita 268238-5 PIN5, MEM426 |
| 119 | 313169-4 | Makita 313169-4 CAM LIFTER, MEM426 |
| 120 | 268239-3 | Makita 268239-3 PIN4, MEM426 |
| 121 | 256865-0 | Makita 256865-0 ROD2.5, MEM426 |
| 122 | 195145-8 | Makita 195145-8 PISTON RING SET |
| 123 | 233976-8 | Makita 233976-8 CLIP, MEM426 |
| 124 | 318441-9 | Makita 318441-9 PISTON, MEM426 |
| 125 | 257781-9 | Makita 257781-9 PISTON PIN, MEM426 |
| 126 | 213147-3 | Makita 213147-3 OIL SEAL 12, MEM426 |
| 127 | 267400-9 | Makita 267400-9 CLIP, MEM426 |
| 128 | 135374-1 | Makita 135374-1 CRANK SHAFT ASSEMBLY |
| 129 | 213148-1 | Makita 213148-1 OIL SEAL 10, MEM426 |
| 130 | 424105-6 | Makita 424105-6 PLUS CAP, PB-7600.4 |
| 131 | 324891-8 | Makita 324891-8 PLUG CAP SPRING, MEM427 |
| 132 | 168501-5 | Makita 168501-5 Ignition Coil |
| 133 | 922138-0 | Makita 922138-0 HEX.SOCKET HEAD BOLT M4*16, MT430 |
| 134 | 318343-9 | Makita 318343-9 FLY WHEEL, MEM426 |
| 135 | 267812-6 | Makita 267812-6 WASHER 6, MEM427 |
| 136 | 168498-8 | Makita 168498-8 CLUTCH SHOE |
| 137 | 267817-6 | Makita 267817-6 WASHER 8, MEM427 |
| 138 | 266457-7 | Makita 266457-7 SHOULDER HEX. BOLT M6*25, MEM427 |
| 139 | 265577-4 | Makita 265577-4 HEX HEAD BOLT M6*16, MEM427 |
| 140 | 231858-8 | Makita 231858-8 TENSION SPRING |
| 142 | 140435-4 | Makita 140435-4 FUEL TANK CAP |
| 143 | 140436-2 | Makita 140436-2 STRAP COMPLETE |
| 144 | 810455-9 | |
| 145 | 424102-2 | Makita 424102-2 PLATE, MEM427 |
| 146 | 424103-0 | Makita 424103-0 PLATE, MEM427 |
| 147 | 424104-8 | Makita 424104-8 DAMPER, MEM427 |
| 148 | 450566-4 | Makita 450566-4 FUEL TANK |
| 149 | 163447-0 | Makita 163447-0 Gasoline Filter |
| 150 | 345920-4 | Makita 345920-4 HOSE CLAMP, EBH340U |
| 151 | 168472-6 | Makita 168472-6 TUBE COMPLETE |
| 153 | 168483-1 | Makita 168483-1 PULLEY |
| 154 | 266585-8 | Makita 266585-8 TAPPING SCREW M5X12 |
| 155 | 451938-6 | Makita 451938-6 COLLAR |
| 156 | 451937-8 | Makita 451937-8 REEL |
| 157 | 232258-5 | Makita 232258-5 SPIRAL SPRING |
| 158 | 325923-4 | Makita 325923-4 SWING ARM |
| 159 | 424319-7 | Makita 424319-7 STARTER KNOB |
| 160 | 444019-3 | Makita 444019-3 STARTER ROPE |
| 161 | 893142-5 | |
| 211 | 806902-6 | Makita 806902-6 LABEL ENGINE, EBH250U |
| 212 | 345964-4 | Makita 345964-4 TANK GUARD, EBH250U |
| 213 | 814998-3 | |
| 214 | 911148-2 | Makita 911148-2 PAN H.SCREW M4*25 WITH WR, AN611 |
| 215 | 911213-7 | Makita 911213-7 Pan Head Screw M5X12 for RP0900 LS1040 LS1013 |
| 216 | 331835-1 | Makita 331835-1 SPACER, EBH250U |
| 217 | 345963-6 | Makita 345963-6 CLAMP, EBH250U |
| 218 | 638664-6 | Makita 638664-6 LEAD UNIT, EBH250U |
| 219 | 638665-4 | Makita 638665-4 LEAD UNIT, EBH250U |
| 220 | 324980-9 | Makita 324980-9 SPARK ARRESTER |

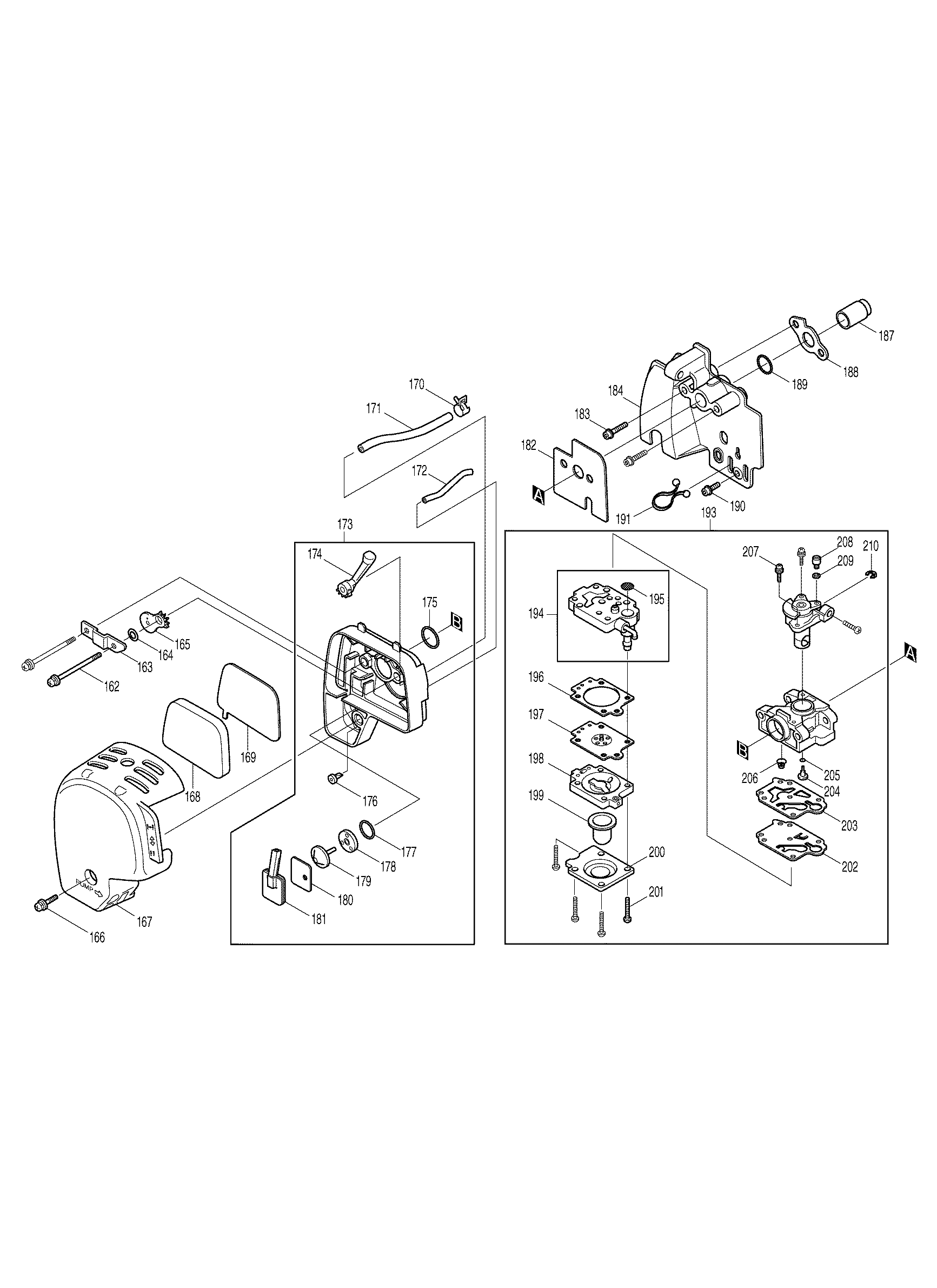

Sheet 4: Makita ER2550LH parts diagram
| No. | Part number | Part name |
|---|---|---|
| 162 | 265188-5 | Makita 265188-5 PAN HEAD SCREW M5*68, MEM427 |
| 163 | 345919-9 | Makita 345919-9 PLATE, MEM427 |
| 164 | 423376-2 | Makita 423376-2 GASKET, MEM427 |
| 165 | 450560-6 | Makita 450560-6 CHOKE PLATE, MEM427 |
| 166 | 911218-7 | Makita 911218-7 PAN HEAD SCREW M5X14, EBH252U |
| 167 | 450561-4 | Makita 450561-4 AIR CLEANER COVER, MEM427 |
| 168 | 443141-3 | Makita 443141-3 Air Cleaner Filter Element |
| 169 | 443140-5 | Makita 443140-5 Air Cleaner Element |
| 170 | 345918-1 | Makita 345918-1 HOSE CLAMP, MEM427 |
| 171 | 422041-0 | Makita 422041-0 BREATHER PIPE, MEM427 |
| 172 | 422042-8 | Makita 422042-8 PIPE, MEM427 |
| 174 | 451925-5 | Makita 451925-5 Choke Lever Em4251 |
| 175 | 213540-1 | Makita 213540-1 O-RING 15 |
| 176 | 424316-3 | Makita 424316-3 CHECK VALVE |
| 177 | 213539-6 | Makita 213539-6 O-RING 14 |
| 178 | 451924-7 | Makita 451924-7 CHECK VALVE PLATE |
| 179 | 424315-5 | Makita 424315-5 CHECK VALVE |
| 180 | 168577-2 | Makita 168577-2 SEPARATOR GASKET |
| 181 | 168576-4 | Makita 168576-4 SEPARATOR PLATE |
| 182 | 413121-3 | Makita 413121-3 CARBURETOR GASKET, MEM427 |
| 183 | 922228-9 | Makita 922228-9 HEX SOCKET HEAD BOLT M5*18, MEM427 |
| 184 | 450559-1 | Makita 450559-1 INSULATOR, MEM427 |
| 187 | 324961-3 | Makita 324961-3 INTAKE PIPE, MEM427 |
| 188 | 413120-5 | Makita 413120-5 INSULATOR GASKET, MEM427 |
| 189 | 213078-6 | Makita 213078-6 O RING 10, MEM427 |
| 190 | 922213-2 | Makita 922213-2 HEX SOCKET HEAD BOLT M5*12, MEM427 |
| 191 | 450562-2 | Makita 450562-2 CLAMP, MEM427 |
| 195 | 352010-6 | Makita 352010-6 INLET SCREEN |
| 196 | 442154-1 | Makita 442154-1 METERING DIAPHRAGM GASKET |
| 197 | 168574-8 | Makita 168574-8 METERING DIAPHARGM, EBH341U |
| 198 | 140438-8 | Makita 140438-8 AIR PURGE BODY |
| 199 | 424314-7 | Makita 424314-7 PRIMER PUMP |
| 200 | 346270-0 | Makita 346270-0 PRIMER PUMP COVER |
| 201 | 266582-4 | Makita 266582-4 TAPPING SCREW 3X24 |
| 202 | 168575-6 | Makita 168575-6 PUMP DIAPHRAGM, EBH341U |
| 203 | 442155-9 | Makita 442155-9 PUMP GASKET |
| 204 | 325924-2 | Makita 325924-2 JET |
| 205 | 213538-8 | Makita 213538-8 O-RING 2 |
| 206 | 234183-6 | Makita 234183-6 CONICAL COMRESSION SPRING |
| 207 | 266581-6 | Makita 266581-6 PAN HEAD SCREW M3X8 |
| 208 | 325922-6 | Makita 325922-6 SWIWEL |
| 209 | 413140-9 | Makita 413140-9 WASHER |
| 210 | 257964-1 | Makita 257964-1 STOP RING E-3 |
