Bosch EMS 18-A

Bosch EMS 18-A multipurpose tool: exploded parts diagram, 1 sheet, 24 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch EMS 18-A: 24 positions on 1 sheet

Bosch EMS 18-A parts list (1 sheet)

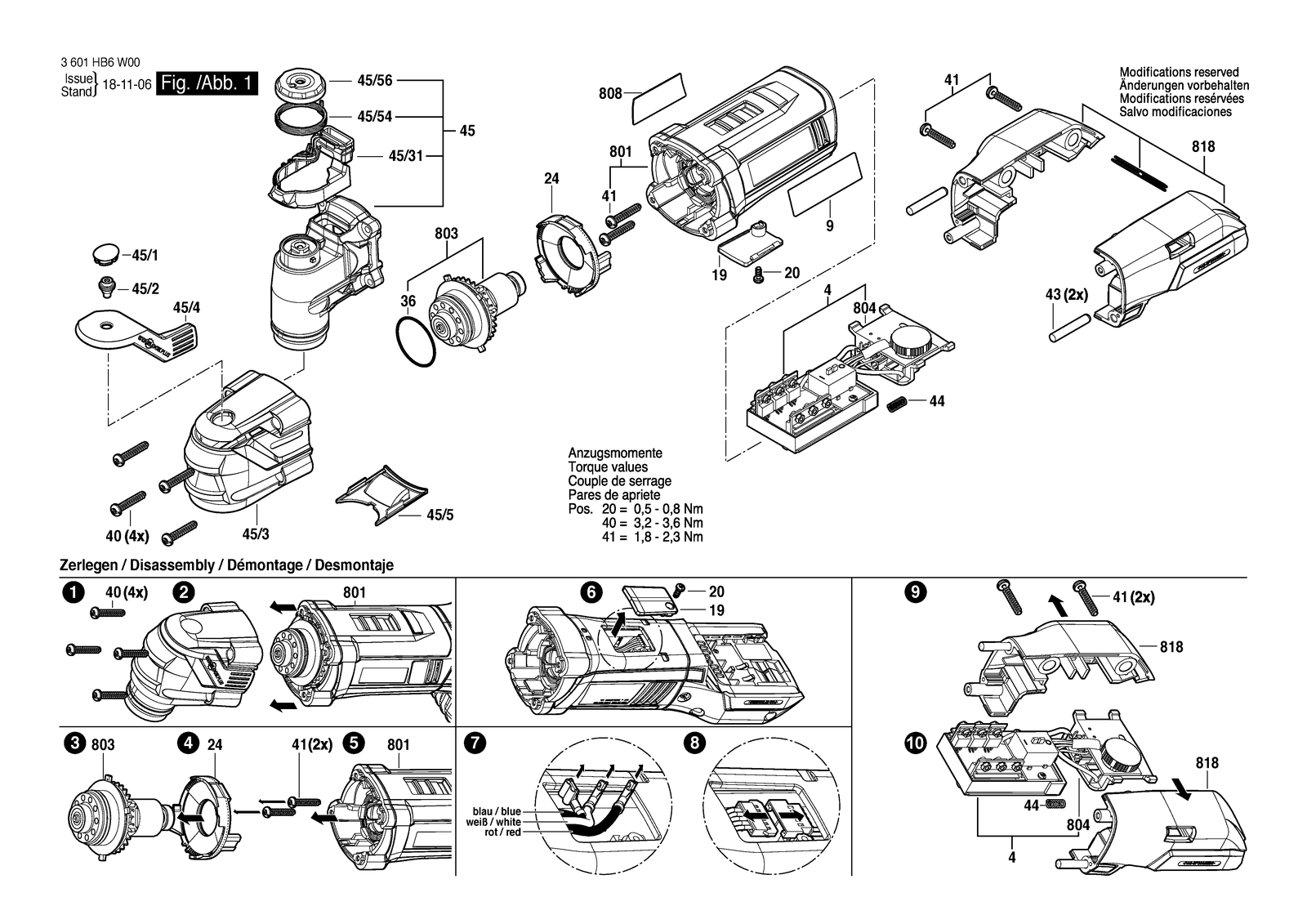

Bosch EMS 18-A parts diagram, sheet 1
No.Part numberPart name
191600A013PGCover
202603490016Torx Oval-Head Screw 3X8
242609101144Air-Deflector Ring
362600210056O-Ring 31,0X2,0 MM
41600A01EC4Electronics Module
402609112264Torx Oval-Head Screw
412609112264Torx Oval-Head Screw
432609111505Straight Pin
441609280477Compression Spring
451600A016ENGear Head
45/12601020017Sealing cap
45/22600114083Insulating ferrule
45/32605806504Cap
45/311600A004KUIllumination Equipment
45/42601901024Lever
45/51600A011T6Safety Cover
45/542604690068Torsion Spring
45/562600114091Insulating Cap
8011600A0141WHousing Assembly
8031600A00P1TRotor
8041609280478Contact retainer
808160111A5DUNameplate
8181600A0141XBattery Housing
9160111C2AEManufacturer's nameplate Würth
