Sheet 1: Makita EM3400U parts diagram

Makita EM3400U parts diagram, sheet 1
No.Part numberPart name
2273526-7Makita 273526-7 GRIP, DUR182
3
4332123-9
5922256-4Makita 922256-4 HEX SOCKET BOLT M5*35, HR4002
6126504-5
8922241-7Makita 922241-7 Bolt M5X25 for JR300VT
9318272-6Makita 318272-6 HANDLE HOLDER 1 ,RBC420
10318669-9
11318670-4
12922341-3Makita 922341-3 SOCKET HEAD BOLT, 9803
14922232-8Makita 922232-8 HEX. SOCKET HEAD BOLT M5X
15168613-4
17801D19-4
18805C75-0
19819312-8Makita 819312-8 MAKITA LOGO LABEL, MEM427
20142837-0
21443146-3Makita 443146-3 FELT RING 8, EBH341U
22325675-7OTHR Genuine Makita 325675-7 SHAFT, EBH341U
23266617-1
24346841-3
25911263-2Makita 911263-2 PAN HEAD SCREW M5X40 WR, 4100NH
26264035-7
27451878-8
29346262-9
30266574-3
50922213-2Makita 922213-2 HEX SOCKET HEAD BOLT M5*12, MEM427
52KC00000014
53KC00000009
54KC00000008
55KC00000012
56KC00000005
57KC00000003
58KC00000007
59KC00000013
60KC00000004
61168526-9Makita 168526-9 CUP COMPLETE, EBH250U
62KC00000016
63KC00000015
64KC00000017
65KC00000011
66KC00000010
67KC00000006
68257988-7
1143046-4
13125558-9Makita 125558-9 HANGER ASSEMBLY, EBH341U
28140424-9Makita 140424-9 PROTECTOR COMPLETE
51126506-1

Sheet 2: Makita EM3400U parts diagram

Makita EM3400U parts diagram, sheet 2
No.Part numberPart name
81183A10-9
82233540-5Makita 233540-5 TORSION SPRING 11, EBH250U
83451084-5Makita 451084-5 THROTTLE LEVER, EBH250U
84233541-3Makita 233541-3 TORSION SPRING 7, EBH2500
85451083-7Makita 451083-7 LOCK OFF LEVER, EBH250U
86456084-0
87168867-3
88451081-1Makita 451081-1 CABLE HOLDER, EBH250U
89451500-7Makita 451500-7 SWITCH LEVER
90232251-9Makita 232251-9 LEAF SPRING, EBH2500
91455723-9Makita 455723-9 SWITCH COVER
92638706-6
93183A10-9
94266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
95638705-8

Sheet 3: Makita EM3400U parts diagram

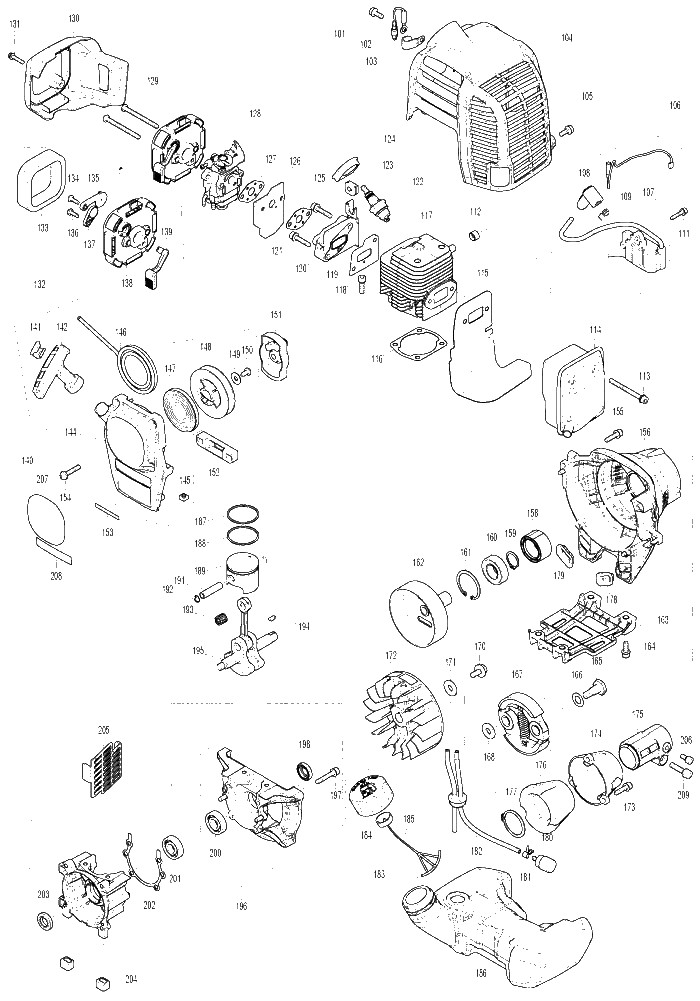

Makita EM3400U parts diagram, sheet 3
No.Part numberPart name
101911218-7Makita 911218-7 PAN HEAD SCREW M5X14, EBH252U
102632D74-3
103345963-6Makita 345963-6 CLAMP, EBH250U
104455371-4
105911218-7Makita 911218-7 PAN HEAD SCREW M5X14, EBH252U
107ZG00000001
108ZG00000002
109ZG00000003
111922138-0Makita 922138-0 HEX.SOCKET HEAD BOLT M4*16, MT430
112452049-0Makita 452049-0 SPACER
113266917-9
114165754-7
115346829-3
116442208-4
117319133-3
118922231-0Makita 922231-0 HEX. SOCKET HEAD BOLT M5X20, HR2010
119442210-7
120455378-0
121922243-3Makita 922243-3 HEX. SOCKET HEAD BOLT M5X
122168648-5Makita 168648-5 SPARK PLUG (BPMR7A)
123424491-5
124424656-9
125442177-9
126346591-0
127442177-9
128168864-9
1290043105550Makita 0043105550 SCREW M5X55
130455377-2
131911138-5Makita 911138-5 P.H.SCREW M4*20, M442
133443194-2
134ZH00000001
135455374-8
136ZH00000001
137455376-4
138455373-0
139455375-6
141JL03007287
142JL03007280
144JL03007281
145JL12650113
146JL03007284
147JL03007282
148JL03007283
149JL03007285
150JL03007286
151168863-1
152424657-7
153850G87-2
154911243-8Makita 911243-8 PAN HEAD SCREW M5X25, DK1804
155922233-6Makita 922233-6 HEX SOCKET HEAD BOLT M5X2
156143321-8
158451157-4Makita 451157-4 SPACER, EBH341U
159961057-5Makita 961057-5 RETAINING RING S-17, LS1016
160210126-2
161962153-2Makita 962153-2 RETAINING RING, 2012NB
162165577-3Makita 165577-3 CLUTCH DRUM, EBH341U
163455370-6
164922223-9Makita 922223-9 SOCKET HEAD BOLT, MEM427
165266571-9Makita 266571-9 BOLT CLUTCH, EBH340U
166267849-3
167125757-3Makita 125757-3 CLUTCH ASSY
168253762-1Makita 253762-1 FLAT WASHER 8, LS1045
170266596-3
171267427-9
172319137-5
173922233-6Makita 922233-6 HEX SOCKET HEAD BOLT M5X2
174318453-2Makita 318453-2 PIPE RETAINER, EBH341L
175318454-0Makita 318454-0 PIPE BRACKET, EBH341U
176424204-4Makita 424204-4 DAMPER, EBH341U
177961151-3Makita 961151-3 RETAINING RING S-32, EBH341U
178424103-0Makita 424103-0 PLATE, MEM427
179424102-2Makita 424102-2 PLATE, MEM427
180163447-0Makita 163447-0 Gasoline Filter
181345920-4Makita 345920-4 HOSE CLAMP, EBH340U
182126503-7
184452920-8
185140436-2Makita 140436-2 STRAP COMPLETE
186455379-8
187257359-8
188
189319136-7
191268337-3
192233976-8Makita 233976-8 CLIP, MEM426
193212702-8
194254040-2Makita 254040-2 WOODRUFF KEY, EBH340U
195142542-9
197922253-0Makita 922253-0 H.S.H.BOLT M5X30 WITH WR
198213628-7
200210113-1
201210113-1
202442209-2
203213628-7
204424446-0
205455372-2
206922213-2Makita 922213-2 HEX SOCKET HEAD BOLT M5*12, MEM427
207805C68-7
208805C80-7
209922341-3Makita 922341-3 SOCKET HEAD BOLT, 9803
106126418-8
132126502-9
140126501-1
183168668-9
196135647-2

Sheet 4: Makita EM3400U parts diagram

Makita EM3400U parts diagram, sheet 4
No.Part numberPart name
211266704-6Makita 266704-6 THROTTLE COLLAR SCREW
213346588-9
214325922-6Makita 325922-6 SWIWEL
215413140-9Makita 413140-9 WASHER
216257964-1Makita 257964-1 STOP RING E-3
218424444-4Makita 424444-4 PACKING RING
219WJ00016104Makita WJ00016104 O RING, DCS230T
220WJ00112288
221442155-9Makita 442155-9 PUMP GASKET
222168575-6Makita 168575-6 PUMP DIAPHRAGM, EBH341U
224352010-6Makita 352010-6 INLET SCREEN
225442154-1Makita 442154-1 METERING DIAPHRAGM GASKET
226168620-7Makita 168620-7 METERING DIAPHRAGM ASSY
227140988-3Makita 140988-3 AIR PURGE BODY ASSEMBLY
228424314-7Makita 424314-7 PRIMER PUMP
229346270-0Makita 346270-0 PRIMER PUMP COVER
230266582-4Makita 266582-4 TAPPING SCREW 3X24
231WJ00096424Makita WJ00096424 SCREW, DCS230T
232WJ00014477Makita WJ00014477 PIN, DCS230T
233WJ00016648Makita WJ00016648 LEVER, DCS230T
234WJ00008282Makita WJ00008282 VALVE, DCS230T
235WJ00983160Makita WJ00983160 SPRING, DCS230T
223140989-1
