Makita EM330: exploded parts diagram, 3 sheets, 77 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita EM330: 77 positions on 3 sheets
Sheet 1: Makita EM330 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 671100802 | Makita 671100802 BLADE TIGHTEN BOLT |
| 2 | 671002550 | Makita 671002550 Lawn mower blade 330mm ELM3310,3311 |
| 3 | DA00000808 | Makita DA00000808 MOTOR CENTRIFUGAL CUTTER |
| 4 | 671002036 | Makita 671002036 CENTRIFUGAL CUTTER BUSHING |
| 5 | 671910002 | |
| 6 | 671003028 | Makita 671003028 WHEEL COVER |
| 7 | 671919001 | Makita 671919001 WHEEL |
| 8 | 671002281 | Makita 671002281 THREAD PRESSING PLATE, ELM3311 |
| 9 | 671107301 | Makita 671107301 SELF-TAPPING SCREW |
| 10 | 671909001 | Makita 671909001 HEAD COVER |
| 11 | 671920001 | Makita 671920001 WHEEL |
| 12 | 671003029 | Makita 671003029 WHEEL COVER |
| 13 | ||
| 14 | DA00000809 | Makita DA00000809 MOTOR |
| 15 | 671001053 | Makita 671001053 SELF-TAPPING SCREWELM |
| 16 | 671912001 | |
| 17 | 671107301 | Makita 671107301 SELF-TAPPING SCREW |
| 18 | 671911001 | |
| 19 | 671107301 | Makita 671107301 SELF-TAPPING SCREW |
| 20 | 671913001 | |
| 21 | DA00000810 | |
| 22 | 671010230 | |
| 23 | 671107301 | Makita 671107301 SELF-TAPPING SCREW |
| 24 | 671003059 | Makita 671003059 CAPACITOR |
| 25 | 671918002 | |
| 26 | 671011214 | |
| 27 | 671001067 | |
| 28 | 671090005 |
Sheet 2: Makita EM330 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 70 | 671001562 | |
| 71 | 671002302 | Makita 671002302 GRASS CATCHER BRACKET, ELM3311 |
| 72 | 671107301 | Makita 671107301 SELF-TAPPING SCREW |
| 73 | 671914001 | Makita 671914001 COVER OF GRASS CATCHER, ELM3311 |
| 74 | 671100107 | |
| 75 | 671107301 | Makita 671107301 SELF-TAPPING SCREW |
| 76 | 671921001 | Makita 671921001 HANDLE OF GRASS CATCHER, ELM3311 |

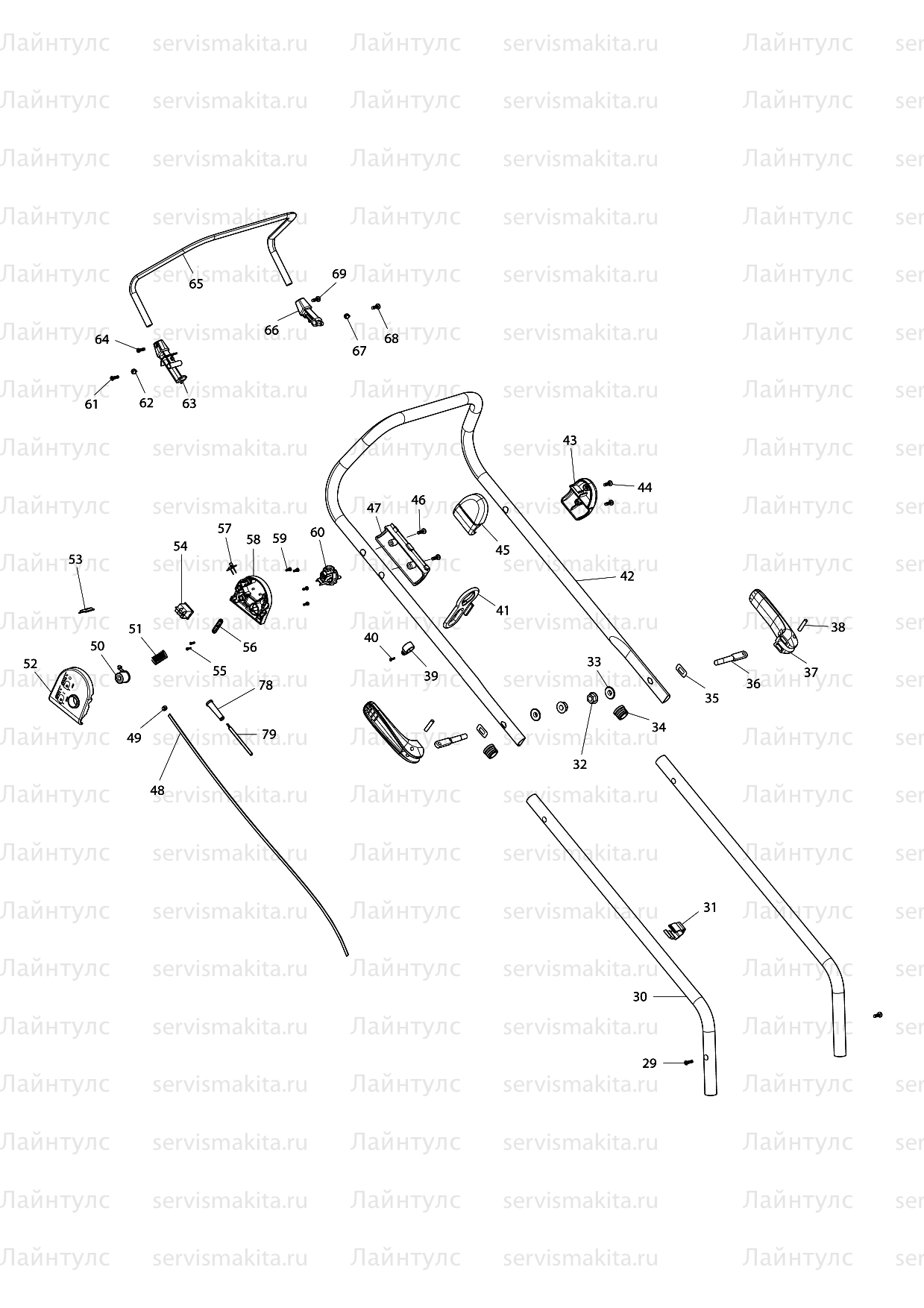

Sheet 3: Makita EM330 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 29 | 671001046 | Makita 671001046 SELF-TAPPING SCREWPLM |
| 30 | 671001712 | |
| 31 | 671277001 | |
| 32 | 671050160 | Makita 671050160 HEXAGONAL LOCKING NUT |
| 33 | 671007007 | Makita 671007007 WASHERELM |
| 34 | DA00000811 | |
| 35 | DA00000812 | |
| 36 | 671002466 | Makita 671002466 TIGHTEN LOCKING BOLTELM |
| 37 | 671431001 | Makita 671431001 SHIFT HANDLEELM |
| 38 | 671090040 | Makita 671090040 CYLINDRICAL PINELM |
| 39 | 671108303 | |
| 40 | DA00000826 | Makita DA00000826 SELF-TAPPING SCREW |
| 41 | 671001052 | Makita 671001052 CABLE HOLDERELM |
| 42 | 671001613 | |
| 43 | 671073001 | Makita 671073001 HANDLE SUPPORT LEFT |
| 44 | 671107301 | Makita 671107301 SELF-TAPPING SCREW |
| 45 | 671074001 | Makita 671074001 HANDLE SUPPORT RIGHT |
| 46 | 671107301 | Makita 671107301 SELF-TAPPING SCREW |
| 47 | 671428001 | Makita 671428001 PRESSING PLATE OFELM |
| 48 | 671010050 | Makita 671010050 CABLE CONNECTIONELM |
| 49 | DA00000818 | Makita DA00000818 CABLE SHEATH 1 |
| 50 | 671425003 | Makita 671425003 SAFETY BUTTON |
| 51 | 671011079 | Makita 671011079 SPRING OF SAFETYELM |
| 52 | 671070001 | Makita 671070001 SWITCH BOX, RIGHT |
| 53 | 671001043 | Makita 671001043 LAMPSHADEELM |
| 54 | 671010040 | Makita 671010040 SWITCHELM |
| 55 | 671107301 | Makita 671107301 SELF-TAPPING SCREW |
| 56 | DA00000814 | |
| 57 | DA00000813 | |
| 58 | 671069001 | Makita 671069001 WATERPROOF SWITCH BOX L |
| 59 | 671107301 | Makita 671107301 SELF-TAPPING SCREW |
| 61 | DA00000816 | |
| 62 | 671011124 | Makita 671011124 SPRINGELM |
| 63 | 671072001 | Makita 671072001 RIGHT PLUGINS OF HANDLE |
| 64 | 671001021 | |
| 65 | 671001648 | |
| 66 | DA00000817 | Makita DA00000817 LEFT PLUG INS OF HANDLE |
| 67 | 671011124 | Makita 671011124 SPRINGELM |
| 68 | DA00000816 | |
| 69 | 671001021 | |
| 78 | ||
| 79 |
