Makita ELM4610

Makita ELM4610: exploded parts diagram, 4 sheets, 154 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita ELM4610: 154 positions on 4 sheets

Sheet 1: Makita ELM4610 parts diagram

Makita ELM4610 parts diagram, sheet 1
No.Part numberPart name
1671001622
2671002033
3DA00001023Makita DA00001023 RIGHT PLUG-INS OF HANDLE
4671011124Makita 671011124 SPRINGELM
5DA00000816
6DA00001047
7671011124Makita 671011124 SPRINGELM
8DA00000816
9671002033
10671001616
11DA00000985
12671425002Makita 671425002 SAFETY BUTTONELM
13671011079Makita 671011079 SPRING OF SAFETYELM
14671010040Makita 671010040 SWITCHELM
15DA00000842
16DA00000813
17DA00000826Makita DA00000826 SELF-TAPPING SCREW
18DA00000814
19DA00000818Makita DA00000818 CABLE SHEATH 1
20671001073Makita 671001073 CABLE CONNECTIONPLM
21DA00000984
22DA00000603Makita DA00000603 SELF-TAPPING SCREW
23DA00001048
24671451001Makita 671451001 PRESSING PLATE OFPLM
25DA00000603Makita DA00000603 SELF-TAPPING SCREW
26671570020Makita 671570020 HANDLE SUPPORT(RIGHT)
27671570010Makita 671570010 HANDLE SUPPORT(LEFT)
28DA00000603Makita DA00000603 SELF-TAPPING SCREW
29671611001Makita 671611001 BOWDEN CABLE CLAMP
30DA00000563Makita DA00000563 HEXAGON NUT
31DA00000564Makita DA00000564 STAR KNOB
32DA00000924Makita DA00000924 CURVE SHAPE GASKET, PLM4620N2
33DA00000569Makita DA00000569 BOLT 8*58
34DA00000826Makita DA00000826 SELF-TAPPING SCREW
35671479001
36671800102
37DA00000569Makita DA00000569 BOLT 8*58
38DA00000924Makita DA00000924 CURVE SHAPE GASKET, PLM4620N2
39DA00000564Makita DA00000564 STAR KNOB
40DA00000563Makita DA00000563 HEXAGON NUT
41671001619
42671611001Makita 671611001 BOWDEN CABLE CLAMP
43DA00000563Makita DA00000563 HEXAGON NUT
44DA00000564Makita DA00000564 STAR KNOB
45DA00000924Makita DA00000924 CURVE SHAPE GASKET, PLM4620N2
46DA00000880Makita DA00000880 FLAT HEAD BOLT
47DA00000880Makita DA00000880 FLAT HEAD BOLT
48DA00000924Makita DA00000924 CURVE SHAPE GASKET, PLM4620N2
49DA00000564Makita DA00000564 STAR KNOB
50DA00000563Makita DA00000563 HEXAGON NUT

Sheet 2: Makita ELM4610 parts diagram

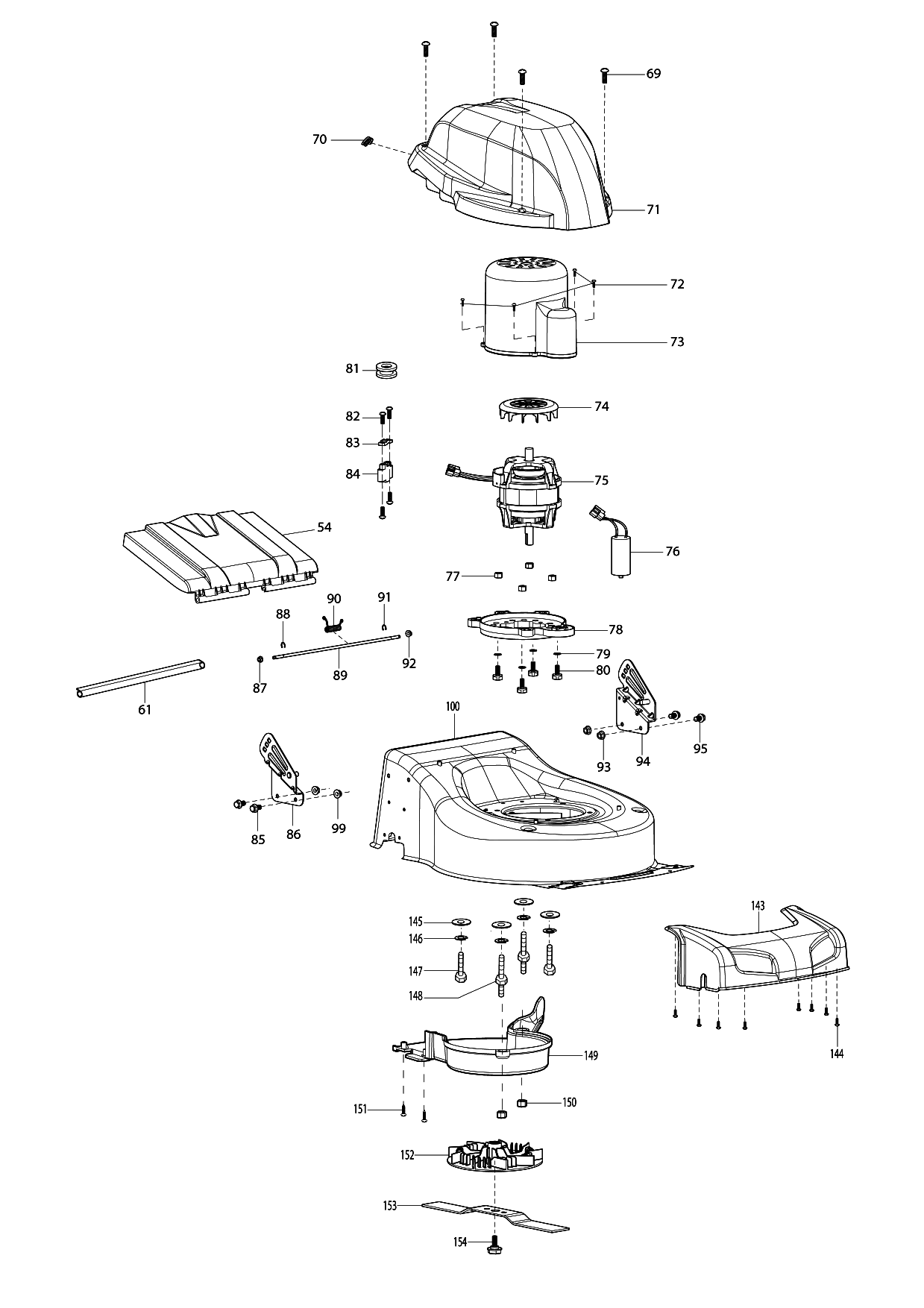

Makita ELM4610 parts diagram, sheet 2
No.Part numberPart name
54671468001Makita 671468001 REAR COVER BOAEDPLM
61671001353Makita 671001353 PRESSING BARPLM
69671003079
70DA00000810
71671200103
72671010090
73671610010
74DA00001026Makita DA00001026 MOTOR FAN, ELM4110
75DA00000850Makita DA00000850 INDUCTION MOTOR
76DA00001199
77DA00000563Makita DA00000563 HEXAGON NUT
78671600012Makita 671600012 MOTOR BRACKETPLM
79671080100Makita 671080100 OUTER GEAR LOCKING WASHER
80DA00000835
81671800104Makita 671800104 CORD PROTECTING SHEATH
82DA00000826Makita DA00000826 SELF-TAPPING SCREW
83671010230
84671260001Makita 671260001 CABLE HOLDERPLM
85DA00000562Makita DA00000562 HEXAGON FLANGE BOLT
86671001180Makita 671001180 BRACKET HANDLE, RIGHPLM
87DA00000543Makita DA00000543 ALL METAL HEXAGONAL FLANGE LOCK NUT
88671009017Makita 671009017 OPEN BLOCK RINGPLM
89671001518Makita 671001518 LONG POLEPLM
90671011101Makita 671011101 SPRING OF REARPLM
91671009017Makita 671009017 OPEN BLOCK RINGPLM
92DA00000543Makita DA00000543 ALL METAL HEXAGONAL FLANGE LOCK NUT
93DA00000537Makita DA00000537 HEXAGON FLANGE LOCK NUT
94671001179Makita 671001179 BRACKET HANDLE, LEFTPLM
95DA00000562Makita DA00000562 HEXAGON FLANGE BOLT
99DA00000537Makita DA00000537 HEXAGON FLANGE LOCK NUT
100671001527
143671659001Makita 671659001 FRONT COVER
144DA00000911Makita DA00000911 SELF-TAPPING SCREW
145671007007Makita 671007007 WASHERELM
146DA00000832Makita DA00000832 SPRING WASHER
147671006017Makita 671006017 HEXAGON HEAD BOLTPLM
148DA00000617Makita DA00000617 SPECIAL BOLT
149671658001Makita 671658001 BELT COVER
150671005008Makita 671005008 HEXAGONAL LOCKINGPLM
151671001037Makita 671001037 SELF-TAPPING SCREW
152671005057Makita 671005057 HUBPLM
153671001461
154DA00000827Makita DA00000827 BOLT TIGHTEN OF BLADE , ELM4110

Sheet 3: Makita ELM4610 parts diagram

Makita ELM4610 parts diagram, sheet 3
No.Part numberPart name
63671660001Makita 671660001 MULCHING BLOCK
64671316004Makita 671316004 LOCKING BUTTONPLM
65671011005Makita 671011005 SPRINGPLM
66671317001Makita 671317001 PRESSING PLATEPLM
67DA00000603Makita DA00000603 SELF-TAPPING SCREW
96671002019Makita 671002019 TRIGGER BOLTPLM
97671001018Makita 671001018 HEIGHT ADJUSTMENTPLM
98DA00000543Makita DA00000543 ALL METAL HEXAGONAL FLANGE LOCK NUT
101671011125Makita 671011125 EXTENSION SPRINGPLM
102671002671
103DA00000549Makita DA00000549 HEXAGON LOCK NUT
104DA00000549Makita DA00000549 HEXAGON LOCK NUT
105DA00000536Makita DA00000536 WHEEL COVER
106DA00000537Makita DA00000537 HEXAGON FLANGE LOCK NUT
107DA00000538Makita DA00000538 BEARING
108DA00000539Makita DA00000539 WHEEL ASS'Y
109DA00000538Makita DA00000538 BEARING
110DA00000912
111671001430Makita 671001430 LEVER, HEIGHTPLM
112671005011Makita 671005011 HEXAGONAL LOCKINGPLM
113DA00001058
114671001438Makita 671001438 REAR WHEELS AXLEPLM4610
115671002019Makita 671002019 TRIGGER BOLTPLM
116DA00000542Makita DA00000542 FIXING RING FOR WHEEL AXIS
117DA00001025Makita DA00001025 WHEEL AXIS SHEATH
118DA00000543Makita DA00000543 ALL METAL HEXAGONAL FLANGE LOCK NUT
119DA00000542Makita DA00000542 FIXING RING FOR WHEEL AXIS
120671002019Makita 671002019 TRIGGER BOLTPLM
121DA00000538Makita DA00000538 BEARING
122DA00000539Makita DA00000539 WHEEL ASS'Y
123DA00000538Makita DA00000538 BEARING
124DA00000537Makita DA00000537 HEXAGON FLANGE LOCK NUT
125DA00000536Makita DA00000536 WHEEL COVER
126671001176Makita 671001176 WHEEL COVERPLM
127DA00000537Makita DA00000537 HEXAGON FLANGE LOCK NUT
128DA00000538Makita DA00000538 BEARING
129671002012Makita 671002012 WHEEL ASSY.PLM
130DA00000538Makita DA00000538 BEARING
131DA00000549Makita DA00000549 HEXAGON LOCK NUT
132671445001Makita 671445001 PRESSING PLATE OFPLM
133671001786Makita 671001786 FRONT WHEEL AXIS
134DA00000549Makita DA00000549 HEXAGON LOCK NUT
135671445001Makita 671445001 PRESSING PLATE OFPLM
136671418001Makita 671418001 FIXED BRACKETPLM
137671002028Makita 671002028 TRIGGER BOLTPLM
138DA00000538Makita DA00000538 BEARING
139671002012Makita 671002012 WHEEL ASSY.PLM
140DA00000538Makita DA00000538 BEARING
141DA00000537Makita DA00000537 HEXAGON FLANGE LOCK NUT
142671001176Makita 671001176 WHEEL COVERPLM

Sheet 4: Makita ELM4610 parts diagram

Makita ELM4610 parts diagram, sheet 4
No.Part numberPart name
51671454001Makita 671454001 HANDLE OF GRASSPLM
52671467001Makita 671467001 GRASS-BOX, UPPERPLM
53DA00000326Makita DA00000326 SELF DRIVING SCREW 5X16
55671001443Makita 671001443 GRASS CATCHERPLM
56DA00000025Makita DA00000025 WASHER, UR3000/ET-40
57DA00000335Makita DA00000335 FRONT AXLE PLATE
58DA00000335Makita DA00000335 FRONT AXLE PLATE
59DA00000025Makita DA00000025 WASHER, UR3000/ET-40
60DA00000888Makita DA00000888 SELF-TAPPING SCREW
62671001418Makita 671001418 GRASS CATCHERPLM4610/4611 60L
68671002009
