All parts of Makita ELM3310: 77 positions on 1 sheet

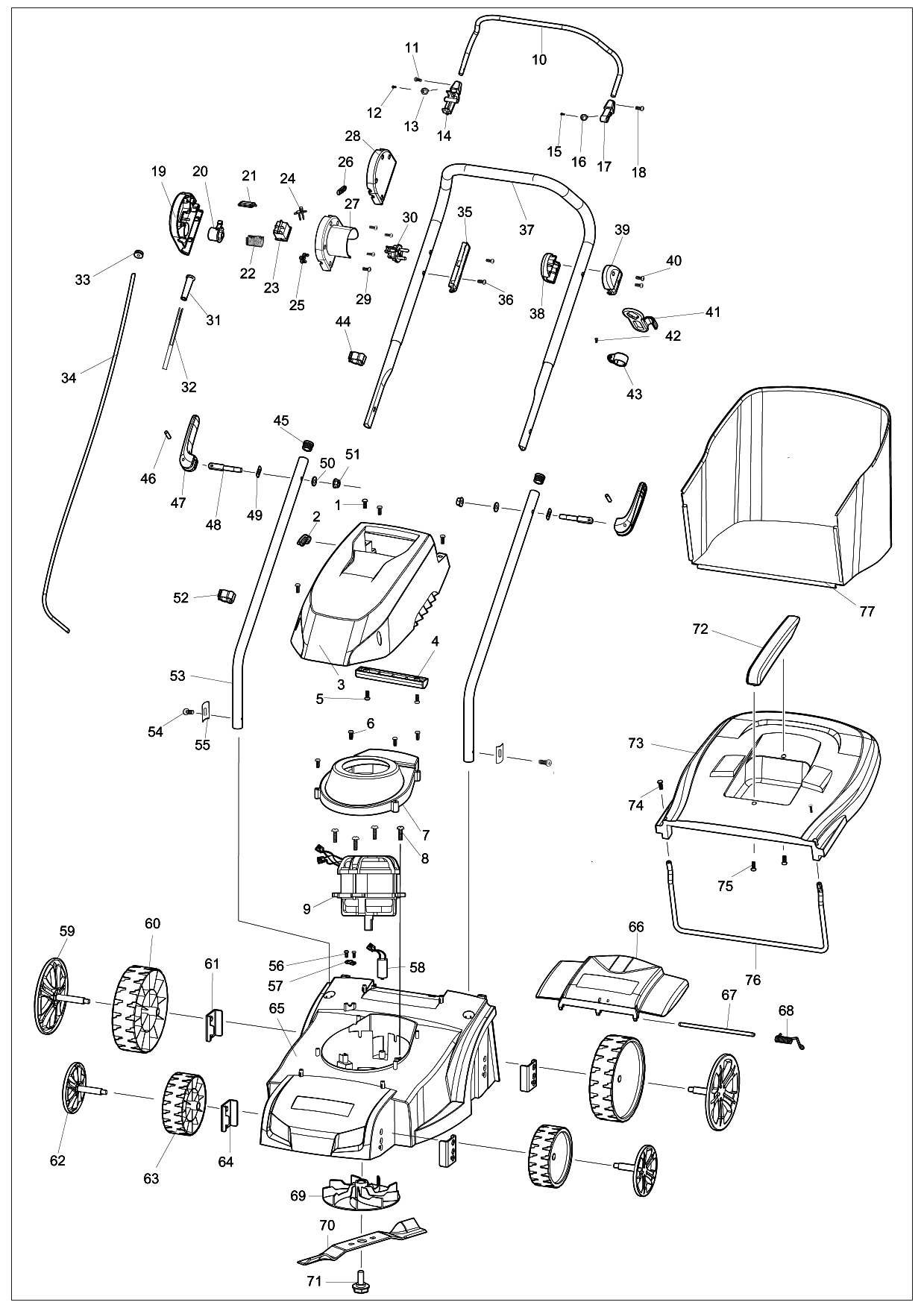

Sheet 1: Makita ELM3310 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | DA00000873 | Makita DA00000873 SELF-DRIVING SCREW |
| 2 | DA00000810 | |
| 3 | 671200102 | Makita 671200102 MOTOR COVER |
| 4 | 671441001 | Makita 671441001 HANDLEELM |
| 5 | DA00000873 | Makita DA00000873 SELF-DRIVING SCREW |
| 6 | DA00000873 | Makita DA00000873 SELF-DRIVING SCREW |
| 7 | 671370010 | |
| 8 | 671001053 | Makita 671001053 SELF-TAPPING SCREWELM |
| 9 | DA00000809 | Makita DA00000809 MOTOR |
| 10 | 671016200 | |
| 11 | 671002033 | |
| 12 | DA00000816 | |
| 13 | 671011124 | Makita 671011124 SPRINGELM |
| 14 | DA00001023 | Makita DA00001023 RIGHT PLUG-INS OF HANDLE |
| 15 | DA00000816 | |
| 16 | 671011124 | Makita 671011124 SPRINGELM |
| 17 | 671279005 | Makita 671279005 LEFT PLUG-IN OF HANDELM |
| 18 | 671002033 | |
| 19 | DA00001024 | |
| 20 | 671425002 | Makita 671425002 SAFETY BUTTONELM |
| 21 | DA00000842 | |
| 22 | 671011079 | Makita 671011079 SPRING OF SAFETYELM |
| 23 | 671010040 | Makita 671010040 SWITCHELM |
| 24 | DA00000813 | |
| 25 | DA00000826 | Makita DA00000826 SELF-TAPPING SCREW |
| 26 | DA00000814 | |
| 27 | DA00000984 | |
| 28 | NULL | |
| 29 | DA00000603 | Makita DA00000603 SELF-TAPPING SCREW |
| 30 | DA00000815 | Makita DA00000815 POWER SUPPLY PLUG UNIT |
| 31 | NULL | |
| 32 | NULL | |
| 33 | DA00000818 | Makita DA00000818 CABLE SHEATH 1 |
| 34 | 671010050 | Makita 671010050 CABLE CONNECTIONELM |
| 35 | 671428001 | Makita 671428001 PRESSING PLATE OFELM |
| 36 | DA00000603 | Makita DA00000603 SELF-TAPPING SCREW |
| 37 | 671001613 | |
| 38 | 671434001 | Makita 671434001 RIGHT HANDLE SUPPORTELM |
| 39 | 671434002 | Makita 671434002 LEFT HANDLE SUPPORTELM |
| 40 | DA00000603 | Makita DA00000603 SELF-TAPPING SCREW |
| 41 | 671001052 | Makita 671001052 CABLE HOLDERELM |
| 42 | DA00000826 | Makita DA00000826 SELF-TAPPING SCREW |
| 43 | 671108303 | |
| 44 | 671277001 | |
| 45 | DA00000811 | |
| 46 | 671090040 | Makita 671090040 CYLINDRICAL PINELM |
| 47 | 671431001 | Makita 671431001 SHIFT HANDLEELM |
| 48 | 671002466 | Makita 671002466 TIGHTEN LOCKING BOLTELM |
| 49 | DA00000812 | |
| 50 | 671007007 | Makita 671007007 WASHERELM |
| 51 | DA00000575 | Makita DA00000575 LID SHAPE NUT PLM4817 |
| 52 | 671277001 | |
| 53 | 671001614 | |
| 54 | DA00000888 | Makita DA00000888 SELF-TAPPING SCREW |
| 55 | DA00000812 | |
| 56 | DA00000826 | Makita DA00000826 SELF-TAPPING SCREW |
| 57 | 671010230 | |
| 58 | DA00001193 | |
| 59 | DA00000906 | |
| 60 | 671419001 | Makita 671419001 WHEELELM |
| 61 | 671014150 | Makita 671014150 THREAD PLATEELM |
| 62 | DA00000905 | |
| 63 | 671421001 | Makita 671421001 WHEELELM |
| 64 | 671014150 | Makita 671014150 THREAD PLATEELM |
| 65 | 671900103 | |
| 66 | 671438001 | Makita 671438001 DECK LIDELM |
| 67 | 671010260 | Makita 671010260 SHAFTELM |
| 68 | 671011121 | Makita 671011121 TORSION SPRINGELM |
| 69 | 671051300 | Makita 671051300 BLADE PLATE ASSEMBLY, ELM3310 |
| 70 | 671142202 | |
| 71 | DA00000827 | Makita DA00000827 BOLT TIGHTEN OF BLADE , ELM4110 |
| 72 | 671423001 | Makita 671423001 HANDLE OF GRASSELM |
| 73 | 671440001 | Makita 671440001 GRASS-BOX, UPPERELM |
| 74 | 671002007 | Makita 671002007 TRIGGER SCREWELM |
| 75 | DA00000873 | Makita DA00000873 SELF-DRIVING SCREW |
| 76 | 671001424 | Makita 671001424 GRASS CATCHERELM |
| 77 | 671001415 | Makita 671001415 GRASS CATCHERELM |
