Makita EH7500W
Makita EH7500W: exploded parts diagram, 3 sheets, 151 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita EH7500W: 151 positions on 3 sheets

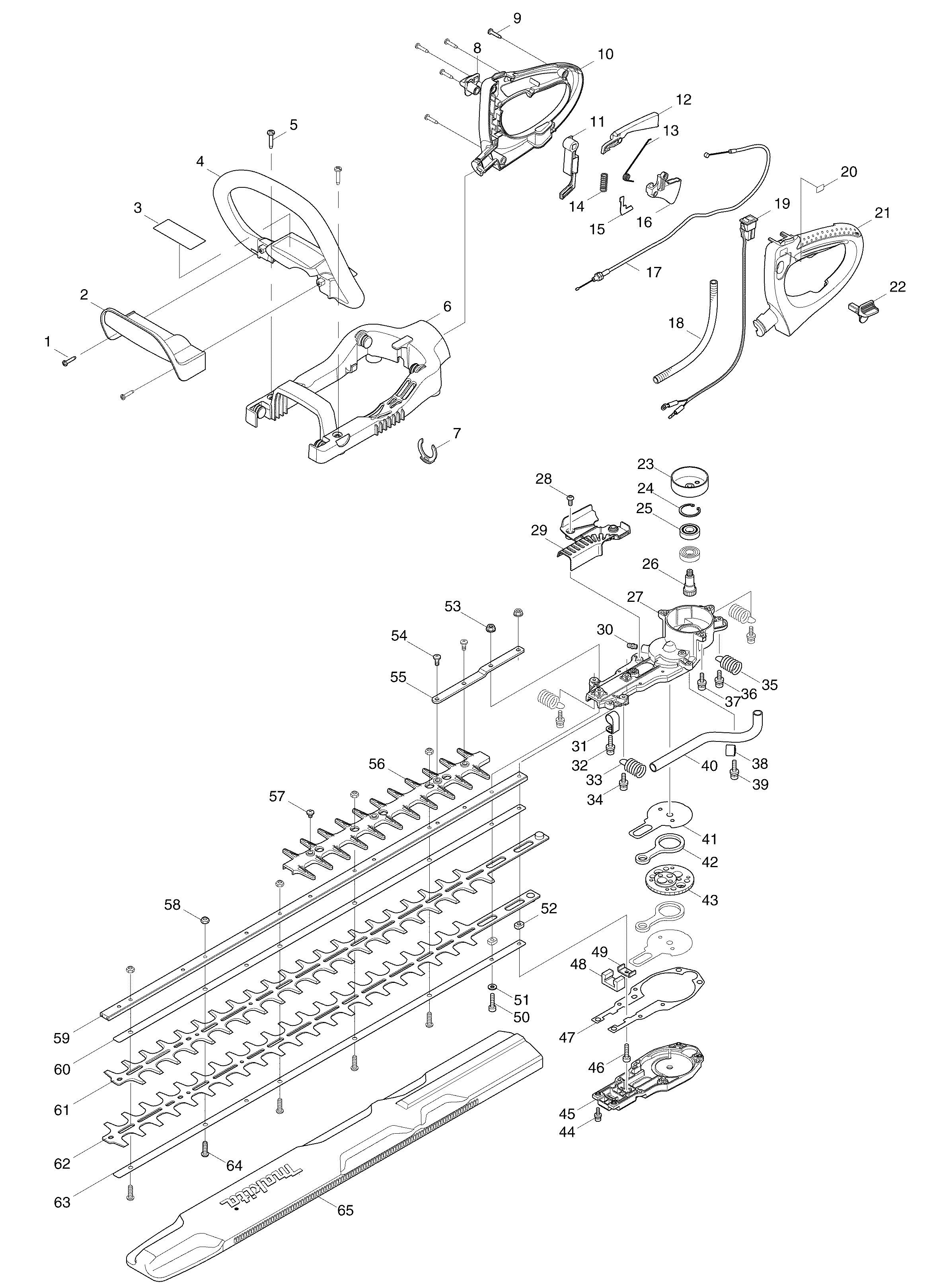

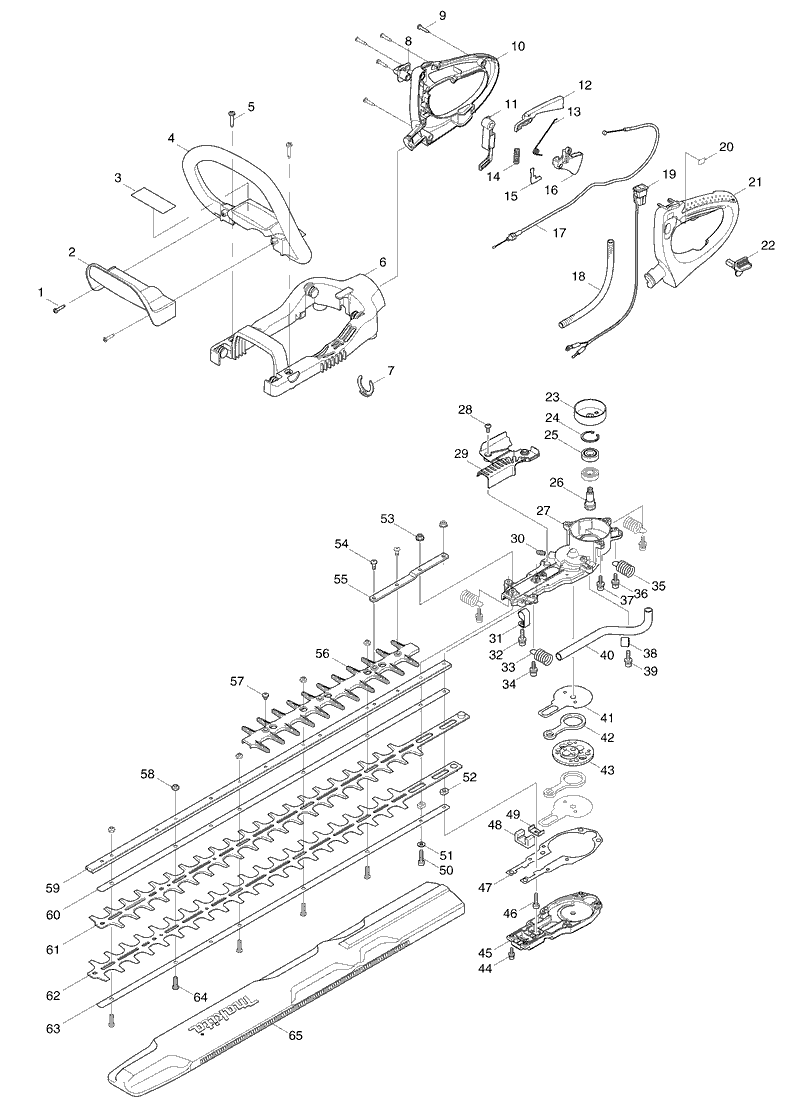

Sheet 1: Makita EH7500W parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266045-0 | Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20 |
| 2 | 452322-8 | Makita 452322-8 GUARD |
| 3 | 892383-0 | |
| 4 | 452321-0 | Makita 452321-0 LOOP HANDLE |
| 5 | 266041-8 | Makita 266041-8 TAPPING SCREW PT 5X25, 5277NB |
| 6 | 452319-7 | |
| 7 | 452323-6 | Makita 452323-6 STOP RING 25 |
| 8 | 452316-3 | Makita 452316-3 LOCK LEVER B |
| 9 | 266045-0 | Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20 |
| 10 | 452318-9 | |
| 11 | 452314-7 | Makita 452314-7 STOPPER |
| 12 | 452313-9 | Makita 452313-9 TRIGGER B |
| 13 | 233579-8 | Makita 233579-8 TORSION SPRING 8 |
| 14 | 234204-4 | Makita 234204-4 COMPRESSION SPRING 8 |
| 15 | 413153-0 | Makita 413153-0 PLATE |
| 16 | 452312-1 | Makita 452312-1 TRIGGER A |
| 17 | 168625-7 | Makita 168625-7 CONTROL CABLE |
| 18 | 452324-4 | |
| 19 | 125858-7 | Makita 125858-7 SWITCH ASSEMBLY |
| 20 | 892384-8 | |
| 21 | 452317-1 | |
| 22 | 452315-5 | Makita 452315-5 LOCK LEVER A |
| 23 | 168567-5 | Makita 168567-5 CLUTCH DRUM |
| 24 | 0031428000 | Makita 0031428000 INNER SNAP RING |
| 25 | 0600129780 | Makita 0600129780 BALL BEARING EH5000W |
| 26 | 227247-3 | Makita 227247-3 SPUR GEAR 9 |
| 27 | 141033-7 | Makita 141033-7 GEAR CASE COMPLETE |
| 28 | 0119059400 | Makita 0119059400 SOCKET HEAD BOLT M5*12 |
| 29 | 451865-7 | Makita 451865-7 BAFFLE PLATE |
| 30 | 243107-1 | Makita 243107-1 GREASE NIPPLE |
| 31 | 346253-0 | Makita 346253-0 CLAMP |
| 32 | 0119059780 | Makita 0119059780 SOCKET HEAD BOLT M5X12 |
| 33 | 234224-8 | Makita 234224-8 COMPRESSION SPRING15 |
| 34 | 0119059360 | Makita 0119059360 SOCKET HEAD BOLT, EH5000W |
| 35 | 234202-8 | Makita 234202-8 COMPRESSION SPRING15 |
| 36 | 0119059360 | Makita 0119059360 SOCKET HEAD BOLT, EH5000W |
| 37 | 0119059870 | Makita 0119059870 SOCKET HEAD BOLT |
| 38 | 346252-2 | Makita 346252-2 CLAMP |
| 39 | 0119059780 | Makita 0119059780 SOCKET HEAD BOLT M5X12 |
| 40 | 331896-1 | Makita 331896-1 PIPE |
| 41 | 346255-6 | Makita 346255-6 FRICTION PLATE |
| 42 | 346251-4 | Makita 346251-4 CONNECTING ROD |
| 43 | 227248-1 | Makita 227248-1 SPUR GEAR 43 |
| 44 | 922128-3 | Makita 922128-3 Hex. Socket Head Bolt M4X16 for 4324 |
| 45 | 318610-2 | Makita 318610-2 GEAR CASE COVER |
| 46 | 0119059860 | Makita 0119059860 SOCKET HEAD BOLT M5X33 |
| 47 | 413137-8 | Makita 413137-8 GEAR CASE GASKET |
| 48 | 443159-4 | Makita 443159-4 SEAL |
| 49 | 346256-4 | Makita 346256-4 HOLDER |
| 50 | 0119059860 | Makita 0119059860 SOCKET HEAD BOLT M5X33 |
| 51 | 0031105003 | Makita 0031105003 WASHER |
| 52 | 313195-3 | Makita 313195-3 SLEEVE 5 |
| 53 | 0023705000 | Makita 0023705000 FLANGE NUT M5 |
| 54 | 0140059490 | Makita 0140059490 SCREW |
| 55 | 346514-8 | Makita 346514-8 PLATE |
| 56 | 452325-2 | Makita 452325-2 BLADE GUARD |
| 57 | 915211-3 | Makita 915211-3 BINDING HEAD SCREWM5X12 |
| 58 | 264036-5 | Makita 264036-5 HEX.LOCK NUT M6-10 |
| 59 | 331894-5 | Makita 331894-5 GUIDE BAREH7500W |
| 60 | 346257-2 | Makita 346257-2 PLATEEH7500W |
| 61 | 725171-9 | Makita 725171-9 SHEAR BLADE |
| 62 | 725171-9 | Makita 725171-9 SHEAR BLADE |
| 63 | 346257-2 | Makita 346257-2 PLATEEH7500W |
| 64 | 266578-5 | Makita 266578-5 SOCKET BUTTON HEADBOLT |
| 65 | 452326-0 | Makita 452326-0 BLADE COVEREH7500W |

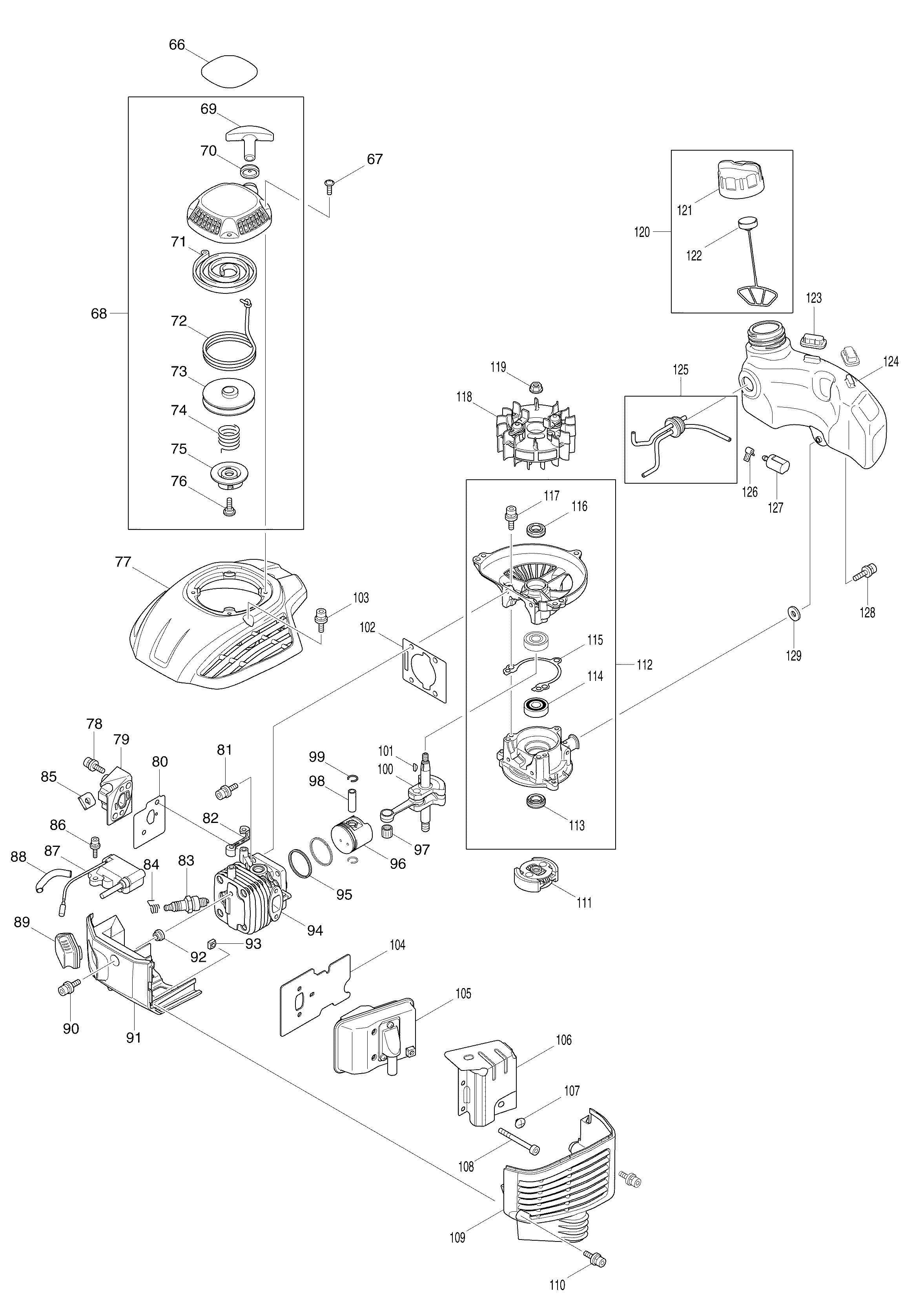

Sheet 2: Makita EH7500W parts diagram
| No. | Part number | Part name |
|---|---|---|
| 66 | 892379-1 | |
| 67 | 0150049860 | |
| 69 | 5225004020 | Makita 5225004020 HANDLEBHX2500/PB-250.4 |
| 70 | 5255001040 | Makita 5255001040 DAMPER |
| 71 | 5215002030 | Makita 5215002030 SPIRAL SPRINGBHX2500/PB-250.4 |
| 72 | 444028-2 | Makita 444028-2 STARTER ROPE |
| 73 | 452402-0 | Makita 452402-0 REEL |
| 74 | 233991-2 | Makita 233991-2 DAMPER SPRING |
| 75 | 452403-8 | Makita 452403-8 CAM PLATE |
| 76 | 5195002060 | Makita 5195002060 SET SCREWBHX2500/PB-250.4 |
| 77 | 452948-6 | |
| 78 | 0119059450 | |
| 79 | 451911-6 | Makita 451911-6 INSULATOR |
| 80 | 346268-7 | Makita 346268-7 INSULATOR GASKET |
| 81 | 0119059870 | Makita 0119059870 SOCKET HEAD BOLT |
| 82 | 452556-3 | Makita 452556-3 SPACER |
| 83 | 0650109950 | Makita 0650109950 SPARK PLUG CMR6ABHX2500/PB-250.4 |
| 84 | 0654009931 | Makita 0654009931 PLUG CAP SPRINGBHX2500/PB-250.4 |
| 85 | S198113530 | Makita S198113530 RUBBERMS26C |
| 86 | 0119049970 | Makita 0119049970 SOCKET HEAD BOLTMS26C |
| 87 | 168684-1 | Makita 168684-1 Ignition Coil for H5000W EH6000W EH7500W EH7500S |
| 88 | 0851069920 | |
| 89 | 424302-4 | Makita 424302-4 PLUG CAP, EBH260U |
| 90 | 0119059620 | |
| 91 | 451860-7 | |
| 92 | 5503503001 | Makita 5503503001 SPACER |
| 93 | 5415001160 | Makita 5415001160 NUT |
| 94 | 140508-3 | Makita 140508-3 CYLINDER COMPLETE |
| 95 | S115113650 | Makita S115113650 PISTON RINGMS26C |
| 96 | S115313750 | Makita S115313750 PISTONMS26C |
| 97 | 0610089970 | |
| 98 | S115323130 | Makita S115323130 PISTON PIN |
| 99 | S198343210 | Makita S198343210 CLIPMS26C |
| 100 | 140429-9 | |
| 101 | S034309031 | |
| 102 | 346267-9 | Makita 346267-9 CYLINDER GASKET |
| 103 | 0119059870 | Makita 0119059870 SOCKET HEAD BOLT |
| 104 | 346260-3 | Makita 346260-3 MUFFLER GASKET |
| 105 | 168565-9 | Makita 168565-9 MUFFLER |
| 106 | 346343-9 | Makita 346343-9 MUFFLER COVER |
| 107 | 0140059962 | Makita 0140059962 SCREW M5X6 |
| 108 | 0119059550 | Makita 0119059550 SOCKET HEAD BOLTMS26C |
| 109 | 451861-5 | |
| 110 | 0119059620 | |
| 111 | 140584-7 | |
| 113 | 0440109970 | Makita 0440109970 OIL SEAL (S)BHX2500/PB-250.4 |
| 114 | 0600109980 | Makita 0600109980 BALL BEARING 6000 |
| 115 | 413139-4 | |
| 116 | 0440109970 | Makita 0440109970 OIL SEAL (S)BHX2500/PB-250.4 |
| 117 | 0119059870 | Makita 0119059870 SOCKET HEAD BOLT |
| 118 | 126046-9 | Makita 126046-9 FLYWHEEL ASSEMBLY |
| 119 | S020109118 | |
| 121 | 125840-6 | |
| 122 | 140624-1 | |
| 123 | 424080-6 | Makita 424080-6 BUFFER RUBBER, DBC260U |
| 124 | 451867-3 | Makita 451867-3 FUEL TANK |
| 125 | 168568-3 | Makita 168568-3 TUBE COMPLETE |
| 126 | 0561059990 | Makita 0561059990 HOSE CLAMPBHX2500/PB-250.4 |
| 127 | 5266500100 | Makita 5266500100 FILTER |
| 128 | 0119059350 | |
| 129 | 452197-5 |

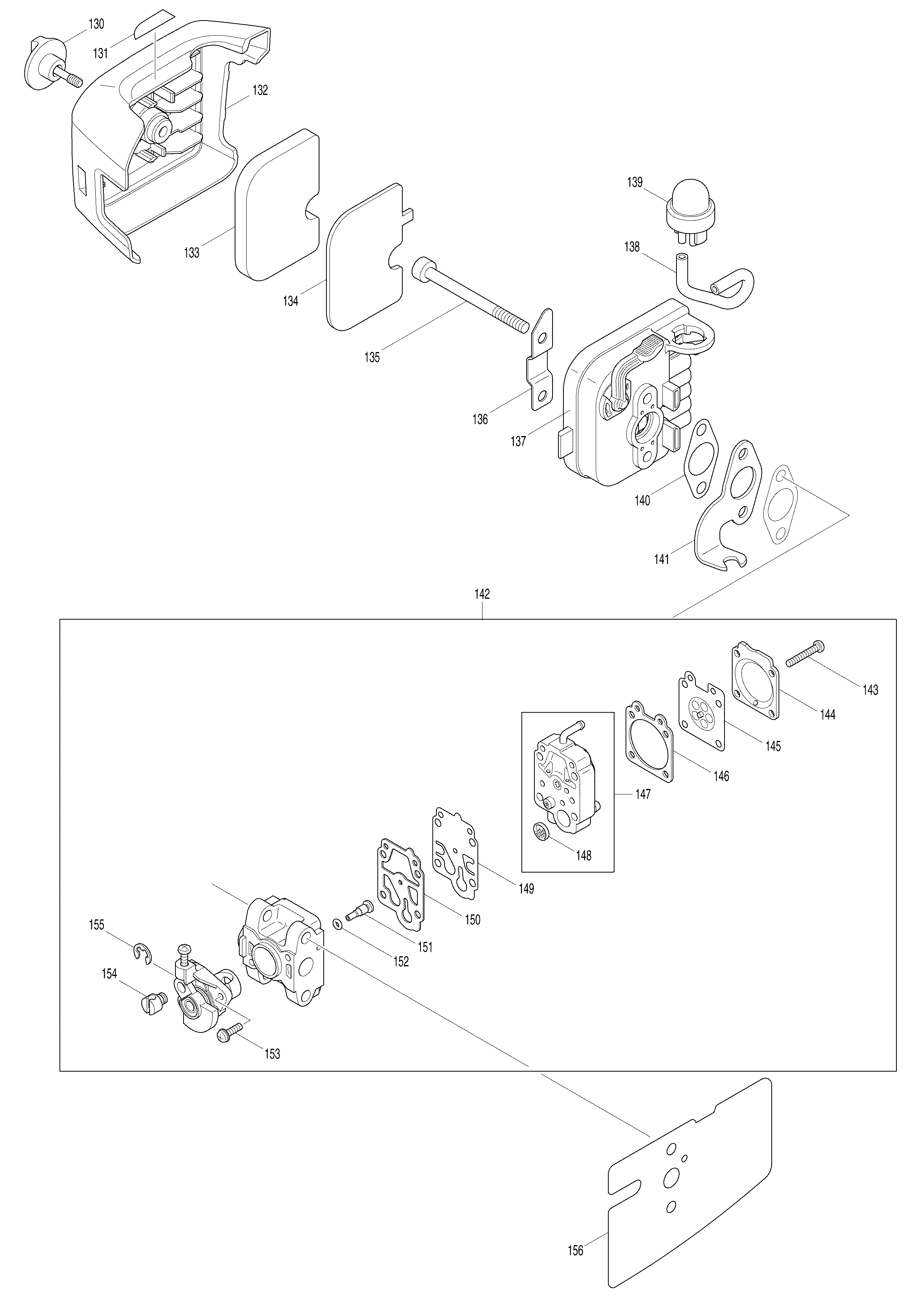

Sheet 3: Makita EH7500W parts diagram
| No. | Part number | Part name |
|---|---|---|
| 130 | 265791-2 | Makita 265791-2 THUMB SCREW M4, EBH260U |
| 131 | 819818-6 | Makita 819818-6 CHOKE INDICATIONLABEL |
| 132 | 451859-2 | Makita 451859-2 AIR CLEANER COVER |
| 133 | 443157-8 | Makita 443157-8 AIR FILTER |
| 134 | 443158-6 | Makita 443158-6 AIR FILTER |
| 135 | 0119059710 | Makita 0119059710 SOCKET HEAD BOLT M5X60 |
| 136 | 5923502600 | Makita 5923502600 PLATEBHX2500/PB-250.4 |
| 137 | 126029-9 | Makita 126029-9 AIR CLEANER PLATEASSY |
| 138 | 412097-1 | Makita 412097-1 TUBEHT-2360D |
| 139 | 5236504300 | Makita 5236504300 PUMP |
| 140 | 5253503900 | Makita 5253503900 GASKET,CARBURETORMS26C |
| 141 | 346334-0 | |
| 143 | 5216002020 | Makita 5216002020 PAN HEAD SCREW |
| 144 | 5316005030 | Makita 5316005030 PRIMER PUMP COVER |
| 145 | 5266009010 | Makita 5266009010 METERING DIAPHRAGM AMS26C |
| 146 | 5016004130 | Makita 5016004130 GASKET |
| 148 | 5016004010 | Makita 5016004010 INLET SCREENBHX2500/PB-250.4 |
| 149 | 5246001040 | Makita 5246001040 PUMP DIAPHRAGMBHX2500/PB-250.4 |
| 150 | 5926002040 | Makita 5926002040 PUMP GASKETBHX2500/PB-250.4 |
| 151 | 326005-5 | |
| 152 | 5246001010 | Makita 5246001010 O RINGBHX2500/PB-250.4 |
| 153 | 5206008030 | Makita 5206008030 PAN HEAD SCREWBHX2500/PB-250.4 |
| 154 | 5236018040 | Makita 5236018040 SWIVELBHX2500/PB-250.4 |
| 155 | 5316005120 | Makita 5316005120 RINGBHX2500/PB-250.4 |
| 156 | 413147-5 | Makita 413147-5 CARBURETOR GASKET |
