Sheet 1: Makita EG601A parts diagram

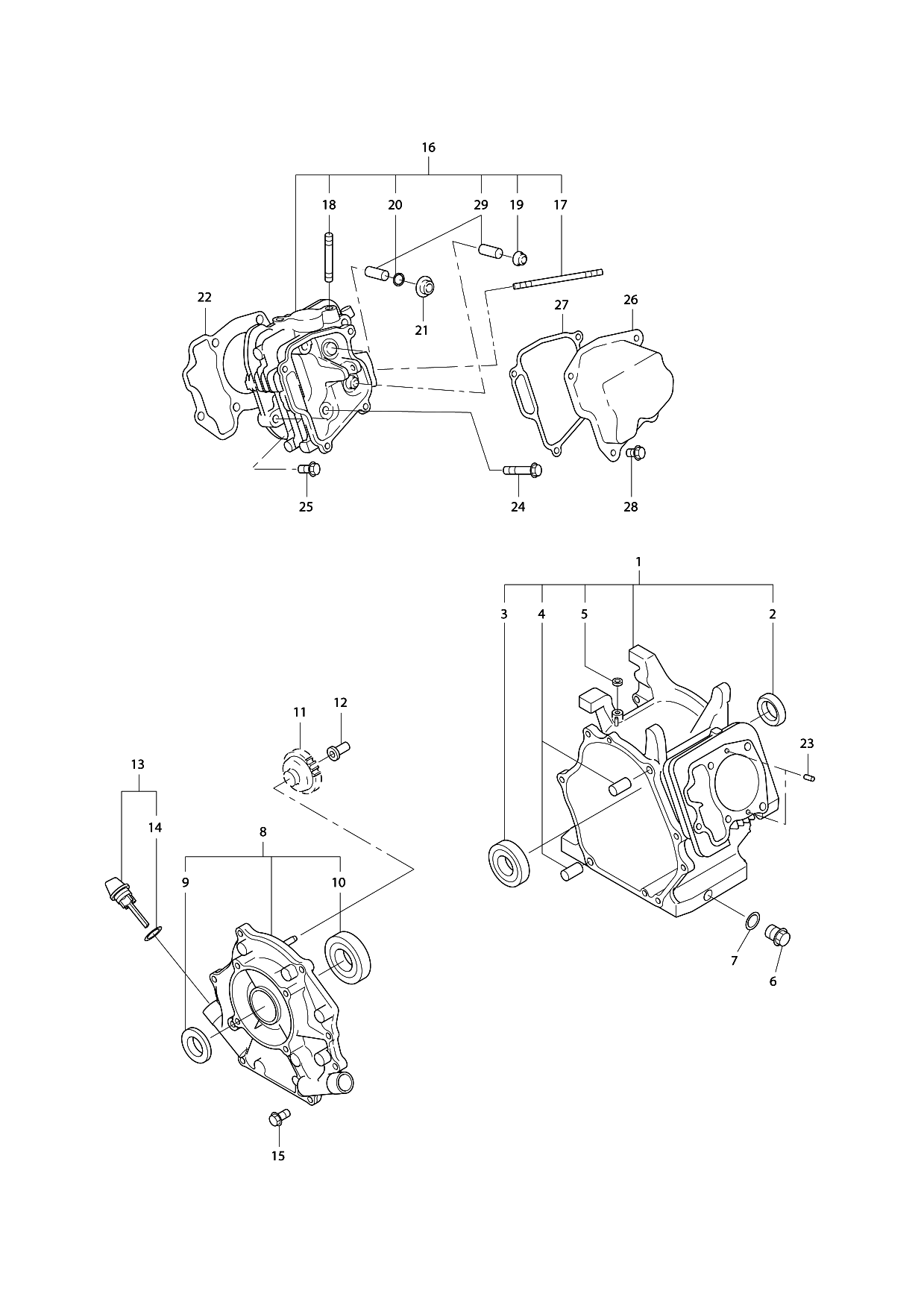

Makita EG601A parts diagram, sheet 1
No.Part numberPart name
120E1010411
20440350090Makita 0440350090 OIL SEAL (TB 35X48X8MM)
30600350240Makita 0600350240 BALL BEARINGEG601A
42771501103
50440080010Makita 0440080010 PLUG
60401140030Makita 0401140030 PLUG
70211140020Makita 0211140020 GASKET
820B1100411Makita 20B1100411 MAINBEARING COVER CP
90440350090Makita 0440350090 OIL SEAL (TB 35X48X8MM)
100600350240Makita 0600350240 BALL BEARINGEG601A
1120B4500301Makita 20B4500301 GOVERNOR GEAR CP
122774190103Makita 2774190103 GOVERNOR SLEEVE
132246360101Makita 2246360101 OIL GAUGE COMPLETEG6100R
140213200050Makita 0213200050 GASKETGE4300IS
150110080340
1620B1300101
170105060351Makita 0105060351 STUD M6X1.0X98LGE2800IS
180105080290Makita 0105080290 MUFFLER STUD
1913207AA050Makita 13207AA050 SEAL(INTAKE VALVE)G4100R
200565100050Makita 0565100050 CLIPG6100R
212633534103Makita 2633534103 RETAINER PLATE
2220B1500103Makita 20B1500103 GASKET(HEAD)EG601A
230310060020Makita 0310060020 DOWEL PIN
240110100040Makita 0110100040 FLANGE BOLTG4100R
250010408350Makita 0010408350 FLANGE BOLTGE2800IS
2620B1550101Makita 20B1550101 ROCKER COVER CP
2720B1600103Makita 20B1600103 GASKET(ROCKER COVER)
280110060020Makita 0110060020 FLANGE BOLT
2920B1420203Makita 20B1420203 VALVE GUIDEEG601A

Sheet 2: Makita EG601A parts diagram

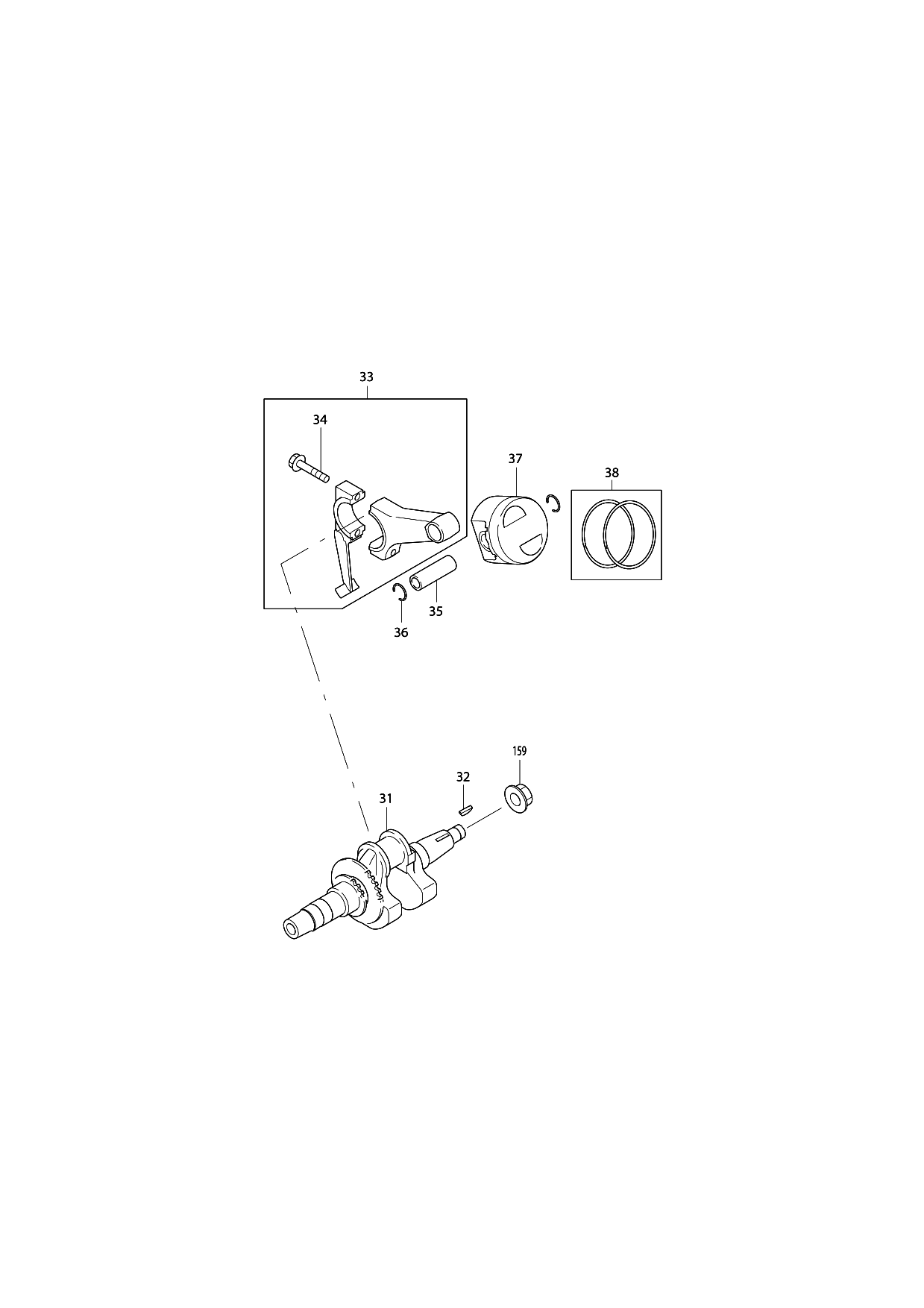

Makita EG601A parts diagram, sheet 2
No.Part numberPart name
3120B2070101Makita 20B2070101 CRANK SHAFT CPEG601A
320053205401Makita 0053205401 WOODRUFF KEYG6100R
340010508400Makita 0010508400 FLANGE BOLTG7300R
352632330133Makita 2632330133 PISTON PINEG601A
360565210020Makita 0565210020 CLIPG6100R
3720B23401H3Makita 20B23401H3 PISTONEG601A
3820B2350107Makita 20B2350107 PISTON RING SETEG601A
1590180180010

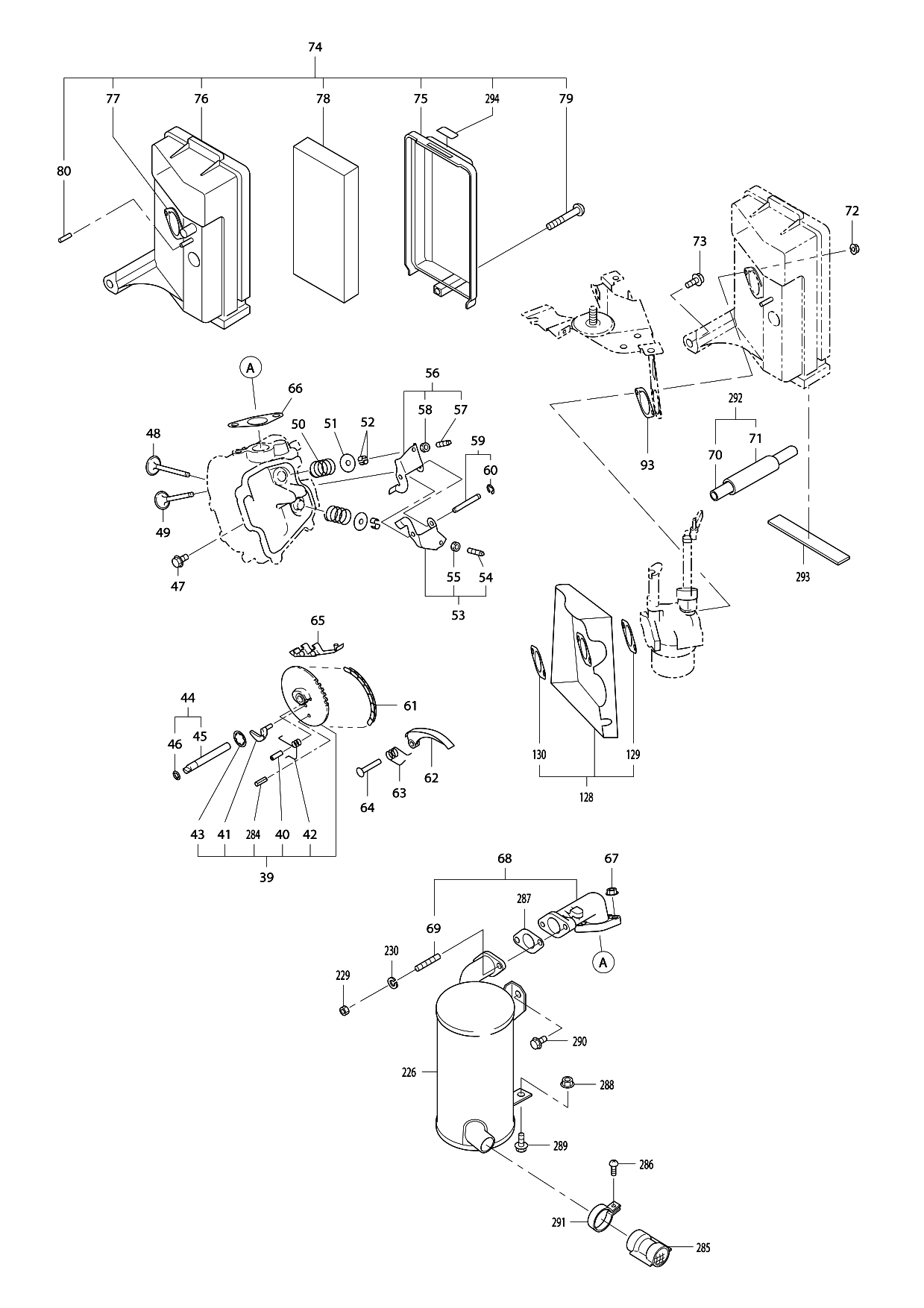

Sheet 3: Makita EG601A parts diagram

Makita EG601A parts diagram, sheet 3
No.Part numberPart name
400051904100Makita 0051904100 SPRING PIN
412773640103Makita 2773640103 RELEASE LEVERGE2800IS
4220B3870103Makita 20B3870103 RETURN SPRING
4320B3650103Makita 20B3650103 CLIP
4520B3510103
460240070020Makita 0240070020 O-RINGEG601A
470110060020Makita 0110060020 FLANGE BOLT
4820B33401H3Makita 20B33401H3 INTAKE VALVEEG601A
4920B33501H3Makita 20B33501H3 EXHAUST VALVEEG601A
502463361103Makita 2463361103 VALVE SPRINGG4100R
512463371113Makita 2463371113 SPRING RETAINER
522463550103Makita 2463550103 COLLET-VALVE
5320B3610100Makita 20B3610100 ROCKER ARM(IN) AY
540149050020Makita 0149050020 ADJUST SCREW M5X23GE2800IS
550170050030Makita 0170050030 NUT M5GE2800IS
5620B3610210Makita 20B3610210 ROCKER ARM (EX) AY
570149050020Makita 0149050020 ADJUST SCREW M5X23GE2800IS
580170050030Makita 0170050030 NUT M5GE2800IS
5920B3500101Makita 20B3500101 PIN(ROCKER) CP
600031306000Makita 0031306000 CLIP
6120B35601H1Makita 20B35601H1 TIMING CHAIN CPEG601A
622773691103Makita 2773691103 TENSIONERGE2800IS
632773710103Makita 2773710103 SPRING(TENSIONER)GE2800IS
642773690203Makita 2773690203 PIN(TENSIONER) 6DX13GE2800IS
652773691313Makita 2773691313 CHAIN GUIDEGE2800IS
6620B3520103Makita 20B3520103 GASKET(MUFFLER)
679802008280
6820B3400101Makita 20B3400101 EXHAUST PIPE CP
690105080290Makita 0105080290 MUFFLER STUD
70X851100170
7120B69001H3
720023806000Makita 0023806000 FLANGE NUT
730010406160
7520B32640H8Makita 20B32640H8 COVER CP
7620B32630H8Makita 20B32630H8 BODY CP
7720B32720H8Makita 20B32720H8 PACKING
7820B32611H8Makita 20B32611H8 ELEMENTEG601A
7920B32650H8Makita 20B32650H8 BOLT
8020B32850H8Makita 20B32850H8 CAP
9320B3590303
12820B32901J1Makita 20B32901J1 INSULATOR CP
12920B35901H3Makita 20B35901H3 GASKET 1
13020B35902H3Makita 20B35902H3 GASKET 2
22636D1100101
2290170080030Makita 0170080030 NUTG4100R
2300032008000Makita 0032008000 SPRING WASHER
284
285
286
287
288
289
290
291
293
294

Sheet 4: Makita EG601A parts diagram

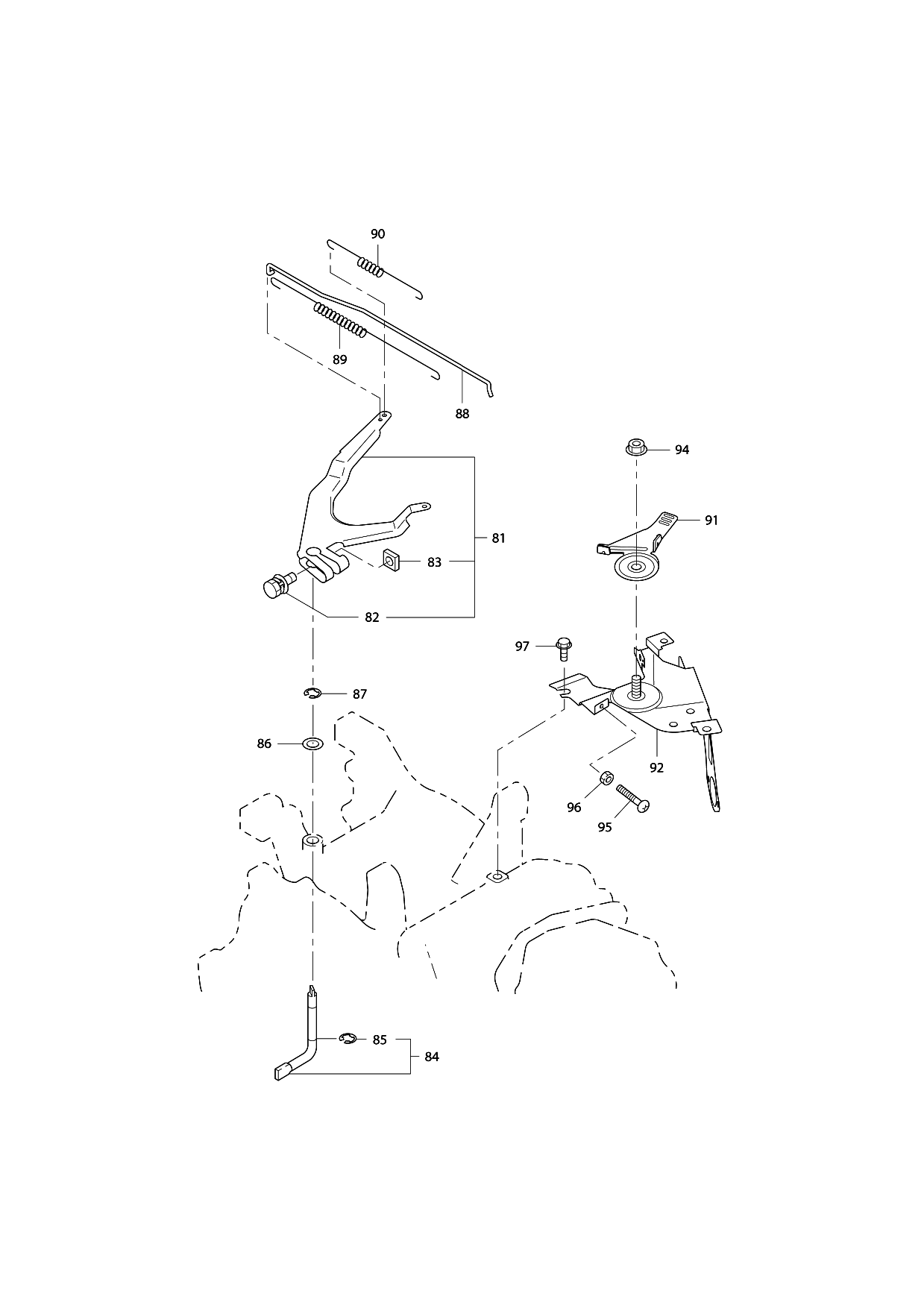

Makita EG601A parts diagram, sheet 4
No.Part numberPart name
8120B4230100Makita 20B4230100 GOVERNOR LEVER AY
820011406250Makita 0011406250 BOLT & WASHER ASS Y
830186060020Makita 0186060020 NUT
8420B4220101Makita 20B4220101 GOVERNOR SHAFT CP
850031306000Makita 0031306000 CLIP
860031108000Makita 0031108000 WASHER
870031306000Makita 0031306000 CLIP
8820B4270101Makita 20B4270101 GOVERNOR ROD CP
8920B4280113Makita 20B4280113 ROD SPRING
9020B4250213Makita 20B4250213 GOVERNOR SPRING
9120B4335103Makita 20B4335103 SPEED CONTROL LEVER
9220B4600121
940023506000
950043106400Makita 0043106400 SCREW
960022706000Makita 0022706000 NUT M6
970110060020Makita 0110060020 FLANGE BOLT

Sheet 5: Makita EG601A parts diagram

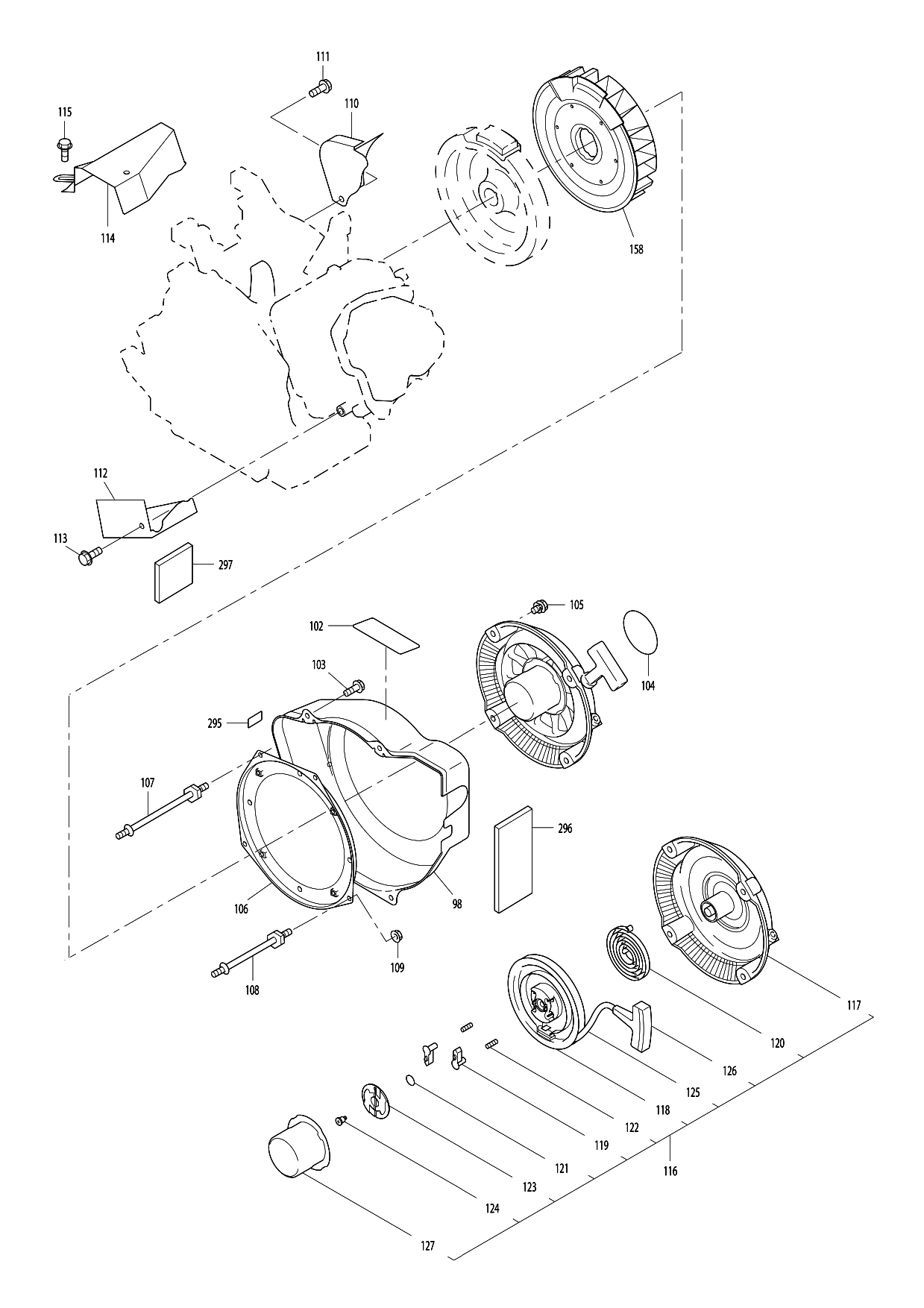

Makita EG601A parts diagram, sheet 5
No.Part numberPart name
9820B51201H1Makita 20B51201H1 BLOWER HOUSING CP
1020732005181
1030010406160
1040732005470
1050130060281Makita 0130060281 BOLT AND WASHER AYEW220ST
10620B5510102Makita 20B5510102 RECOIL BRACKET UN
1070100080440
1080100080450
1090023806000Makita 0023806000 FLANGE NUT
1102795271111Makita 2795271111 BAFFLE 1 (CASE) CPL
1110016508120Makita 0016508120 BOLT
11220B52702H1Makita 20B52702H1 BAFFLE 2 (HEAD) CP
1130110060020Makita 0110060020 FLANGE BOLT
11420B5500103Makita 20B5500103 DUCT (CASE)
1150110060020Makita 0110060020 FLANGE BOLT
11720B5015008
11820B5012008Makita 20B5012008 REELEG601A
1191615012508Makita 1615012508 RATCHET
1202775015508Makita 2775015508 SPIRAL SPRINGEG601A
1212275013108Makita 2275013108 FRICTION SPRING
1222275013508Makita 2275013508 RETURN SPRING
1231615015008Makita 1615015008 RATCHET GUIDE
12420B5010108Makita 20B5010108 SET SCREW
12520B5011008Makita 20B5011008 STARTER ROPE
1262615010008Makita 2615010008 STARTER KNOB
12720B5014508Makita 20B5014508 STARTER PULLEY
15820B54101H3Makita 20B54101H3 COOLING BLOWER
295
296
297

Sheet 6: Makita EG601A parts diagram

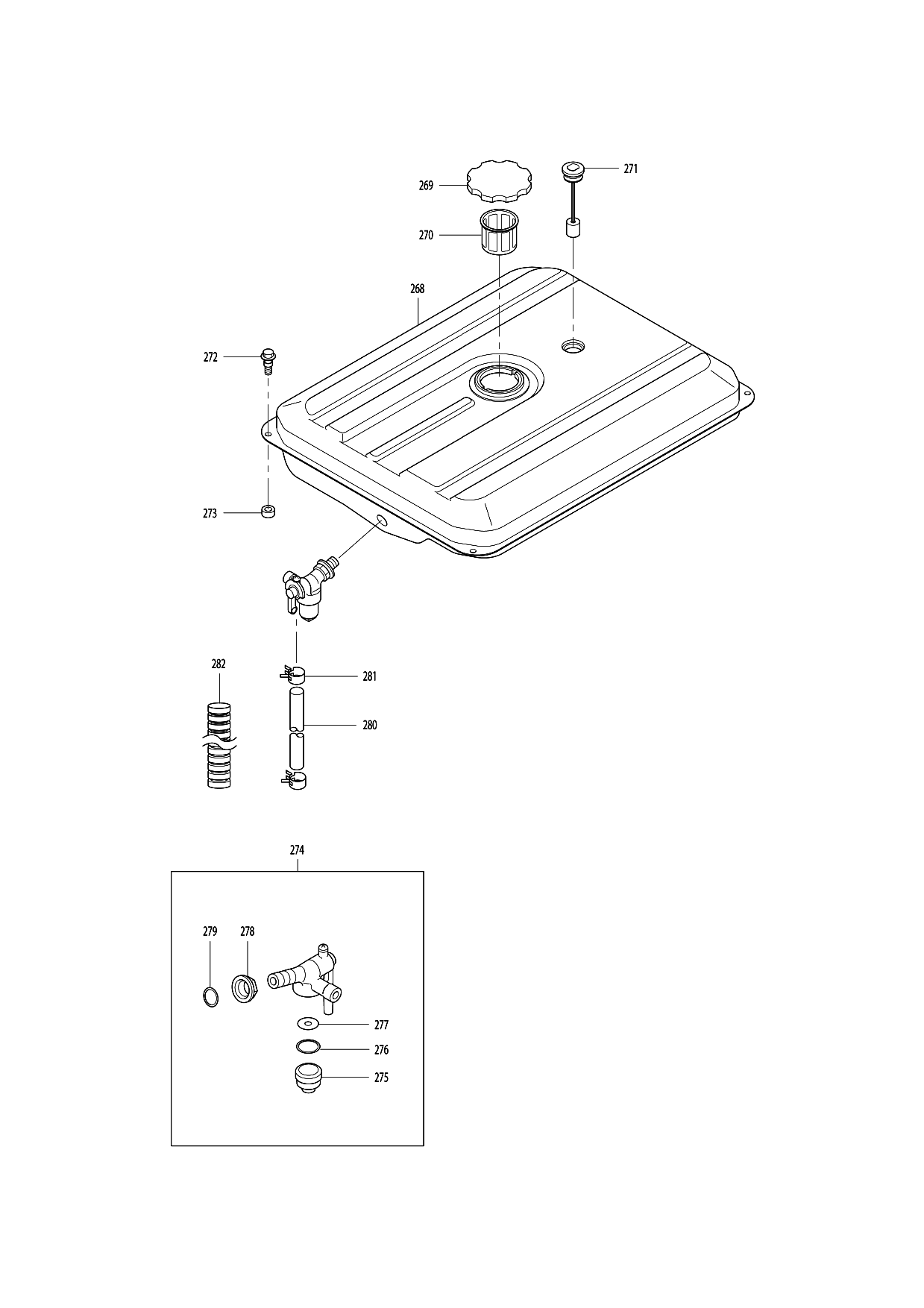

Makita EG601A parts diagram, sheet 6
No.Part numberPart name
26831H3600501Makita 31H3600501 FUEL TANK CP
2690430590011Makita 0430590011 FUEL TANK CAP. CPLGE2800IS
2700641540011Makita 0641540011 Fuel Filter for GE2800IS
2710648001500Makita 0648001500 FUEL GAUGE COMPLETE
2720110060220Makita 0110060220 FLANGE BOLT
2733913900013Makita 3913900013 RUBBER (TANK)GE2800IS
2750642004210Makita 0642004210 CUP
2760642006410
2770642006420
2780642006430
2790642006440
2800851061860
2810561100030Makita 0561100030 HOSE CLAMP
28236D6000108Makita 36D6000108 CORRUGATED TUBE(150)

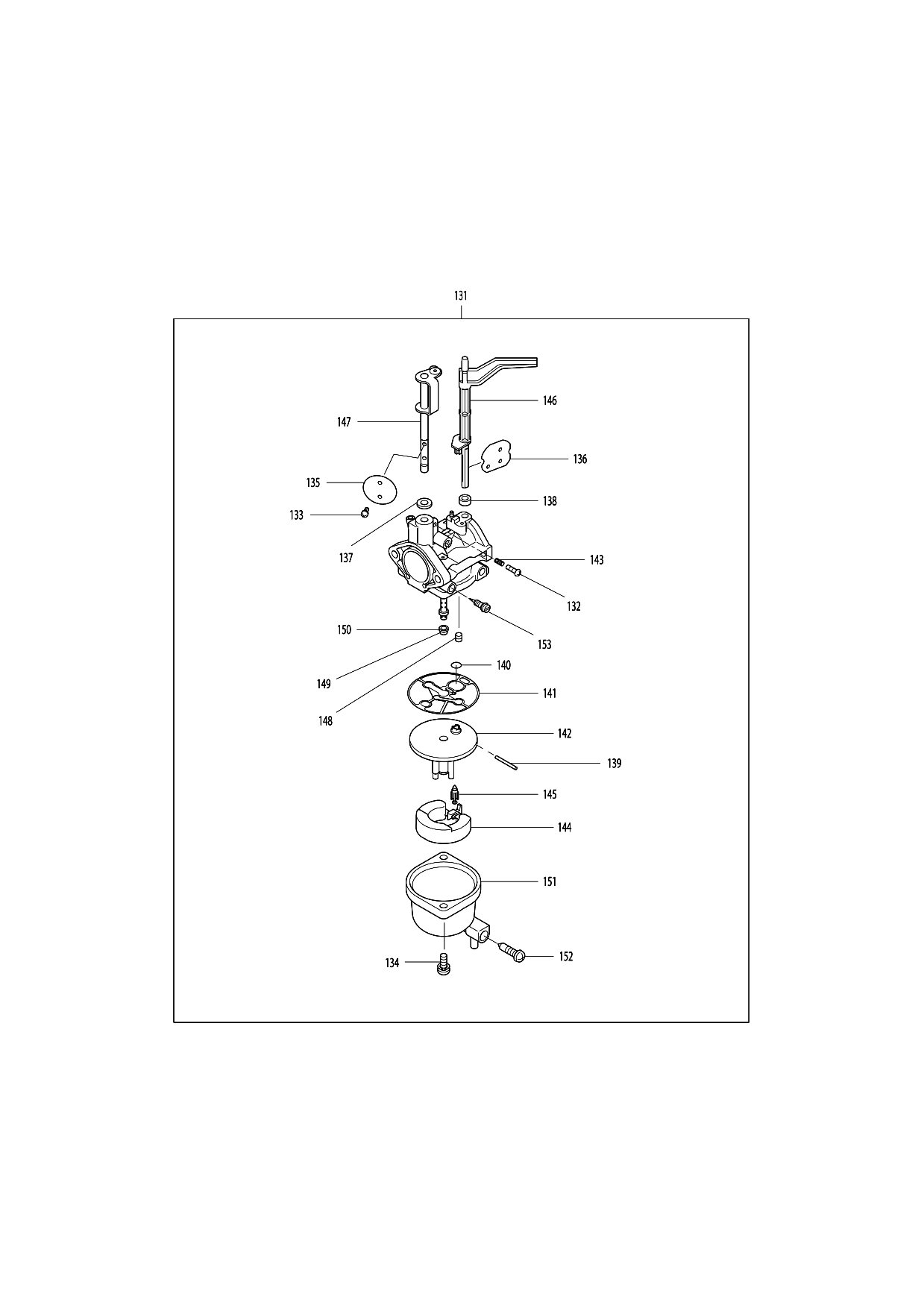

Sheet 7: Makita EG601A parts diagram

Makita EG601A parts diagram, sheet 7
No.Part numberPart name
13220B6235308
1332616235208
13420B6245308
13520B6253508Makita 20B6253508 VALVE, THROTTLE
13620B6252608Makita 20B6252608 VALVE, CHOKE
1372266258008Makita 2266258008 AIR FILTER
1382586255408Makita 2586255408 FILTER CHOKE SHAFT
1392636251508Makita 2636251508 PIN, FLOAT
14020B6254108Makita 20B6254108 O RING
14120B6254008Makita 20B6254008 SPACEREG601A
14220B6252008Makita 20B6252008 SPACER
14320B6244508Makita 20B6244508 SPRING, THRO.ADJUST
14420B6250508Makita 20B6250508 FLOAT AY
14520B6250008Makita 20B6250008 VALVE AY FLOATEG601A
14620B6252708Makita 20B6252708 SHAFT, CHOKE
14720B6253008Makita 20B6253008 SHAFT AY, THROTTLE
1482616242008Makita 2616242008 JET, SLOW
14920B6243708Makita 20B6243708 JET, MAIN (��108)
15020B6254208Makita 20B6254208 O RING
15120B6255008Makita 20B6255008 CHAMBER CP, FLOAT
15220B6235408Makita 20B6235408 SCREW, DRAIN
15320B6235708Makita 20B6235708 NEEDLE CP,IDLEADJUST

Sheet 8: Makita EG601A parts diagram

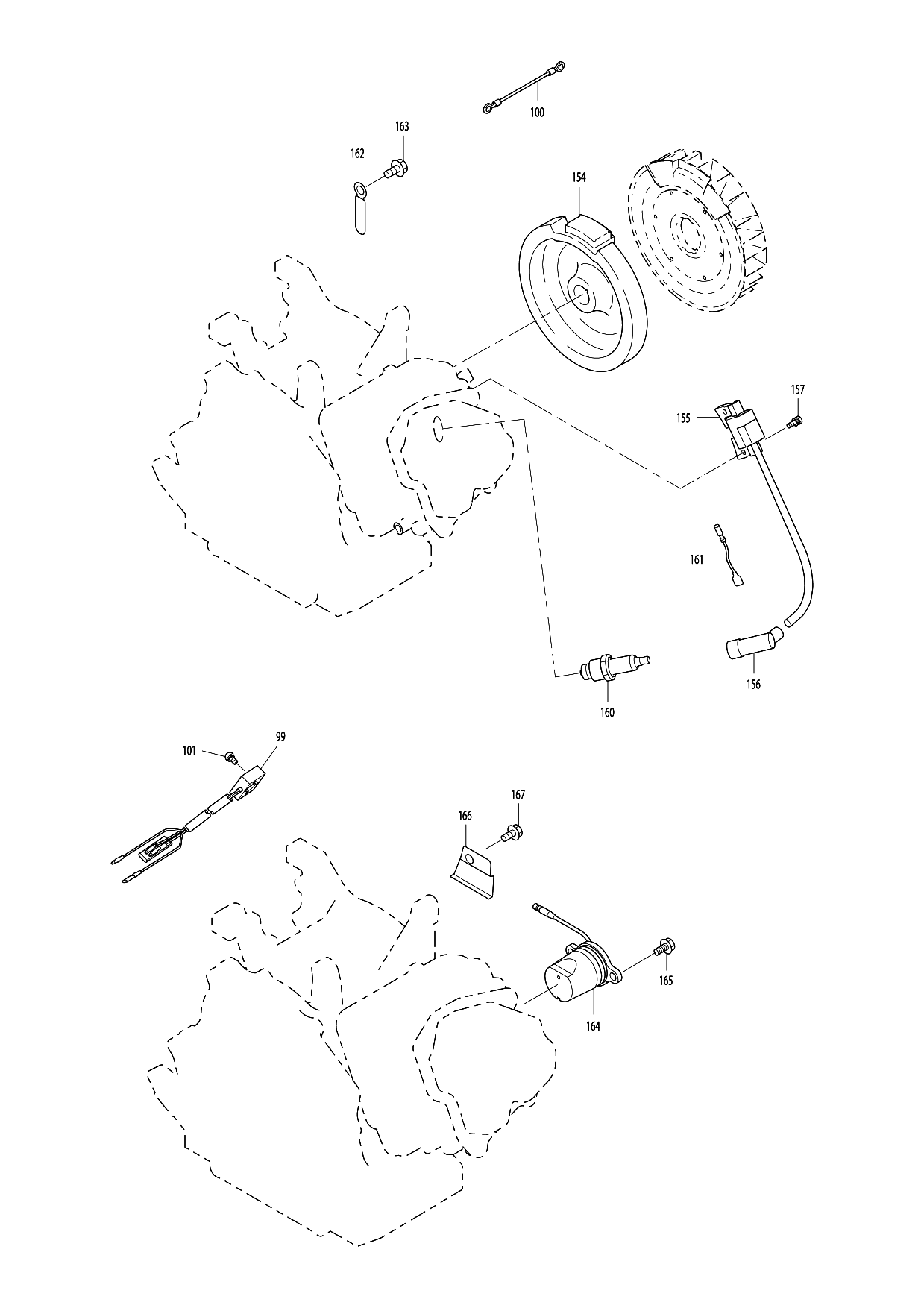

Makita EG601A parts diagram, sheet 8
No.Part numberPart name
99KU31107601Makita KU31107601 FLOAT C/U CP10EG601A
10020B7310201Makita 20B7310201 WIRE 2 CP
1010043604120
15420B79230H1Makita 20B79230H1 FLYWHEEL CP
15520B79430H1Makita 20B79430H1 Ignition Coil EG601A EG671A Ex350D EX400D EX400SE
1560655000320Makita 0655000320 SPARK PLUG CAP
1570011406300
1600650140150Makita 0650140150 SYTYTYS TULPPA BR6HS G1300K
16120B7310101Makita 20B7310101 WIRE 1 CP
1622147900601Makita 2147900601 CLAMP COMPLETE
1630110060010Makita 0110060010 FLANGE BOLT
1642797630151Makita 2797630151 OIL SENSOR CPEG601A
1650130060260
16620B7550103
1670152060050Makita 0152060050 TAPPING BOLT

Sheet 9: Makita EG601A parts diagram

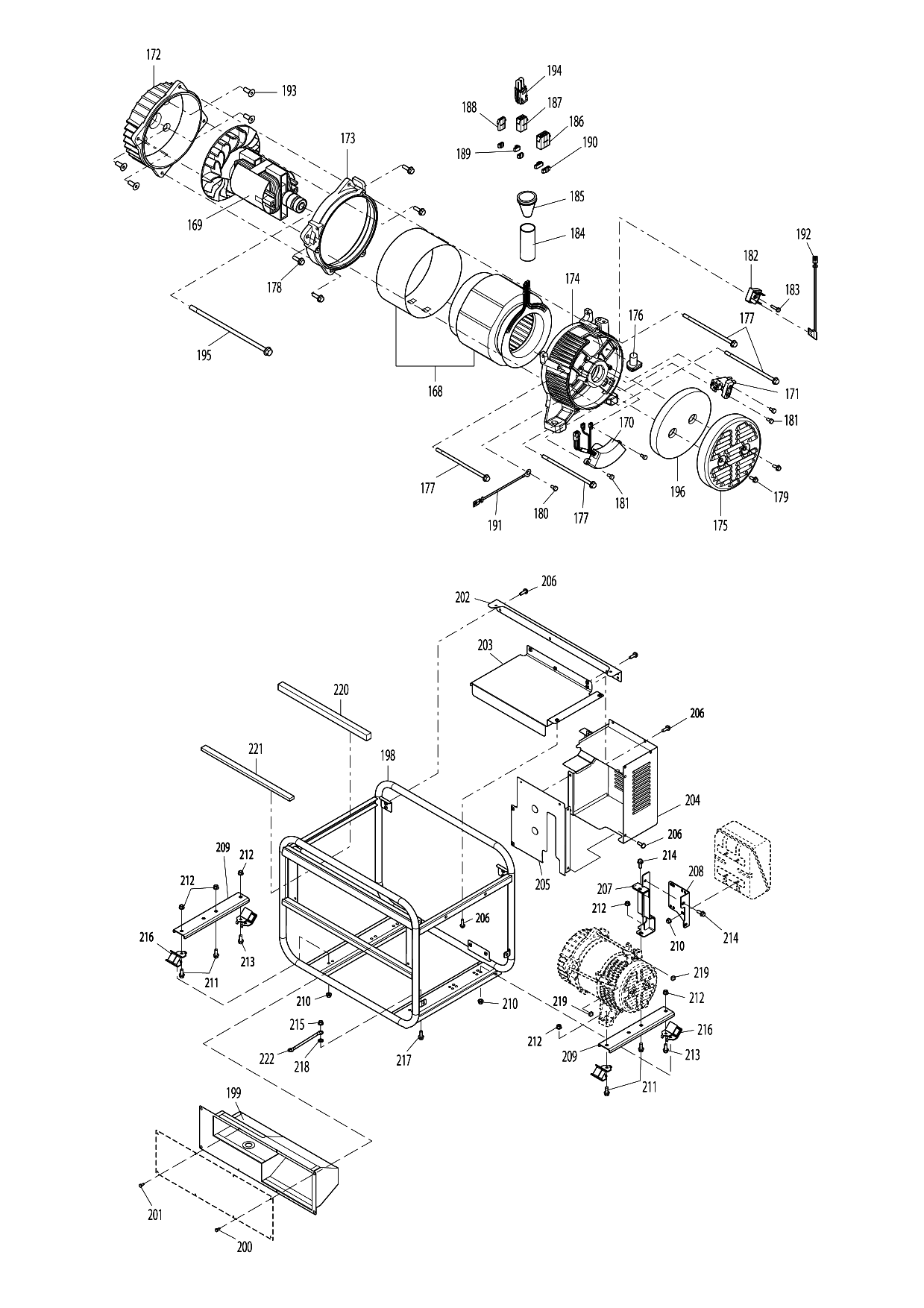

Makita EG601A parts diagram, sheet 9
No.Part numberPart name
16836D2000108Makita 36D2000108 STATOR CPEG601A
16936D2010108Makita 36D2010108 ROTOR CPEG601A
17036D2020108Makita 36D2020108 AVR CPEG601A
17136A2030008Makita 36A2030008 BRUSH CPEG601A
17236A2200008
17336A2210008
17436C2220008
17536C2300008Makita 36C2300008 BRACKET COVER
17636A2500008
17736D2100008
17836A8000508
17936A8000108
18036A8010008
18136A8000208
18236A2500108Makita 36A2500108 DIODE CPEG601A
18336A8010108
18436C2500208Makita 36C2500208 TUBE
18536A2500308
18636A7000008Makita 36A7000008 CONNECTOR(6P)EG601A
18736A7000408Makita 36A7000408 CONNECTOR (4P)
18836A7000208Makita 36A7000208 CONNECTOR(2P) EG601A
18936A7010108Makita 36A7010108 RETAINER(2P) EG601A
19036A7010008Makita 36A7010008 RETAINER (3P) EG601A
19136A7101308Makita 36A7101308 WIRE (GREEN)
19236A7100108Makita 36A7100108 WIRE (WHITE) EG601A
19336A8020008
19436A7000508Makita 36A7000508 CONNECTOR AYEG601A
19536D2110008
19636C2500408Makita 36C2500408 SPONGE (FILTER)
19836D3000008
19936C4000108
20036A8010408
20136A8010508
20236D3400008
20336D3410008
20436D3200008
20536D3210008
20636A8030008Makita 36A8030008 BOLT & WASHER AYEG601A
20736D3250008
20836D3260008
20936D3300008
21036A8100208
21136A8000608
21236A8100308
21336A8000708
21436A8000808
21536A8100408
21636D3700008Makita 36D3700008 MOUNT CP
21736A8000408
21836A8200108
21936A2500508
22036D3500008
22136C3500108
22236A7101908

Sheet 10: Makita EG601A parts diagram

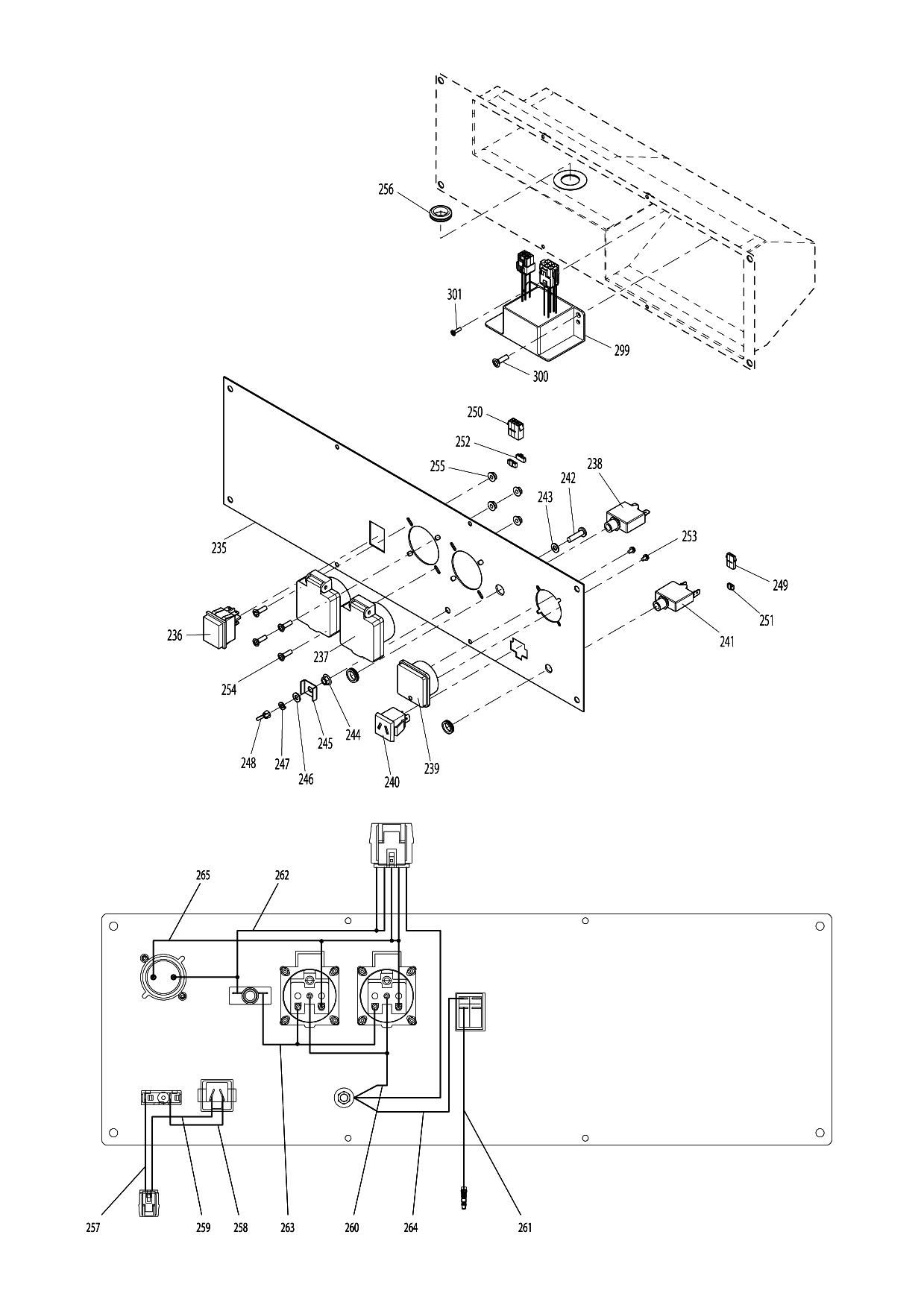

Makita EG601A parts diagram, sheet 10
No.Part numberPart name
23536D4100108
23636A4900008Makita 36A4900008 SWITCH(ENGINE)EG601A
23736A4700108Makita 36A4700108 AC CONCENT (GER)EG601A
23836C4800008Makita 36C4800008 CIRCUIT BREAKER(10A)EG601A
23936A4900108Makita 36A4900108 VOLT METEREG601A
24036A4710108Makita 36A4710108 DC CONCENTEG601A
24136A4800108Makita 36A4800108 CIRCUIT BREAKER(10A)EG601A
24236A8010208
24336A8200008
24436A8100008
24536A8210008
24636A8220008
24736A8230008
24836A8110008
24936A7000308
25036A7000108
25136A7010108Makita 36A7010108 RETAINER(2P) EG601A
25236A7010008Makita 36A7010008 RETAINER (3P) EG601A
25336A8010308
25436A8020108
25536A8100108
25636C4990008
299
300
301

Sheet 11: Makita EG601A parts diagram

Makita EG601A parts diagram, sheet 11
No.Part numberPart name
1970732005470
22336D9100208
22436A9800308
22536A9800108
26636D9000208
26736A9800408
28336A9800208
302
303
