Makita EG5550A
Makita EG5550A: exploded parts diagram, 10 sheets, 266 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita EG5550A: 266 positions on 10 sheets

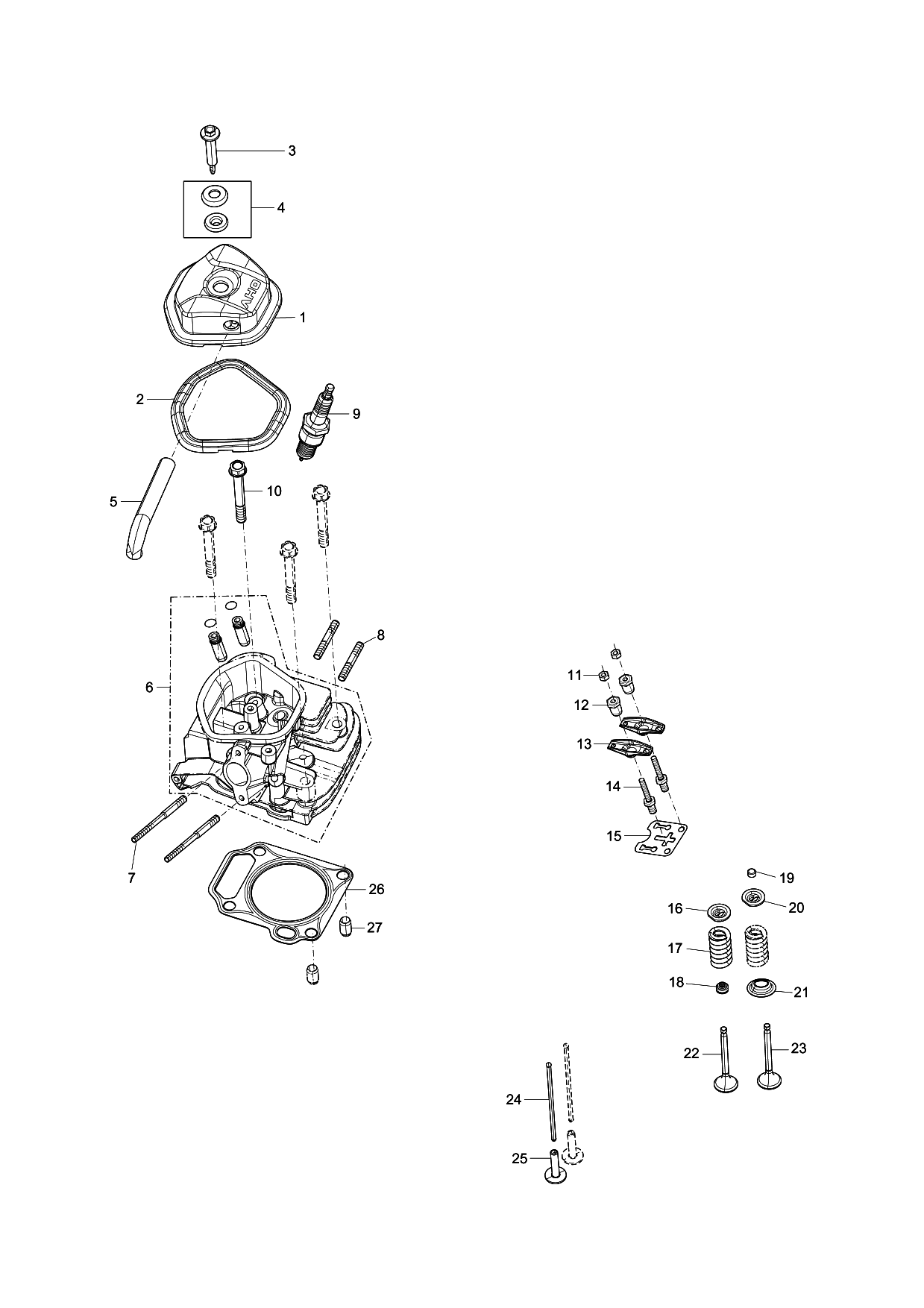

Sheet 1: Makita EG5550A parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | YA00000066 | Makita YA00000066 COVER SUBASSEMBLY, CYLINDER |
| 2 | YA00000043 | Makita YA00000043 GASKET, CYLINDER HEAD COVER |
| 3 | YA00000044 | Makita YA00000044 BOLT, CYLINDER HEAD |
| 4 | YA00000045 | Makita YA00000045 GASKET |
| 5 | YA00000129 | Makita YA00000129 TUBE, BREATHER |
| 6 | YA00000583 | Makita YA00000583 HEAD SUBASSEMBLY, CYLINDER |
| 7 | YA00000169 | Makita YA00000169 STUD |
| 8 | YA00000167 | Makita YA00000167 STUD |
| 9 | YA00000147 | Makita YA00000147 PLUG, SPARK |
| 10 | YA00000041 | Makita YA00000041 BOLT, CYLINDER HEAD |
| 11 | YA00000098 | Makita YA00000098 NUT, VALVE LOCK |
| 12 | YA00000100 | Makita YA00000100 NUT, VALVE ADJUSTING |
| 13 | YA00000097 | Makita YA00000097 ROCKER, VALVE |
| 14 | YA00000099 | Makita YA00000099 BOLT, ROCKER SHAFT |
| 15 | YA00000093 | Makita YA00000093 PLATE SUBASSEMBLY, LIFTER |
| 16 | YA00000058 | Makita YA00000058 SEAT, VALVE SPRING |
| 17 | YA00000049 | Makita YA00000049 SPRING, VALVE |
| 18 | YA00000047 | Makita YA00000047 GUIDE, SEAL |
| 19 | YA00000051 | Makita YA00000051 R0TATOR, VALVE |
| 20 | YA00000054 | Makita YA00000054 RETAINER, EXHAUST VALVE |
| 21 | YA00000052 | Makita YA00000052 RETAINER, VALVE SPRING |
| 22 | YA00000056 | Makita YA00000056 VALVE, INTAKE |
| 23 | YA00000060 | Makita YA00000060 VALVE, EXHAUST |
| 24 | YA00000088 | Makita YA00000088 LIFTER SUBASSEMBLY, VALVE |
| 25 | YA00000091 | Makita YA00000091 TAPPET, VALVE |
| 26 | YA00000061 | Makita YA00000061 GASKET, CYLINDER HEAD |
| 27 | YA00000181 | Makita YA00000181 PIN |
Sheet 2: Makita EG5550A parts diagram
| No. | Part number | Part name |
|---|---|---|
| 28 | YA00000076 | Makita YA00000076 RING, THE FIRST |
| 29 | YA00000078 | Makita YA00000078 RING, THE SECOND |
| 30 | YA00000080 | Makita YA00000080 RING SET, OIL |
| 31 | YA00000070 | Makita YA00000070 PISTON |
| 32 | YA00000072 | Makita YA00000072 PIN, PISTON |
| 33 | YA00000074 | Makita YA00000074 CLIP, PISTON PIN |
| 34 | YA00000067 | Makita YA00000067 ROD, CONNECTING |

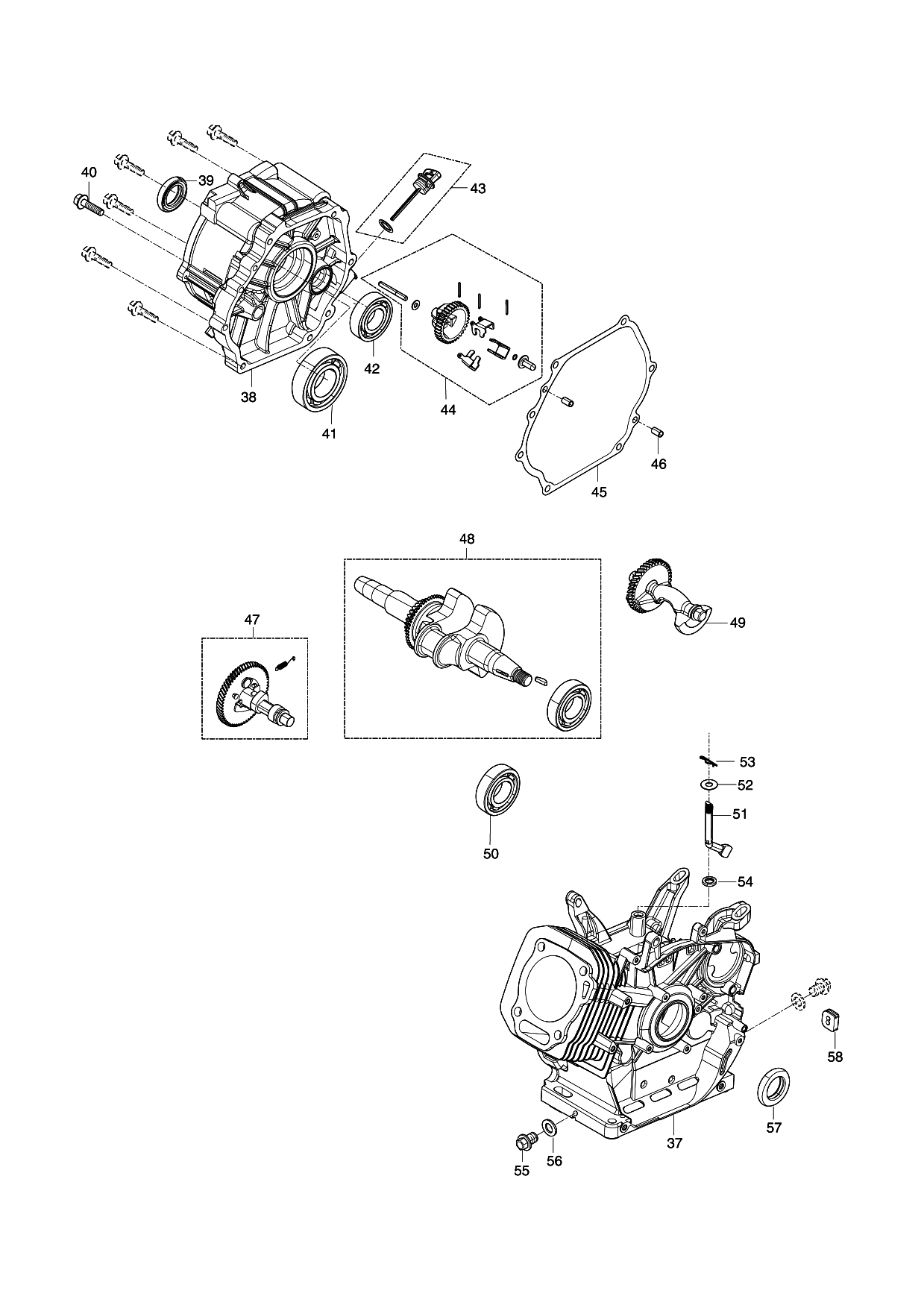

Sheet 3: Makita EG5550A parts diagram
| No. | Part number | Part name |
|---|---|---|
| 37 | YA00000036 | Makita YA00000036 CRANKCASE SUBASSEMBLY. |
| 38 | YA00000038 | Makita YA00000038 COVER, CRANKCASE |
| 39 | YA00000186 | Makita YA00000186 SEAL, OIL |
| 40 | YA00000166 | Makita YA00000166 BOLT |
| 41 | YA00000184 | Makita YA00000184 BEARIN, DEEP GROOVE BALL |
| 42 | YA00000182 | Makita YA00000182 BEARIN, DEEP GROOVE BALL |
| 43 | YA00000102 | Makita YA00000102 DIPSTICK SUBASSEMBLY, OIL |
| 44 | YA00000121 | Makita YA00000121 GEAR ASSY, GOVERNOR |
| 45 | YA00000032 | Makita YA00000032 GASKET, CRANKCASE |
| 46 | YA00000178 | Makita YA00000178 PIN |
| 47 | YA00000094 | Makita YA00000094 CAMSHAFT ASSY. |
| 48 | YA00000081 | Makita YA00000081 CRANKSHAFT ASSY. |
| 49 | YA00000083 | Makita YA00000083 BALANCING SHAFT |
| 50 | YA00000182 | Makita YA00000182 BEARIN, DEEP GROOVE BALL |
| 51 | YA00000111 | Makita YA00000111 ARM, GOVERNOR |
| 52 | YA00000176 | Makita YA00000176 WASHER, FLAT |
| 53 | YA00000177 | Makita YA00000177 PIN |
| 54 | YA00000185 | Makita YA00000185 SEAL, OIL |
| 55 | YA00000035 | Makita YA00000035 BOLT, DRAIN PLUG |
| 56 | YA00000175 | Makita YA00000175 WASHER, FLAT |
| 57 | YA00000186 | Makita YA00000186 SEAL, OIL |
| 58 | YA00000141 | Makita YA00000141 PLUG, RUBBER |

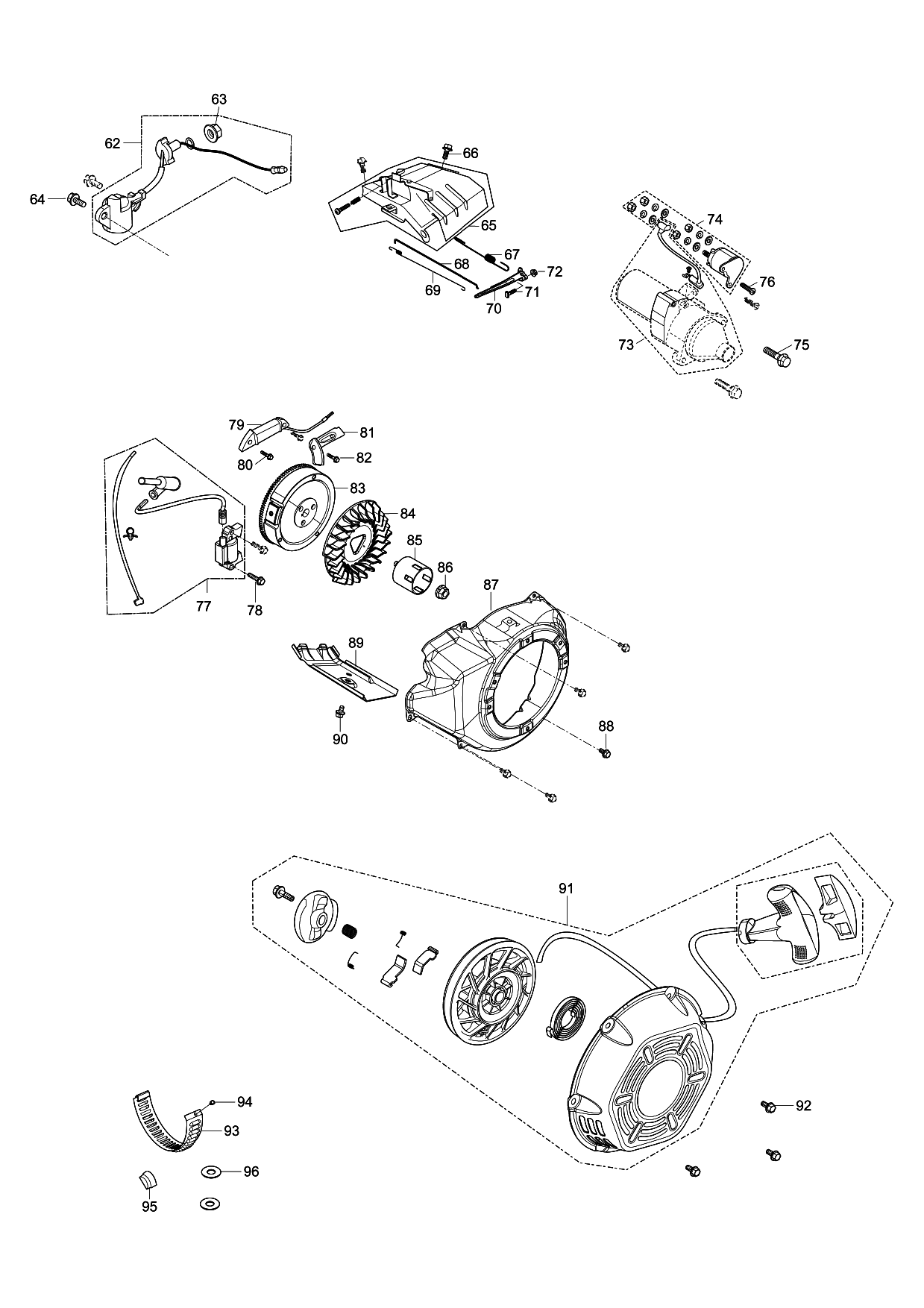

Sheet 4: Makita EG5550A parts diagram
| No. | Part number | Part name |
|---|---|---|
| 62 | YA00000154 | Makita YA00000154 SENSOR, ENGINE OIL |
| 63 | YA00000578 | Makita YA00000578 NUT |
| 64 | YA00000160 | Makita YA00000160 BOLT |
| 65 | YA00000123 | Makita YA00000123 CONTROL ASSY, THROTTLE |
| 66 | YA00000158 | Makita YA00000158 BOLT |
| 67 | YA00000115 | Makita YA00000115 SPRING, GOVERNOR |
| 68 | YA00000113 | Makita YA00000113 ROD, GOVERNEOR |
| 69 | YA00000109 | Makita YA00000109 SPRING, THROTTLE VALVE |
| 70 | YA00000117 | Makita YA00000117 BOLT, GOVERNOR SUPPORT |
| 71 | YA00000117 | Makita YA00000117 BOLT, GOVERNOR SUPPORT |
| 72 | YA00000171 | Makita YA00000171 NUT |
| 73 | YA00000140 | Makita YA00000140 MOTOR, STARTING |
| 74 | YA00000151 | Makita YA00000151 RELAY, STARTING |
| 75 | YA00000165 | Makita YA00000165 BOLT |
| 76 | YA00000155 | Makita YA00000155 BOLT |
| 77 | YA00000149 | Makita YA00000149 COIL, IGNITION |
| 78 | YA00000162 | Makita YA00000162 BOLT |
| 79 | YA00000148 | Makita YA00000148 COIL SUBASSEMBLY, CHARGE |
| 80 | YA00000163 | Makita YA00000163 BOLT |
| 81 | YA00000146 | Makita YA00000146 CLAMP, CHARGE COIL |
| 82 | YA00000158 | Makita YA00000158 BOLT |
| 83 | YA00000086 | Makita YA00000086 FLYWHEEL SUBASSEMBLY |
| 84 | YA00000136 | Makita YA00000136 IMPELLER |
| 85 | YA00000138 | Makita YA00000138 PULLEY,STARTER |
| 86 | YA00000085 | Makita YA00000085 NUT, FLYWHEEL |
| 87 | YA00000143 | Makita YA00000143 SHROUD |
| 88 | YA00000158 | Makita YA00000158 BOLT |
| 89 | YA00000134 | Makita YA00000134 SHROUD, CYLINDER BODY |
| 90 | YA00000157 | Makita YA00000157 BOLT |
| 91 | YA00000145 | Makita YA00000145 STARTER ASSY, RECOIL |
| 92 | YA00000156 | Makita YA00000156 BOLT |
| 93 | YA00000135 | Makita YA00000135 SHIELD,LOWER |
| 94 | YA00000575 | Makita YA00000575 BOLT |
| 95 | YA00000580 | Makita YA00000580 STOPPER, MOTOR RIGHT COVER |
| 96 | YA00000573 | Makita YA00000573 SPRING WASHERS |

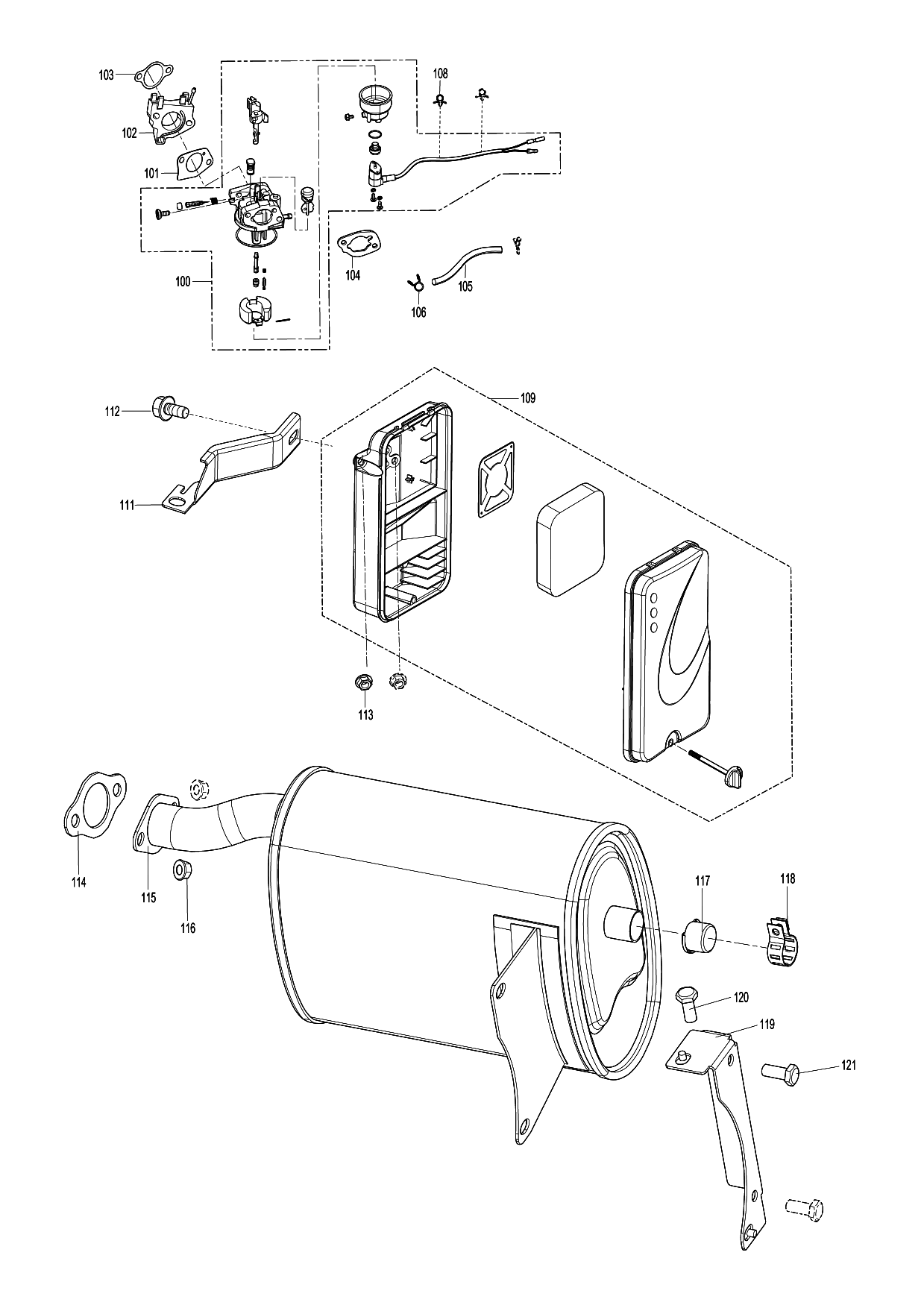

Sheet 5: Makita EG5550A parts diagram
| No. | Part number | Part name |
|---|---|---|
| 100 | YA00000118 | Makita YA00000118 CARBURETOR ASS'Y |
| 101 | YA00000104 | Makita YA00000104 GASKET, CARBURETOR |
| 102 | YA00000107 | Makita YA00000107 PLATE, CARBURETOR INSULATOR |
| 103 | YA00000126 | Makita YA00000126 GASKET, INLET |
| 104 | YA00000125 | Makita YA00000125 GASKET, AIR CLEANER |
| 105 | YA00000189 | Makita YA00000189 TUBE, FUEL |
| 106 | YA00000191 | Makita YA00000191 COLLAR |
| 108 | YA00000187 | Makita YA00000187 CLIP |
| 109 | YA00000584 | Makita YA00000584 CLEANER, AIR |
| 111 | YA00000579 | Makita YA00000579 SUPPORT, AIR CLEANER |
| 112 | YA00000158 | Makita YA00000158 BOLT |
| 113 | YA00000171 | Makita YA00000171 NUT |
| 114 | YA00000131 | Makita YA00000131 GASKET, EXHAUST OUTLET |
| 115 | YA00000373 | Makita YA00000373 5KW SILENCER |
| 116 | YA00000170 | Makita YA00000170 NUT |
| 117 | YA00000274 | Makita YA00000274 SCREEN |
| 118 | YA00000255 | Makita YA00000255 PIPE CL |
| 119 | YA00000256 | Makita YA00000256 MUFFLER BRACKET |
| 120 | YA00000409 | Makita YA00000409 BOLT 8 * 16 |
| 121 | YA00000410 | Makita YA00000410 BOLT 8*20 |

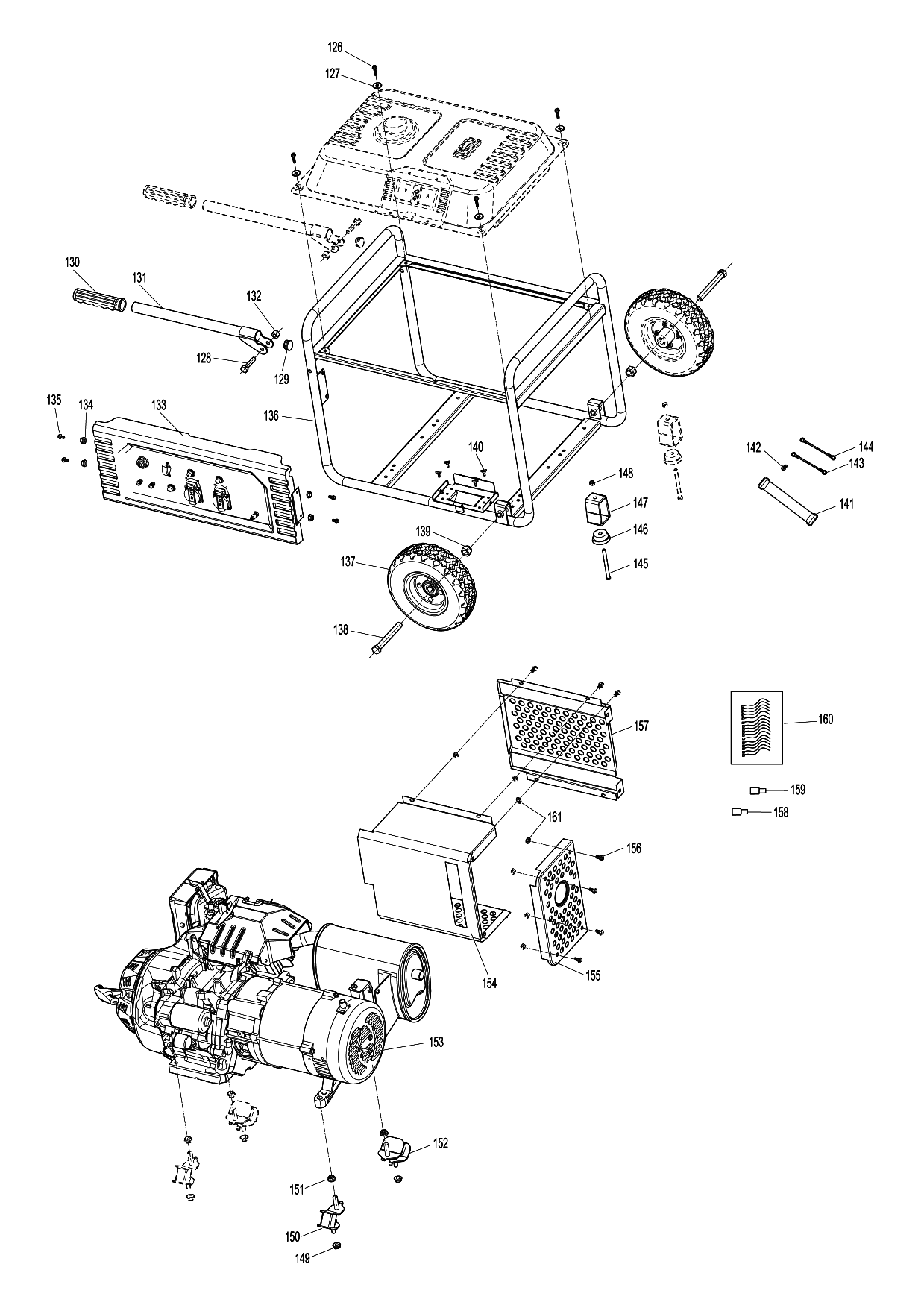

Sheet 6: Makita EG5550A parts diagram
| No. | Part number | Part name |
|---|---|---|
| 126 | YA00000415 | Makita YA00000415 HEX FLANG BOLT 6*25 |
| 127 | YA00000241 | Makita YA00000241 BIG TANK GASKET |
| 128 | YA00000215 | Makita YA00000215 PUTTER SHAFT |
| 129 | YA00000204 | Makita YA00000204 PUTTER COVER |
| 130 | YA00000262 | Makita YA00000262 HANDLE SHEATH |
| 131 | YA00000213 | Makita YA00000213 PUTTER |
| 132 | YA00000394 | Makita YA00000394 SELF-LOCKING NUT M8 |
| 133 | YA00000364 | |
| 134 | YA00000387 | Makita YA00000387 FLANGE LOCK NUT M6 |
| 135 | YA00000414 | Makita YA00000414 LOCKING SCREWS 6x16, EG4450A |
| 136 | YA00000258 | Makita YA00000258 5KW UNIT BRACKET |
| 137 | YA00000217 | Makita YA00000217 RUBBER WHEEL |
| 138 | YA00000216 | Makita YA00000216 AXLE |
| 139 | YA00000394 | Makita YA00000394 SELF-LOCKING NUT M8 |
| 140 | YA00000581 | Makita YA00000581 BATTERY DAMPING PAD |
| 141 | YA00000360 | Makita YA00000360 BATTERY FIXING STRAP ASSEMBLY |
| 142 | YA00000586 | Makita YA00000586 LOCKING SCREWS 6 * 12 |
| 143 | YA00000340 | Makita YA00000340 WIRE |
| 144 | YA00000339 | Makita YA00000339 WIRE |
| 145 | YA00000413 | Makita YA00000413 BOLT 8*100 |
| 146 | YA00000220 | Makita YA00000220 FOOT RUBBER MOUNTS |
| 147 | YA00000257 | Makita YA00000257 FRONT BRACKET |
| 148 | YA00000394 | Makita YA00000394 SELF-LOCKING NUT M8 |
| 149 | YA00000388 | Makita YA00000388 FLANGE LOCK NUT M8 |
| 150 | YA00000270 | Makita YA00000270 CUSHION |
| 151 | YA00000391 | Makita YA00000391 LOCKING NUT M8 |
| 152 | YA00000269 | Makita YA00000269 CUSHION |
| 153 | YA00000365 | Makita YA00000365 ENGINE MOTOR ASSEMBLY |
| 154 | YA00000229 | Makita YA00000229 LEFT INSULATING PLATE |
| 155 | YA00000234 | Makita YA00000234 REAR INSULATION BOARD |
| 156 | YA00000414 | Makita YA00000414 LOCKING SCREWS 6x16, EG4450A |
| 157 | YA00000235 | Makita YA00000235 RIGHT INSULATION BOARD |
| 158 | YA00000572 | Makita YA00000572 WIRE WATERPROOF HAT(RED) |
| 159 | YA00000571 | Makita YA00000571 WIRE WATERPROOF HAT(BLACK) |
| 160 | YA00000195 | Makita YA00000195 A SMALL CABLE TIE |
| 161 | YA00000574 | Makita YA00000574 CHECK WASHER |

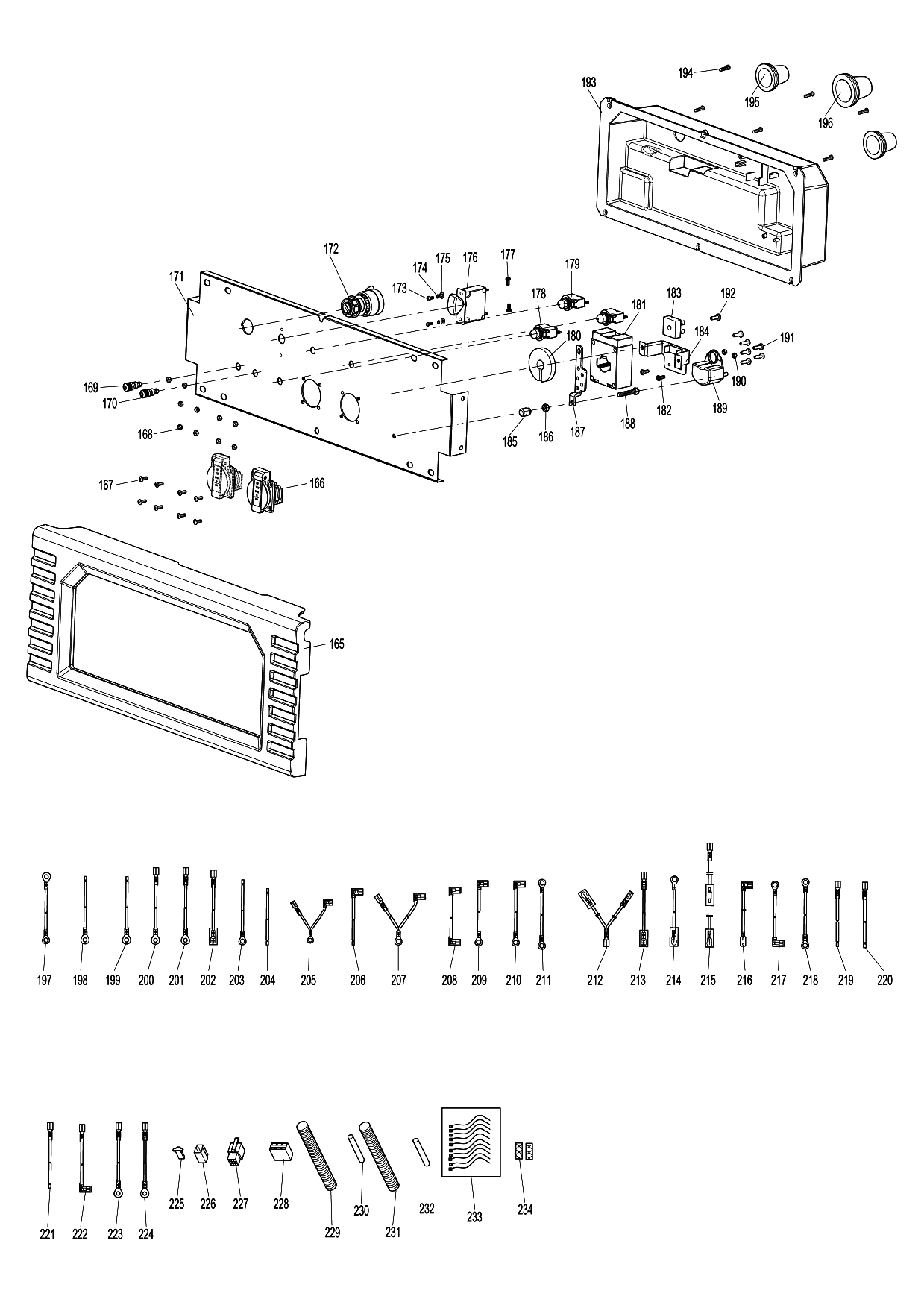

Sheet 7: Makita EG5550A parts diagram
| No. | Part number | Part name |
|---|---|---|
| 165 | YA00000239 | Makita YA00000239 4KW FRONT CONTROL PANEL |
| 166 | YA00000344 | Makita YA00000344 VDE SOCKET |
| 167 | YA00000397 | Makita YA00000397 MACHINE THREAD SCREW 4*10 |
| 168 | YA00000392 | Makita YA00000392 TYPE 1 NON-METALLIC HEX NUTS |
| 169 | YA00000350 | Makita YA00000350 RED DC TERMINAL ASSEMBLY |
| 170 | YA00000351 | Makita YA00000351 BLACK DC TERMINAL ASSEMBLY |
| 171 | YA00000232 | Makita YA00000232 METAL PANELS |
| 172 | YA00000261 | Makita YA00000261 ELECTRIC DOOR LOCKS |
| 173 | YA00000399 | Makita YA00000399 THE TROUGH PAN HEAD SCREWS 3*1 |
| 174 | YA00000422 | Makita YA00000422 ELASTIC WASHER |
| 175 | YA00000416 | Makita YA00000416 WASHER |
| 176 | YA00000384 | Makita YA00000384 ELECTROMAGNETIC HYDRAULIC |
| 177 | YA00000401 | Makita YA00000401 SCREW 4*10 |
| 178 | YA00000341 | Makita YA00000341 OVER-CURRENT PROTECTOR |
| 179 | YA00000342 | Makita YA00000342 16A-CURRENT PROTECTION DEVICE |
| 180 | YA00000218 | Makita YA00000218 BLOCK ALIGNMENT |
| 181 | YA00000346 | Makita YA00000346 TRANSFORMER |
| 182 | YA00000396 | Makita YA00000396 SCREW 3*10 |
| 183 | YA00000343 | Makita YA00000343 RECTIFIER BRIDGE |
| 184 | YA00000233 | Makita YA00000233 TRANSFORMER FIXED PLATE |
| 185 | YA00000209 | Makita YA00000209 GROUND NUT |
| 186 | YA00000389 | Makita YA00000389 HEXAGON NUTS WITH FLANGE |
| 187 | YA00000231 | Makita YA00000231 GROUND WIRE FIXED PLATE |
| 188 | YA00000408 | Makita YA00000408 BOLT 6*20 |
| 189 | YA00000378 | Makita YA00000378 AMMETER |
| 190 | YA00000386 | Makita YA00000386 HEXAGON NUT M3 |
| 191 | YA00000403 | Makita YA00000403 BOLT 5*12 |
| 192 | YA00000404 | Makita YA00000404 MACHINE WITH SCREW5*20 |
| 193 | YA00000240 | Makita YA00000240 4KW REAR CONTROL PANEL |
| 194 | YA00000406 | Makita YA00000406 PAN HEAD FLANGE SCREW4*16 |
| 195 | YA00000264 | Makita YA00000264 PANEL SHEATHING |
| 196 | YA00000265 | Makita YA00000265 PANEL SHEATHING |
| 197 | YA00000311 | Makita YA00000311 WIRE |
| 198 | YA00000312 | Makita YA00000312 WIRE |
| 199 | YA00000313 | Makita YA00000313 WIRE |
| 200 | YA00000314 | Makita YA00000314 WIRE |
| 201 | YA00000315 | Makita YA00000315 WIRE |
| 202 | YA00000316 | Makita YA00000316 WIRE |
| 203 | YA00000317 | Makita YA00000317 WIRE |
| 204 | YA00000318 | Makita YA00000318 WIRE |
| 205 | ||
| 206 | YA00000319 | Makita YA00000319 WIRE |
| 207 | YA00000320 | Makita YA00000320 WIRE |
| 208 | YA00000321 | Makita YA00000321 WIRE |
| 209 | YA00000322 | Makita YA00000322 WIRE |
| 210 | YA00000323 | Makita YA00000323 WIRE |
| 211 | YA00000324 | Makita YA00000324 WIRE |
| 212 | YA00000326 | Makita YA00000326 WIRE |
| 213 | YA00000327 | Makita YA00000327 WIRE |
| 214 | YA00000328 | Makita YA00000328 WIRE |
| 215 | YA00000329 | Makita YA00000329 WIRE |
| 216 | YA00000338 | Makita YA00000338 WIRE U519 |
| 217 | YA00000330 | Makita YA00000330 WIRE |
| 218 | YA00000331 | Makita YA00000331 WIRE |
| 219 | YA00000332 | Makita YA00000332 WIRE |
| 220 | YA00000333 | Makita YA00000333 WIRE |
| 221 | YA00000334 | Makita YA00000334 WIRE |
| 222 | YA00000335 | Makita YA00000335 WIRE |
| 223 | YA00000336 | Makita YA00000336 WIRE |
| 224 | YA00000337 | Makita YA00000337 WIRE |
| 225 | YA00000198 | Makita YA00000198 MALE PLUG TERMINAL BLOCK |
| 226 | YA00000199 | Makita YA00000199 FEMALE PLUG TERMINAL BLOCK |
| 227 | YA00000201 | Makita YA00000201 MALE PLUG TERMINAL BLOCK |
| 228 | YA00000197 | Makita YA00000197 MALE PLUG TERMINAL BLOCK |
| 229 | YA00000193 | Makita YA00000193 WIRE COVER 0.22M |
| 230 | YA00000196 | Makita YA00000196 COTTON VARNISHED SLEEVE 0.4M |
| 231 | YA00000194 | Makita YA00000194 FLEXIBLE CONDUIT 0.3M |
| 232 | YA00000569 | Makita YA00000569 HEAT-SHRINKABLE TUBE0.1M |
| 233 | YA00000195 | Makita YA00000195 A SMALL CABLE TIE |
| 234 | YA00000570 | Makita YA00000570 TERMINAL |

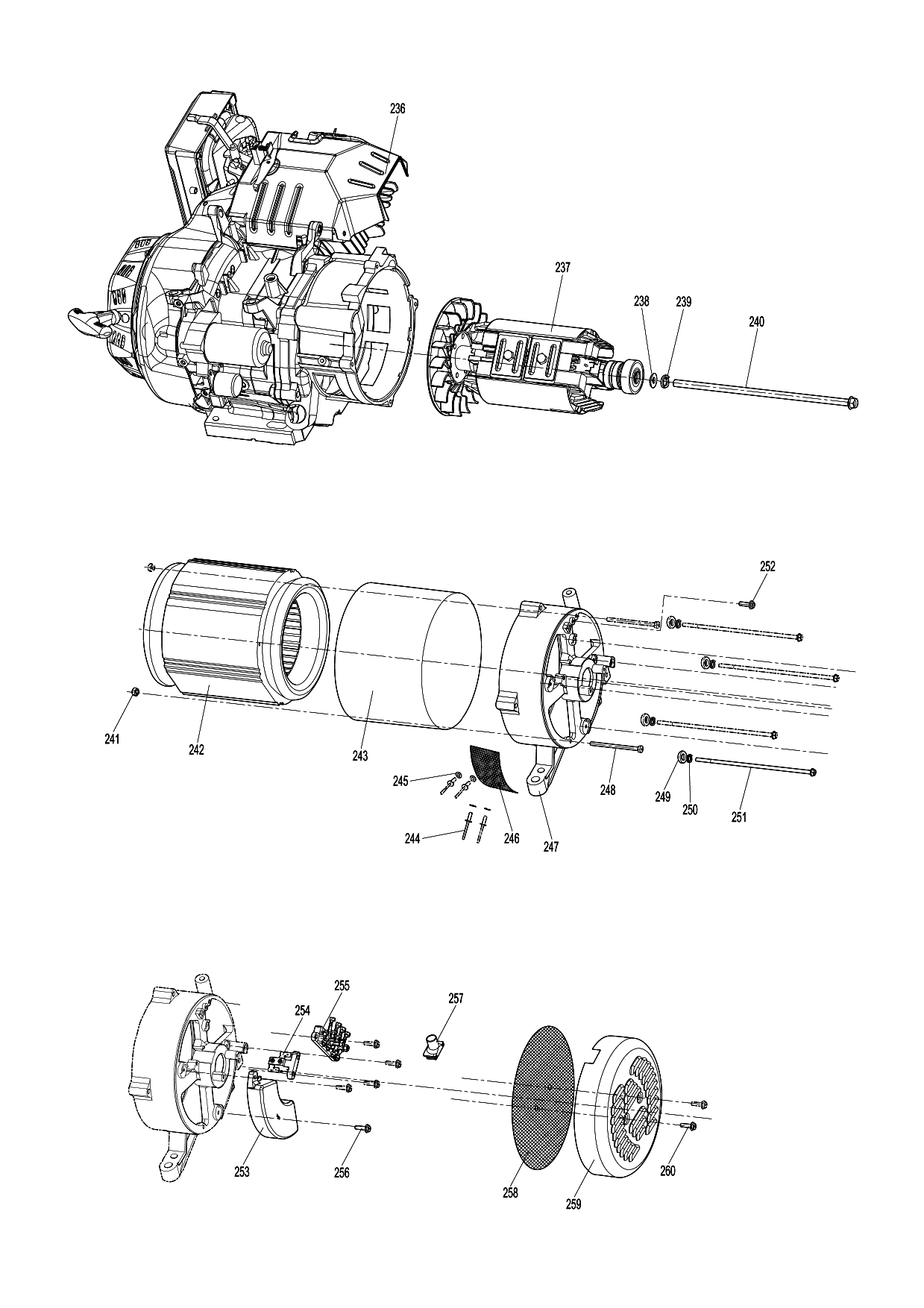

Sheet 8: Makita EG5550A parts diagram
| No. | Part number | Part name |
|---|---|---|
| 236 | YA00000369 | Makita YA00000369 420CC ENGINE |
| 237 | YA00000278 | |
| 238 | YA00000421 | Makita YA00000421 FLAT GASKET |
| 239 | YA00000425 | Makita YA00000425 SPRING WASHER |
| 240 | YA00000249 | Makita YA00000249 BOLT M10*265 |
| 241 | YA00000393 | Makita YA00000393 NUT M5 |
| 242 | YA00000283 | |
| 243 | YA00000227 | |
| 244 | YA00000395 | Makita YA00000395 RIVETS |
| 245 | YA00000417 | Makita YA00000417 GASKET |
| 246 | YA00000273 | Makita YA00000273 FILTER |
| 247 | YA00000207 | Makita YA00000207 GENERATOR REAR COVER |
| 248 | YA00000250 | Makita YA00000250 BOLT M5*215 |
| 249 | YA00000419 | Makita YA00000419 FLAT GASKET |
| 250 | YA00000423 | Makita YA00000423 SPRING WASHER |
| 251 | YA00000251 | Makita YA00000251 BOLT M6*185 |
| 252 | YA00000403 | Makita YA00000403 BOLT 5*12 |
| 253 | YA00000380 | Makita YA00000380 AVR REGULATOR |
| 254 | YA00000286 | Makita YA00000286 BRUSH ASSEMBLY |
| 255 | YA00000356 | Makita YA00000356 SOCKET COMPONENTS |
| 256 | YA00000407 | Makita YA00000407 BOLT 5*12 |
| 257 | YA00000266 | Makita YA00000266 END COVER SHEATH |
| 258 | YA00000272 | Makita YA00000272 FILTER |
| 259 | YA00000205 | Makita YA00000205 REAR COVER |
| 260 | YA00000407 | Makita YA00000407 BOLT 5*12 |

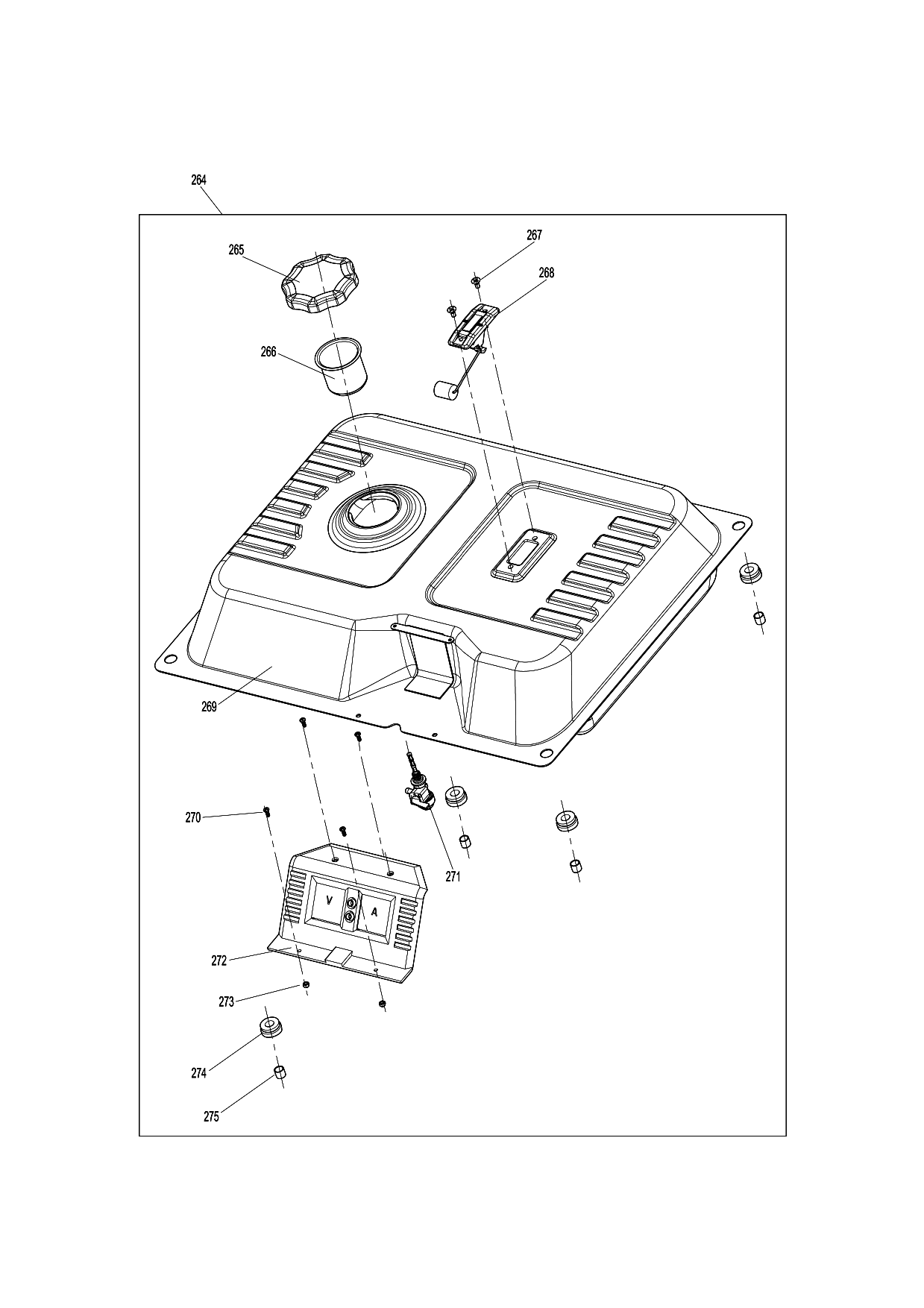

Sheet 9: Makita EG5550A parts diagram
| No. | Part number | Part name |
|---|---|---|
| 264 | YA00000361 | Makita YA00000361 TANK COMPONENTS |
| 265 | YA00000349 | Makita YA00000349 FUEL TANK CAP ASSEMBLY |
| 266 | YA00000375 | Makita YA00000375 FUEL FILTER |
| 267 | YA00000398 | Makita YA00000398 SUNK SCREW 5*14 |
| 268 | YA00000582 | Makita YA00000582 FUEL INSTRUCTION SHEET |
| 269 | YA00000222 | Makita YA00000222 TANK |
| 270 | YA00000400 | Makita YA00000400 MACHINE SCREW |
| 271 | YA00000211 | Makita YA00000211 FUEL TANK SWITCH |
| 272 | YA00000359 | Makita YA00000359 SMALL PANEL ASSEMBLY |
| 273 | YA00000392 | Makita YA00000392 TYPE 1 NON-METALLIC HEX NUTS |
| 274 | YA00000267 | Makita YA00000267 TANK CUSHION |
| 275 | YA00000214 | Makita YA00000214 TANK CUSHION CASING |

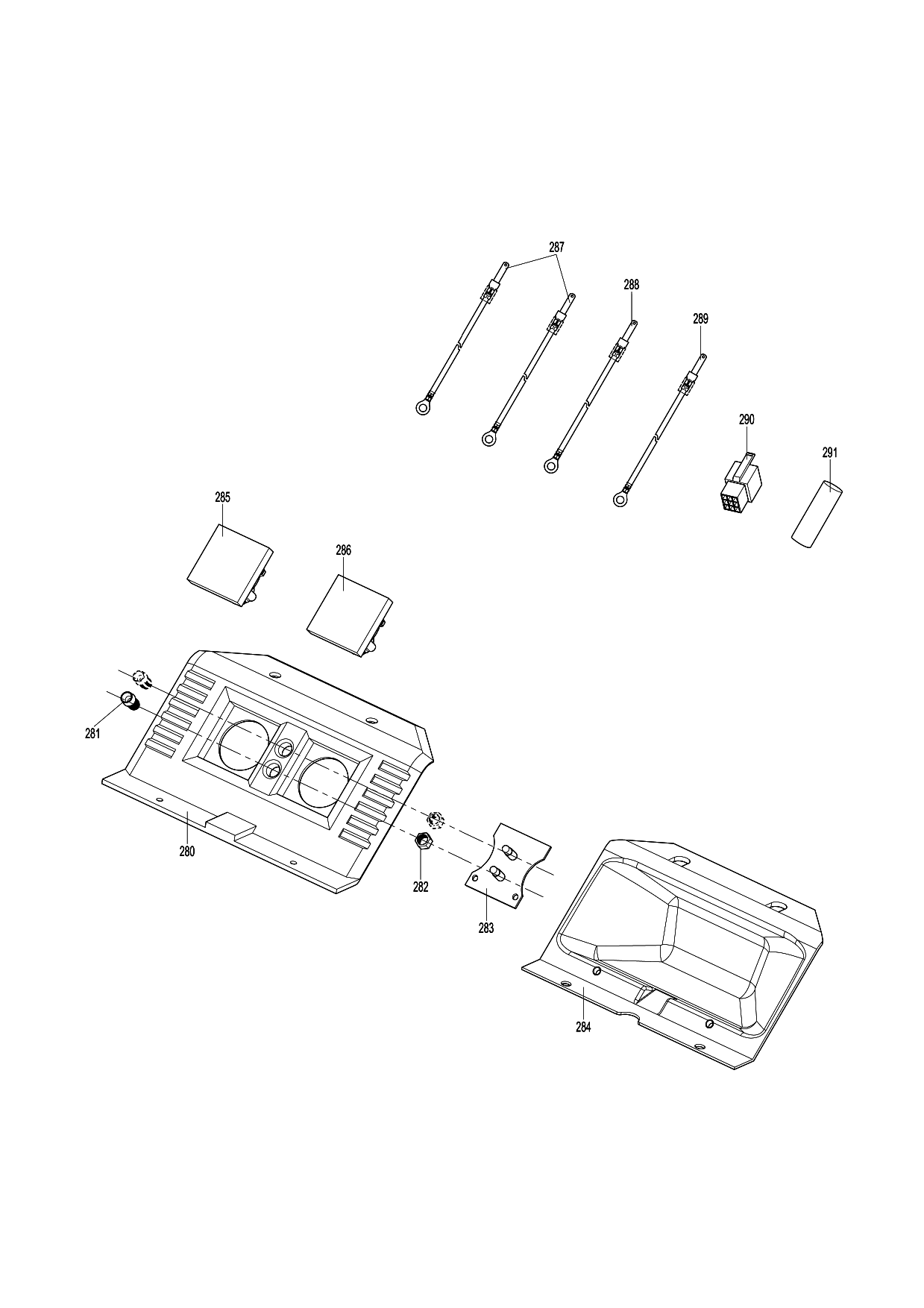

Sheet 10: Makita EG5550A parts diagram
| No. | Part number | Part name |
|---|---|---|
| 280 | YA00000238 | Makita YA00000238 BEFORE THE SMALL MASK |
| 281 | YA00000208 | Makita YA00000208 INDICATING LAMP SHADE |
| 282 | YA00000210 | Makita YA00000210 INDICATOR CAP |
| 283 | YA00000347 | Makita YA00000347 ELECTRONIC COMPONENTS |
| 284 | YA00000203 | Makita YA00000203 SMALL PANEL REAR COVER |
| 285 | YA00000376 | Makita YA00000376 VOLTMETER |
| 286 | YA00000378 | Makita YA00000378 AMMETER |
| 287 | YA00000308 | Makita YA00000308 ELETRICAL WIRE |
| 288 | YA00000309 | Makita YA00000309 ELETRICAL WIRE |
| 289 | YA00000310 | Makita YA00000310 ELETRICAL WIRE |
| 290 | YA00000200 | Makita YA00000200 MOTHER PLUG TERMINAL BLOCK |
| 291 | YA00000192 | Makita YA00000192 HEAT SHRINKABLE TUBE |
Selected parts0
