Makita EG2850A

Makita EG2850A: exploded parts diagram, 10 sheets, 213 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita EG2850A: 213 positions on 10 sheets

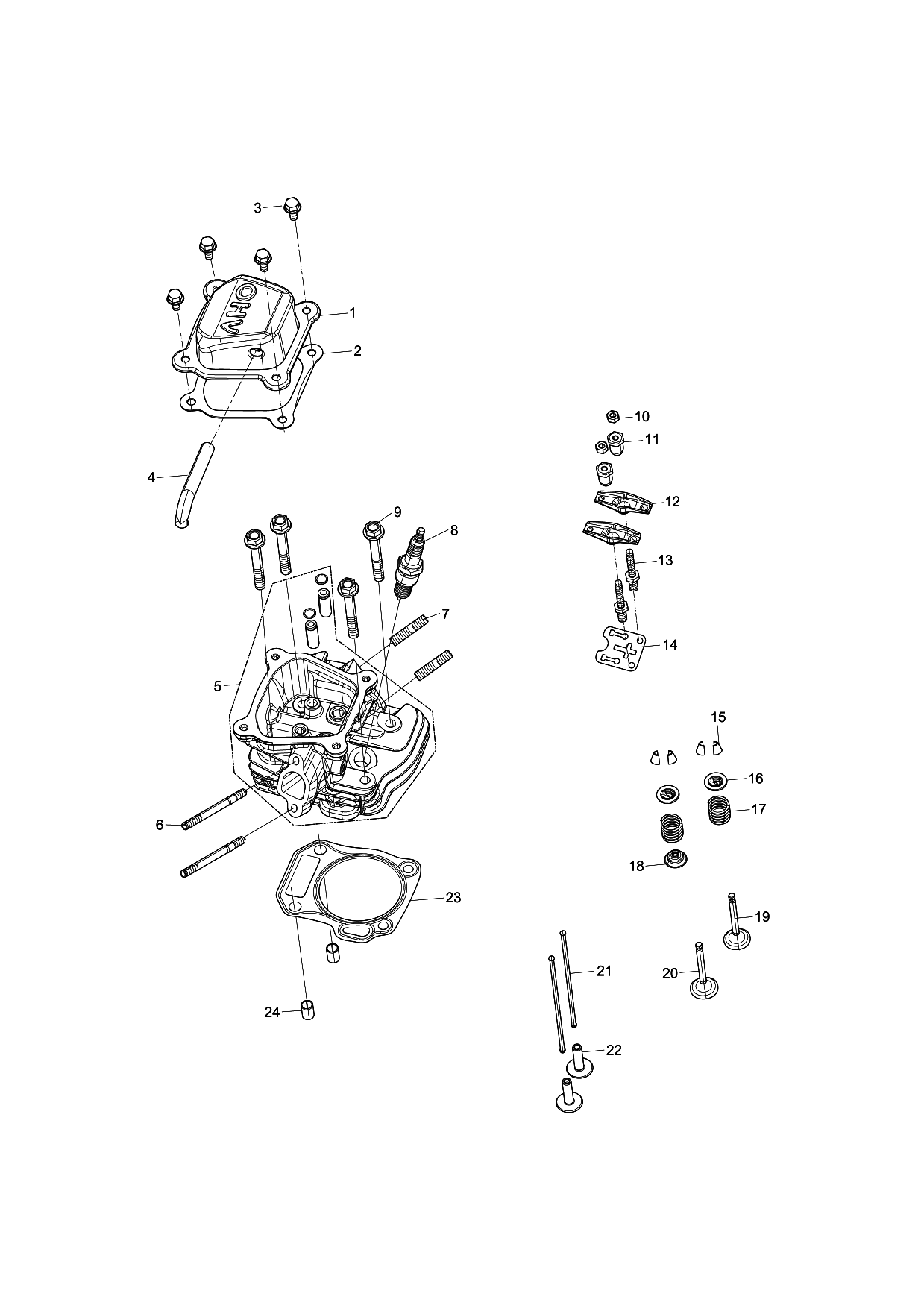

Sheet 1: Makita EG2850A parts diagram

Makita EG2850A parts diagram, sheet 1
No.Part numberPart name
1YA00000065Makita YA00000065 COVER SUBASSEMBLY, CYLINDER
2YA00000042Makita YA00000042 GASKET, CYLINDER HEAD COVER
3YA00000158Makita YA00000158 BOLT
4YA00000128Makita YA00000128 TUBE, BREATHER
5YA00000064Makita YA00000064 HEAD SUBASSEMBLY, CYLINDER
6YA00000168Makita YA00000168 STUD
7YA00000167Makita YA00000167 STUD
8YA00000147Makita YA00000147 PLUG, SPARK
9YA00000040Makita YA00000040 BOLT, CYLINDER HEAD
10YA00000098Makita YA00000098 NUT, VALVE LOCK
11YA00000100Makita YA00000100 NUT, VALVE ADJUSTING
12YA00000096Makita YA00000096 ROCKER, VALVE
13YA00000099Makita YA00000099 BOLT, ROCKER SHAFT
14YA00000092Makita YA00000092 PLATE SUBASSEMBLY, LIFTER
15YA00000050Makita YA00000050 R0TATOR, VALVE
16YA00000057Makita YA00000057 SEAT, VALVE SPRING
17YA00000048Makita YA00000048 SPRING, VALVE
18YA00000046Makita YA00000046 GUIDE, SEAL
19YA00000059Makita YA00000059 VALVE, EXHAUST
20YA00000055Makita YA00000055 VALVE, INTAKE
21YA00000089Makita YA00000089 LIFTER, VALVE
22YA00000090Makita YA00000090 TAPPET, VALVE
23YA00000062Makita YA00000062 GASKET, CYLINDER HEAD
24YA00000180Makita YA00000180 PIN

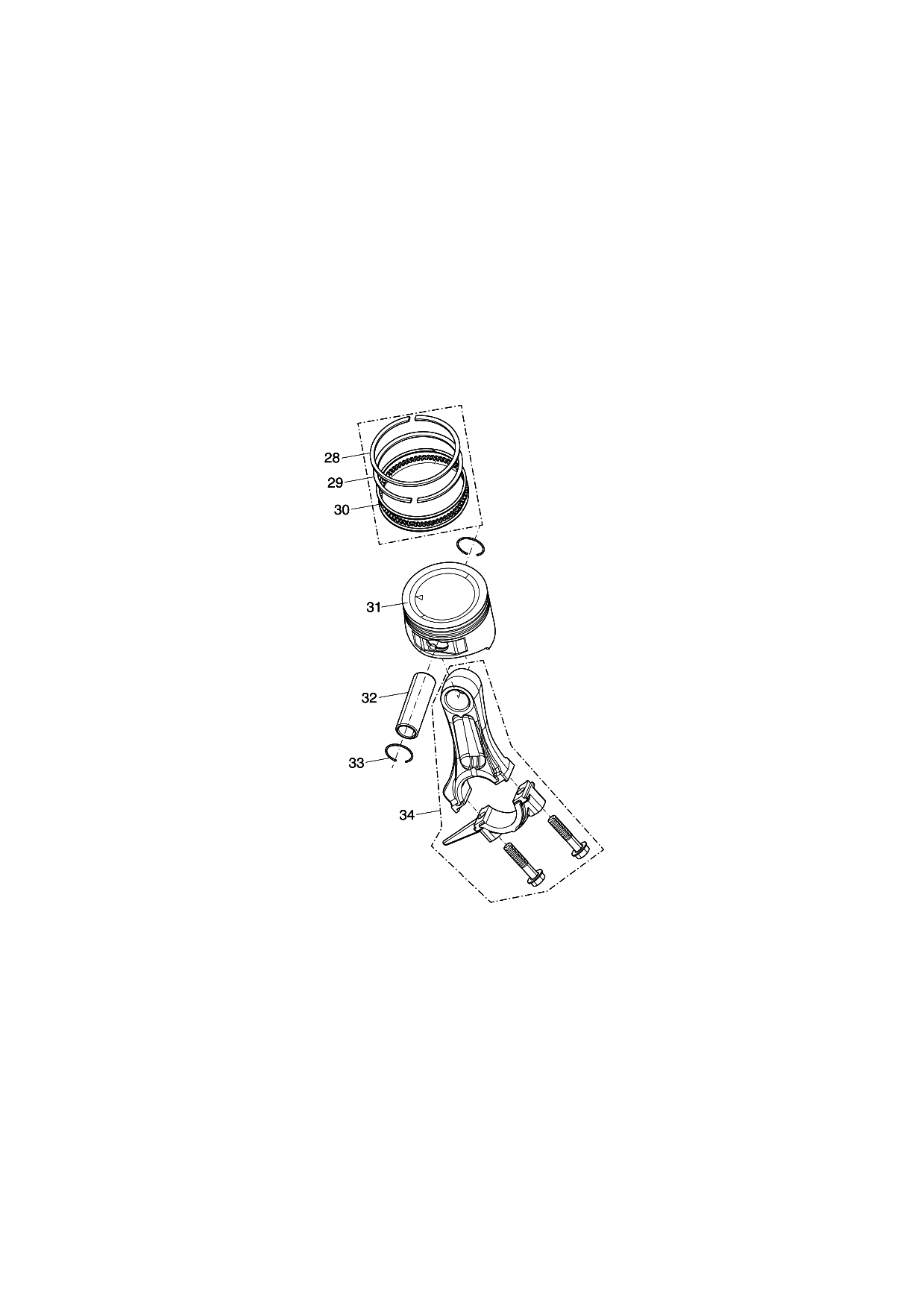

Sheet 2: Makita EG2850A parts diagram

Makita EG2850A parts diagram, sheet 2
No.Part numberPart name
28YA00000075Makita YA00000075 RING, THE FIRST
29YA00000077Makita YA00000077 RING, THE SECOND
30YA00000079Makita YA00000079 RING SET, OIL
31YA00000069Makita YA00000069 PISTON
32YA00000071Makita YA00000071 PIN, PISTON
33YA00000073Makita YA00000073 CLIP, PISTON PIN
34YA00000068Makita YA00000068 ROD, CONNECTING

Sheet 3: Makita EG2850A parts diagram

Makita EG2850A parts diagram, sheet 3
No.Part numberPart name
38YA00000037Makita YA00000037 CRANKCASE SUBASSEMBLY.
39YA00000039Makita YA00000039 COVER, CRANKCASE
40YA00000186Makita YA00000186 SEAL, OIL
41YA00000164Makita YA00000164 BOLT
42YA00000183Makita YA00000183 BEARIN, DEEP GROOVE BALL
43YA00000101Makita YA00000101 DIPSTICK SUBASSEMBLY, OIL
44YA00000033Makita YA00000033 GASKET, CRANKCASE
45YA00000179Makita YA00000179 PIN
46YA00000095Makita YA00000095 CAMSHAFT ASSY.
47YA00000082Makita YA00000082 CRANKSHAFT ASSY.
48YA00000120Makita YA00000120 GEAR ASSY, GOVERNOR
49YA00000110Makita YA00000110 ARM, GOVERNOR
50YA00000174Makita YA00000174 WASHER, FLAT
51YA00000177Makita YA00000177 PIN
53YA00000183Makita YA00000183 BEARIN, DEEP GROOVE BALL
54YA00000034Makita YA00000034 BOLT, DRAIN PLUG
55YA00000173Makita YA00000173 WASHER, FLAT
56YA00000186Makita YA00000186 SEAL, OIL

Sheet 4: Makita EG2850A parts diagram

Makita EG2850A parts diagram, sheet 4
No.Part numberPart name
60YA00000153Makita YA00000153 SENSOR, ENGINE OIL
61YA00000578Makita YA00000578 NUT
62YA00000159Makita YA00000159 BOLT
63YA00000122Makita YA00000122 CONTROL ASSY, THROTTLE
64YA00000158Makita YA00000158 BOLT
65YA00000114Makita YA00000114 SPRING, GOVERNOR
66YA00000112Makita YA00000112 ROD, GOVERNEOR
67YA00000108Makita YA00000108 SPRING,THROTTLE VALVE RETURNIN
68YA00000116Makita YA00000116 SUPPORT SUBASSEMBLY, GOVERNOR
69YA00000117Makita YA00000117 BOLT, GOVERNOR SUPPORT
70YA00000171Makita YA00000171 NUT
71YA00000150Makita YA00000150 COIL, IGNITION
72YA00000161Makita YA00000161 BOLT
73YA00000087Makita YA00000087 FLYWHEEL SUBASSEMBLY
74YA00000137Makita YA00000137 IMPELLER
75YA00000139Makita YA00000139 PULLEY,STARTER
76YA00000084Makita YA00000084 NUT, FLYWHEEL
77YA00000142Makita YA00000142 SHROUD
78YA00000157Makita YA00000157 BOLT
79YA00000135Makita YA00000135 SHIELD,LOWER
80YA00000160Makita YA00000160 BOLT
81YA00000133Makita YA00000133 SHROUD, CYLINDER BODY
83YA00000144Makita YA00000144 STARTER ASSY, RECOIL
84YA00000157Makita YA00000157 BOLT
85YA00000580Makita YA00000580 STOPPER, MOTOR RIGHT COVER
86YA00000576Makita YA00000576 BOLT
87YA00000170Makita YA00000170 NUT

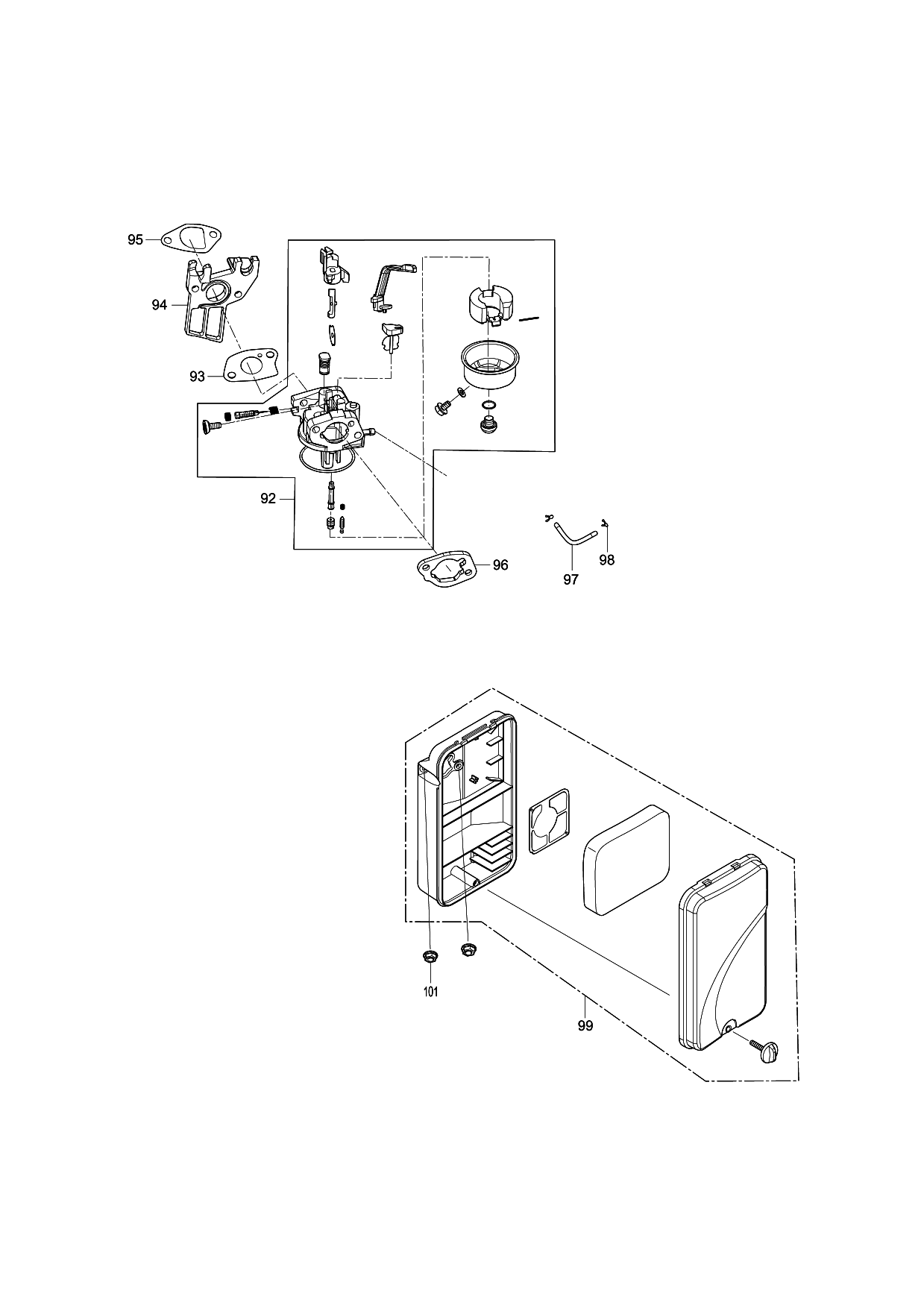

Sheet 5: Makita EG2850A parts diagram

Makita EG2850A parts diagram, sheet 5
No.Part numberPart name
92YA00000119Makita YA00000119 CARBURETOR ASSY.
93YA00000103Makita YA00000103 GASKET, CARBURETOR
94YA00000106Makita YA00000106 PLATE, CARBURETOR INSULATOR
95YA00000105Makita YA00000105 GASKET, CARBURETOR INSULATOR
96YA00000124Makita YA00000124 GASKET, AIR CLEANER
97YA00000188Makita YA00000188 TUBE, FUEL
98YA00000191Makita YA00000191 COLLAR
99YA00000130Makita YA00000130 CLEANER, AIR
101YA00000171Makita YA00000171 NUT

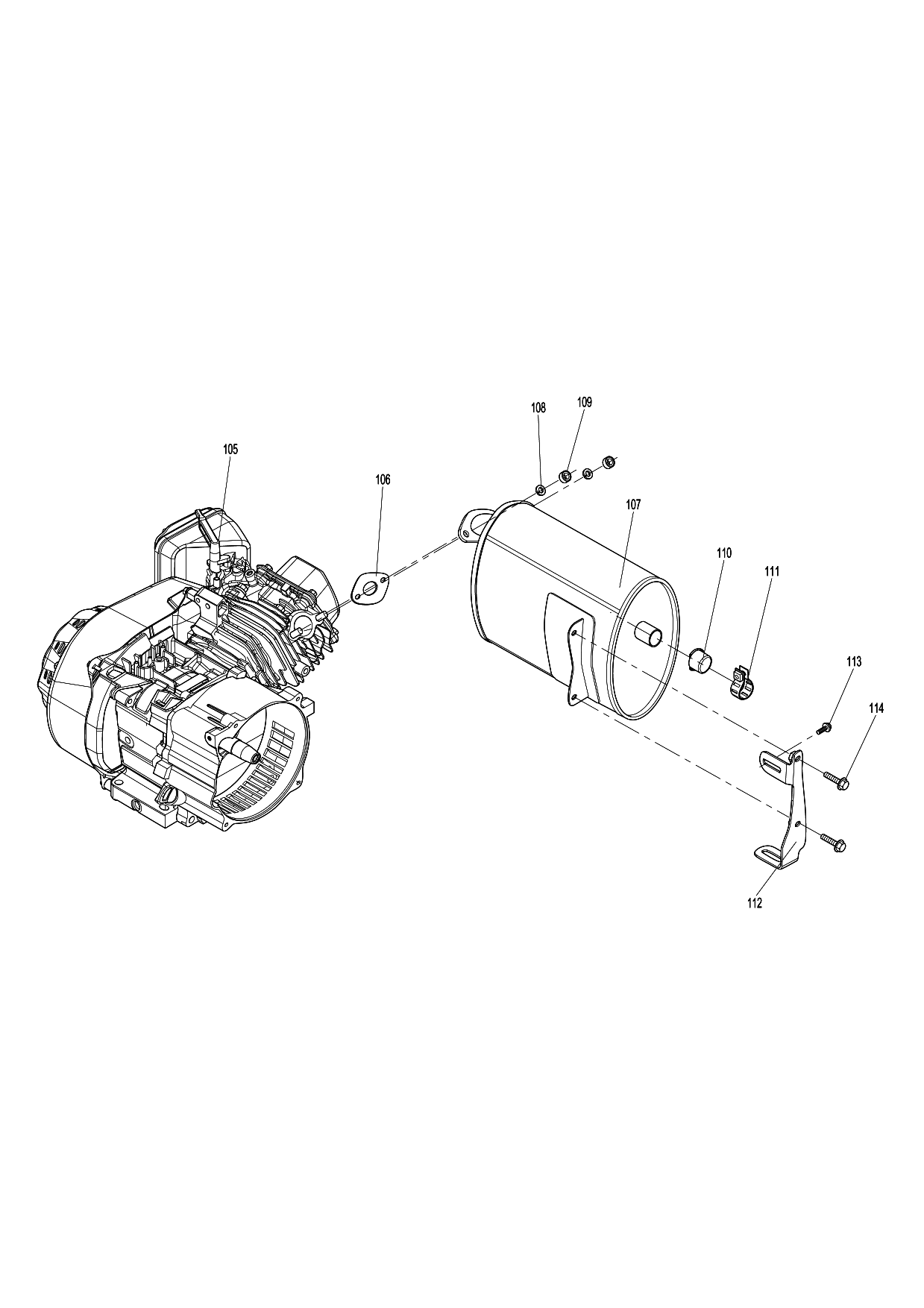

Sheet 6: Makita EG2850A parts diagram

Makita EG2850A parts diagram, sheet 6
No.Part numberPart name
105YA00000368Makita YA00000368 210 CC ENGINE
106YA00000428
107YA00000371Makita YA00000371 3 KW MUFFLER
108YA00000424Makita YA00000424 SPRING WASHER
109YA00000386Makita YA00000386 HEXAGON NUT M3
110YA00000274Makita YA00000274 SCREEN
111YA00000255Makita YA00000255 PIPE CL
112YA00000256Makita YA00000256 MUFFLER BRACKET
113YA00000411Makita YA00000411 BOLT
114YA00000410Makita YA00000410 BOLT 8*20

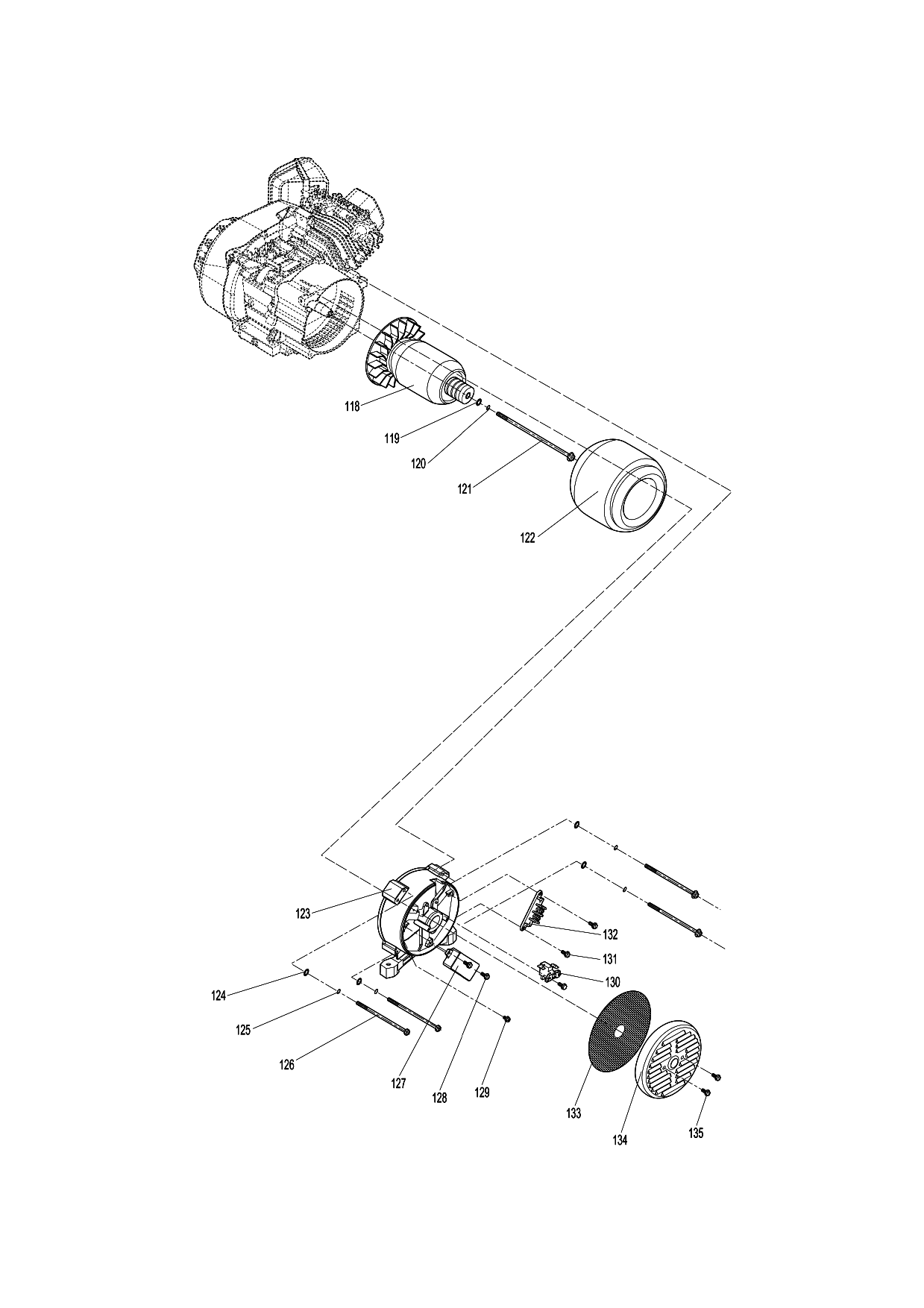

Sheet 7: Makita EG2850A parts diagram

Makita EG2850A parts diagram, sheet 7
No.Part numberPart name
118YA00000276
119YA00000420Makita YA00000420 WASHER
120YA00000424Makita YA00000424 SPRING WASHER
121YA00000245Makita YA00000245 FLANGE BOLTS
122YA00000281
123YA00000206Makita YA00000206 END COVER
124YA00000418Makita YA00000418 WASHER
125YA00000423Makita YA00000423 SPRING WASHER
126YA00000244Makita YA00000244 HEXAGON HEAD BOLTS
127YA00000379Makita YA00000379 AVR REGULATOR
128YA00000407Makita YA00000407 BOLT 5*12
129YA00000403Makita YA00000403 BOLT 5*12
130YA00000285Makita YA00000285 CARBON BRUSH
131YA00000407Makita YA00000407 BOLT 5*12
132YA00000356Makita YA00000356 SOCKET COMPONENTS
133YA00000271Makita YA00000271 SCREEN
134YA00000236Makita YA00000236 THE MOTOR HOUSING
135YA00000407Makita YA00000407 BOLT 5*12

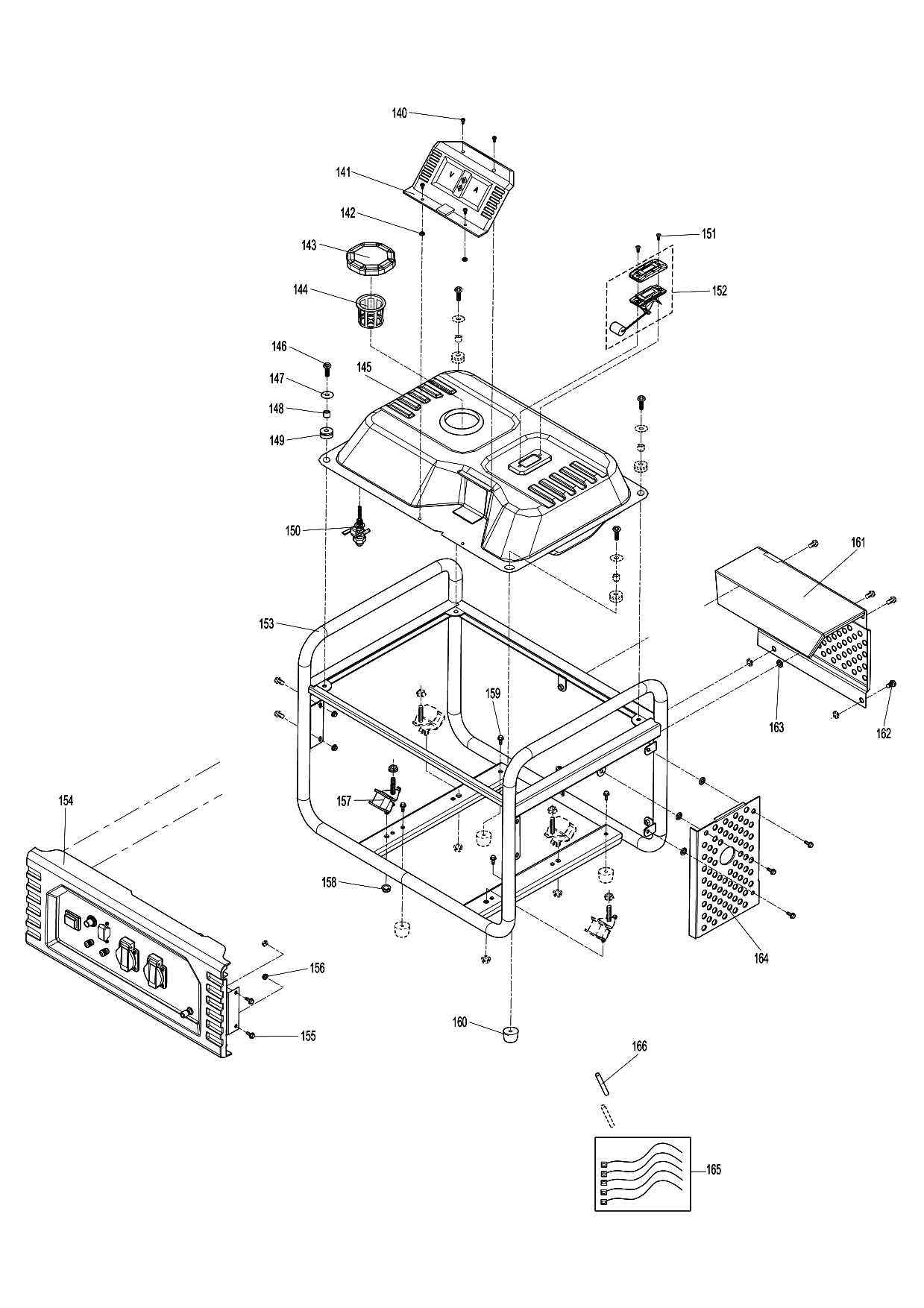

Sheet 8: Makita EG2850A parts diagram

Makita EG2850A parts diagram, sheet 8
No.Part numberPart name
140YA00000400Makita YA00000400 MACHINE SCREW
141YA00000354Makita YA00000354 SMALL PANEL COMPONENTS
142YA00000392Makita YA00000392 TYPE 1 NON-METALLIC HEX NUTS
143YA00000349Makita YA00000349 FUEL TANK CAP ASSEMBLY
144YA00000375Makita YA00000375 FUEL FILTER
145YA00000221Makita YA00000221 TANK
146YA00000415Makita YA00000415 HEX FLANG BOLT 6*25
147YA00000241Makita YA00000241 BIG TANK GASKET
148YA00000214Makita YA00000214 TANK CUSHION CASING
149YA00000267Makita YA00000267 TANK CUSHION
150YA00000211Makita YA00000211 FUEL TANK SWITCH
151YA00000398Makita YA00000398 SUNK SCREW 5*14
152YA00000348Makita YA00000348 THE FUEL INDICATOR COMPONENTS
153YA00000352Makita YA00000352 2.6 KW RACK COMPONENTS
154YA00000357Makita YA00000357 2.6 KW PANEL COMPONENT
155YA00000412Makita YA00000412 BOLT
156YA00000387Makita YA00000387 FLANGE LOCK NUT M6
157YA00000268Makita YA00000268 168 CUSHIONS
158YA00000388Makita YA00000388 FLANGE LOCK NUT M8
159YA00000412Makita YA00000412 BOLT
160YA00000219Makita YA00000219 FOOT RUBBER SEAT
161YA00000223Makita YA00000223 SIDE GUARD PLATE
162YA00000412Makita YA00000412 BOLT
163YA00000574Makita YA00000574 CHECK WASHER
164YA00000224Makita YA00000224 BEFORE THE PROTECTIVE PLATE
165YA00000195Makita YA00000195 A SMALL CABLE TIE
166YA00000196Makita YA00000196 COTTON VARNISHED SLEEVE 0.4M

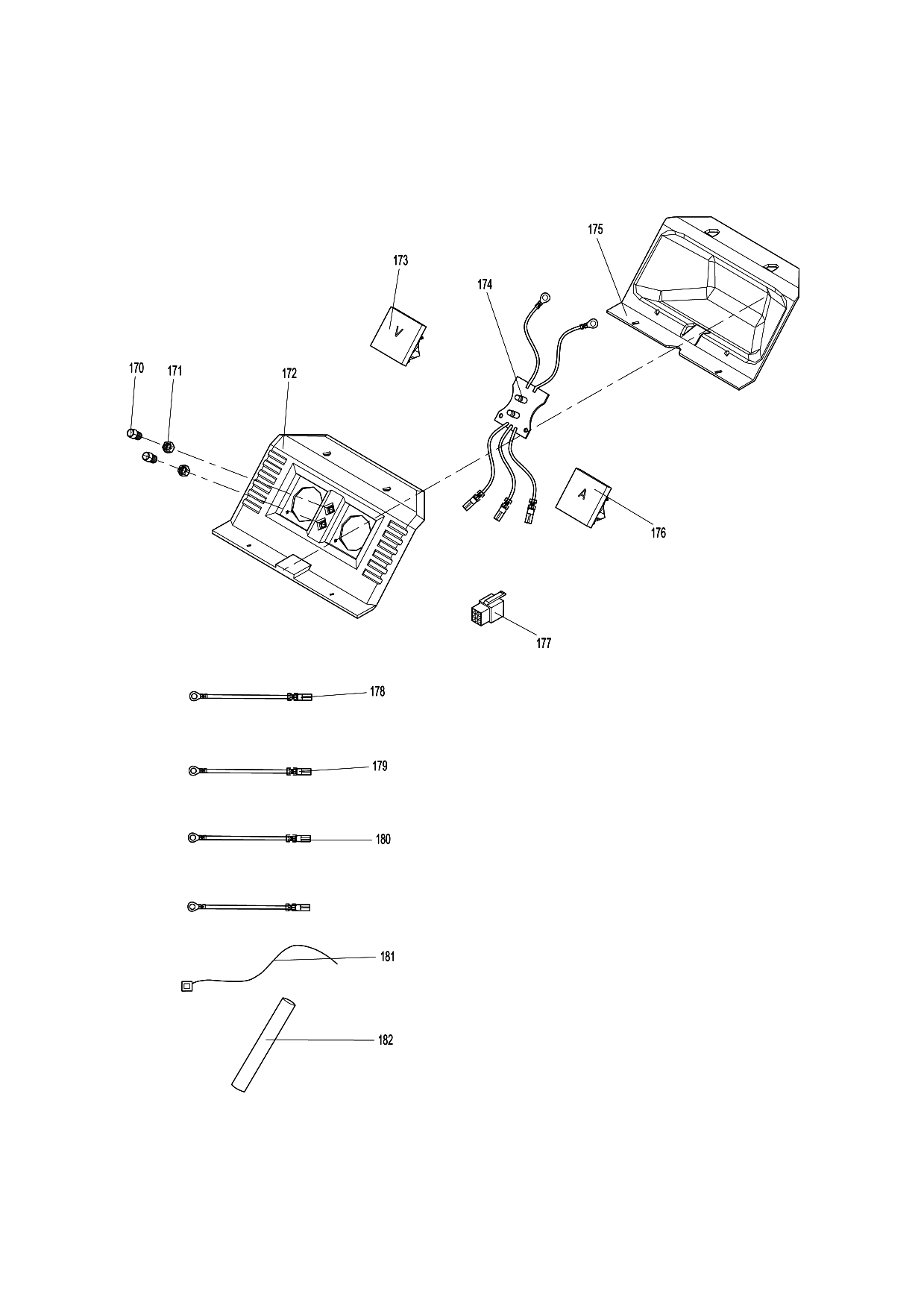

Sheet 9: Makita EG2850A parts diagram

Makita EG2850A parts diagram, sheet 9
No.Part numberPart name
170YA00000208Makita YA00000208 INDICATING LAMP SHADE
171YA00000210Makita YA00000210 INDICATOR CAP
172YA00000238Makita YA00000238 BEFORE THE SMALL MASK
173YA00000376Makita YA00000376 VOLTMETER
174YA00000347Makita YA00000347 ELECTRONIC COMPONENTS
175YA00000203Makita YA00000203 SMALL PANEL REAR COVER
176YA00000377Makita YA00000377 AMMETER
177YA00000200Makita YA00000200 MOTHER PLUG TERMINAL BLOCK
178YA00000310Makita YA00000310 ELETRICAL WIRE
179YA00000309Makita YA00000309 ELETRICAL WIRE
180YA00000308Makita YA00000308 ELETRICAL WIRE
181YA00000195Makita YA00000195 A SMALL CABLE TIE
182YA00000192Makita YA00000192 HEAT SHRINKABLE TUBE

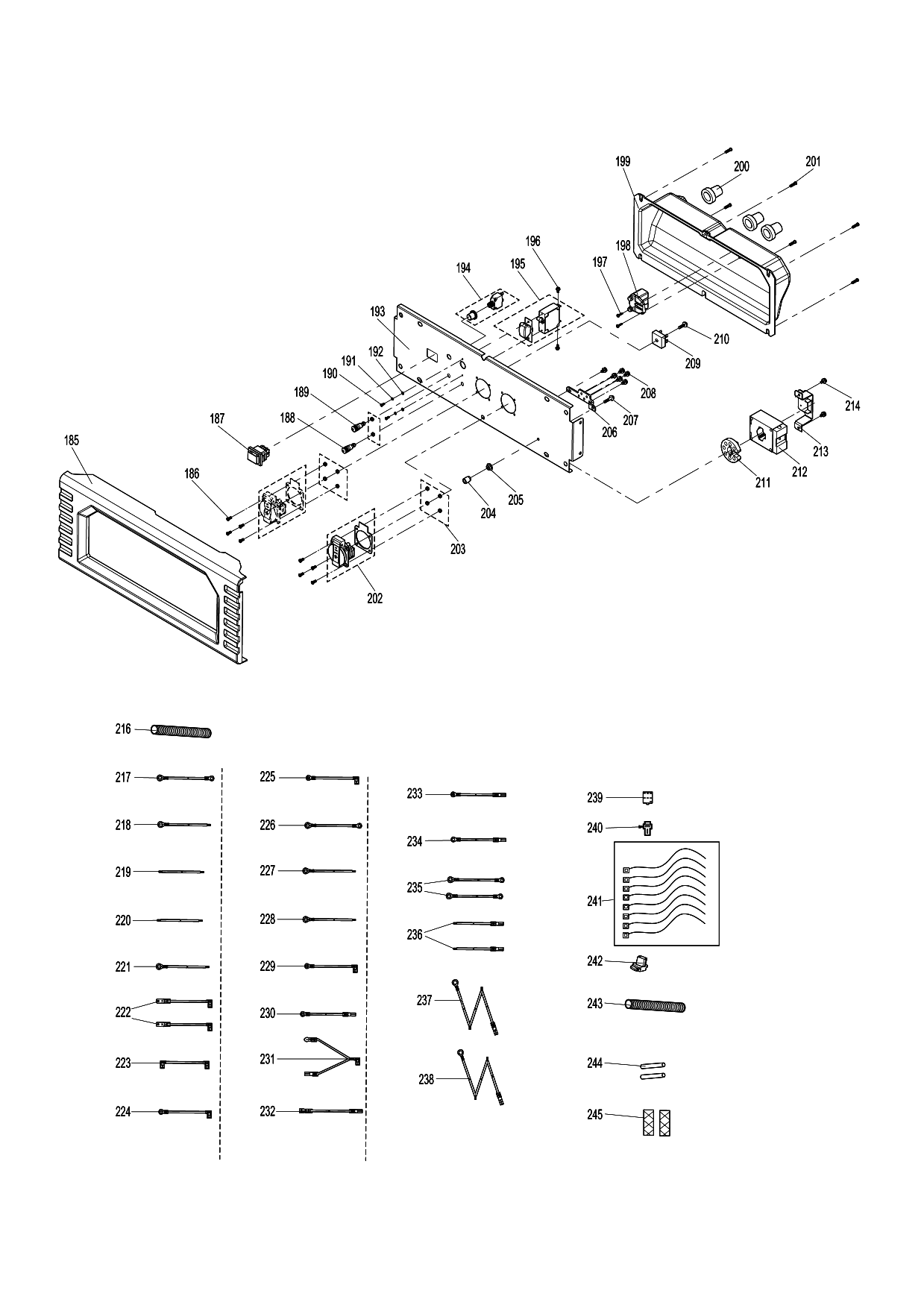

Sheet 10: Makita EG2850A parts diagram

Makita EG2850A parts diagram, sheet 10
No.Part numberPart name
185YA00000237Makita YA00000237 THE FRONT PANEL
186YA00000397Makita YA00000397 MACHINE THREAD SCREW 4*10
187YA00000212Makita YA00000212 BECOME WARPED PLATE SWITCH
188YA00000351Makita YA00000351 BLACK DC TERMINAL ASSEMBLY
189YA00000350Makita YA00000350 RED DC TERMINAL ASSEMBLY
190YA00000399Makita YA00000399 THE TROUGH PAN HEAD SCREWS 3*1
191YA00000422Makita YA00000422 ELASTIC WASHER
192YA00000416Makita YA00000416 WASHER
193YA00000225Makita YA00000225 METAL PANEL
194YA00000341Makita YA00000341 OVER-CURRENT PROTECTOR
195YA00000382Makita YA00000382 THE HYDRAULIC BREAKER
196YA00000402Makita YA00000402 THREE COMBINATION SCREW
197YA00000405Makita YA00000405 FLANGE SURFACE SELF TAPPING
198
199YA00000202Makita YA00000202 AFTER THE PANEL COVER
200YA00000264Makita YA00000264 PANEL SHEATHING
201YA00000406Makita YA00000406 PAN HEAD FLANGE SCREW4*16
202YA00000589Makita YA00000589 BS PLUG
203YA00000392Makita YA00000392 TYPE 1 NON-METALLIC HEX NUTS
204YA00000209Makita YA00000209 GROUND NUT
205YA00000389Makita YA00000389 HEXAGON NUTS WITH FLANGE
206YA00000231Makita YA00000231 GROUND WIRE FIXED PLATE
207YA00000407Makita YA00000407 BOLT 5*12
208YA00000403Makita YA00000403 BOLT 5*12
209YA00000343Makita YA00000343 RECTIFIER BRIDGE
210YA00000404Makita YA00000404 MACHINE WITH SCREW5*20
211YA00000218Makita YA00000218 BLOCK ALIGNMENT
212YA00000345Makita YA00000345 TRANSFORMER
213YA00000233Makita YA00000233 TRANSFORMER FIXED PLATE
214YA00000403Makita YA00000403 BOLT 5*12
216YA00000193Makita YA00000193 WIRE COVER 0.22M
217YA00000287Makita YA00000287 CONNECTING WIRE
218YA00000288Makita YA00000288 CONNECTING WIRE
219YA00000289Makita YA00000289 CONNECTING WIRE
220YA00000290Makita YA00000290 CONNECTING WIRE
221YA00000291Makita YA00000291 CONNECTING WIRE
222YA00000292Makita YA00000292 CONNECTING WIRE
223YA00000293Makita YA00000293 CONNECTING WIRE
224YA00000294Makita YA00000294 CONNECTING WIRE
225YA00000295Makita YA00000295 CONNECTING WIRE
226YA00000296Makita YA00000296 CONNECTING WIRE
227YA00000297Makita YA00000297 CONNECTING WIRE
228YA00000298Makita YA00000298 CONNECTING WIRE
229YA00000299Makita YA00000299 CONNECTING WIRE
230YA00000301Makita YA00000301 CONNECTING WIRE
231YA00000302Makita YA00000302 CONNECTING WIRE
232YA00000303Makita YA00000303 CONNECTING WIRE
233YA00000304Makita YA00000304 CONNECTING WIRE
234YA00000305Makita YA00000305 CONNECTING WIRE
235YA00000306Makita YA00000306 CONNECTING WIRE
236YA00000307Makita YA00000307 CONNECTING WIRE
237
238
239YA00000201Makita YA00000201 MALE PLUG TERMINAL BLOCK
240YA00000200Makita YA00000200 MOTHER PLUG TERMINAL BLOCK
241YA00000195Makita YA00000195 A SMALL CABLE TIE
242YA00000263Makita YA00000263 END COVER SHEATH
243YA00000193Makita YA00000193 WIRE COVER 0.22M
244YA00000569Makita YA00000569 HEAT-SHRINKABLE TUBE0.1M
245YA00000570Makita YA00000570 TERMINAL
