Makita EG241A

Makita EG241A: exploded parts diagram, 11 sheets, 230 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita EG241A: 230 positions on 11 sheets

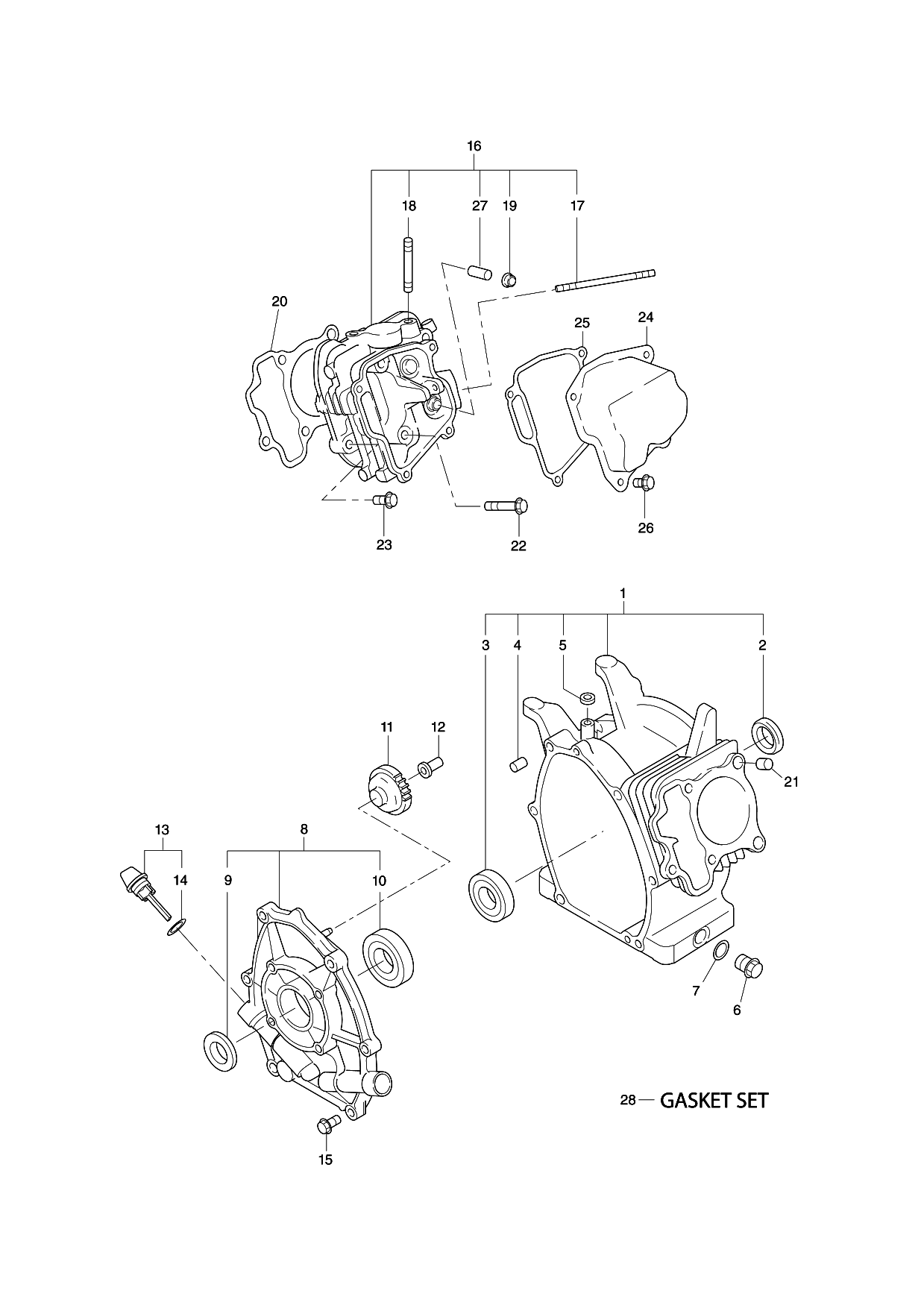

Sheet 1: Makita EG241A parts diagram

Makita EG241A parts diagram, sheet 1
No.Part numberPart name
12771010251Makita 2771010251 CRANK CASE CPL
20440250200Makita 0440250200 OIL SEAL25DX38DX7BG2501
30600280021Makita 0600280021 BALL BEARING 62/2828X5816
42771501103
50440060020Makita 0440060020 OIL SEAL 6DX10DX2.5B
60401140030Makita 0401140030 PLUG
70211140020Makita 0211140020 GASKET
82771100131Makita 2771100131 MAIN BEARING COVER
90440250210Makita 0440250210 OIL SEAL25DX41.25X6BG2501
10X600250140Makita X600250140 BALL BEARING 6205G250
1127745004J1Makita 27745004J1 GOVERNOR GEAR CP GE4300L
122774190103Makita 2774190103 GOVERNOR SLEEVE
132776360130Makita 2776360130 OIL GAUGE
142776360108Makita 2776360108 GASKET
150010408350Makita 0010408350 FLANGE BOLTGE2800IS
162771300211Makita 2771300211 CYLINDER HEAD CPL.
170105060351Makita 0105060351 STUD M6X1.0X98LGE2800IS
180105080290Makita 0105080290 MUFFLER STUD
192771601001Makita 2771601001 STEM SEALGE1100
202771500133Makita 2771500133 GASKET(HEAD)G250I
212771501103
220110080240Makita 0110080240 FLANGE BOLT M8X1.25XGE2800IS
230110080310Makita 0110080310 FLANGE BOLT M8X33LGE2800IS
242771550301Makita 2771550301 ROCKER COVERGE2800IS
252771600113Makita 2771600113 GASKET (ROCKER COVER) G4300L
260110060020Makita 0110060020 FLANGE BOLT
272371420203Makita 2371420203 VALVE GUIDE

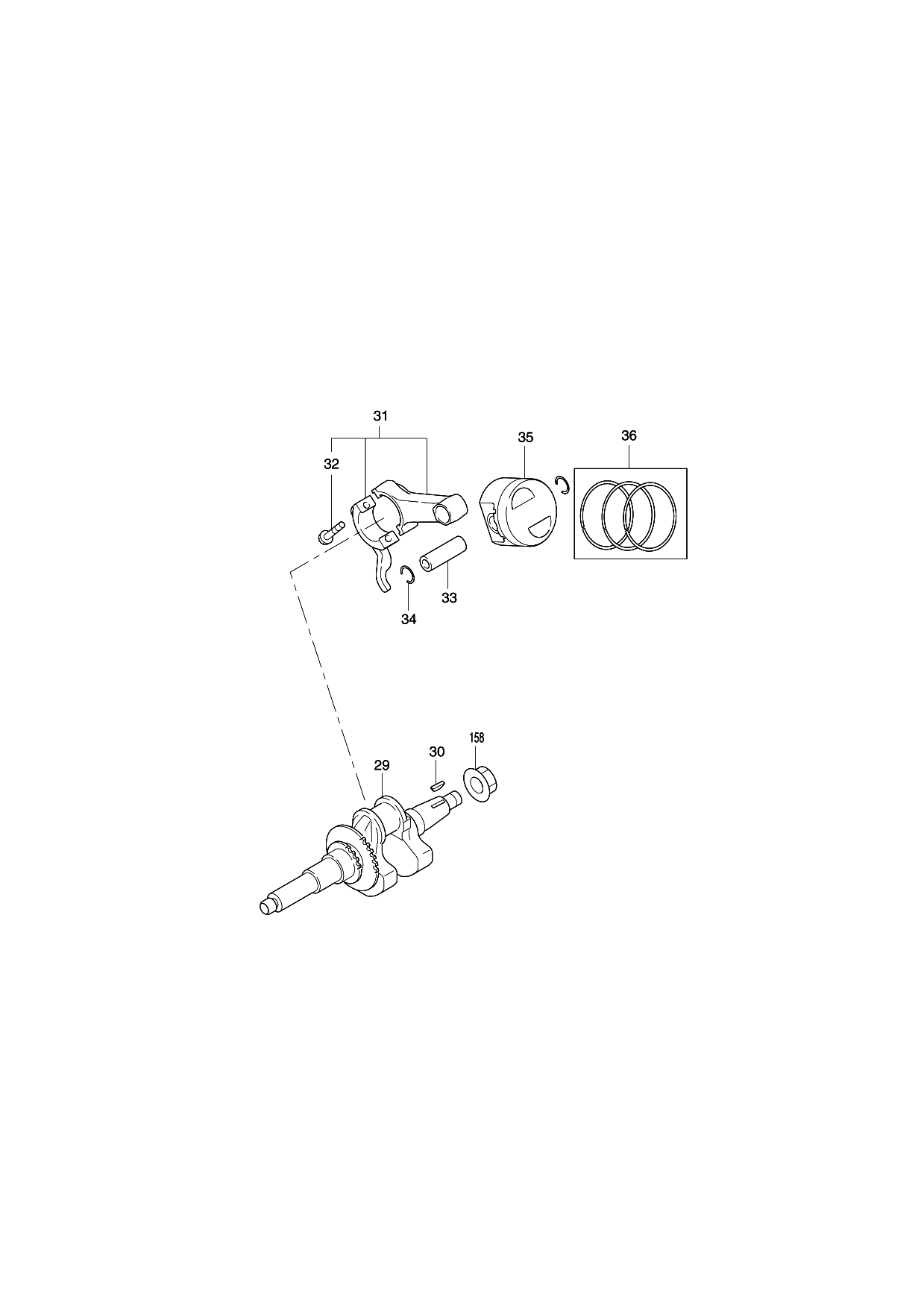

Sheet 2: Makita EG241A parts diagram

Makita EG241A parts diagram, sheet 2
No.Part numberPart name
292772070121Makita 2772070121 CRANKSHAFT COMPLETEG250IS
300323030010Makita 0323030010 WOODRUFF KEY
312772250110Makita 2772250110 CONNECTING RODG2501
322772300103Makita 2772300103 CONNECTING ROD BOLT
332772330113Makita 2772330113 PISTON PIN 16X11X48
340565160010Makita 0565160010 CLIP
3527723401J3Makita 27723401J3 PISTON STDG250I
362772353107Makita 2772353107 PISTON RING SETEG240C
1580180140020

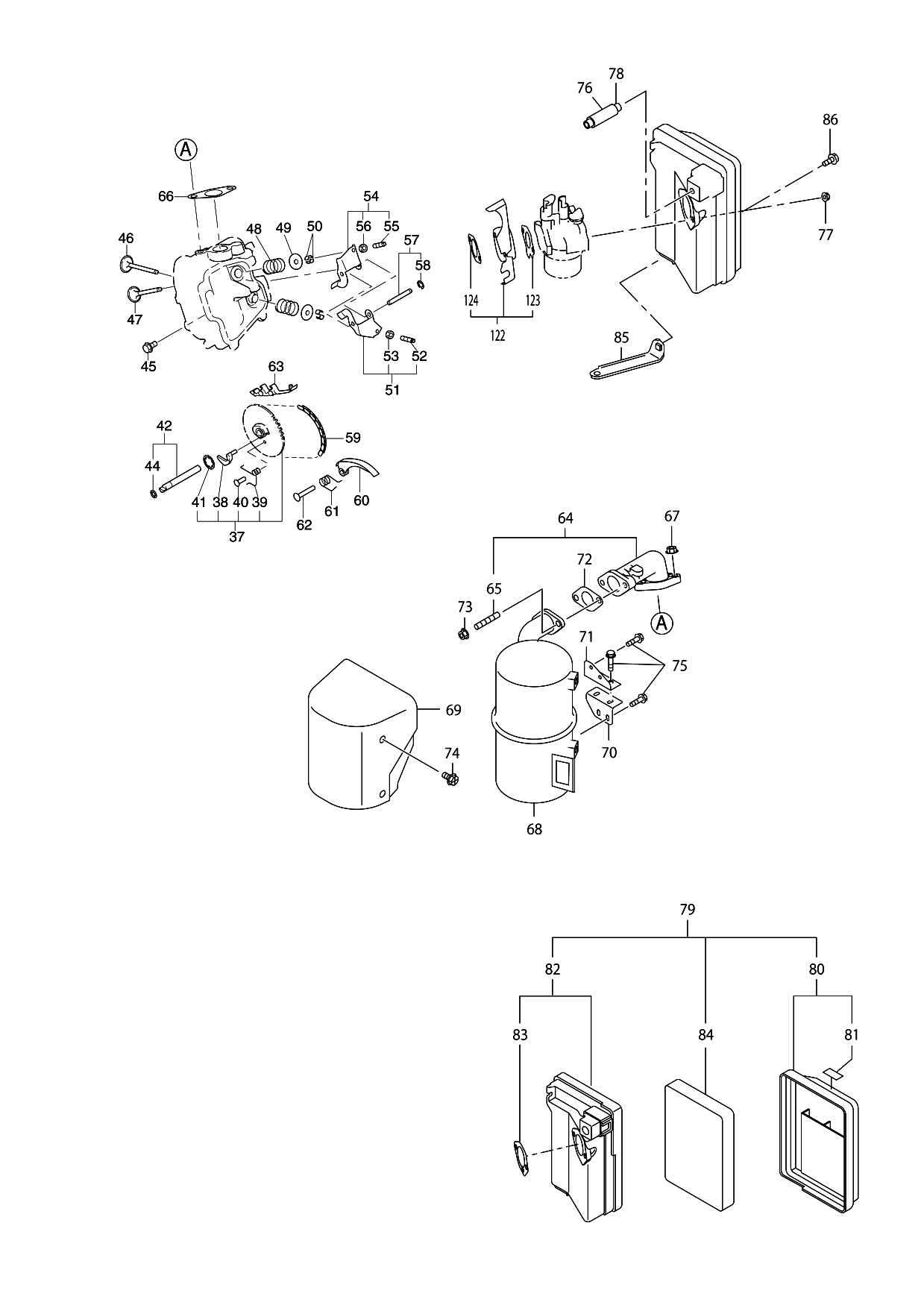

Sheet 3: Makita EG241A parts diagram

Makita EG241A parts diagram, sheet 3
No.Part numberPart name
372783160131Makita 2783160131 CAM SHAFT CPL.
382773640103Makita 2773640103 RELEASE LEVERGE2800IS
392793870113Makita 2793870113 RETURN SPRING
402773860103Makita 2773860103 PIN(SPRING) 4X8X6
412773650103Makita 2773650103 CLIP 13.8X20.3X0.4
422773510101Makita 2773510101 PIN(CAM SHAFT)
440240060010Makita 0240060010 O-RING 5.8X9.6
450110060010Makita 0110060010 FLANGE BOLT
4627733401H3Makita 27733401H3 INTAKE VALVEMKR600
4727733501H3Makita 27733501H3 EXHAUST VALVEMKR600
482793360103Makita 2793360103 VALVE SPINGGE2800IS
492693370103Makita 2693370103 SPRING RETAINERGE2800IS
5013210KA031Makita 13210KA031 COLLET VALVEGE1100
512773620100Makita 2773620100 LOCKER ARM (INTAKE)G2501
520149050020Makita 0149050020 ADJUST SCREW M5X23GE2800IS
530170050030Makita 0170050030 NUT M5GE2800IS
542773620200Makita 2773620200 LOCKER ARM (exhaust)G2501
550149050020Makita 0149050020 ADJUST SCREW M5X23GE2800IS
560170050030Makita 0170050030 NUT M5GE2800IS
572773500401Makita 2773500401 PIN(ROCKER)
580031305000Makita 0031305000 CLIP
592773560111
602773691103Makita 2773691103 TENSIONERGE2800IS
612773710103Makita 2773710103 SPRING(TENSIONER)GE2800IS
622773690203Makita 2773690203 PIN(TENSIONER) 6DX13GE2800IS
632773691313Makita 2773691313 CHAIN GUIDEGE2800IS
642773400101Makita 2773400101 EXHAUST PIPE CPL.
650105080290Makita 0105080290 MUFFLER STUD
662773520113Makita 2773520113 GASKET(MUFFLER)GE2800IS
679802008280
682773051101
692773470101
702773910101
712773910201
722773520101
739802008280
740110060010Makita 0110060010 FLANGE BOLT
750011406160Makita 0011406160 BOLT & WASHER ASS Y
762776900103
770023806000Makita 0023806000 FLANGE NUT
782773276208Makita 2773276208 BREATHER PIPE
802773264318Makita 2773264318 COVER CP
810732004430Makita 0732004430 LABEL (CHOKE)
822773263208Makita 2773263208 BASE COMPLG2501
832773260408Makita 2773260408 PACKINGG2501
842773266117Makita 2773266117 ELEMENTGE2800IS
852773900101Makita 2773900101 BRACKET(AIR CLEANER)CPL.
860110060050Makita 0110060050 FLANGE BOLT
12227732902J1Makita 27732902J1 INSULATOR COMPLETE
12327735902J3Makita 27735902J3 GASKET
12427735903J3Makita 27735903J3 GASKET INSULATOR

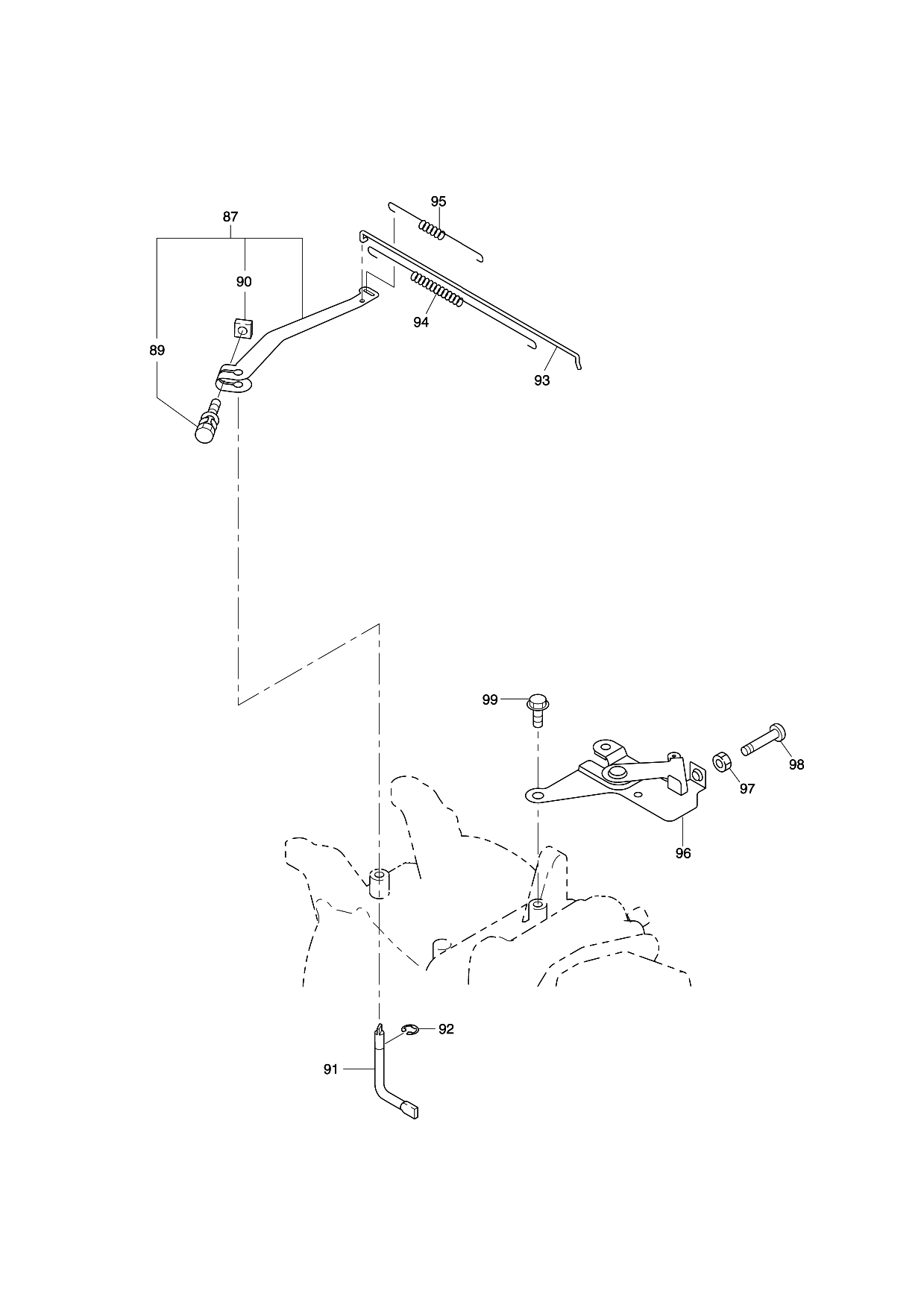

Sheet 4: Makita EG241A parts diagram

Makita EG241A parts diagram, sheet 4
No.Part numberPart name
872774230140Makita 2774230140 GOVERNOR LEVER
890130060240
900186060020Makita 0186060020 NUT
912774220133Makita 2774220133 GOVERNOR SHAFT
920031305000Makita 0031305000 CLIP
932774270111Makita 2774270111 GOVERNOR ROD
942774280123Makita 2774280123 ROD SPRING 7DX.5DX182L N=16 G2900LX
952794250543Makita 2794250543 GOVERNOR SPRINGEG240C
962774650111Makita 2774650111 SPEED CONTROL CPL.
970021706000Makita 0021706000 NUT M6
980043106400Makita 0043106400 SCREW
990110060020Makita 0110060020 FLANGE BOLT

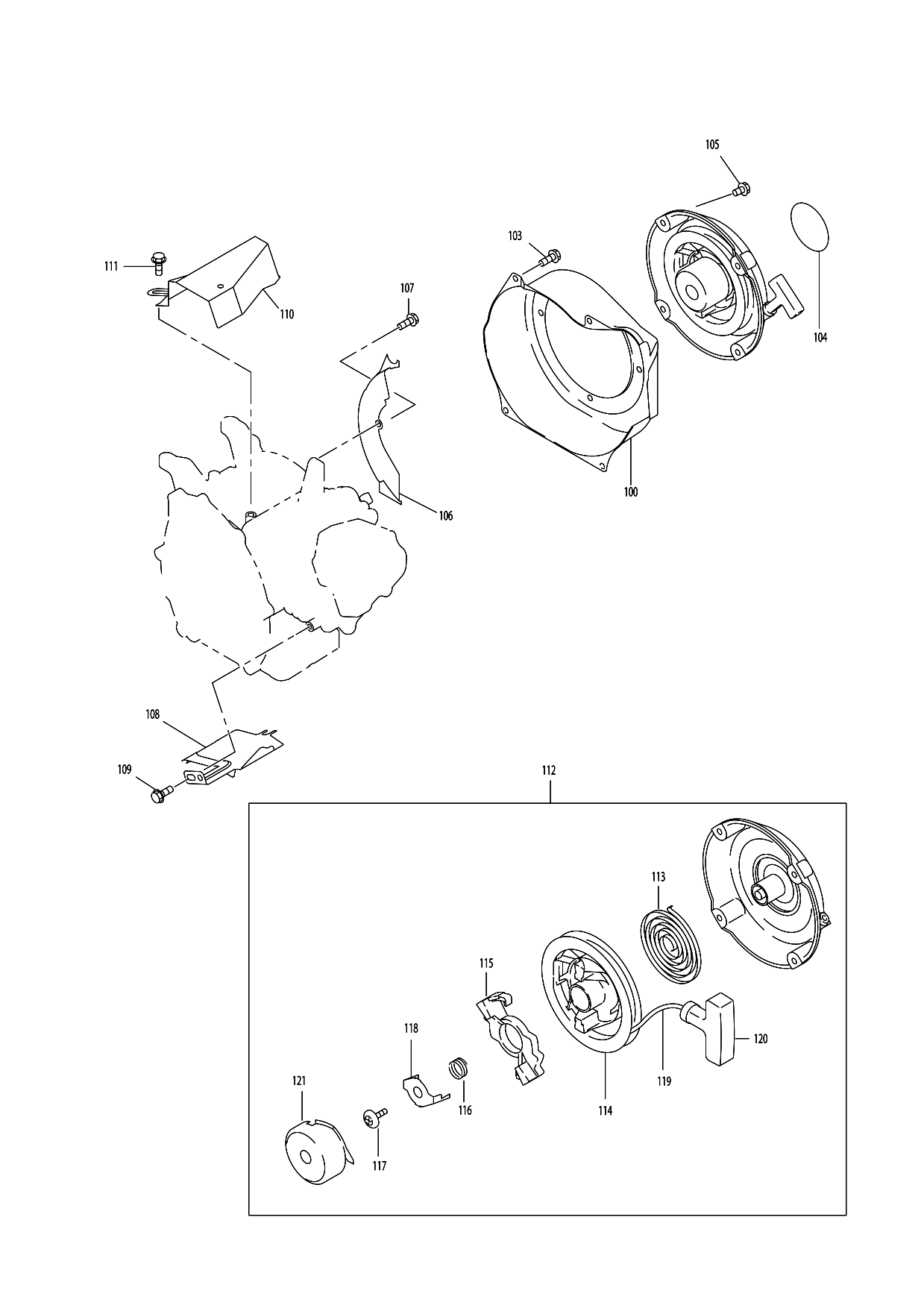

Sheet 5: Makita EG241A parts diagram

Makita EG241A parts diagram, sheet 5
No.Part numberPart name

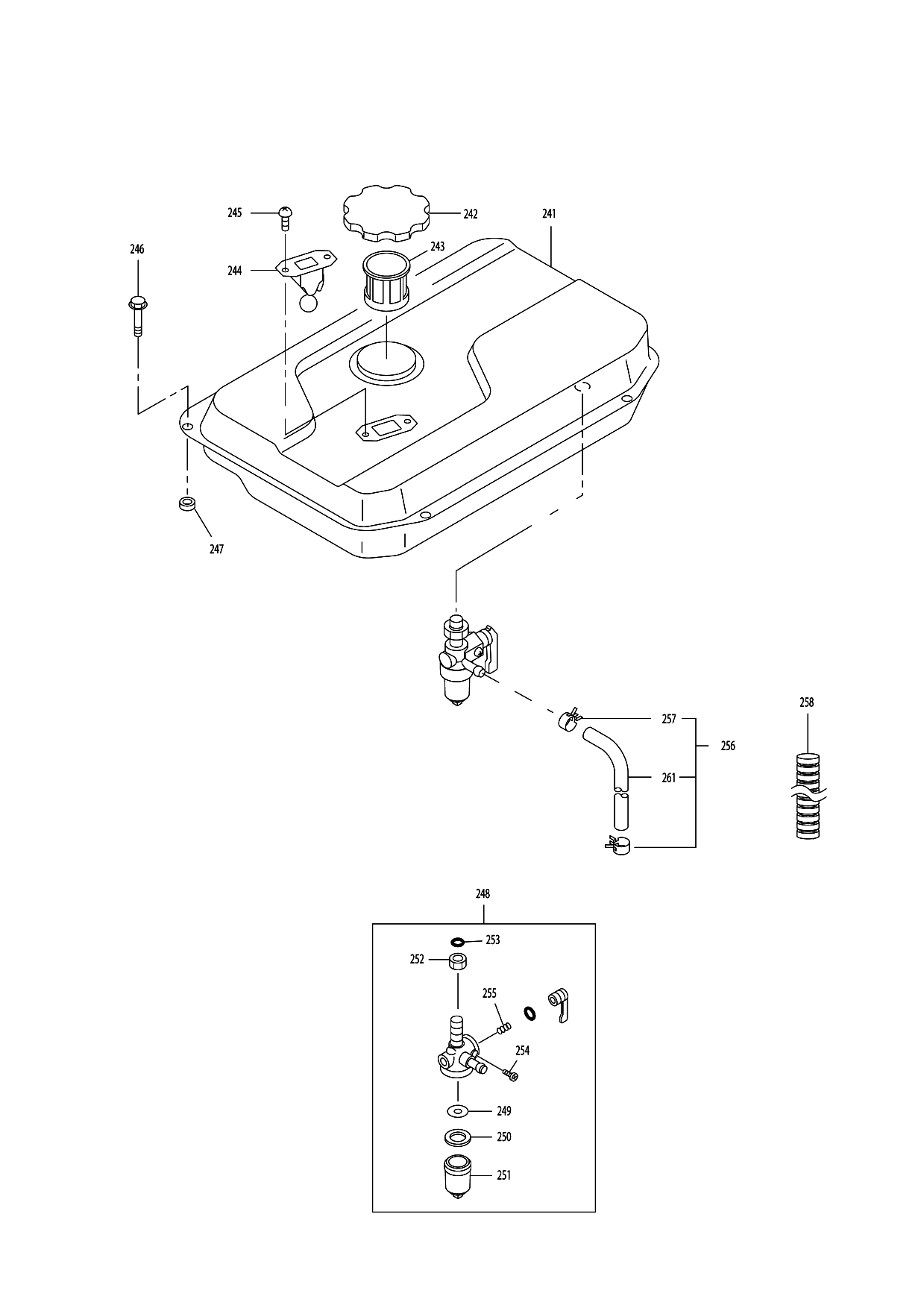

Sheet 6: Makita EG241A parts diagram

Makita EG241A parts diagram, sheet 6
No.Part numberPart name
2412706172201Makita 2706172201 FUEL TANK CP EG241A
2420430590011Makita 0430590011 FUEL TANK CAP. CPLGE2800IS
2430641540011Makita 0641540011 Fuel Filter for GE2800IS
2440648001800Makita 0648001800 FUEL GAUGE CP EG241A
2450145050040Makita 0145050040 SCREW
2460110060220Makita 0110060220 FLANGE BOLT
2473913900013Makita 3913900013 RUBBER (TANK)GE2800IS
2490642004110Makita 0642004110 Filter for EW310TR
2500642001430Makita 0642001430 PACKING EW310TR
2510642001410Makita 0642001410 CUP EW310TR
2520642010030Makita 0642010030 LOCK NUT G4100R
2530642000330Makita 0642000330 O-RING
2540642002790
2550642003230Makita 0642003230 SPRING EW310TR
2570561110020Makita 0561110020 HOSE CLAMP
25836A6000108Makita 36A6000108 CORRUGATED TUBE(100)EG241A
261

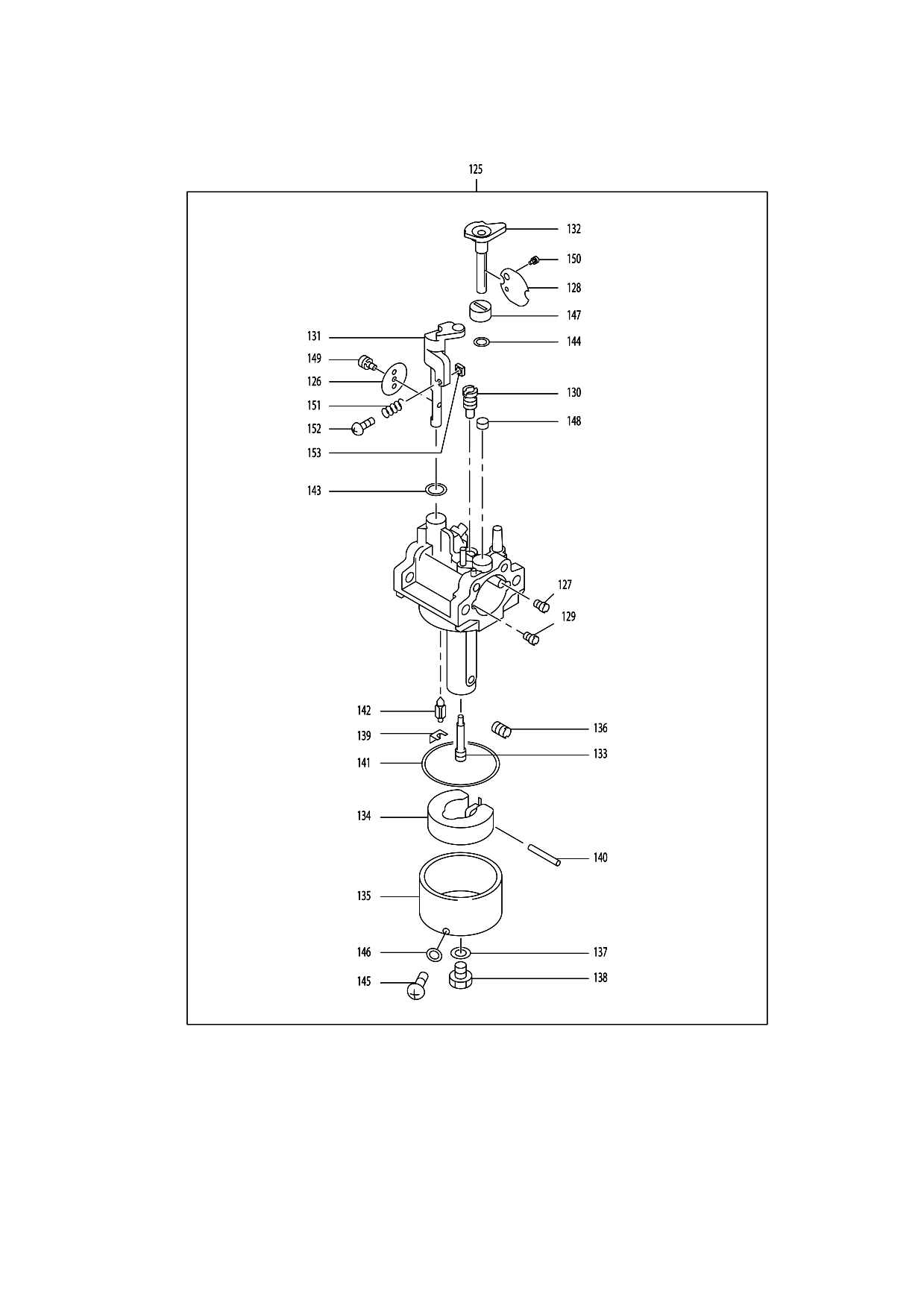

Sheet 7: Makita EG241A parts diagram

Makita EG241A parts diagram, sheet 7
No.Part numberPart name
1262776253508Makita 2776253508 THROTTLE VALVEGE2800L
1271066241008Makita 1066241008 AIR JET (PILOT)GE2800L
1282776252708Makita 2776252708 VALVE CHOKEG2900LX
1292486241008Makita 2486241008 AIR JETGE2800L
1302466242008Makita 2466242008 PILOT JET (40)GE2800L
1312776253118Makita 2776253118 THROTTLE SHAFT-AGE2800L
1322776252208Makita 2776252208 CHOKE LEVER EG241A
1332776244008Makita 2776244008 MAIN NOZZLE GE2800L
1342266250608Makita 2266250608 FLOAT ASS Y
1352776250608Makita 2776250608 FLOAT BODY GE2800L
1362776240208Makita 2776240208 MAIN JET ��81.3GE2800L
1372146245008Makita 2146245008 PACKING
1382276245108Makita 2276245108 BOLT
1392266270118Makita 2266270118 CLIPGE2800L
1402776251508Makita 2776251508 PIN GE2800L
1412146254008Makita 2146254008 FLOAT CHAMBER PACKING
1422776250008Makita 2776250008 NEEDLEGE2800L
1432466239008Makita 2466239008 SEAL
1442366268008Makita 2366268008 SEAL
1452776236008
1462366254108Makita 2366254108 PACKING GE2800L
1472776257028
1482776257108Makita 2776257108 RING
1492096235108Makita 2096235108 SCREW ASS Y
1502376245108Makita 2376245108 SCREW
1512836235708Makita 2836235708 SPRING
1521066255608
1532776255308

Sheet 8: Makita EG241A parts diagram

Makita EG241A parts diagram, sheet 8
No.Part numberPart name
101KU31107001Makita KU31107001 FLOAT C/U CP4WS152
1020150040090Makita 0150040090 TAPPING SCREW 4X10GE1100
1542777923011Makita 2777923011 FLYWHEEL
1552777943111Makita 2777943111 IGNITION COIL COMPLEGE2800IS
1560655000270Makita 0655000270 SPARK PLUG CAP
1570011406250Makita 0011406250 BOLT & WASHER ASS Y
1590650140150Makita 0650140150 SYTYTYS TULPPA BR6HS G1300K
16027773102H1Makita 27773102H1 WIRE 2 COMPL. G2501
1610569000020
1622777630121Makita 2777630121 OIL SENSOR CPGE2800IS
1630011406160Makita 0011406160 BOLT & WASHER ASS Y

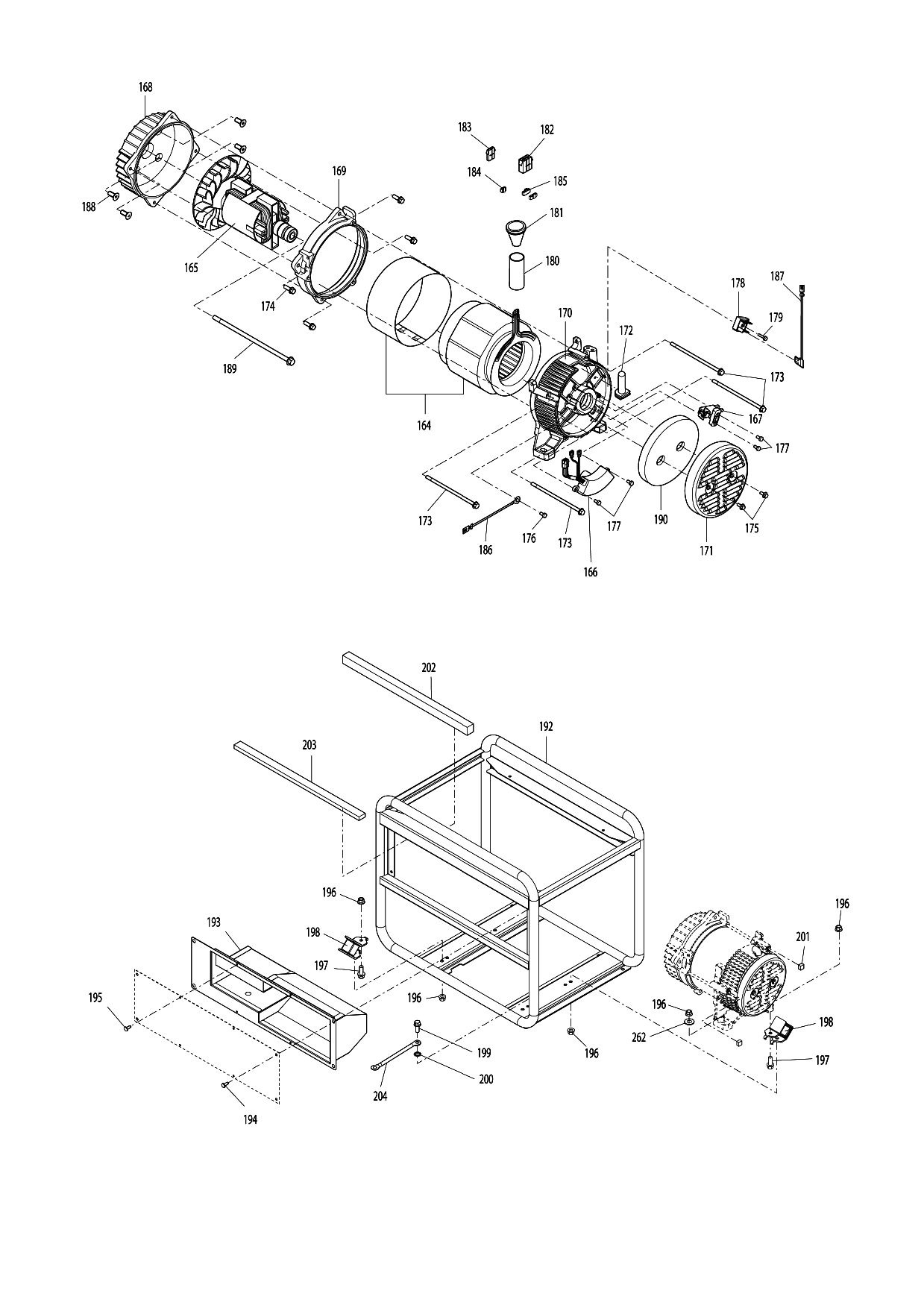

Sheet 9: Makita EG241A parts diagram

Makita EG241A parts diagram, sheet 9
No.Part numberPart name
16436A2000108Makita 36A2000108 STATOR CPEG241A
16536A2010108Makita 36A2010108 ROTOR CPEG241A
16636A2020108Makita 36A2020108 AVR CPEG241A
16736A2030008Makita 36A2030008 BRUSH CPEG601A
16836A2200008
16936A2210008
17036A2220008
17136A2300008Makita 36A2300008 BRACKET COVER EG241A
17236A2500008
17336A2100008
17436A8000008
17536A8000108
17636A8010008
17736A8000208
17836A2500108Makita 36A2500108 DIODE CPEG601A
17936A8010108
18036A2500208Makita 36A2500208 TUBE EG241A
18136A2500308
18236A7000008Makita 36A7000008 CONNECTOR(6P)EG601A
18336A7000208Makita 36A7000208 CONNECTOR(2P) EG601A
18436A7010108Makita 36A7010108 RETAINER(2P) EG601A
18536A7010008Makita 36A7010008 RETAINER (3P) EG601A
18636A7100008Makita 36A7100008 WIRE (GREEN) EG241A
18736A7100108Makita 36A7100108 WIRE (WHITE) EG601A
18836A8020008
18936A2110008
19036A2500408Makita 36A2500408 SPONGE (FILTER)EG241A
19236A3000008
19336A4000108
19436A8010408
19536A8010508
19636A8100208
19736A8000308
19836A3100008Makita 36A3100008 MOUNT CP
19936A8000408
20036A8200108
20136A2500508
20236A3500008
20336A3500108
20436A7100708
262

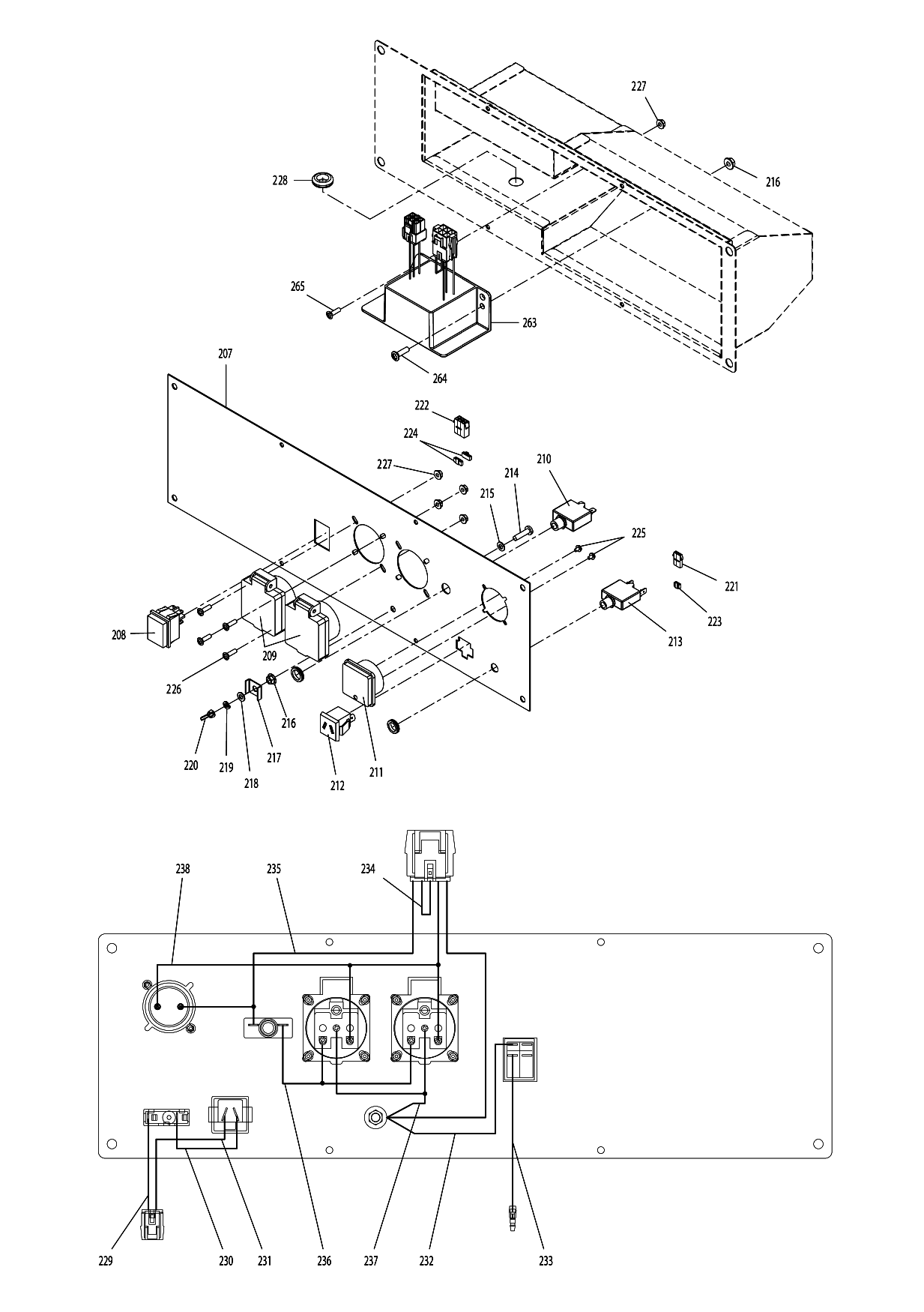

Sheet 10: Makita EG241A parts diagram

Makita EG241A parts diagram, sheet 10
No.Part numberPart name
20736A4100108
20836A4900008Makita 36A4900008 SWITCH(ENGINE)EG601A
20936A4700108Makita 36A4700108 AC CONCENT (GER)EG601A
21036A4800008Makita 36A4800008 CIRCUIT BREAKER(10A)EG241A
21136A4900108Makita 36A4900108 VOLT METEREG601A
21236A4710108Makita 36A4710108 DC CONCENTEG601A
21336A4800108Makita 36A4800108 CIRCUIT BREAKER(10A)EG601A
21436A8010208
21536A8200008
21636A8100008
21736A8210008
21836A8220008
21936A8230008
22036A8110008
22136A7000308
22236A7000108
22336A7010108Makita 36A7010108 RETAINER(2P) EG601A
22436A7010008Makita 36A7010008 RETAINER (3P) EG601A
22536A8010308
22636A8020108
22736A8100108
22836A4990008
263
264
265

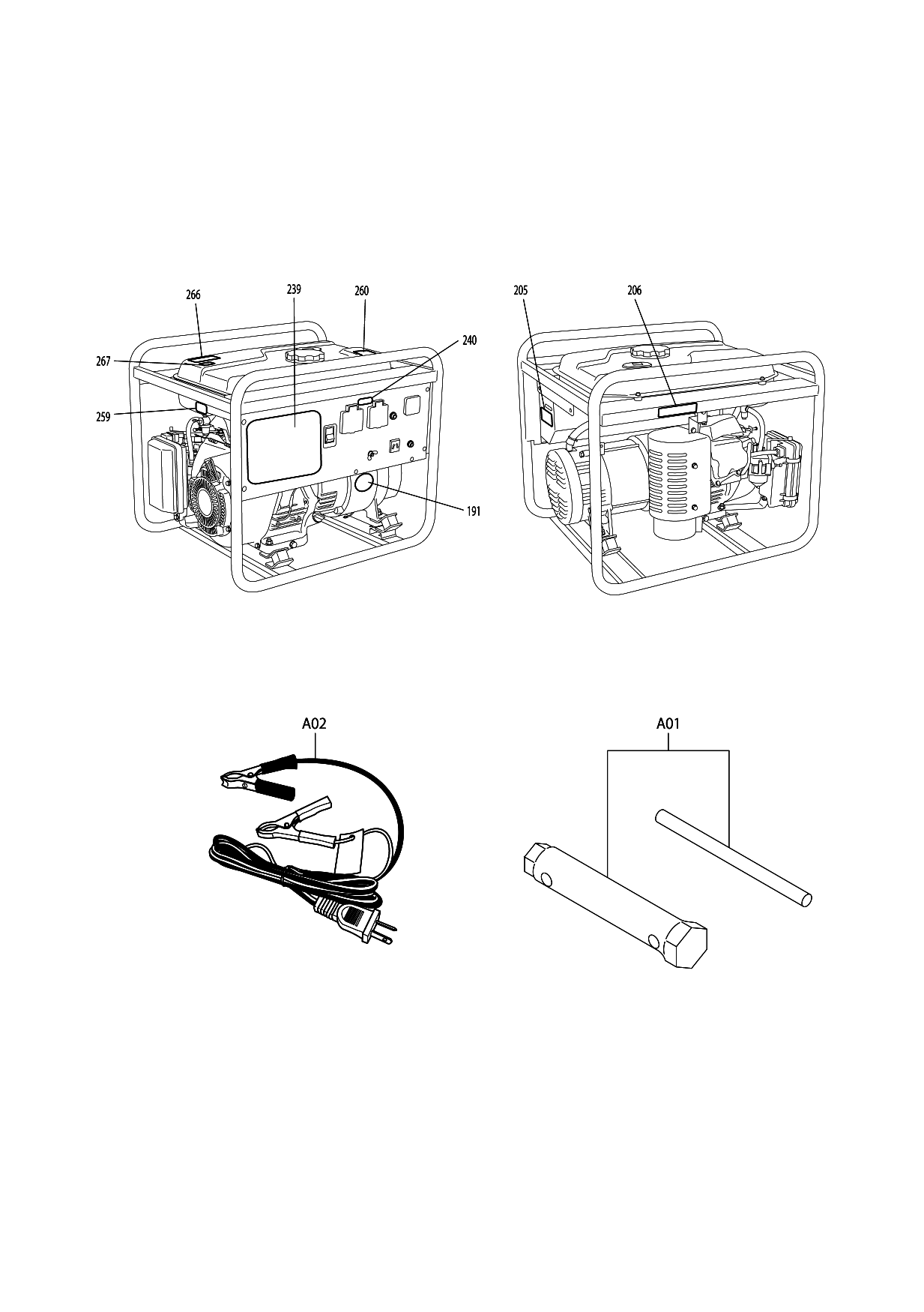

Sheet 11: Makita EG241A parts diagram

Makita EG241A parts diagram, sheet 11
No.Part numberPart name
1910732005470
20536A9100208
20636A9800308
23936A9000208
24036A9800408
25936A9800108
26036A9800208
266
267
