Makita EB7650TH
Makita EB7650TH: exploded parts diagram, 9 sheets, 208 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita EB7650TH: 208 positions on 9 sheets

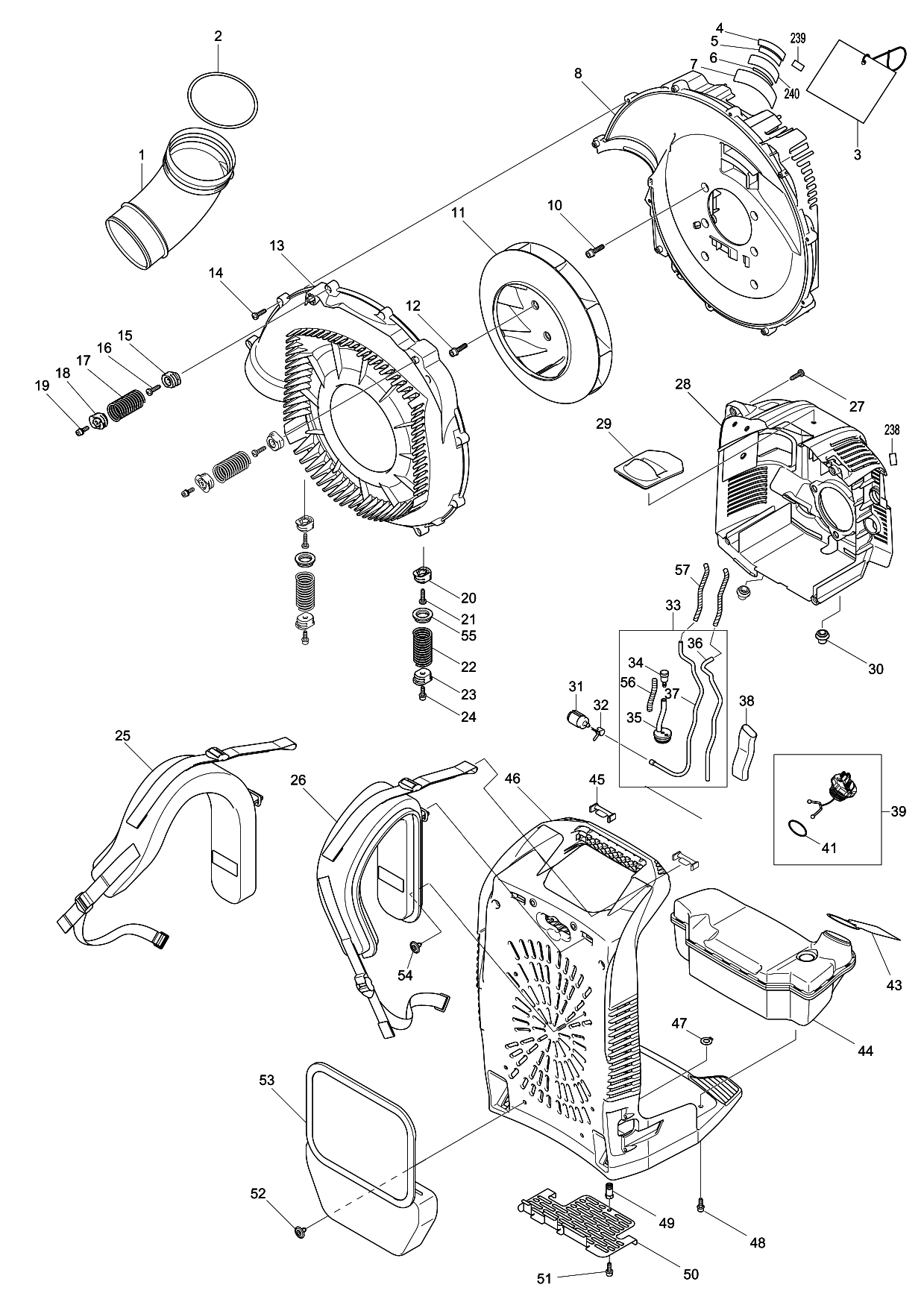

Sheet 1: Makita EB7650TH parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 412144-8 | Makita 412144-8 ELBOW |
| 2 | 213645-7 | Makita 213645-7 O RING 93 |
| 3 | NULL | |
| 4 | NULL | |
| 5 | 805X42-1 | |
| 6 | 801D19-4 | |
| 7 | 803T61-7 | |
| 8 | 454893-1 | Makita 454893-1 FRONT VOLUTE CASE |
| 10 | 922343-9 | Makita 922343-9 BOLT M6X25 |
| 11 | 240152-7 | Makita 240152-7 FAN 250 |
| 12 | 922343-9 | Makita 922343-9 BOLT M6X25 |
| 13 | 454892-3 | Makita 454892-3 REAR VOLUTE CASE |
| 14 | 266420-0 | Makita 266420-0 TAPPING SCREW 5*20, HR2810 |
| 15 | 454903-4 | Makita 454903-4 SPRING HOLDER A |
| 16 | 266420-0 | Makita 266420-0 TAPPING SCREW 5*20, HR2810 |
| 17 | 234324-4 | Makita 234324-4 COMPRESSION SPRING 22 |
| 18 | 454904-2 | Makita 454904-2 SPRING HOLDER B |
| 19 | 922223-9 | Makita 922223-9 SOCKET HEAD BOLT, MEM427 |
| 20 | 454903-4 | Makita 454903-4 SPRING HOLDER A |
| 21 | 266420-0 | Makita 266420-0 TAPPING SCREW 5*20, HR2810 |
| 22 | 234333-3 | Makita 234333-3 COMPRESSION SPRING 22 |
| 23 | 454904-2 | Makita 454904-2 SPRING HOLDER B |
| 24 | 922223-9 | Makita 922223-9 SOCKET HEAD BOLT, MEM427 |
| 25 | 166125-1 | Makita 166125-1 BAND L COMPLETE |
| 26 | 166126-9 | Makita 166126-9 BAND R COMPLETE |
| 27 | 266420-0 | Makita 266420-0 TAPPING SCREW 5*20, HR2810 |
| 28 | 142426-1 | Makita 142426-1 ENGIN COVER COMPLETE |
| 29 | 424619-5 | Makita 424619-5 PLUG COVER |
| 30 | 424620-0 | Makita 424620-0 DAMPER |
| 31 | 163532-9 | Makita 163532-9 FILTER |
| 32 | 345920-4 | Makita 345920-4 HOSE CLAMP, EBH340U |
| 34 | 168396-6 | Makita 168396-6 BREATHER, DCS230T |
| 35 | 424505-0 | Makita 424505-0 GROMMET |
| 36 | 412120-2 | Makita 412120-2 FUEL TUBE 3-370 |
| 37 | 412114-7 | Makita 412114-7 FUEL TUBE 3-370 |
| 38 | 422137-7 | Makita 422137-7 TUBE GUARD 20-102 |
| 41 | 213080-9 | Makita 213080-9 O RING 29,5 |
| 43 | 898428-2 | |
| 44 | 142427-9 | Makita 142427-9 FUEL TANK COMPLETE |
| 45 | 454905-0 | Makita 454905-0 BAND HOLDER |
| 46 | 454894-9 | Makita 454894-9 FRAME |
| 47 | 961005-4 | Makita 961005-4 Retaining Ring S-9 BGA450 BGA452 9047 9047S 9049 9049S 9057S |
| 48 | 922223-9 | Makita 922223-9 SOCKET HEAD BOLT, MEM427 |
| 49 | 264098-3 | Makita 264098-3 HEX NUT M5-10 |
| 50 | 346771-8 | Makita 346771-8 GUARD |
| 51 | 922223-9 | Makita 922223-9 SOCKET HEAD BOLT, MEM427 |
| 52 | 6672500300 | Makita 6672500300 ROCK RIVETPB-7600.4 |
| 53 | 196956-4 | Makita 196956-4 HIP BELT SET |
| 54 | 6672500300 | Makita 6672500300 ROCK RIVETPB-7600.4 |
| 55 | 424678-9 | Makita 424678-9 RUBBER RING 25 |
| 56 | 326356-6 | |
| 57 | 454425-4 | Makita 454425-4 SPIRAL TUBE6-100 |
| 238 | ||
| 239 | ||
| 240 |

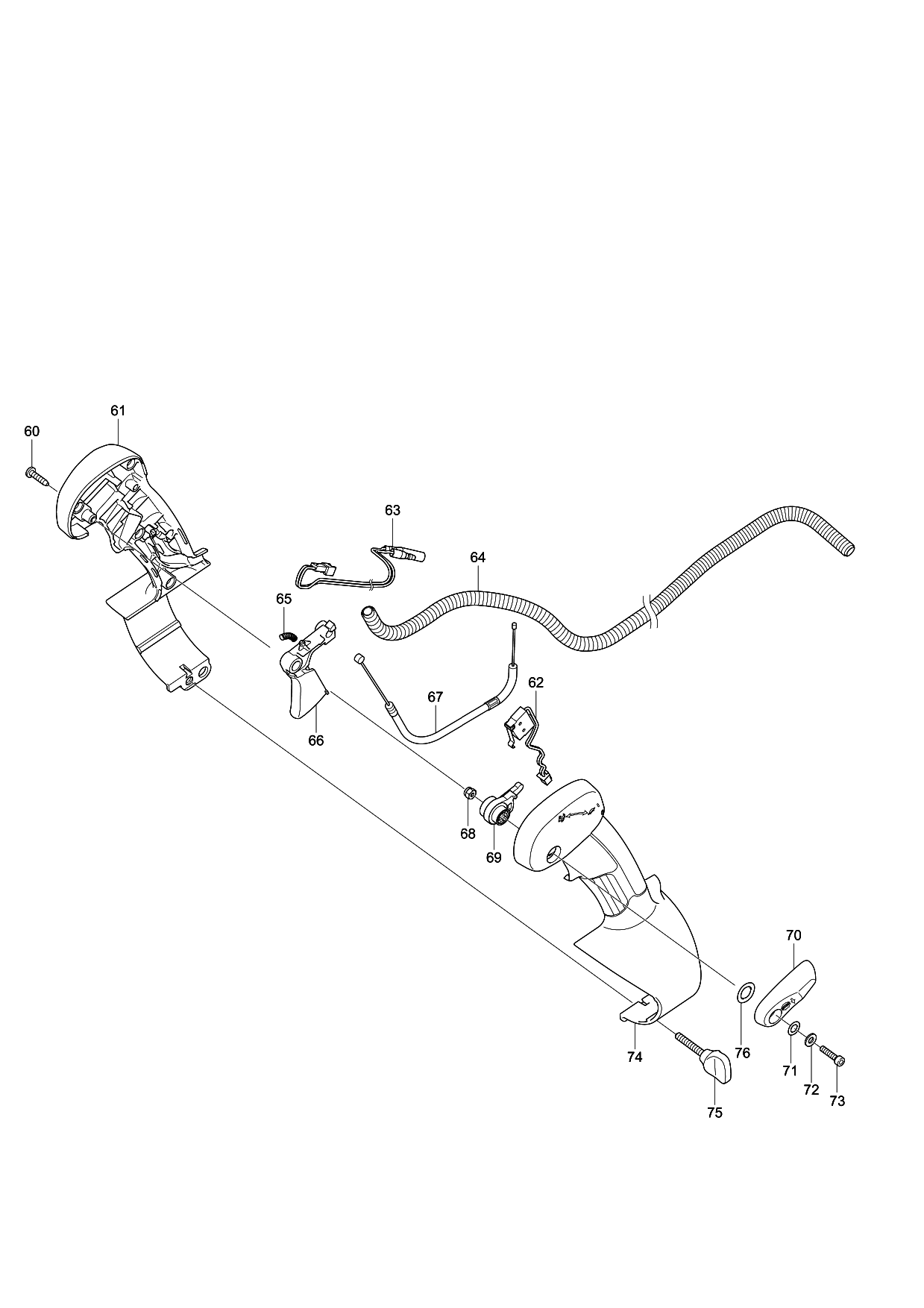

Sheet 2: Makita EB7650TH parts diagram
| No. | Part number | Part name |
|---|---|---|
| 60 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 61 | 187804-8 | Makita 187804-8 LEVER CASE SET |
| 62 | 638642-6 | Makita 638642-6 SWITCH UNITGN900 |
| 63 | 632C07-2 | Makita 632C07-2 LEAD UNIT |
| 64 | 455191-6 | Makita 455191-6 CORRUGATE TUBE |
| 65 | 231469-9 | Makita 231469-9 COMPRESSION SPRING 4, SS610D |
| 66 | 454899-9 | Makita 454899-9 FUEL TANK COMPLETE A |
| 67 | 168843-7 | Makita 168843-7 CONTROL CABLE |
| 68 | 252126-6 | Makita 252126-6 HEX LOCK NUT M4-7, MT070 |
| 69 | 454924-6 | Makita 454924-6 Throttle Link |
| 70 | 454900-0 | Makita 454900-0 Throttle Lever B for EB7650TH |
| 71 | 253903-9 | Makita 253903-9 WAVE WASHER 6, 2414NB |
| 72 | 267010-2 | Makita 267010-2 FLAT WASHER 5, LS1016L |
| 73 | 922132-2 | Makita 922132-2 HEX. SOCKET HEAD BOLT M4X |
| 74 | 187804-8 | Makita 187804-8 LEVER CASE SET |
| 75 | 265762-9 | Makita 265762-9 THUMB SCREW M5X30 |
| 76 | 253052-2 | Makita 253052-2 FLAT WASHER 12, TD0900 |

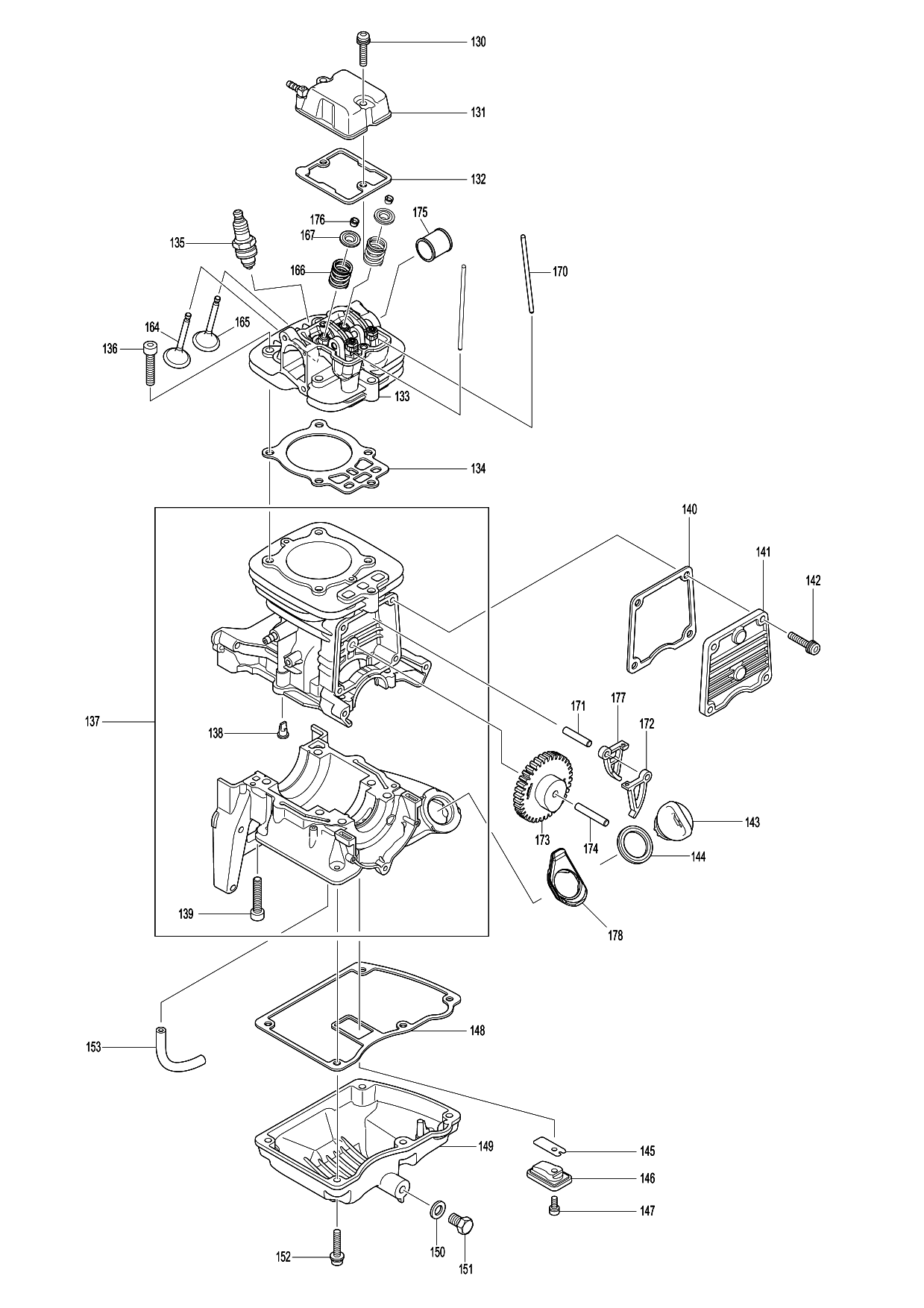

Sheet 3: Makita EB7650TH parts diagram
| No. | Part number | Part name |
|---|---|---|
| 130 | 266789-2 | |
| 131 | 141771-1 | Makita 141771-1 ROCKER COVER COMPL |
| 132 | 5971500900 | Makita 5971500900 ROCKER GASKET COVERPB-7600.4 |
| 133 | 142771-4 | Makita 142771-4 CYLINDER HEAD COMPL |
| 134 | 442167-2 | Makita 442167-2 CYLINDER HEAD GASKET |
| 135 | 168401-9 | Makita 168401-9 Spark Plag BHX2501 CMR6A EM4251 |
| 136 | 266586-6 | |
| 138 | 424201-0 | Makita 424201-0 CHECK VALVE, MEM426 |
| 139 | 922352-8 | Makita 922352-8 HEX. SOCKET HEAD BOLT M6X30 |
| 140 | 442168-0 | Makita 442168-0 CAM GEAR GASKET |
| 141 | 318725-5 | Makita 318725-5 CAM GEAR COVER |
| 142 | 266813-1 | Makita 266813-1 SOCKET HEAD BOLT M5X16(W,SW) |
| 143 | 452047-4 | Makita 452047-4 OIL CAP |
| 144 | 424343-0 | Makita 424343-0 GASKET |
| 145 | 346083-9 | Makita 346083-9 LEAD VALVE, MEM426 |
| 146 | 5931501300 | Makita 5931501300 RETAINER PLATEPB-7600.4 |
| 147 | 0119049980 | Makita 0119049980 SOCKET HEAD BOLT M4XBHX2500/PB-250.4 |
| 148 | 5976500100 | Makita 5976500100 OIL CASE GASKETPB-7600.4 |
| 149 | 319008-6 | Makita 319008-6 CASE OIL |
| 150 | 346452-4 | Makita 346452-4 GASKET |
| 151 | 266916-1 | |
| 152 | 0119059390 | |
| 153 | 0851109960 | Makita 0851109960 TUBEPB-7600.4 |
| 164 | 331964-0 | Makita 331964-0 INTAKE VALVE |
| 165 | 331965-8 | Makita 331965-8 EXHAUST VALVE, VM. 2012 --> |
| 166 | 234212-5 | Makita 234212-5 COMPRESSION SPRING 11 |
| 167 | 331966-6 | Makita 331966-6 RETAINER |
| 170 | 256526-2 | Makita 256526-2 PUSH ROD PB-7600.4 |
| 171 | 256186-0 | Makita 256186-0 PIN 5 |
| 172 | 313266-6 | Makita 313266-6 CAM LIFTER L |
| 173 | 5973002002 | Makita 5973002002 CAMGEAR ASSYPB-7600.4, TEC. YO06064 |
| 174 | 256200-2 | Makita 256200-2 PIN5, MEM426 |
| 175 | 331937-3 | Makita 331937-3 EXHAUST PORT SPACER6D |
| 176 | 331967-4 | Makita 331967-4 COTTER |
| 177 | 313267-4 | Makita 313267-4 CAM LIFTER R |
| 178 | 424621-8 | Makita 424621-8 OIL GUARD |

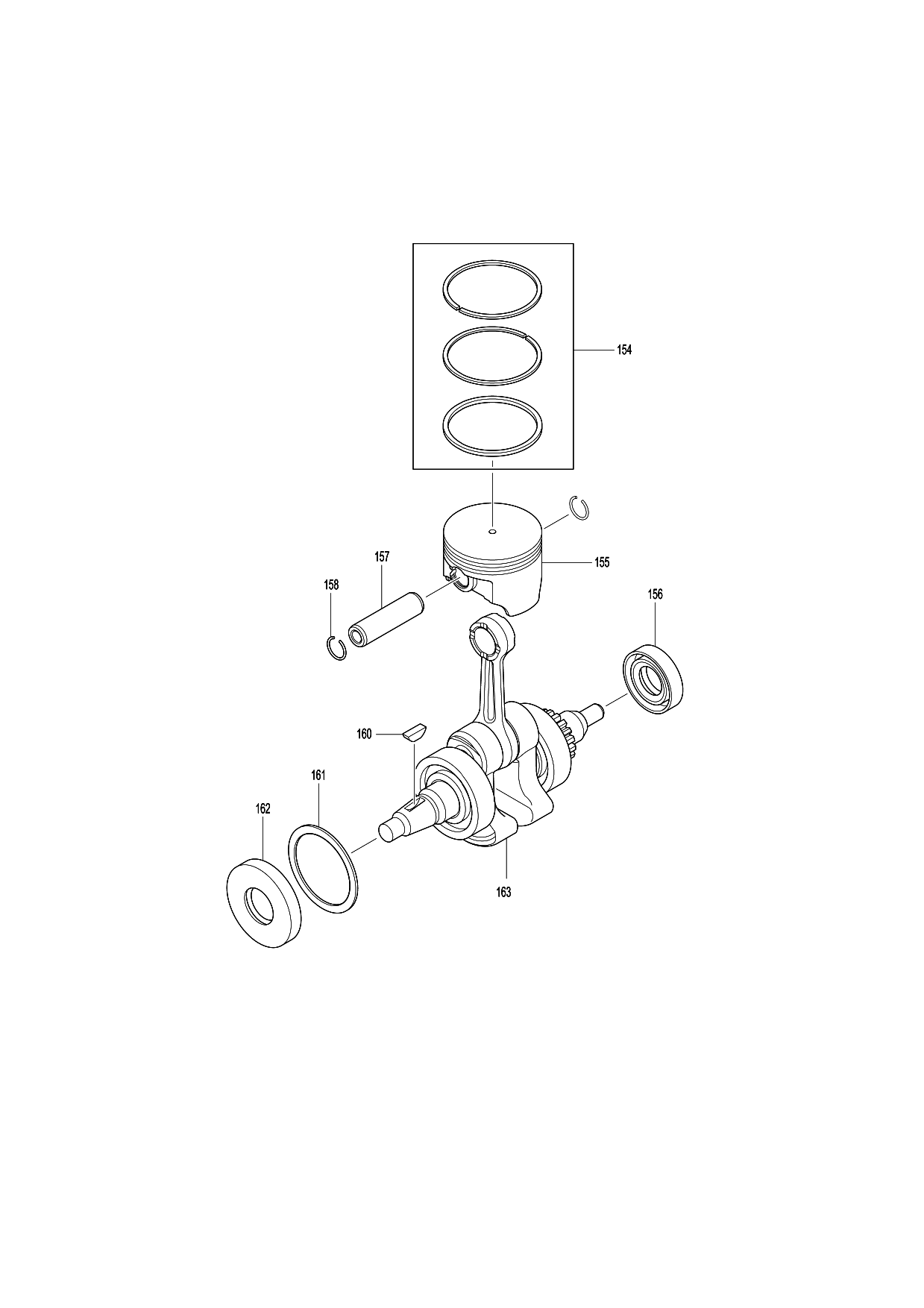

Sheet 4: Makita EB7650TH parts diagram
| No. | Part number | Part name |
|---|---|---|
| 154 | 197040-8 | |
| 155 | 318726-3 | Makita 318726-3 PISTON PB-7600.4 |
| 156 | 213599-8 | Makita 213599-8 OIL SEAL(S) |
| 157 | 326039-8 | Makita 326039-8 PISTON PIN |
| 158 | 233995-4 | Makita 233995-4 RING SPRING 12 |
| 160 | 254001-2 | Makita 254001-2 WOOD RUFF KEY 4, 4100NH |
| 161 | 267448-1 | Makita 267448-1 FLAT WASHER 41 |
| 162 | 213598-0 | Makita 213598-0 OIL SEAL(L) |
| 163 | 143043-0 | Makita 143043-0 CRANK SHAFT COMPLETE |
Sheet 5: Makita EB7650TH parts diagram
| No. | Part number | Part name |
|---|---|---|
| 100 | 5975500000 | Makita 5975500000 PULLEYPB-7600.4 |
| 179 | 346772-6 | Makita 346772-6 MUFFLER GASKET |
| 180 | 5973001003 | Makita 5973001003 MUFFLER EXHAUST |
| 181 | 266771-1 | Makita 266771-1 SOCKET HEAD BOLT M6X18 |
| 182 | 424105-6 | Makita 424105-6 PLUS CAP, PB-7600.4 |
| 183 | 324891-8 | Makita 324891-8 PLUG CAP SPRING, MEM427 |
| 184 | 0119049970 | Makita 0119049970 SOCKET HEAD BOLTMS26C |
| 185 | 632C08-0 | Makita 632C08-0 LEAD UNIT |
| 186 | 638710-5 | Makita 638710-5 NIRE COMPLETE |
| 187 | 5977001010 | Makita 5977001010 IGNITION COILPB-7600.4 |
| 188 | 5977001020 | Makita 5977001020 FLYWHEEL COMPLPB-7600.4 |
| 189 | 264054-3 | Makita 264054-3 FLANGE NUT M10 |

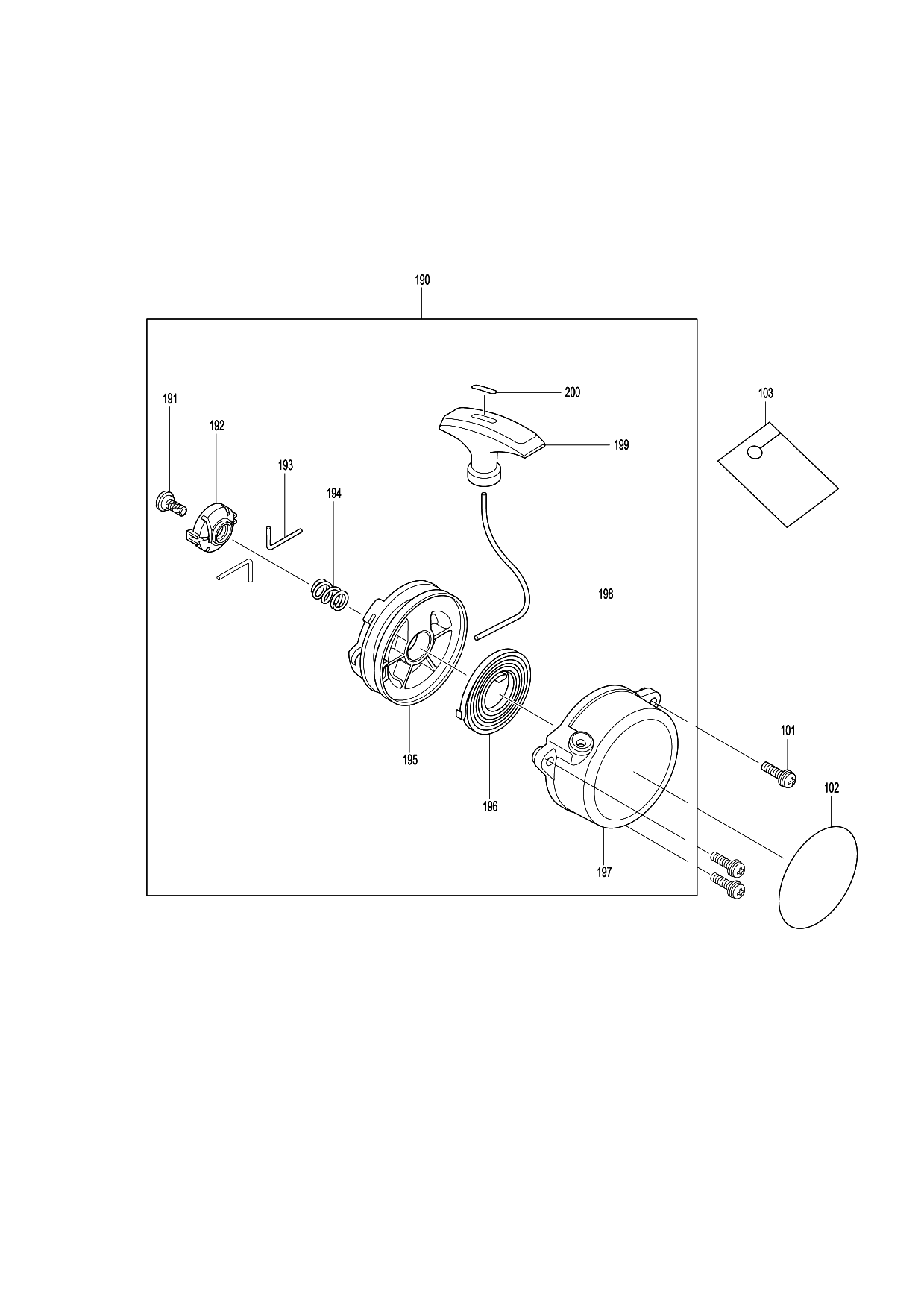

Sheet 6: Makita EB7650TH parts diagram
| No. | Part number | Part name |
|---|---|---|
| 101 | 911233-1 | Makita 911233-1 PAN HEAD SCREW M5X20, EBH251 |
| 102 | 803T54-4 | |
| 103 | 819430-2 | |
| 191 | 266585-8 | Makita 266585-8 TAPPING SCREW M5X12 |
| 192 | 424516-5 | Makita 424516-5 COLLAR PB-7660.4 |
| 193 | 326200-7 | Makita 326200-7 SWING ARM |
| 194 | 234257-3 | Makita 234257-3 FRICTION SPRING |
| 195 | 441075-4 | Makita 441075-4 REEL |
| 196 | 232262-4 | Makita 232262-4 SPIRAL SPRING |
| 197 | 141649-8 | Makita 141649-8 STARTER CASE COMPLETE |
| 198 | 444043-6 | Makita 444043-6 STARTER ROPE |
| 199 | 424361-8 | Makita 424361-8 STARTER KNOB |
| 200 | 424360-0 | Makita 424360-0 ROPE STOPPER |
Sheet 7: Makita EB7650TH parts diagram
| No. | Part number | Part name |
|---|---|---|
| 201 | 454914-9 | |
| 202 | 265799-6 | |
| 203 | 412145-6 | Makita 412145-6 Air Cleaner Element Replacement Part |
| 204 | 162346-3 | Makita 162346-3 SEPARATOR PLATE |
| 205 | 352020-3 | Makita 352020-3 SEPARATOR MESH |
| 206 | 266007-8 | Makita 266007-8 TAPPING SCREW, 16G341A |
| 207 | 424316-3 | Makita 424316-3 CHECK VALVE |
| 208 | 453865-3 | Makita 453865-3 SEPARATOR CASE |
| 209 | 911283-6 | Makita 911283-6 PAN HEAD SCREW M5X60, M442 |
| 210 | 454910-7 | Makita 454910-7 CHOKE PLATE |
| 211 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 212 | 266420-0 | Makita 266420-0 TAPPING SCREW 5*20, HR2810 |
| 213 | 454913-1 | Makita 454913-1 AIR CLEANER CASE |
| 214 | 815N78-2 | |
| 215 | 454902-6 | Makita 454902-6 CHOKE LEVER |
| 216 | 5233504200 | Makita 5233504200 CARBURETOR GASKET |
| 217 | 346770-0 | Makita 346770-0 PLATE 31 |
| 218 | 412112-1 | Makita 412112-1 TUBE |
| 219 | 168398-2 | Makita 168398-2 Primer Pump for DCS230T |
| 220 | 168859-2 | Makita 168859-2 CARBURETOR |
| 221 | 442206-8 | Makita 442206-8 CARBURETOR GASKET |
| 222 | 422096-5 | Makita 422096-5 TUBE 3-25 |
| 223 | 422127-0 | Makita 422127-0 TUBE 3-65 |
| 224 | 452952-5 | Makita 452952-5 HOSE JOINT |
| 225 | 412121-0 | Makita 412121-0 TUBE |
| 226 | 422126-2 | Makita 422126-2 TUBE 3-160 |
| 227 | 424622-6 | Makita 424622-6 INSULATOR SEAL |
| 228 | 266749-4 | Makita 266749-4 HEX. S.H.B. M5X25 WITH WR |
| 229 | 424623-4 | Makita 424623-4 GROMMET |
| 230 | 0119059490 | Makita 0119059490 SOCKET HEAD BOLT M5X14 (W,SW) |
| 231 | 142926-1 | Makita 142926-1 INSULATOR COMPLETE |
| 232 | 162333-2 | Makita 162333-2 INSULATOR GASKET |
| 233 | 213304-3 | Makita 213304-3 O RING 20 HR4000C |
| 234 | 454911-5 | Makita 454911-5 ICING VALVE |
| 235 | 454912-3 | Makita 454912-3 ICING VALVE COVER |
| 236 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 237 | 213261-5 | Makita 213261-5 O RING 17 |

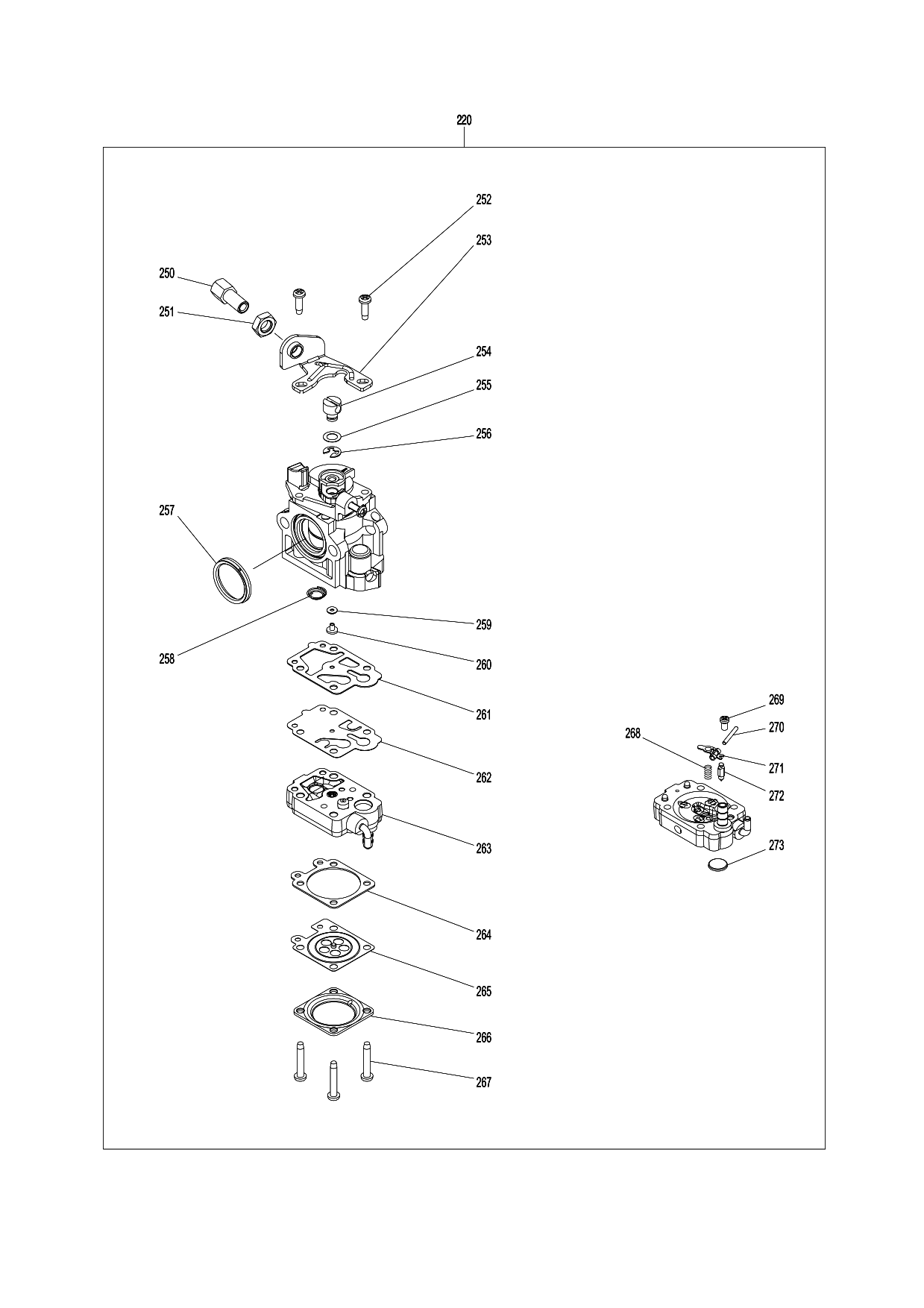

Sheet 8: Makita EB7650TH parts diagram
| No. | Part number | Part name |
|---|---|---|
| 250 | ||
| 251 | ||
| 252 | ||
| 253 | ||
| 254 | ||
| 255 | ||
| 256 | ||
| 257 | ||
| 258 | ||
| 259 | ||
| 260 | ||
| 261 | ||
| 262 | ||
| 263 | ||
| 264 | ||
| 265 | ||
| 266 | ||
| 267 | ||
| 268 | ||
| 269 | ||
| 270 | ||
| 271 | ||
| 272 | ||
| 273 |

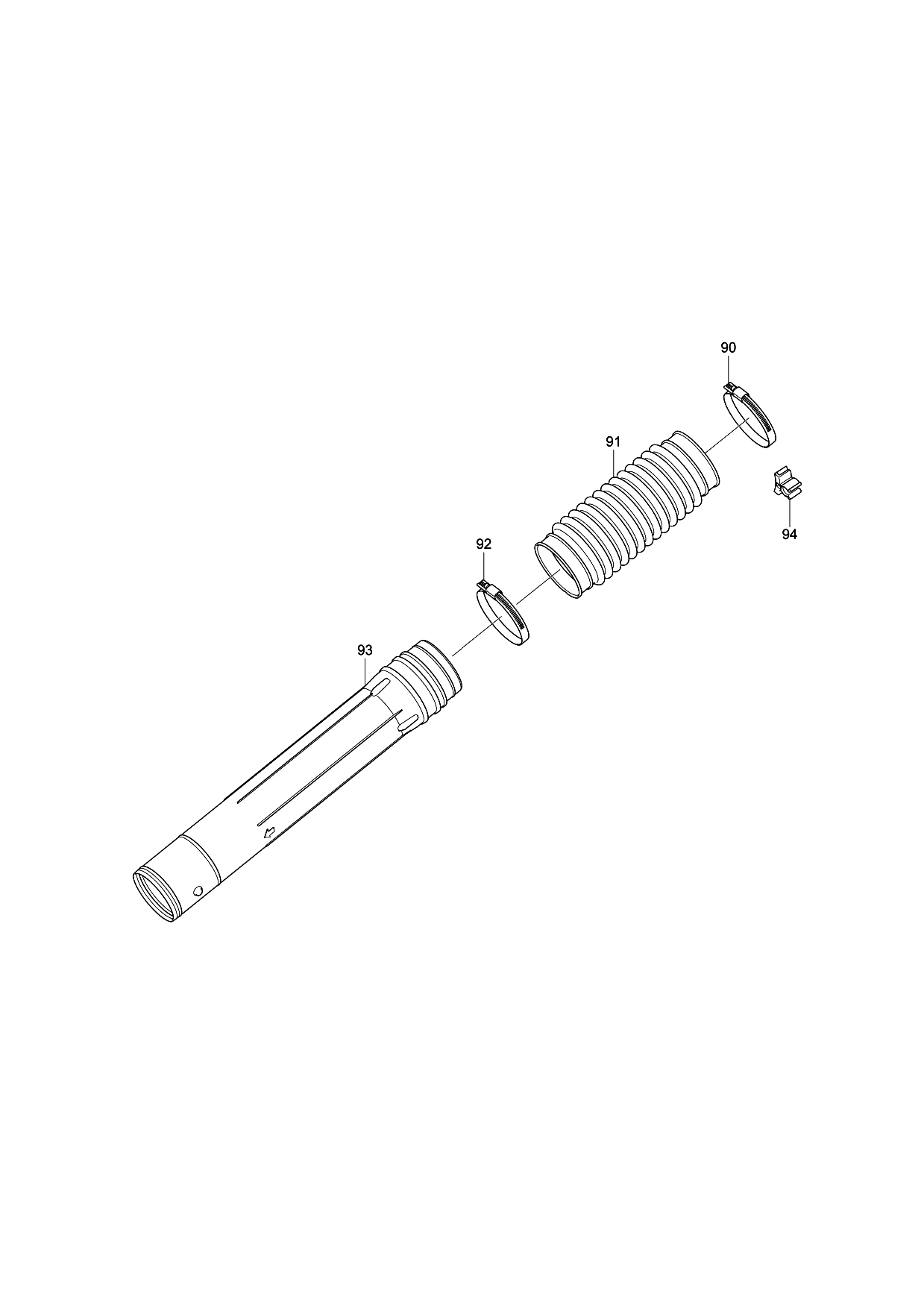

Sheet 9: Makita EB7650TH parts diagram
| No. | Part number | Part name |
|---|---|---|
| 90 | 282025-8 | Makita 282025-8 HOSE CLAMP 100 |
| 91 | 454934-3 | Makita 454934-3 FLEXIBLE PIPE |
| 92 | 282025-8 | Makita 282025-8 HOSE CLAMP 100 |
| 93 | 168832-2 | Makita 168832-2 SWIVEL PIPE COMPLETE |
| 94 | 454922-0 | Makita 454922-0 CABLE HOLDER |
