Bosch EasyVac 12
Bosch EasyVac 12 battery vacuum cleaner: exploded parts diagram, 1 sheet, 15 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

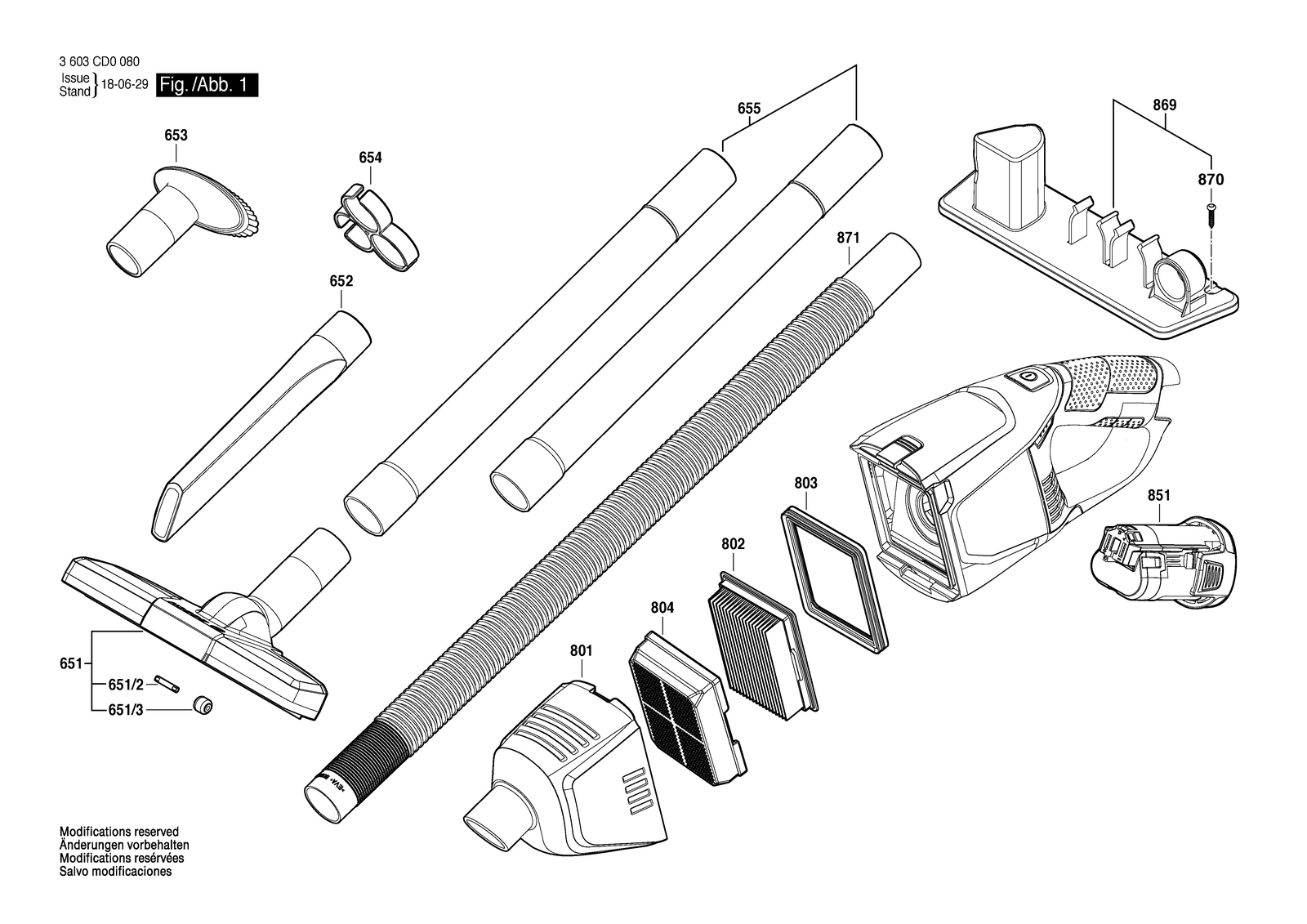

All parts of Bosch EasyVac 12: 15 positions on 1 sheet
Bosch EasyVac 12 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 651 | 1619PA9899 | Floor nozzle |
| 651/2 | 1619PA7502 | Roller |
| 651/3 | 1619PA7501 | Shaft |
| 652 | 1619PA9897 | Crevice Nozzle |
| 653 | 1619PA9896 | Brush |
| 654 | 1619PA9901 | Holder |
| 655 | 1619PA9898 | Suction Tube |
| 801 | 1619PB3790 | Dust container |
| 802 | 1600A002PS | Filter |
| 803 | 1600A002PR | Seal |
| 804 | 1619PB2300 | Filter |
| 851 | 1607A3515X | Battery Pack |
| 869 | 1619PA9902 | Hook |
| 870 | 1619PA5354 | Screw |
| 871 | 1619PA9046 | Extension Tube |
