Bosch EasySaw 18V-70

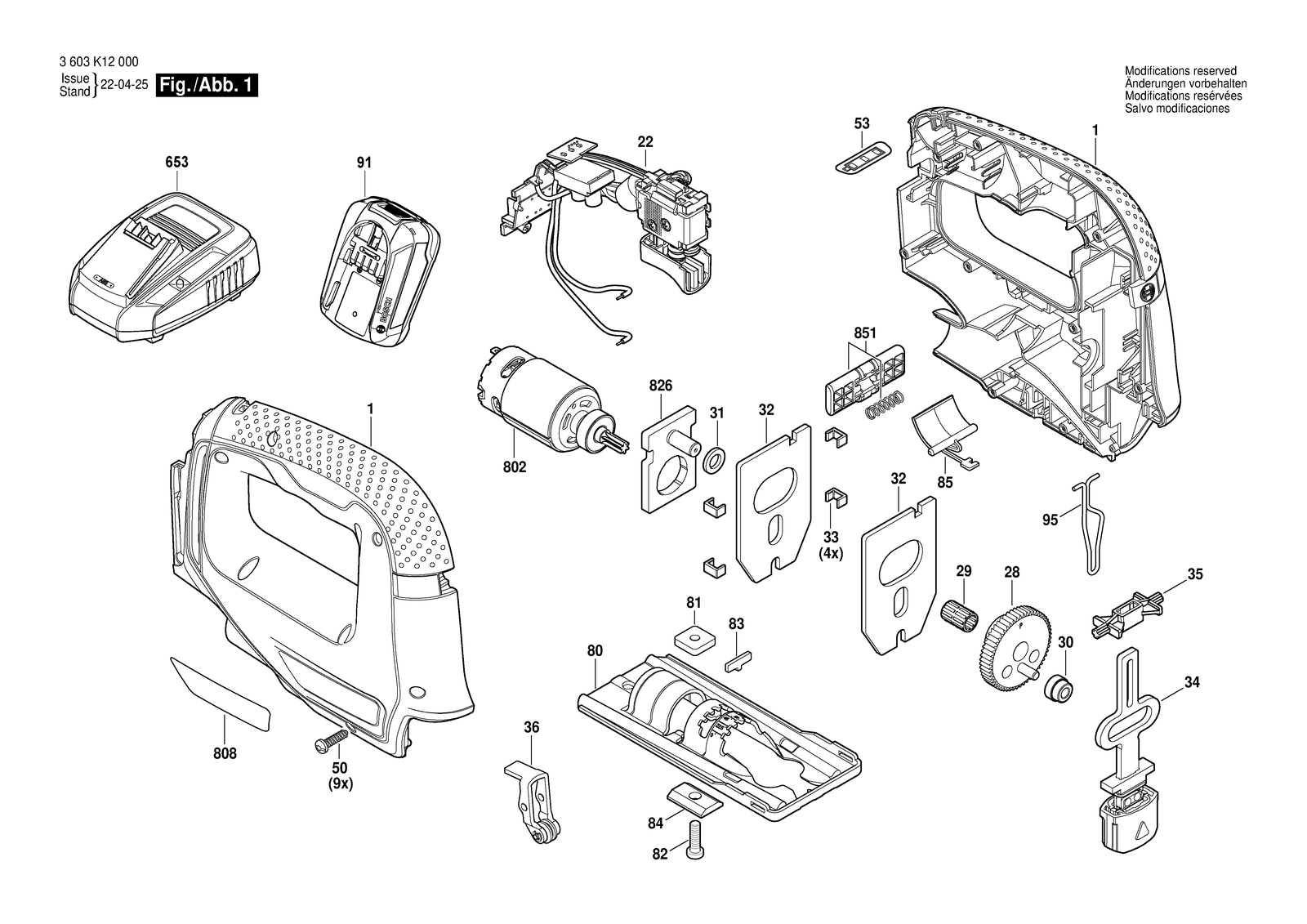

Bosch EasySaw 18V-70 cordless jigsaw: exploded parts diagram, 1 sheet, 31 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch EasySaw 18V-70: 31 positions on 1 sheet
Bosch EasySaw 18V-70 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 160580666L | Housing |
| 22 | 2607202542 | Electronic Assembly |
| 28 | 2609003443 | Eccentric Cog Wheel |
| 29 | 2600913040 | Needle-Roller Assembly |
| 30 | 2609003636 | Plain bearing |
| 31 | 2609003341 | Plain Washer |
| 32 | 2609002128 | Counterweight |
| 33 | 2609002125 | Guide Component |
| 34 | 1600A024YG | Lifting Rod |
| 35 | 2605801053 | Guide Bearing |
| 36 | 2609001608 | Roller Lever |
| 50 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 53 | 160111C3WT | Sticker |
| 653 | 2607226517 | Charger EU AL 18V-20 230V 2A |
| 653 | 2607226519 | Charger UK AL 18V-20 230V 2A |
| 80 | 2609003347 | Base Plate |
| 802 | 160702269L | DC motor |
| 808 | 160111C4BC | Nameplate |
| 81 | 2600040004 | Fixing plate |
| 82 | 1600A02343 | Torx socket button screw M6X20 Zn/ni |
| 826 | 2609003863 | Bearing Bracket |
| 83 | 2601030166 | Adjusting Pin |
| 84 | 2601030019 | Profile Beading |
| 85 | 2609004225 | Spring Plate |
| 851 | 1600A022BF | Lever |
| 91 | 1607A350JM | Battery Pack PBA 18V/1,5 Ah W-a |
| 91 | 1607A350RP | Battery Pack PBA 18V 2,0AH W-b |
| 91 | 1607A350RU | Battery Pack PBA 18V 2,5AH W-b 45WH |
| 91 | 1607A351C9 | Battery Pack |
| 91 | 2607337211 | Battery Pack PBA 18V 2,0 Ah W-b |
| 95 | 2609003350 | Protecting Cover Black |
