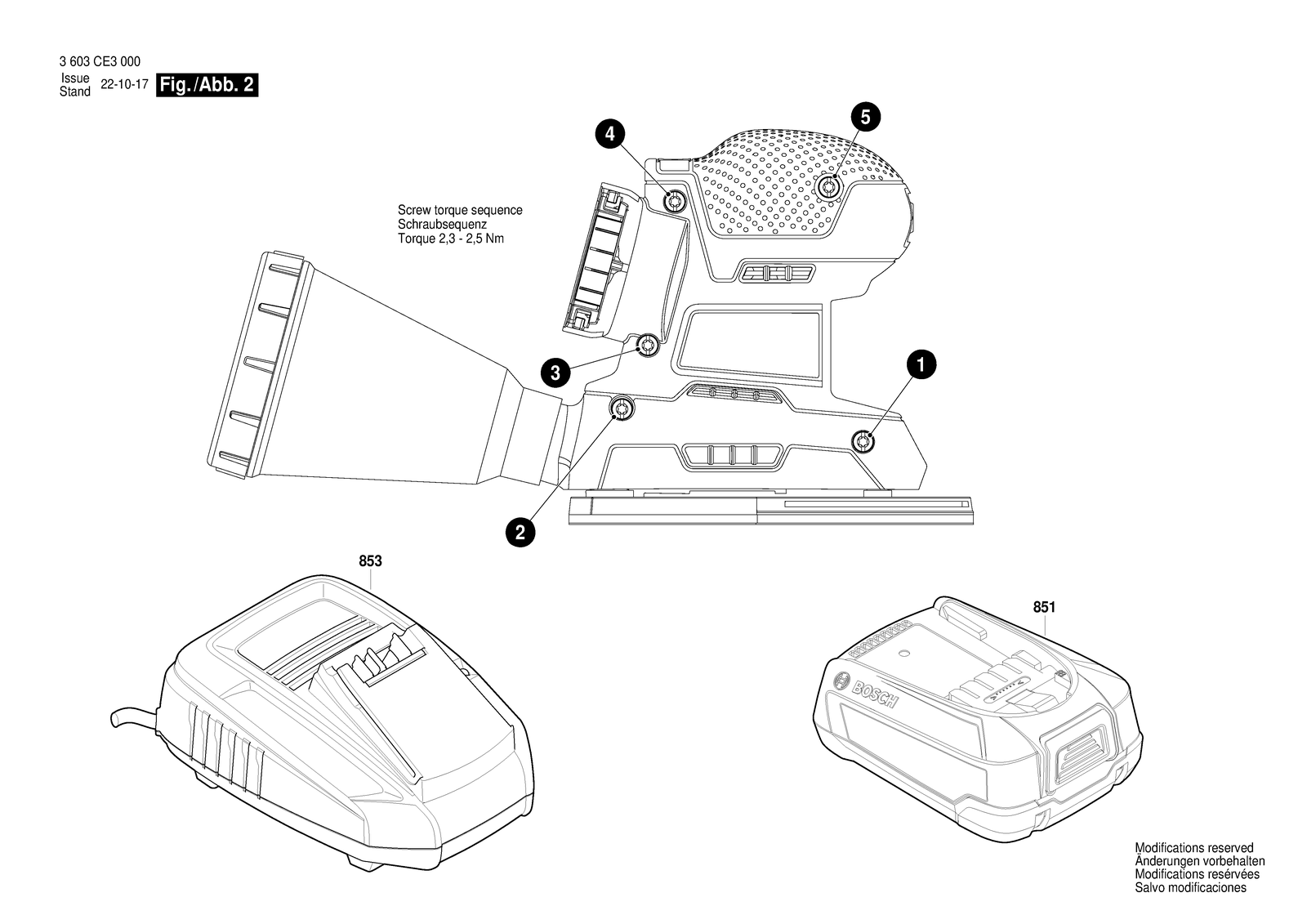

Bosch EasySander 18V-8
Bosch EasySander 18V-8 cordless multi sander: exploded parts diagram, 2 sheets, 16 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch EasySander 18V-8: 16 positions on 2 sheets
Bosch EasySander 18V-8 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 16058066AP | Housing |
| 18 | 2603490022 | Screw 4X16 |
| 19 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 22 | 1600A028VB | Lens |
| 23 | 2609001421 | Oscillation Insert |
| 24 | 1600A027MH | Vibration Foot |
| 25 | 1600A028S9 | Air Duct |
| 30 | 1610210184 | O-Ring 22,0X2,5 MM |
| 4 | 1600A028FF | Electronic Assembly |
| 802 | 16070226AD | DC motor |
| 808 | 160111A9WC | Nameplate |
| 820 | 2609001937 | Sander Plate |
| 832 | 160541103D | Dust container |
| 851 | 1607A350RU | Battery Pack PBA 18V 2,5AH W-b 45WH |
| 853 | 2607225965 | Fast Charger EU AL 1830 CV 230/14,4-18V 1H |
| 853 | 2607225967 | Charger Gb AL 1830 CV 230/14,4-18V 1H |
