Bosch EasySander 12

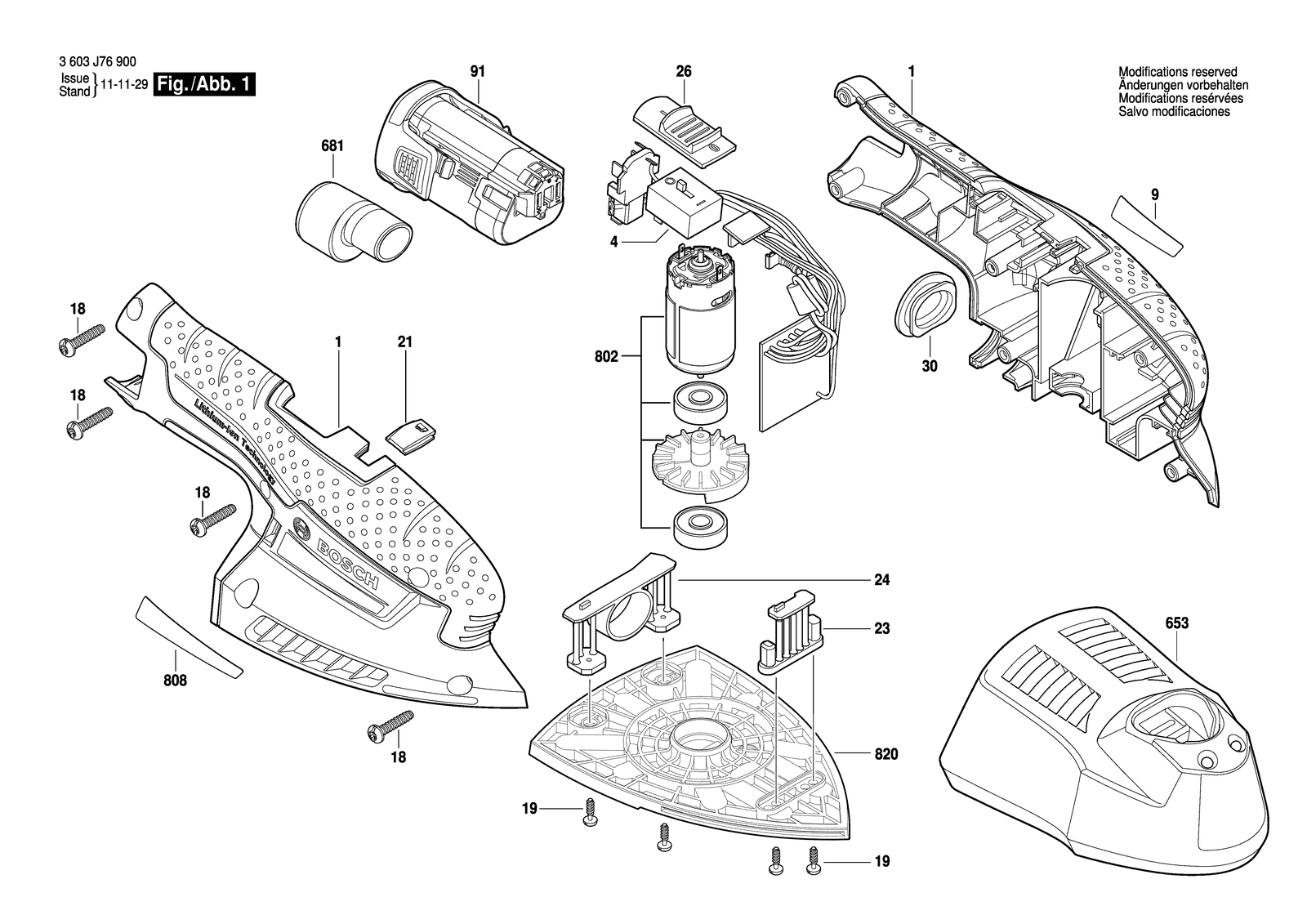

Bosch EasySander 12 cordless orbital sander: exploded parts diagram, 1 sheet, 21 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch EasySander 12: 21 positions on 1 sheet
Bosch EasySander 12 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609005280 | Housing |
| 18 | 2603490022 | Screw 4X16 |
| 19 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 21 | 2609005282 | Lens |
| 23 | 2609001421 | Oscillation Insert |
| 24 | 2609005283 | Vibration Foot |
| 26 | 2609005284 | Slider |
| 30 | 2609005286 | Rubber Plug |
| 4 | 2609005281 | Electronic Assembly |
| 653 | 2607225515 | Fast Charger Gb AL 1115 CV 230/3,6-12V, 1H |
| 653 | 2607226187 | Fast Charger EU GAL 12V-20 230/3,6-12V 2A |
| 653 | 2607226191 | Fast Charger Aus GAL 12V-20 240/3,6-12V 2A |
| 681 | 2609005888 | Fitting |
| 802 | 2609005287 | DC motor 10,8V |
| 808 | 160111A2E7 | Nameplate |
| 808 | 2609005288 | Nameplate |
| 820 | 2609001937 | Sander Plate |
| 9 | 160111C1ST | Manufacturer's nameplate Easysander 12 |
| 9 | 2609005278 | Manufacturer's nameplate PSM 10,8 LI |
| 91 | 1607A3515X | Battery Pack |
| 91 | 2607337023 | Battery Pack PBA 10,8V 2,0AH O-b |
