Bosch EasyImpact 600 percussion drill: exploded parts diagram, 2 sheets, 34 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch EasyImpact 600: 34 positions on 2 sheets

Bosch EasyImpact 600 parts list (2 sheets)

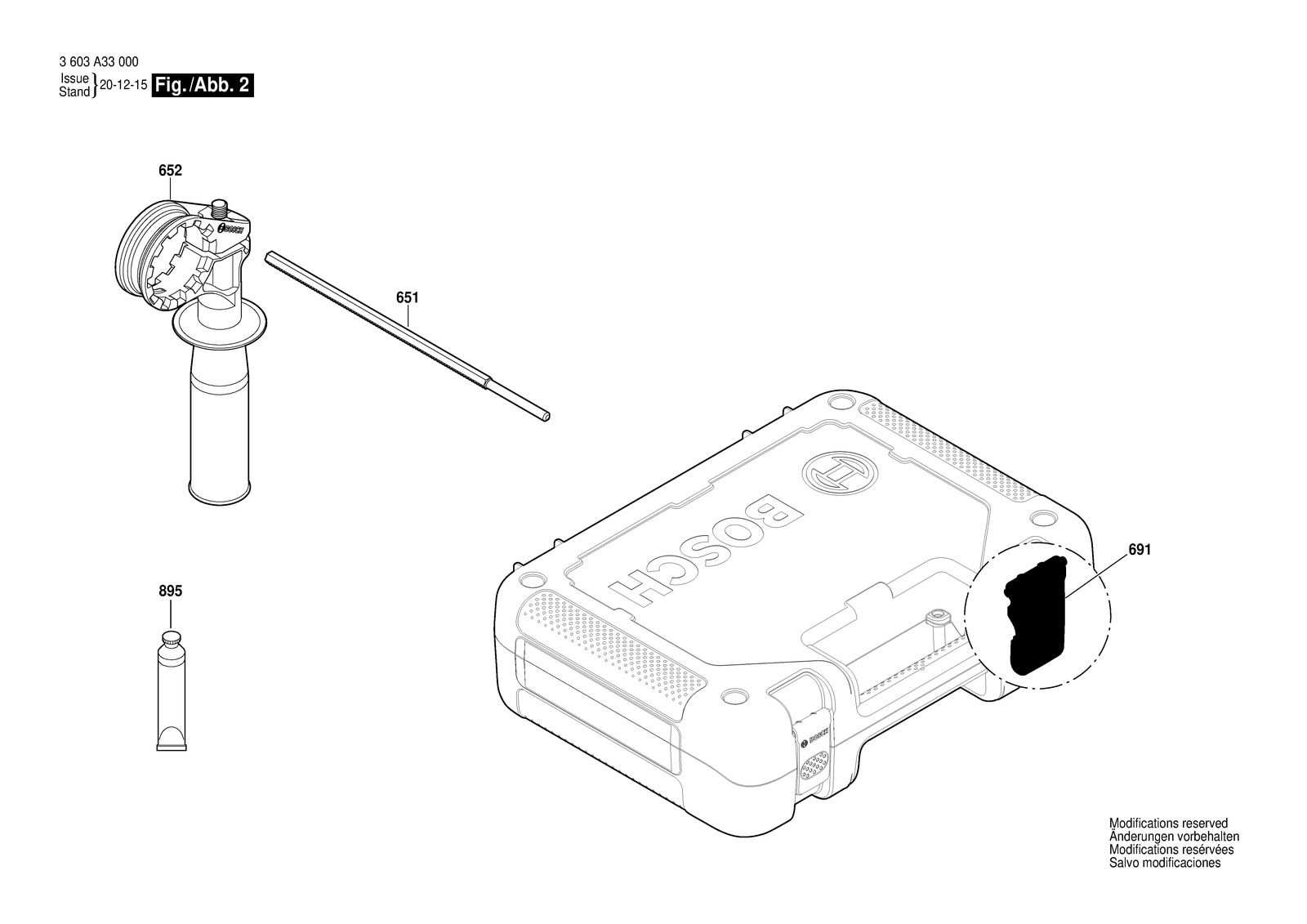

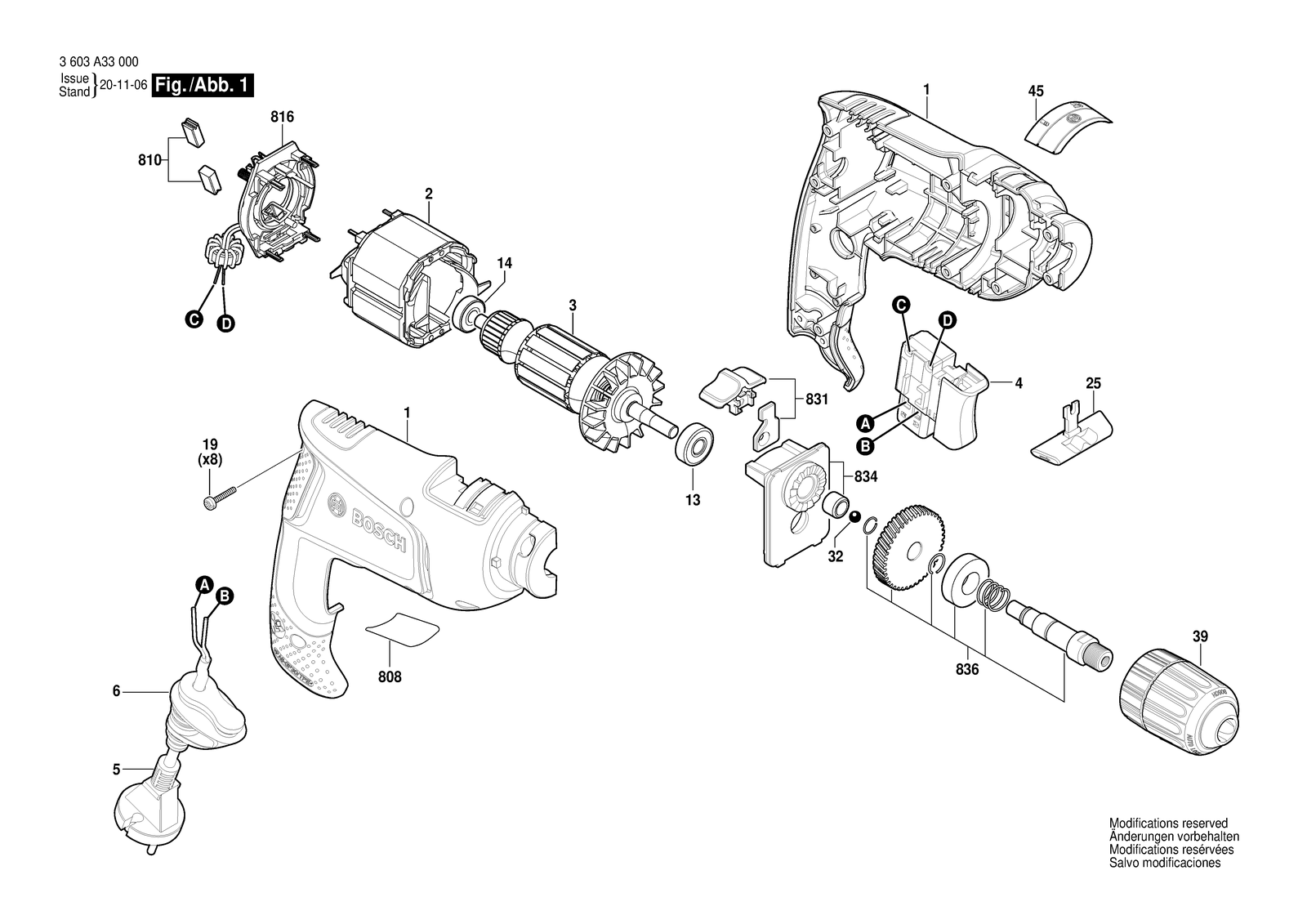

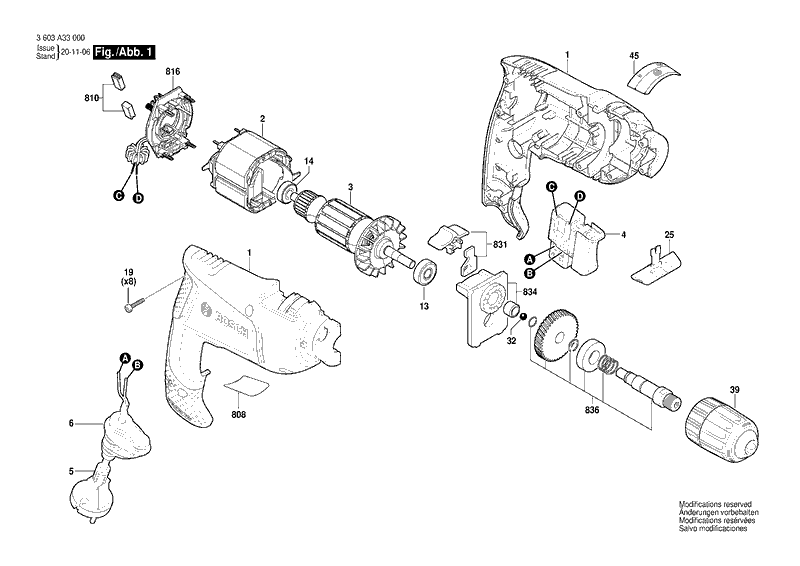

Bosch EasyImpact 600 parts diagram, sheet 1Bosch EasyImpact 600 parts diagram, sheet 2
No.Part numberPart name
11605806674Housing
131619PA0681Groove ball bearing
141619PB4811Groove ball bearing
191619PA0683Torx Oval-Head Screw
21619PB6802Field
251600A02438Lever
31619PB6803Armature
32F000615033Ball
391600A00DR5Chuck
42607200655Switch
451600A0243ACover
5160446078XPower supply cord
5160446078YPower supply cord
5160446078ZPower supply cord
51604460790Power supply cord
51619PB7052Power supply cord
6160070305CGrommet
6511600A0256PDepth-Gauge
65216020250AGAuxiliary Handle
6911600A024A5Latch
808160111A853Nameplate
808160111A8EXNameplate
808160111A8EYNameplate
808160111A8EZNameplate
808160111A8F0Nameplate
8081619PB7044Nameplate
8081619PB7047Nameplate
8081619PB7050Nameplate
8101607014191Carbon-Brush Set
8161600A02437Brush Plate
8311600A02439Change-Over Switch
8341600A0247LBearing Bracket
8361619PB4814Drilling Spindle
8953605430003Grease Tube Albida
