Bosch EasyImpact 570
Bosch EasyImpact 570 percussion drill: exploded parts diagram, 2 sheets, 25 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

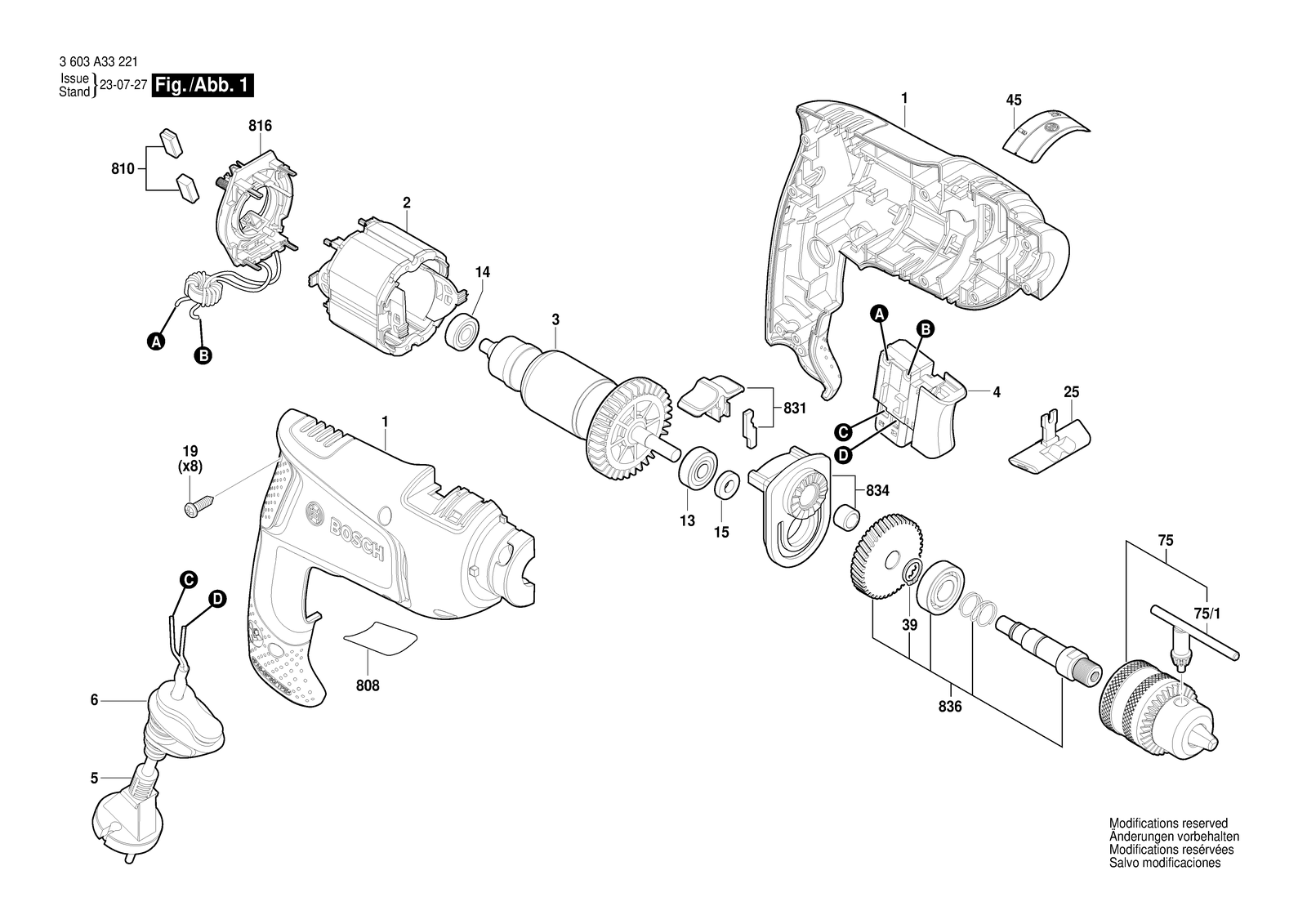

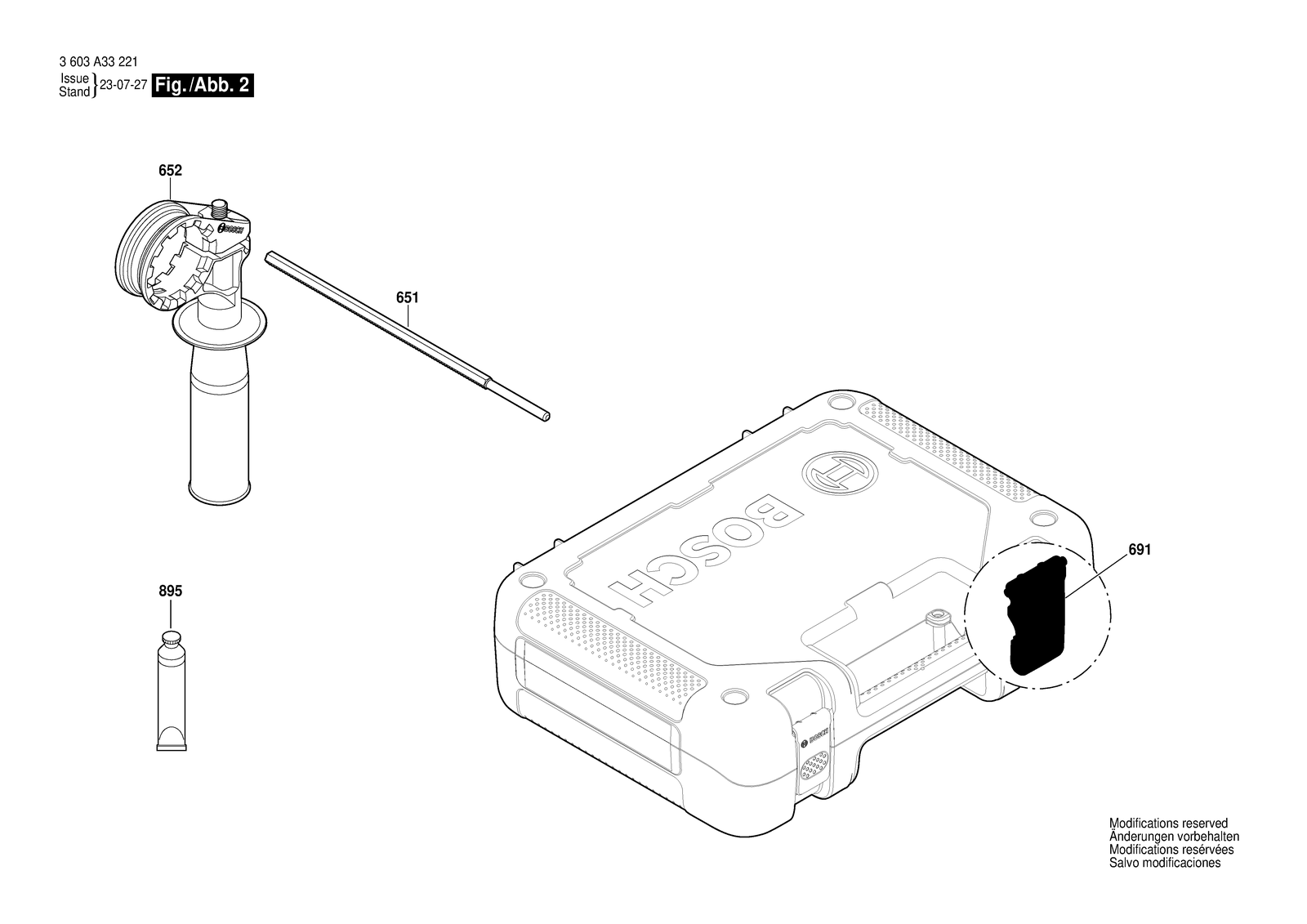

All parts of Bosch EasyImpact 570: 25 positions on 2 sheets
Bosch EasyImpact 570 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P04360 | Housing |
| 13 | 1619P04222 | Groove ball bearing |
| 14 | 1619P04223 | Groove ball bearing |
| 15 | 1619P04361 | Loop |
| 19 | 1619PA0683 | Torx Oval-Head Screw |
| 2 | 1619P04216 | Field |
| 25 | 1600A02438 | Lever |
| 3 | 1619P04217 | Armature |
| 39 | 1619P04236 | Ring |
| 4 | 2607200655 | Switch |
| 45 | 1619P04237 | Cover |
| 5 | 1619P04257 | Power supply cord |
| 6 | 1619P04219 | Grommet |
| 651 | 1619P04238 | Depth-Gauge |
| 652 | 2609199582 | Auxiliary Handle |
| 691 | 1619P04252 | Latch |
| 75 | 2609000990 | Key Chuck |
| 75/1 | 2607950007 | Chuck Wrench SG2 |
| 808 | 1619P04245 | Nameplate |
| 810 | 1619P04220 | Carbon-Brush Set |
| 816 | 1619P04253 | Brush Plate |
| 831 | 1619P04254 | Change-Over Switch |
| 834 | 1619P04255 | Bearing Bracket |
| 836 | 1619P04256 | Drilling Spindle |
| 895 | 3605430003 | Grease Tube Albida |
