Bosch EasyImpact 570
Bosch EasyImpact 570 percussion drill: exploded parts diagram, 2 sheets, 29 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch EasyImpact 570: 29 positions on 2 sheets
Bosch EasyImpact 570 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 16058065BM | Housing |
| 16 | 1600A00887 | Brush Holder |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2609007817 | Field |
| 25 | 1600A008BK | Change-Over Switch |
| 3 | 2609007816 | Armature |
| 30 | 1600A012A2 | Change-Over Switch |
| 34 | 1600A00ME5 | Bearing Bracket |
| 37 | 160630000P | Gear |
| 39 | 1600A02A90 | Chuck |
| 4 | 2607200655 | Switch |
| 41 | 2609002581 | Compression Spring |
| 49 | 2609003189 | Retaining snap ring |
| 5 | 1604460433 | Power supply cord CH 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460243 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460297 | Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F |
| 51 | 2609007046 | Cylindrical Roller |
| 53 | 2916640005 | Spring retaining ring DIN 471-8X0,8 Fst |
| 6 | 2609006376 | Grommet Ø6,4-Ø7,2X76 MM |

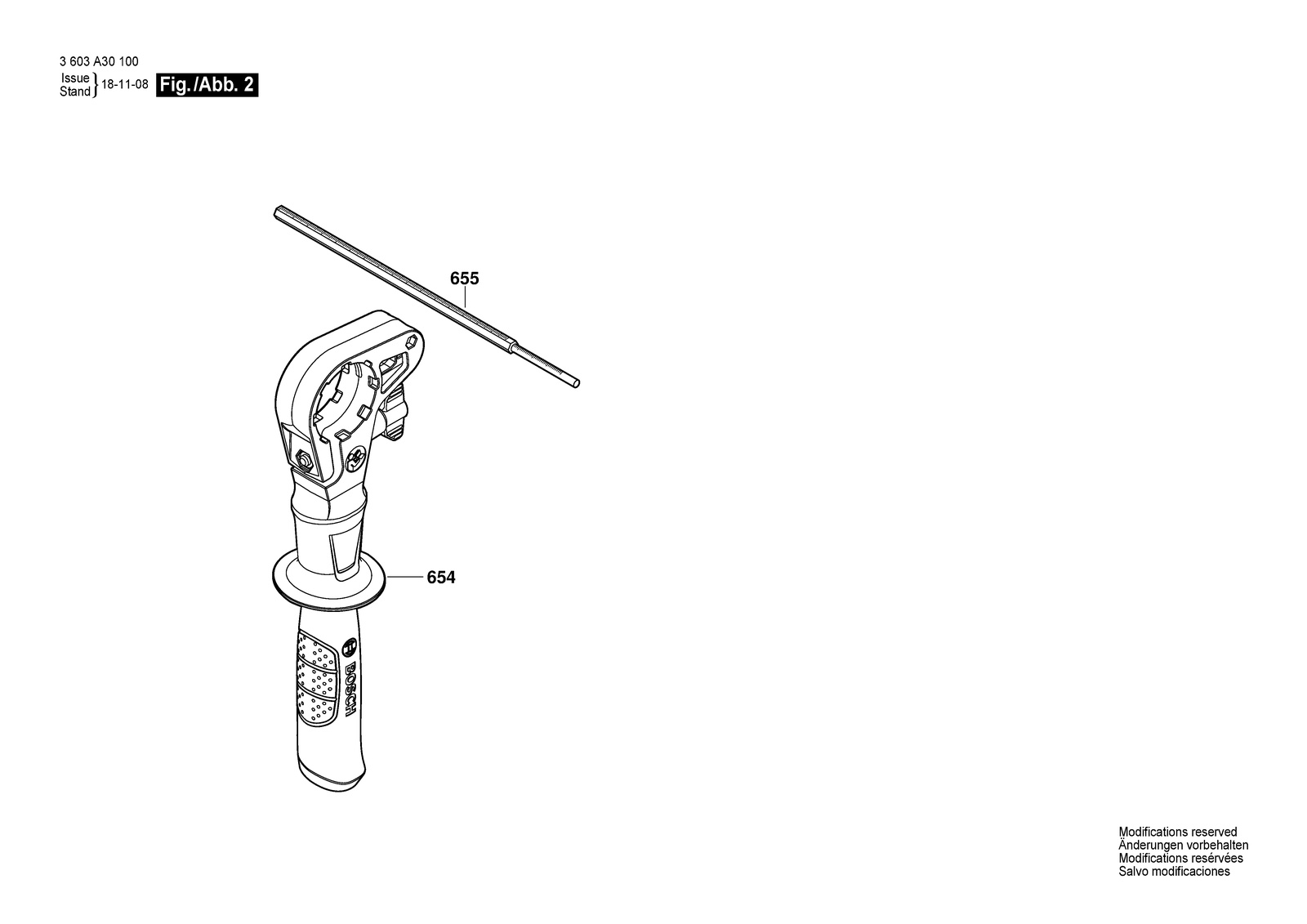

| 654 | 160202508W | Auxiliary Handle |
| 655 | 2609005615 | Depth-Gauge |
| 805 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 808 | 160111A4Z5 | Nameplate |
| 808 | 160111A4Z6 | Nameplate |
| 808 | 160111A4Z7 | Nameplate |
| 808 | 160111A4Z8 | Nameplate |
| 810 | 2609003994 | Carbon-Brush Set 220-240V |
| 836 | 1600A00ZX9 | Drilling Spindle |
| 9 | 160111A37M | Manufacturer's nameplate |
