Bosch EasyImpact 18V-38 cordless impact drill: exploded parts diagram, 3 sheets, 38 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch EasyImpact 18V-38: 38 positions on 3 sheets

Bosch EasyImpact 18V-38 parts list (3 sheets)

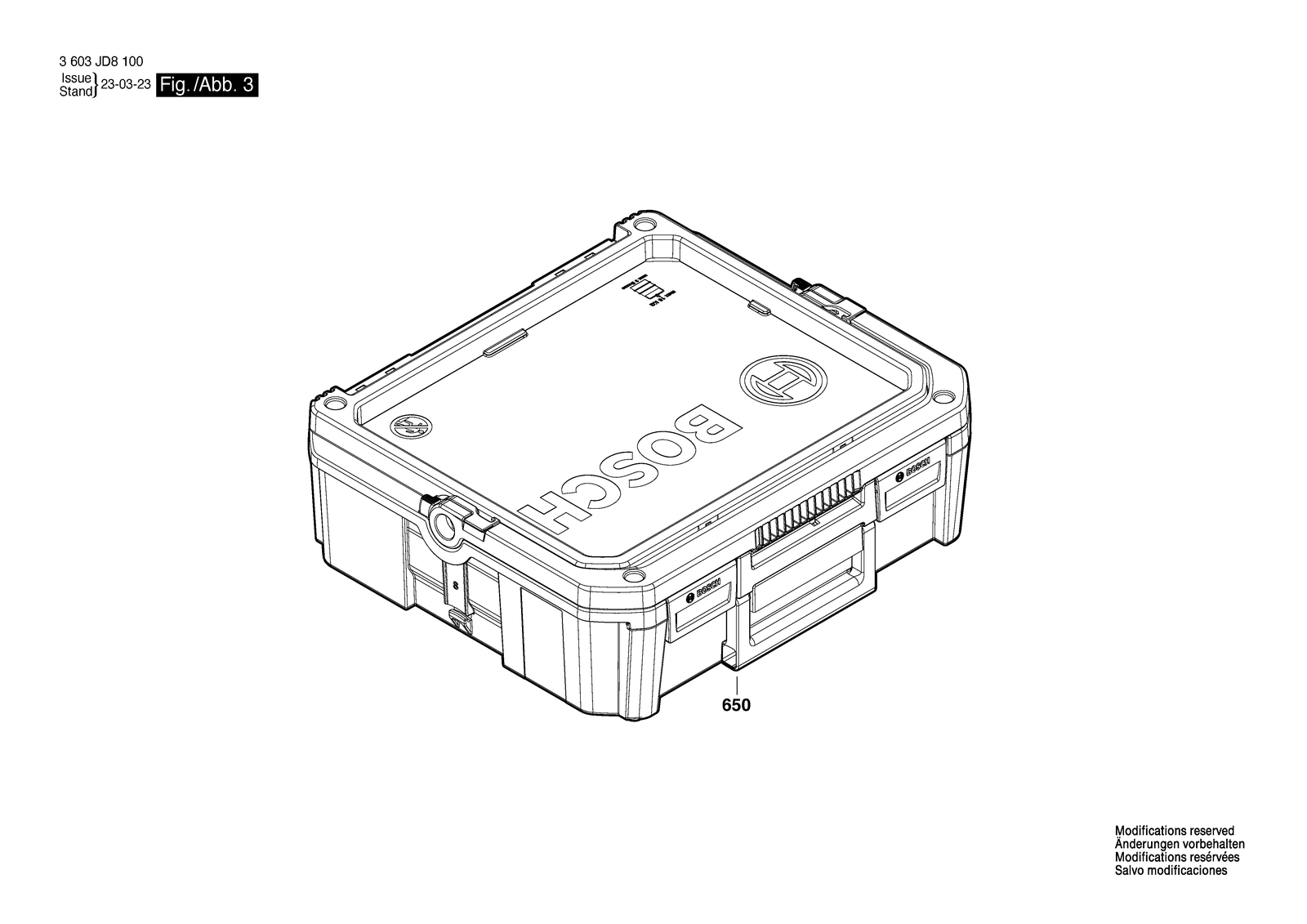

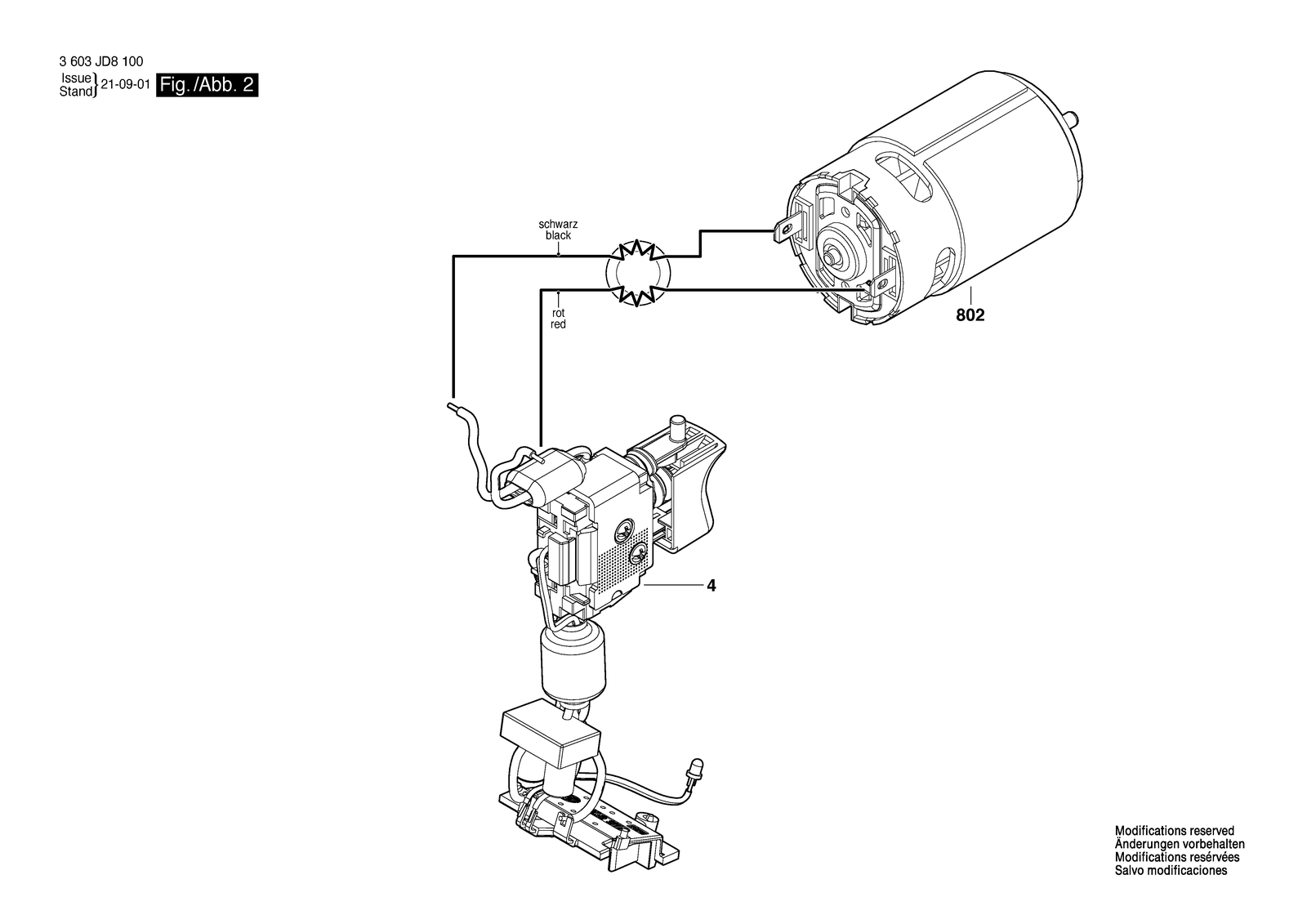

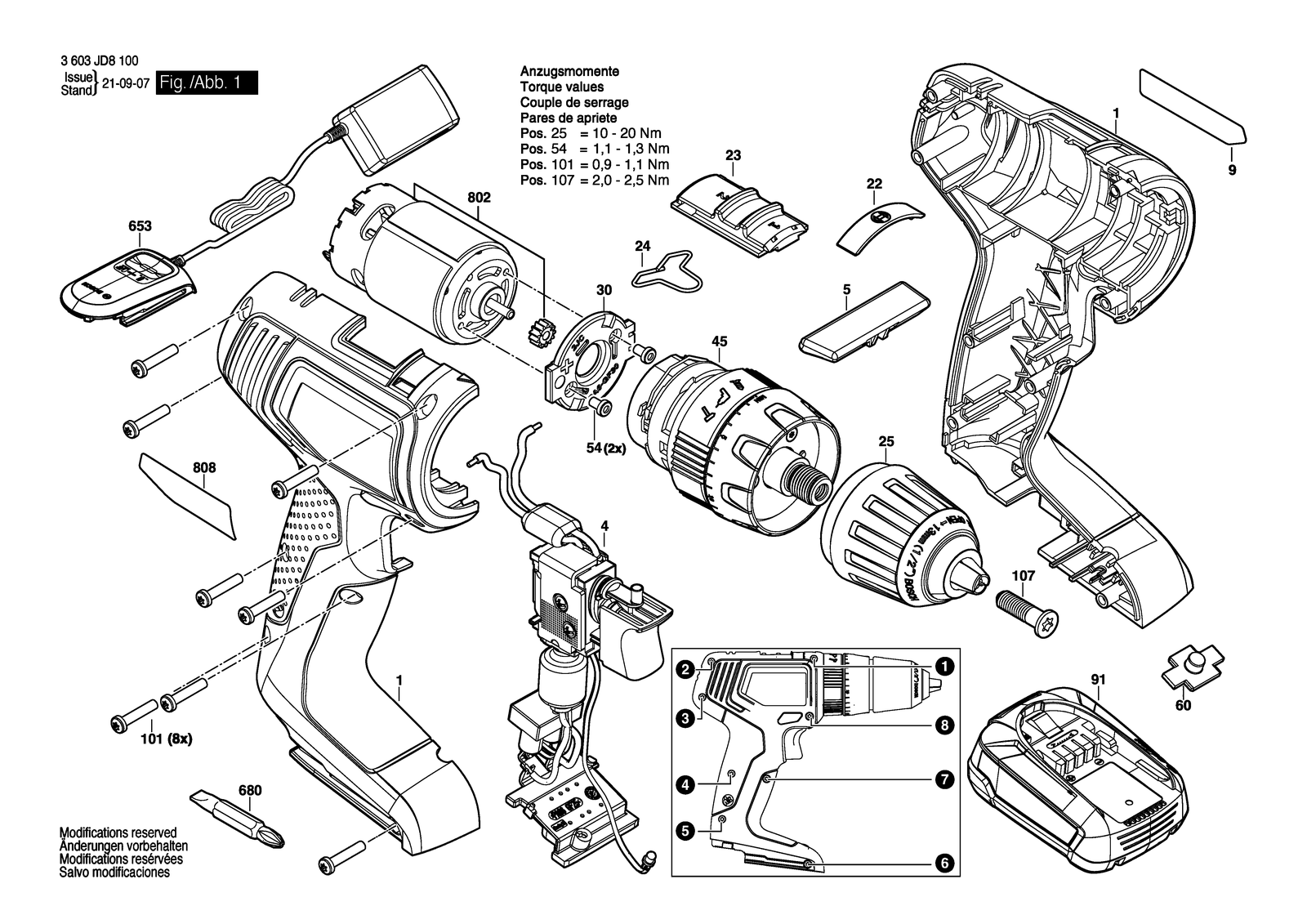

Bosch EasyImpact 18V-38 parts diagram, sheet 1Bosch EasyImpact 18V-38 parts diagram, sheet 2Bosch EasyImpact 18V-38 parts diagram, sheet 3
No.Part numberPart name
11605806699Housing
116058066HMHousing
1012609110201Torx Flat-Head Screw 3X16
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
221600A01AS2Symbol plate
231600A021Z3Switch Slide
242609004496Spring
252609006213Keyless Chuck
252609112190Keyless Chuck
301600A022JCFlange
42607202525Switch Assembly
451600A025MCPlanetary Gear Train
451600A02A03Planetary Gear Train
52609004264Lever
542603414048Torx SH cap screw M3X5-8.8-Z
601600A022JDLens
6501600A013NMCarrying Case
6531617S021T5Charger AL 18V-20 JPN 100V
6532607226385Fast Charger EU AL 1810 CV 230/14,4-18V 1A
6532607226389Fast Charger Aus AL1810CV
6532607226393Fast Charger Rok AL 1810 CV 230V/14.4-18V
6532607226517Charger EU AL 18V-20 230V 2A
6532607226519Charger UK AL 18V-20 230V 2A
6532607226593Charger Aus AL 18V-20 220-240V 2A
6802609160063Screwdriver Bit
8021607000EU1DC motor
808160111A910Nameplate
808160111A9P6Nameplate
808160111AA4YNameplate
808160111AA8ENameplate
9160111C4D6Manufacturer's nameplate Easyimpact 18V-40
9160111C5DZManufacturer's nameplate Easyimpact 18V-38
911607A350JMBattery Pack PBA 18V/1,5 Ah W-a
911607A350RPBattery Pack PBA 18V 2,0AH W-b
911607A350RSBattery Pack
911607A350RUBattery Pack PBA 18V 2,5AH W-b 45WH
911617S01Y8BBattery Pack
912607337211Battery Pack PBA 18V 2,0 Ah W-b
