Bosch EasyImpact 1200
Bosch EasyImpact 1200 cordless impact drill: exploded parts diagram, 2 sheets, 30 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

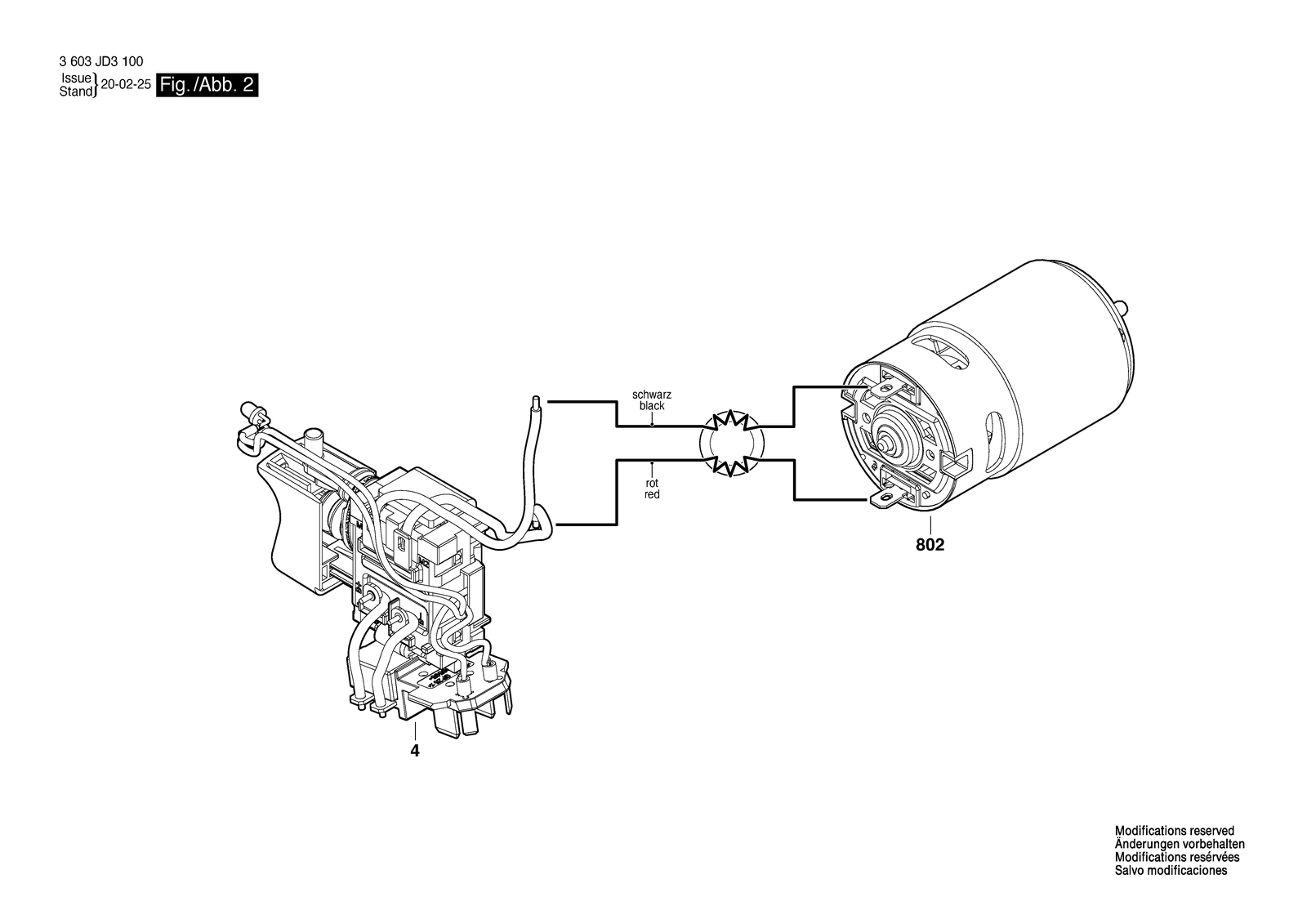

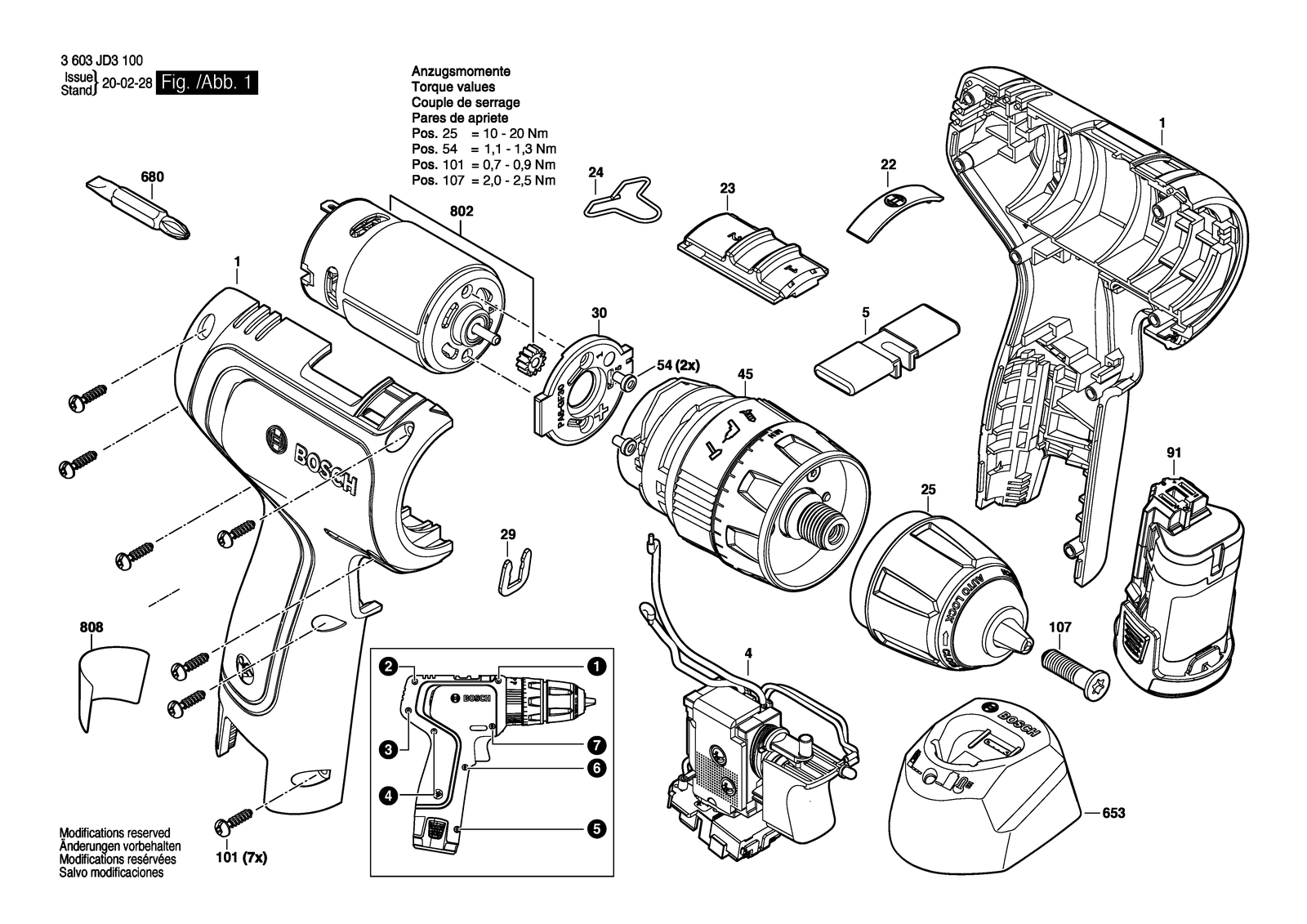

All parts of Bosch EasyImpact 1200: 30 positions on 2 sheets
Bosch EasyImpact 1200 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 16058065XW | Housing |
| 1 | 160580665J | Housing |
| 101 | 2609110538 | Screw |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 22 | 1600A01AS2 | Symbol plate |
| 23 | 1600A01RJ6 | Switch Slide |
| 23 | 1600A021Z3 | Switch Slide |
| 24 | 2609004496 | Spring |
| 25 | 2609006213 | Keyless Chuck |
| 29 | 2609110838 | Clip |
| 30 | 1600A01RP5 | Flange |
| 4 | 2607202517 | Switch assembly |
| 4 | 2607202528 | Switch assembly |
| 45 | 1600A01RS1 | Planetary Gear Train |
| 45 | 1600A021Z9 | Planetary Gear Train |
| 5 | 1600A01YS0 | Change-Over Switch |
| 5 | 1600A021YR | Change-Over Switch |
| 54 | 2603414048 | Torx SH cap screw M3X5-8.8-Z |
| 653 | 1600A00HR1 | Fast Charger EU GAL 1210 CV 230/12V 1A |
| 653 | 1600A00HR3 | Fast Charger Gb GAL 1210 CV 230/12V 1A |
| 653 | 2607226197 | Fast Charger J GAL 12V-20 100/3,6-12V 2A |
| 653 | 2607226199 | Fast Charger Kr GAL 12V-20 / 220V / 2A |
| 680 | 2609160063 | Screwdriver Bit |
| 802 | 160702268M | DC motor |
| 808 | 160111A7E5 | Nameplate |
| 808 | 160111A81Z | Nameplate |
| 808 | 160111A8F7 | Nameplate |
| 91 | 1607A3503R | Battery Pack PBA 10,8V 2 Ah O-a LI |
| 91 | 1607A3515X | Battery Pack |
| 91 | 2607337023 | Battery Pack PBA 10,8V 2,0AH O-b |
