Bosch EasyImpact 12

Bosch EasyImpact 12 cordless impact drill: exploded parts diagram, 1 sheet, 23 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch EasyImpact 12: 23 positions on 1 sheet

Bosch EasyImpact 12 parts list (1 sheet)

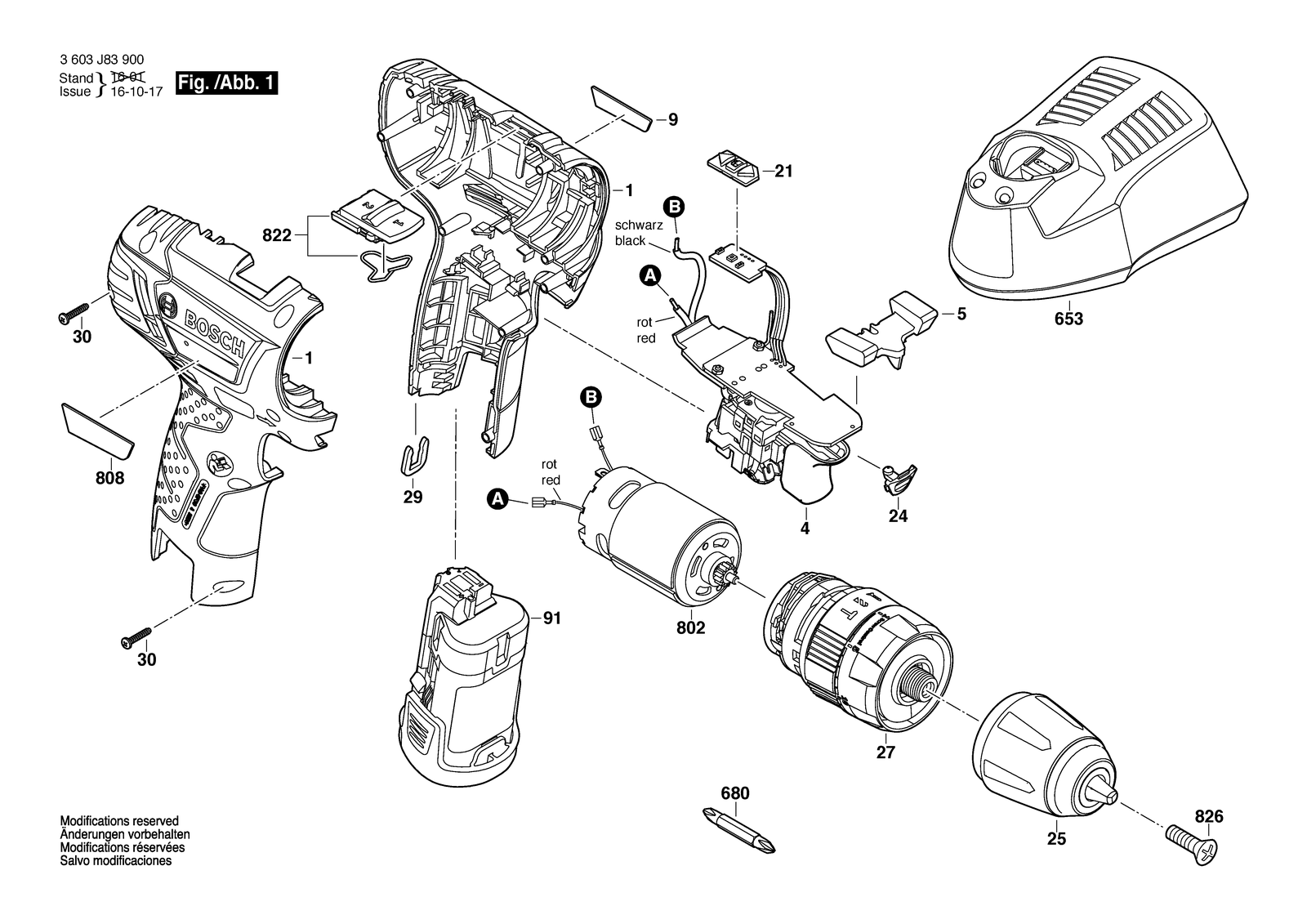

Bosch EasyImpact 12 parts diagram, sheet 1
No.Part numberPart name
12609004490Housing Green
212609002864Lens
242609004497Lens
252609006213Keyless Chuck
272609006214Gear Box
292609004706Clip
302609003106Torx Oval-Head Screw
41607233537Electronic Module
52609007021Changeover Lever
6532607225135Fast Charger UK AL1130CV 230V/12V/3A
6532607225515Fast Charger Gb AL 1115 CV 230/3,6-12V, 1H
6532607226187Fast Charger EU GAL 12V-20 230/3,6-12V 2A
6532607226191Fast Charger Aus GAL 12V-20 240/3,6-12V 2A
6532607226219Fast Charger EU GAL 12V-40
6802609160063Screwdriver Bit
8022609006657DC motor
808160111A2D6Nameplate
8082609006523Nameplate
8221600A00R9ESwitchover Unit
8262603421229Countersunk-Head Screw Lefthand Threads M6X23
9160111C1SVManufacturer's nameplate Easyimpact 12
92609006522Manufacturer's nameplate PSM 10,8 LI-2
911607A3515XBattery Pack
