Bosch EasyHedgeCut 50

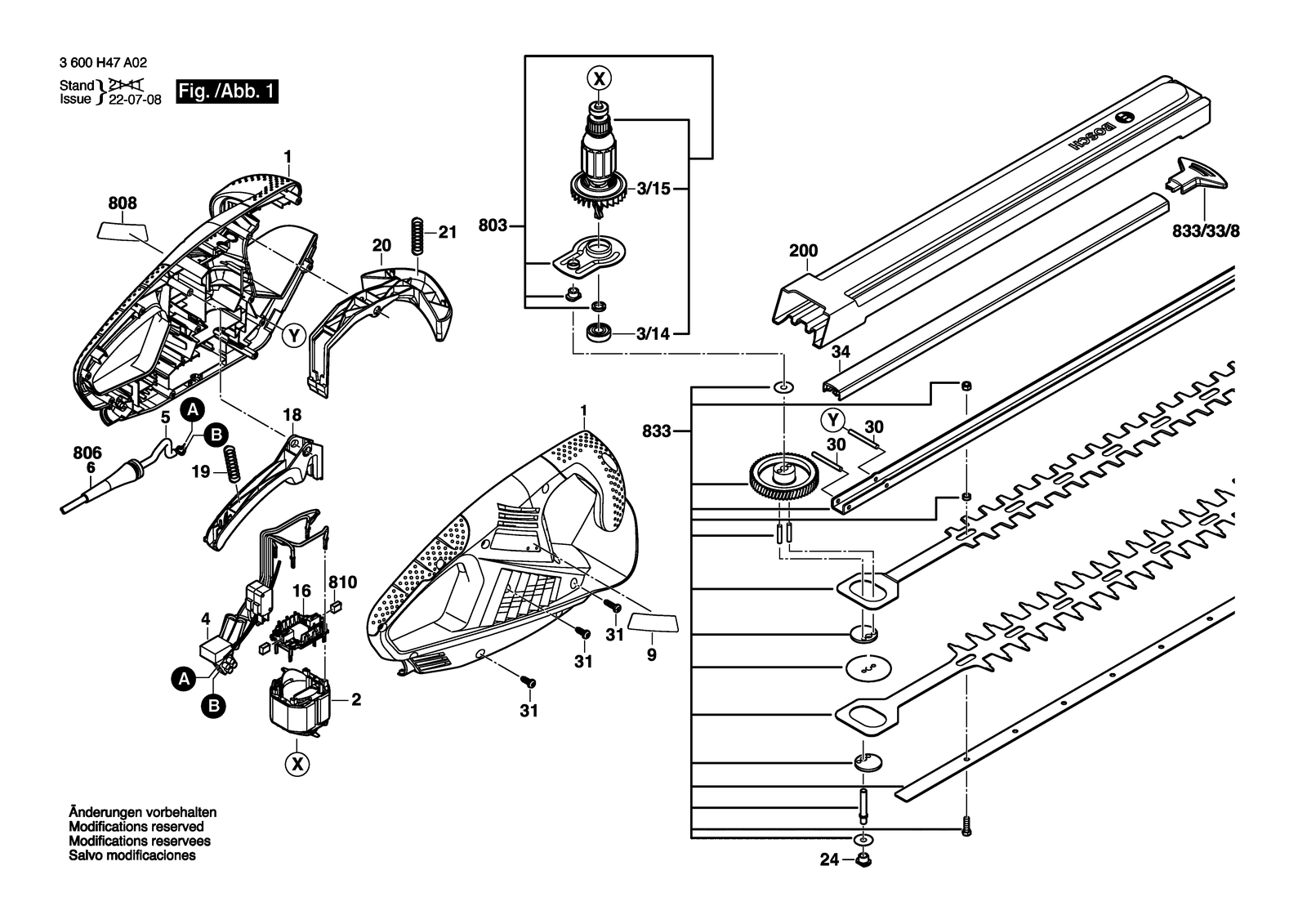

Bosch EasyHedgeCut 50 hedge trimmer: exploded parts diagram, 1 sheet, 90 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch EasyHedgeCut 50: 90 positions on 1 sheet
Bosch EasyHedgeCut 50 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 160580667J | Housing |
| 1 | 160580667J | Housing |
| 1 | 160580667J | Housing |
| 16 | 1619X06502 | Brush Holder |
| 16 | 2609004214 | Brush Holder |
| 16 | 2609004214 | Brush Holder |
| 16 | 2609004214 | Brush Holder |
| 18 | 2609004011 | Switch Segment |
| 18 | 2609004011 | Switch Segment |
| 18 | 2609004011 | Switch Segment |
| 19 | 2604610028 | Compression Spring |
| 19 | 2604610028 | Compression Spring |
| 19 | 2604610028 | Compression Spring |
| 2 | 2609004030 | Field 220-240V |
| 2 | 2609007839 | Field |
| 2 | 2609004030 | Field 220-240V |
| 2 | 2609004030 | Field 220-240V |
| 20 | 2609005919 | Switch Segment |
| 20 | 2609005919 | Switch Segment |
| 20 | 2609005919 | Switch Segment |
| 200 | 1600A02472 | Knife Guard |
| 200 | 1600A02473 | Knife Guard |
| 200 | 1600A02474 | Knife Guard |
| 21 | 2604610028 | Compression Spring |
| 21 | 2604610028 | Compression Spring |
| 21 | 2604610028 | Compression Spring |
| 24 | 2609004018 | Bushing |
| 24 | 2609004018 | Bushing |
| 24 | 2609004018 | Bushing |
| 3/14 | 2600905072 | Groove ball bearing 7X19X6 |
| 3/14 | 2600905072 | Groove ball bearing 7X19X6 |
| 3/14 | 2600905072 | Groove ball bearing 7X19X6 |
| 3/15 | 2609001188 | Fan |
| 3/15 | 2609001188 | Fan |
| 3/15 | 2609001188 | Fan |
| 30 | 2609002714 | Straight Pin |
| 30 | 2609002714 | Straight Pin |
| 30 | 2609002714 | Straight Pin |
| 31 | 2603490022 | Screw 4X16 |
| 31 | 2603490022 | Screw 4X16 |
| 31 | 2603490022 | Screw 4X16 |
| 34 | 1600A023U4 | Cover 45 CM |
| 34 | 1600A023U5 | Cover 50 CM |
| 34 | 1600A023U6 | Cover 55 CM |
| 4 | 2609005219 | Cable Wiring Set |
| 4 | 2609005219 | Cable Wiring Set |
| 4 | 2609005219 | Cable Wiring Set |
| 5 | 1600A02A21 | Power supply cord GB 230 0,4M 2X1,0MM H05 Vv-F |
| 5 | 1604460437 | Power supply cord CH 0,4M 2 X 1,0MM H05 Vv-F |
| 5 | 160446075Y | Power supply cord J 0,4M 2X0,75MM Vctf |
| 5 | 2604460182 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 1600A02A21 | Power supply cord GB 230 0,4M 2X1,0MM H05 Vv-F |
| 5 | 2604460182 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 1600A02A21 | Power supply cord GB 230 0,4M 2X1,0MM H05 Vv-F |
| 5 | 2604460182 | Power supply cord EU 0,46M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460256 | Power supply cord AUS 0,40M 2 X 1,00MM H05 Vv-F |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 803 | 1607000CU9 | Armature |
| 803 | 2609004699 | Armature 220-240V |
| 803 | 2609004699 | Armature 220-240V |
| 803 | 2609004699 | Armature 220-240V |
| 806 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 806 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 806 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 808 | 160111A8E5 | Nameplate |
| 808 | 160111A8E6 | Nameplate |
| 808 | 160111A8E7 | Nameplate |
| 808 | 160111A8HU | Nameplate |
| 808 | 160111A8HV | Nameplate |
| 808 | 160111A8J5 | Nameplate |
| 808 | 160111A8E8 | Nameplate |
| 808 | 160111A8E9 | Nameplate |
| 808 | 160111A8EA | Nameplate |
| 808 | 160111A8EB | Nameplate |
| 808 | 160111A8EC | Nameplate |
| 810 | 2609005200 | Carbon-Brush Set |
| 810 | 2609005200 | Carbon-Brush Set |
| 810 | 2609005200 | Carbon-Brush Set |
| 833 | 1607000EE9 | Blade 45 CM |
| 833 | 1607000EF1 | Blade 50 CM |
| 833 | 1607000EF0 | Blade 55 CM |
| 833/33/8 | 1600A023E4 | Protector |
| 833/33/8 | 1600A023E4 | Protector |
| 833/33/8 | 1600A023E4 | Protector |
| 9 | 160111C423 | Manufacturer's nameplate Easyhedgecut 45 |
| 9 | 160111C48V | Manufacturer's nameplate Easyhedgecut 46 |
| 9 | 160111C424 | Manufacturer's nameplate Easyhedgecut 50 |
| 9 | 160111C425 | Manufacturer's nameplate Easyhedgecut 55 |
