Bosch EasyHedgeCut 18-45

Bosch EasyHedgeCut 18-45 hedge trimmer: exploded parts diagram, 1 sheet, 31 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch EasyHedgeCut 18-45: 31 positions on 1 sheet

Bosch EasyHedgeCut 18-45 parts list (1 sheet)

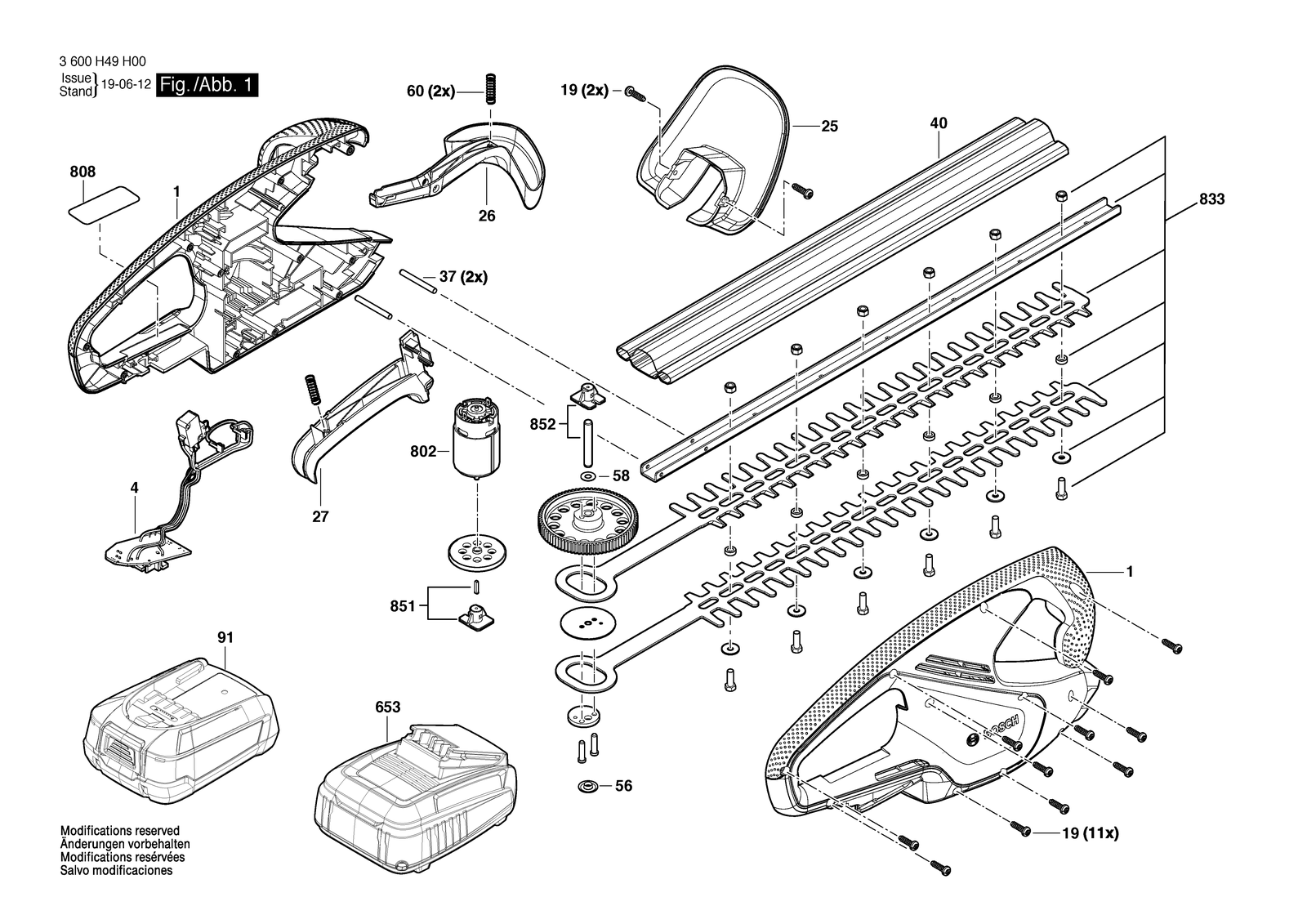

Bosch EasyHedgeCut 18-45 parts diagram, sheet 1
No.Part numberPart name
116051082K2Housing Section
1160580667UHousing
192603490022Screw 4X16
252609006151Protective Shield
261600A01CG8Switch Segment
262609006152Switch Segment
271600A01CG9Switch Segment
272609006153Switch Segment
372609002714Straight Pin
41600A01BW9Electronic Module
402609006163Knife Guard
562609006721Spacer Tube
582600100040Shim
602604610028Compression Spring
6532607225965Fast Charger EU AL 1830 CV 230/14,4-18V 1H
6532607225967Charger Gb AL 1830 CV 230/14,4-18V 1H
6532607225969Charger Aus AL 1830 CV 230/14,4-18V 1H
6532607226081Charger Aus AL 1815 CV 240/14,4-18V 3H
6532607226385Fast Charger EU AL 1810 CV 230/14,4-18V 1A
6532607226387Fast Charger Gb AL 1810 CV 230/14,4-18V 1A
6532607226389Fast Charger Aus AL1810CV
6532607226517Charger EU AL 18V-20 230V 2A
8022609006402DC motor
808160111A6M9Nameplate
808160111A9RYNameplate
8332609006403Set of knives
8512609006400Support Pin
8522609006401Axle
911607A350RPBattery Pack PBA 18V 2,0AH W-b
911607A351C3Battery Pack
912607337211Battery Pack PBA 18V 2,0 Ah W-b
