Bosch EasyGrassCut 23
Bosch EasyGrassCut 23 lawn edge trimmer: exploded parts diagram, 1 sheet, 14 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

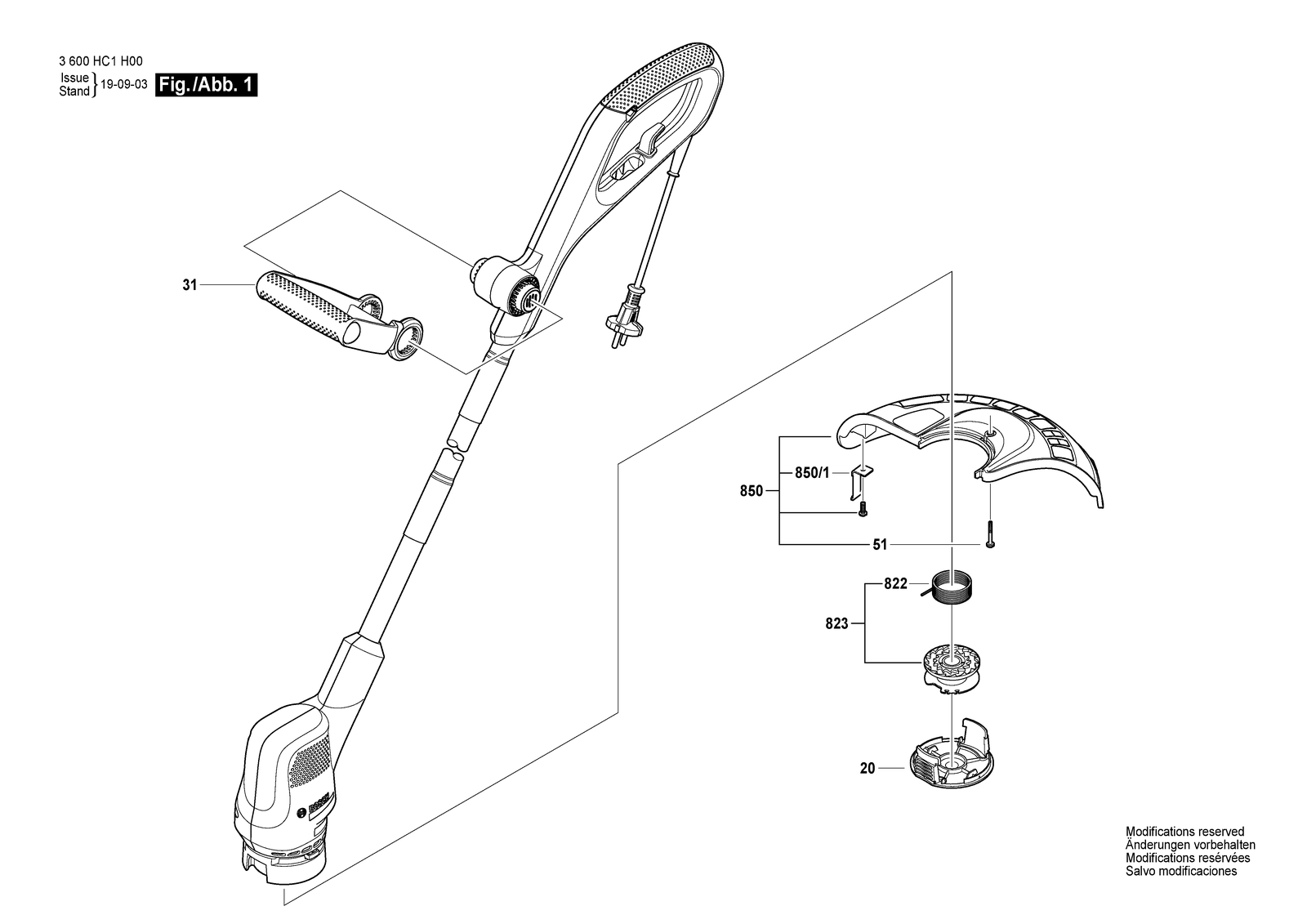

All parts of Bosch EasyGrassCut 23: 14 positions on 1 sheet
Bosch EasyGrassCut 23 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 20 | F016F05320 | Spool cover |
| 20 | F016F05320 | Spool cover |
| 31 | F016F05321 | Auxiliary Handle |
| 31 | F016F05321 | Auxiliary Handle |
| 51 | F016F05332 | Screw |
| 51 | F016F05332 | Screw |
| 822 | F016F05340 | Plastic Cable |
| 822 | F016F05340 | Plastic Cable |
| 823 | F016F05341 | Cutting line cartridge |
| 823 | F016F05341 | Cutting line cartridge |
| 850 | F016F05344 | Protective Guard |
| 850 | F016F05345 | Protective Guard |
| 850/1 | F016F05566 | Blade |
| 850/1 | F016F05566 | Blade |
