Bosch EasyGrassCut 18-230

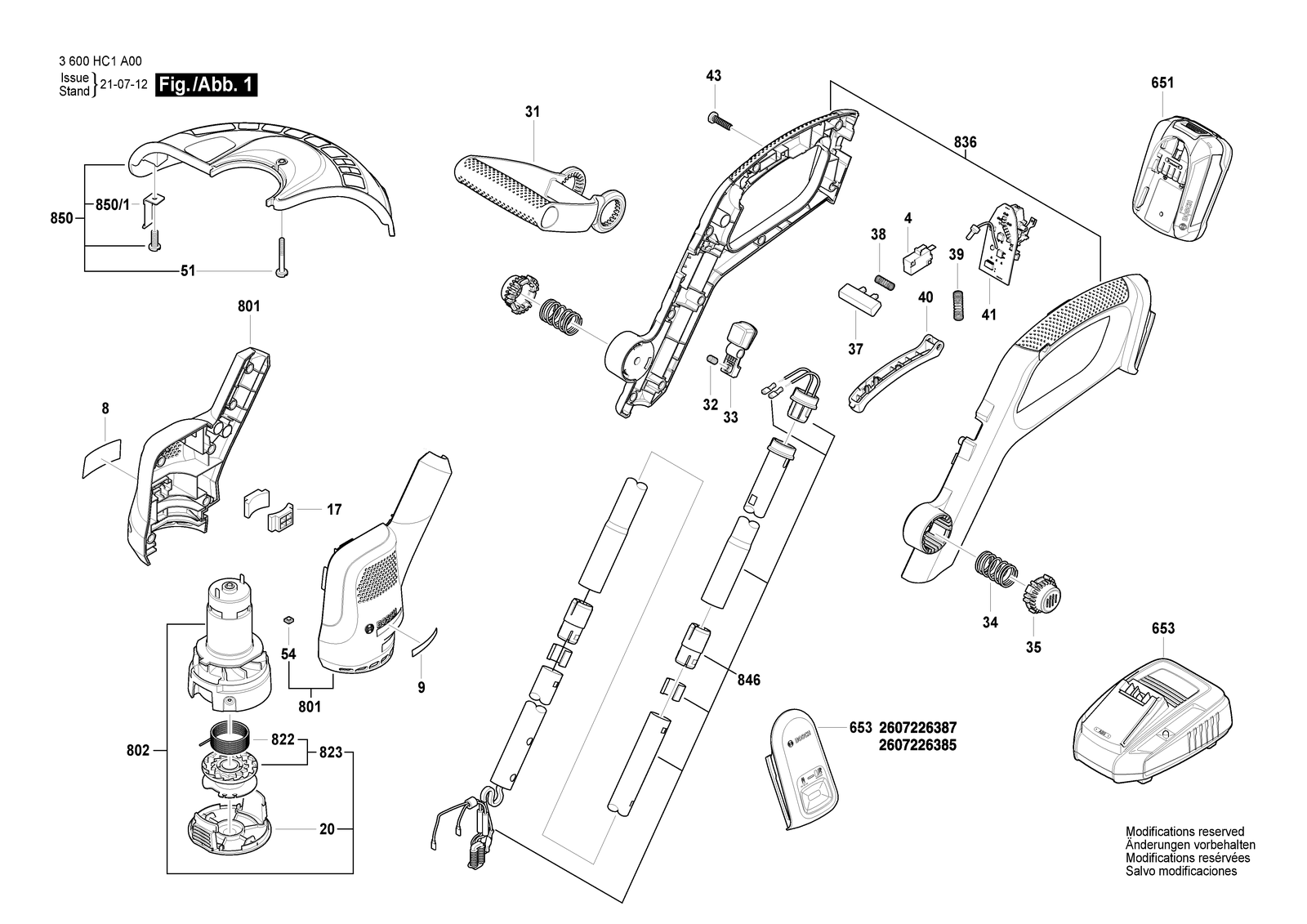

Bosch EasyGrassCut 18-230 lawn edge trimmer: exploded parts diagram, 1 sheet, 63 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch EasyGrassCut 18-230: 63 positions on 1 sheet
Bosch EasyGrassCut 18-230 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 17 | F016F05319 | Rubber Pad |
| 17 | F016F05319 | Rubber Pad |
| 20 | F016F05320 | Spool cover |
| 20 | F016F05320 | Spool cover |
| 31 | F016F05321 | Auxiliary Handle |
| 31 | F016F05321 | Auxiliary Handle |
| 32 | F016F05322 | Spring |
| 32 | F016F05322 | Spring |
| 33 | F016F05323 | Button |
| 33 | F016F05323 | Button |
| 34 | F016F05324 | Button Spring |
| 34 | F016F05324 | Button Spring |
| 35 | F016F05325 | Button |
| 35 | F016F05325 | Button |
| 37 | F016F05326 | Button |
| 37 | F016F05326 | Button |
| 38 | F016F05327 | Spring |
| 38 | F016F05327 | Spring |
| 39 | F016F05328 | Spring |
| 39 | F016F05328 | Spring |
| 4 | F016F05315 | Switch |
| 4 | F016F05315 | Switch |
| 40 | F016F05329 | Trigger |
| 40 | F016F05329 | Trigger |
| 41 | F016F05330 | Electronic Assembly |
| 41 | F016F05330 | Electronic Assembly |
| 43 | F016F05331 | Screw |
| 43 | F016F05331 | Screw |
| 51 | F016F05332 | Screw |
| 51 | F016F05332 | Screw |
| 54 | F016F05317 | Square Nut |
| 54 | F016F05317 | Square Nut |
| 651 | 2607337211 | Battery Pack PBA 18V 2,0 Ah W-b |
| 651 | 1607A350RU | Battery Pack PBA 18V 2,5AH W-b 45WH |
| 651 | 2607337201 | Battery Pack PBA 2,5AH W-b J |
| 653 | 2607225967 | Charger Gb AL 1830 CV 230/14,4-18V 1H |
| 653 | 2607226517 | Charger EU AL 18V-20 230V 2A |
| 653 | 2607225965 | Fast Charger EU AL 1830 CV 230/14,4-18V 1H |
| 653 | 2607225967 | Charger Gb AL 1830 CV 230/14,4-18V 1H |
| 653 | 2607225975 | Fast Charger J AL 1830 CV 100/14,4-18V 1H |
| 8 | F016F05335 | Nameplate |
| 8 | F016F05336 | Nameplate |
| 8 | F016F05337 | Nameplate |
| 8 | F016F05338 | Nameplate |
| 8 | F016F05339 | Nameplate |
| 801 | F016F05333 | Motor Housing |
| 801 | F016F05333 | Motor Housing |
| 802 | F016F05334 | Motor assembly |
| 802 | F016F05334 | Motor assembly |
| 822 | F016F05340 | Plastic Cable |
| 822 | F016F05340 | Plastic Cable |
| 823 | F016F05341 | Cutting line cartridge |
| 823 | F016F05341 | Cutting line cartridge |
| 836 | F016F05342 | Handle |
| 836 | F016F05342 | Handle |
| 846 | F016F05343 | Pipe Frame |
| 846 | F016F05343 | Pipe Frame |
| 850 | F016F05570 | Protective Guard |
| 850 | F016F05571 | Protective Guard |
| 850/1 | F016F05569 | Blade |
| 850/1 | F016F05569 | Blade |
| 9 | F016F05316 | Manufacturer's nameplate |
| 9 | F016F05316 | Manufacturer's nameplate |
